Product Overview

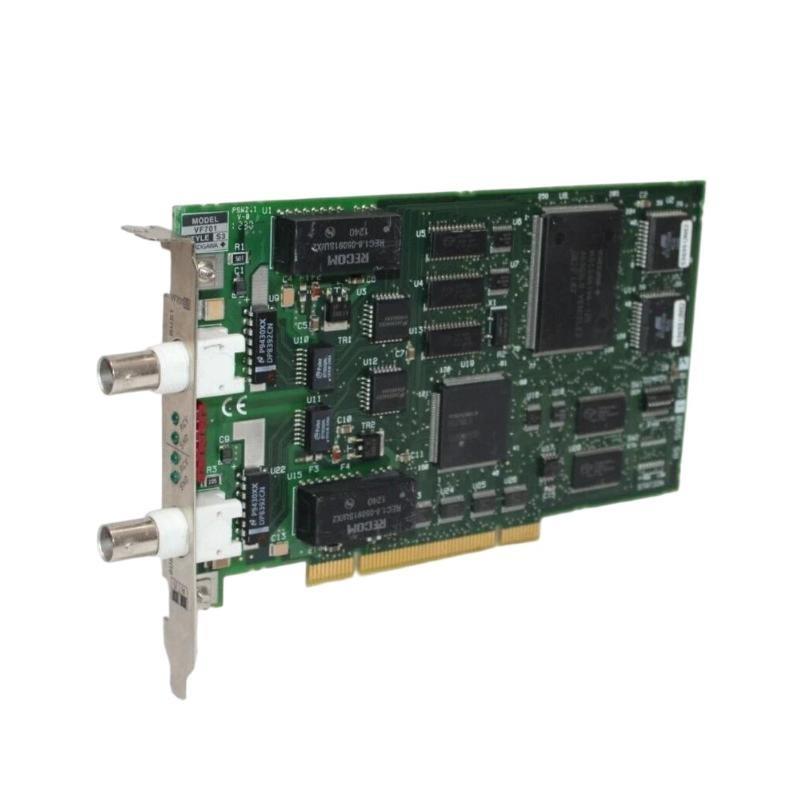

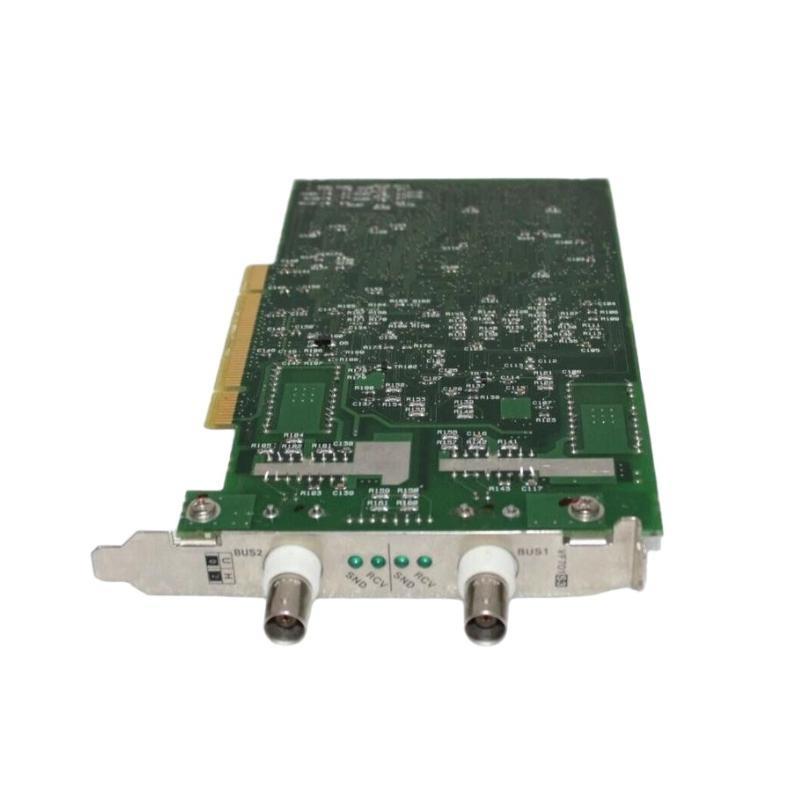

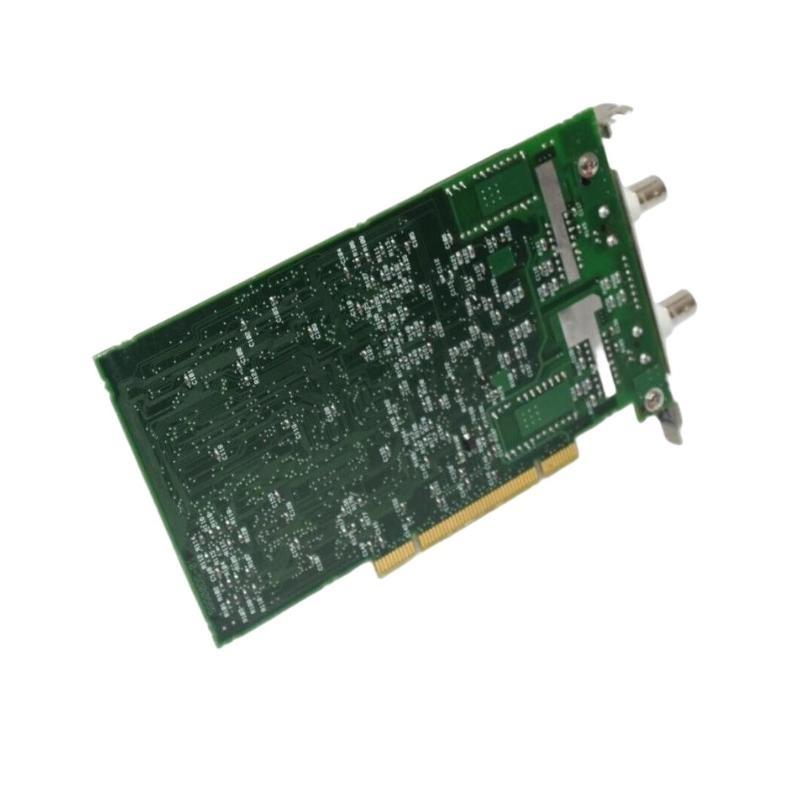

The Yokogawa VF701 S2 Vnet/IP Interface Card is a high-performance communication interface module designed for seamless integration with Yokogawa CENTUM VP and other Yokogawa distributed control systems (DCS). This interface card facilitates high-speed, reliable communication over the Vnet/IP network, enabling real-time data exchange between field devices, controllers, and other system components.
Key Features
-
Vnet/IP Communication – Supports Vnet/IP communication for high-speed and reliable data exchange.
-
System Compatibility – Compatible with Yokogawa CENTUM VP and other Yokogawa systems.
-
Real-time Data Transfer – Enables high-speed, real-time data communication.
-
Seamless Integration – Easy integration with Yokogawa DCS and field devices.
-
Compact Design – Space-efficient design for straightforward installation.
-
Enhanced Operational Efficiency – Improves communication reliability and reduces downtime in industrial automation systems.
Technical Specifications
| Item | Specification |
|---|---|
| Modell Number | VF701 S2 |
| Module Type | Vnet/IP Interface Card |
| System Compatibility | Yokogawa CENTUM VP, Yokogawa DCS |
| Communication Protocol | Vnet/IP |
| Data Transfer Speed | High-speed, system dependent |
| Mounting | PCI/PCIe slot (depending on version) |
| Dimensions | 180.97 x 21.59 x 126.31 mm |
| Gewicht | 0.18 kg |
| Operating Temperature | 0 °C to 60 °C |
| Storage Temperature | -20 °C to 70 °C |
| Humidity | 10% to 90% RH, non-condensing |
Industry Applications
-
Industrial Automation – Facilitates high-speed communication in automated control systems.
-
Power Generation – Real-time data exchange for turbines, generators, and auxiliary systems.
-
Oil & Gas – Enables stable and reliable data communication in upstream and downstream processes.
-
Chemical & Petrochemical – Ensures continuous communication in process control systems.
-
Water Treatment – Supports integration von field devices for water treatment and distribution systems.
Advantages
-
Real-Time Communication – Supports high-speed, real-time data communication over Vnet/IP.
-
Seamless Integration – Easily integrates with Yokogawa CENTUM VP and other DCS systems for efficient operations.
-
Enhanced Network Performance – Improves the performance and reliability von communication networks in industrial applications.
-
Compact and Flexible – Compact form factor ensures easy installation in control panels or existing systems.
-
Durable Design – Built to withstand the harsh conditions von industrial environments, ensuring longevity and stable performance.
Häufig gestellte Fragen (FAQ)
Q1: What is the main function von the VF701 S2 Interface Card?
It provides a high-speed, reliable communication interface between Yokogawa systems and field devices via Vnet/IP.
Q2: Which systems is the VF701 S2 compatible with?
It is compatible with Yokogawa CENTUM VP and other Yokogawa DCS systems.
Q3: What communication protocol does the VF701 S2 use?
The module uses the Vnet/IP communication protocol for data transfer.
Q4: How is the VF701 S2 mounted?
The interface card is typically mounted in a PCI/PCIe slot.
Q5: What is the operating temperature range for the VF701 S2?
The module operates in the range von 0 °C to 60 °C.
Q6: What is the data transfer speed von the VF701 S2?
It supports high-speed data transfer, with speed dependent on the system configuration.
Q7: Can the VF701 S2 be used in harsh industrial environments?
Yes, it is designed for reliable operation in demanding industrial conditions.
Q8: What is the weight von the VF701 S2?
The interface card weighs approximately 0.18 kg.
Q9: What are the module’s dimensions?
The dimensions von the VF701 S2 are 180.97 x 21.59 x 126.31 mm.
Q10: Is the VF701 S2 suitable for process control applications?
Yes, it is ideal for use in process control systems across various industries, including power generation and oil & gas.
