Produkteinführung

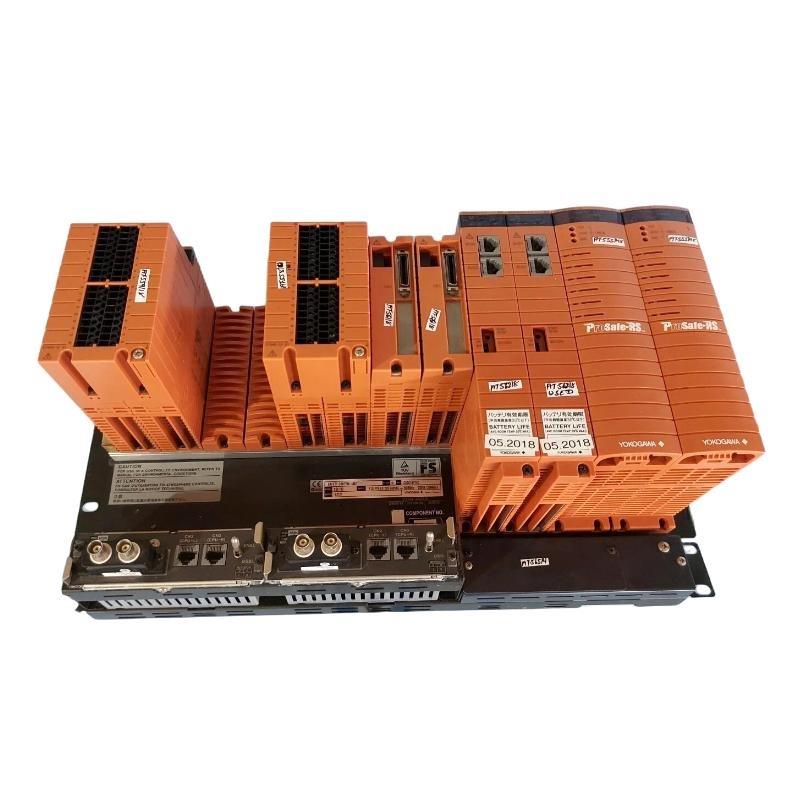

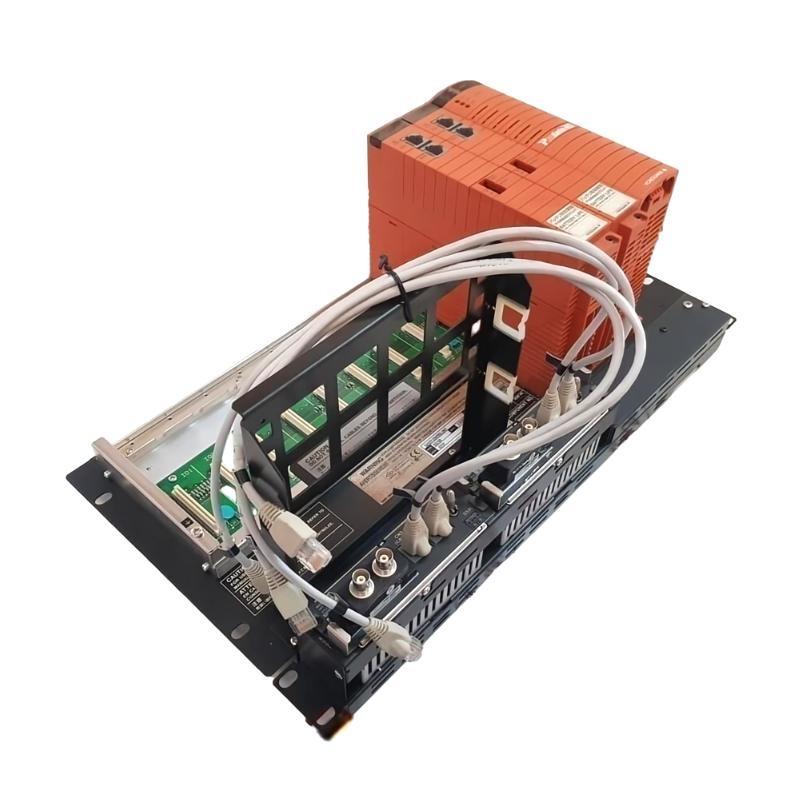

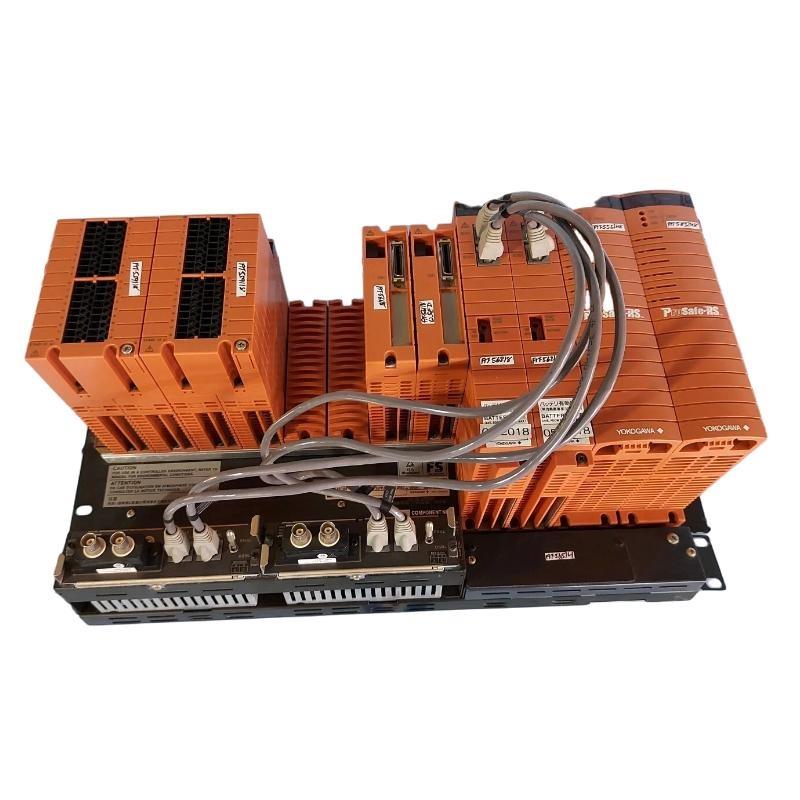

The Yokogawa SSC10D-S2111 Duplexed Safety Control Einheit is a high-integrity, fault-tolerant safety controller developed for use in Yokogawa’s ProSafe-RS Safety Instrumented System (SIS). Designed to meet the most stringent safety and reliability standards, the SSC10D-S2111 is responsible for executing safety logic, managing redundant safety I/O operations, and ensuring continuous plant operation even in the event von hardware or communication faults.
This controller integrates seamlessly with CENTUM VP and other Yokogawa distributed control systems, forming a unified architecture for both process control and safety management. It employs a dual-redundant architecture, where two processors operate in parallel to continuously cross-check logic execution, guaranteeing safe operation even if one processor fails.
The SSC10D-S2111 provides superior diagnostics, self-checking mechanisms, and deterministic performance. It is widely used in industries where process safety, reliability, and availability are paramount — including oil & gas, petrochemical, power generation, and refining sectors.
Produktspezifikationen
| Parameter | Beschreibung |
|---|---|
| Product Name | Yokogawa SSC10D-S2111 Duplexed Safety Control Einheit |
| Hersteller | Yokogawa Electric Corporation |
| Product Type | Safety Control Processor (SIS Controller) |
| System Compatibility | ProSafe-RS Safety Instrumented System |
| Processor Configuration | Dual redundant (1oo2D architecture) |
| CPU Type | 32-bit RISC processor |
| Execution Cycle | Deterministic, configurable scan time 10–100 ms |
| Memory Capacity | 32 MB Flash, 64 MB RAM |
| Logic Handling | IEC 61131-3 compliant function block programming |
| Communication Interface | Safety communication bus (Vnet/IP), redundant Ethernet |
| Redundancy | Processor, power supply, communication, and I/O redundancy supported |
| Input/Output Capacity | Up to 4,000 safety I/O points (expandable) |
| Safety Integrity Level (SIL) | Certified for SIL3 according to IEC 61508 |
| Response Time | <50 ms typical for safety-critical logic |
| Power Supply Voltage | 24 VDC nominal (range 19.2–28.8 VDC) |
| Power Consumption | Approx. 25 W (dual module operation) |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -20°C to +70°C |
| Humidity | 10%–90% RH non-condensing |
| Diagnostics | Self-diagnosis, online test, watchdog timer, communication monitoring |
| Communication Protocols | Vnet/IP (redundant), Modbus TCP, Modbus RTU |
| Mounting Type | Rack-mounted (with baseplate) |
| Certifications | TÜV, ATEX, CE, CSA, UL, IECEx |
| Dimensions (W × H × D) | 482.6 x 266 x 88.1 mm |
| Gewicht | 13 kg |
| Maintenance | Hot-swap capable; online firmware upgrade |
| Programming Tool | SCS Logic Designer (part von ProSafe-RS environment) |
| Compliance Standards | IEC 61508, IEC 61511, EN 50156, ISO 13849-1 |
Product Applications
The SSC10D-S2111 Duplexed Safety Control Einheit is engineered to provide dependable safety control and process shutdown capabilities across various industries. Its duplex architecture ensures continuous plant protection and system integrity.
-
Oil & Gas Production – Used in emergency shutdown (ESD), fire and gas (F&G), and high-integrity pressure protection systems (HIPPS).
-
Petrochemical & Refining – Provides safe interlocks for critical equipment such as compressors, reactors, and furnaces.
-
Power Generation – Controls turbine overspeed protection, boiler safety, and auxiliary system monitoring.
-
Chemical Processing – Ensures safety interlocks, reactor pressure control, and hazardous gas containment.
-
Offshore Platforms – Manages safety shutdown and fire detection integration in vonfshore drilling and production facilities.
-
Pipeline Control Systems – Implements leak detection, isolation, and pressure control mechanisms.
The SSC10D-S2111 delivers precise and immediate response to hazardous conditions, ensuring personnel and equipment protection while maintaining operational continuity.
Product Advantages
-
High Safety Integrity (SIL3) – Meets IEC 61508 standards, guaranteeing reliable safety performance.
-
Duplexed Redundancy – Two processors operate in parallel (1oo2D), allowing fault tolerance without system interruption.
-
Unified Architecture – Integrates seamlessly with CENTUM VP for both control and safety, reducing engineering workload.
-
Online Maintenance – Modules can be replaced or updated while the system remains operational.
-
Advanced Diagnostics – Continuous health monitoring and self-diagnostics minimize unplanned shutdowns.
-
Flexible Configuration – Scalable to thousands von I/O points and adaptable to diverse plant structures.
-
Deterministic Performance – Real-time control and predictable execution cycle ensure precise safety logic operation.
-
Robust Communication – Dual-redundant Vnet/IP provides high-speed and reliable data transfer.
-
Low Lifecycle Cost – Modular design and reduced engineering complexity result in lower maintenance expenses.
-
Proven Field Reliability – Extensively deployed in critical safety systems worldwide.
FAQ
-
What safety standard does the SSC10D-S2111 comply with?
It complies with IEC 61508 and IEC 61511, certified for Safety Integrity Level 3 (SIL3). -
How does the duplex architecture function?
It uses a 1oo2D configuration where two processors run identical logic simultaneously and continuously compare results to ensure safe operation. -
Can the SSC10D-S2111 communicate with non-Yokogawa systems?
Yes, it supports open communication protocols such as Modbus TCP and Modbus RTU for integration with third-party systems. -
Does the controller support online svontware modification?
Yes, the system allows online configuration changes under controlled safety conditions. -
What happens if one CPU fails?
If one processor fails, the other continues operation seamlessly, maintaining full system functionality without interruption. -
Is redundancy available for communication networks?
Yes, the SSC10D-S2111 provides dual-redundant Vnet/IP communication to ensure continuous data transmission. -
What diagnostic features are included?
It features continuous self-check, watchdog timers, communication monitoring, and module-level fault detection. -
Can firmware be updated while in operation?
Yes, firmware updates can be performed online without system shutdown, depending on configuration. -
What is the typical response time for safety actions?
The controller executes safety logic within approximately 50 milliseconds. -
Is the SSC10D-S2111 compatible with ProSafe-RS configuration tools?
Yes, it is fully compatible with Yokogawa’s SCS Logic Designer and Safety Control Station (SCS) svontware environment.
Related Modells from the Same Series
| Modell | Beschreibung | Architecture | SIL Rating | Key Feature |
|---|---|---|---|---|
| SSC10D-S2110 | Standard Safety Control Einheit | Single | SIL3 | Compact single-processor configuration |
| SSC50D-S2211 | High-performance Duplex Safety Controller | Duplex | SIL3 | Enhanced I/O capacity |
| SSC60D-S3111 | Advanced Safety Processor | Duplex | SIL3 | Faster scan time and larger memory |
| SCS10D-S2111 | Safety Control Station | Duplex | SIL3 | Centralized logic execution |
| SSC30D-S1111 | Modular Safety Control Einheit | Duplex | SIL2 | Designed for small safety applications |
| SCC10D-S2011 | Communication Controller | Duplex | SIL3 | Redundant communication interface for SIS networks |
Popular Yokogawa Modells
| Modell | Product Type | System Compatibility | Key Feature |
|---|---|---|---|
| AAM50 | Analog Input Module | CENTUM VP | 16-bit precision signal processing |
| ADV151 | Digital Output Module | ProSafe-RS | Safety-rated discrete output channels |
| CP451-10 | Processor Module | CENTUM CS 3000 | Redundant control processor Stück |
| PDM104 | Power Supply Module | DCS / SIS | Dual redundant 24VDC supply system |
| SB401-10 | Communication Module | Field Control Einheit | High-speed Vnet/IP redundancy |
| AV55D | Digital Input Module | CENTUM VP | 32-channel high-density input capability |
