Product Overview

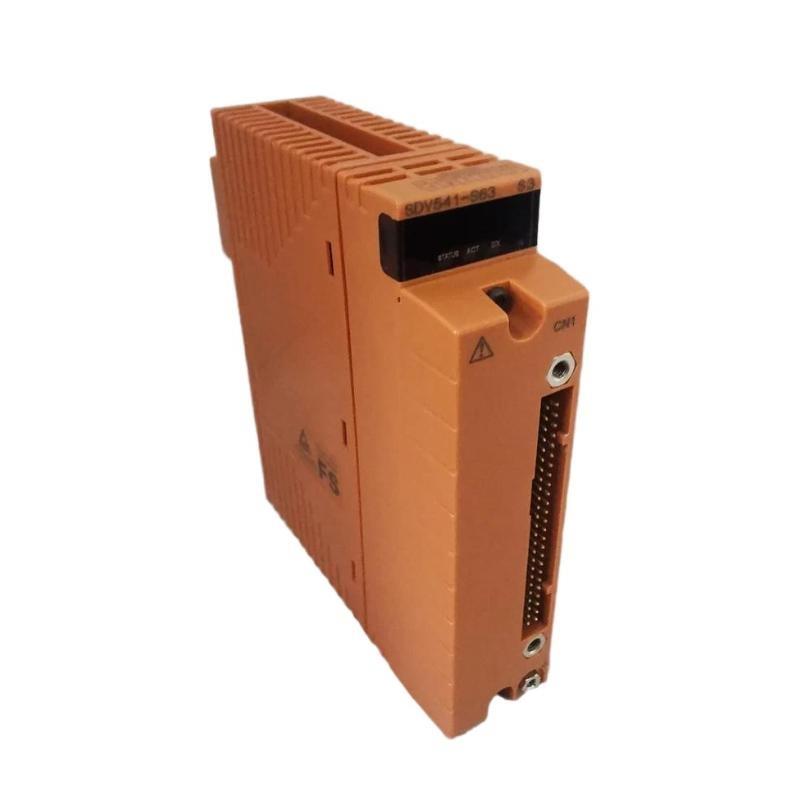

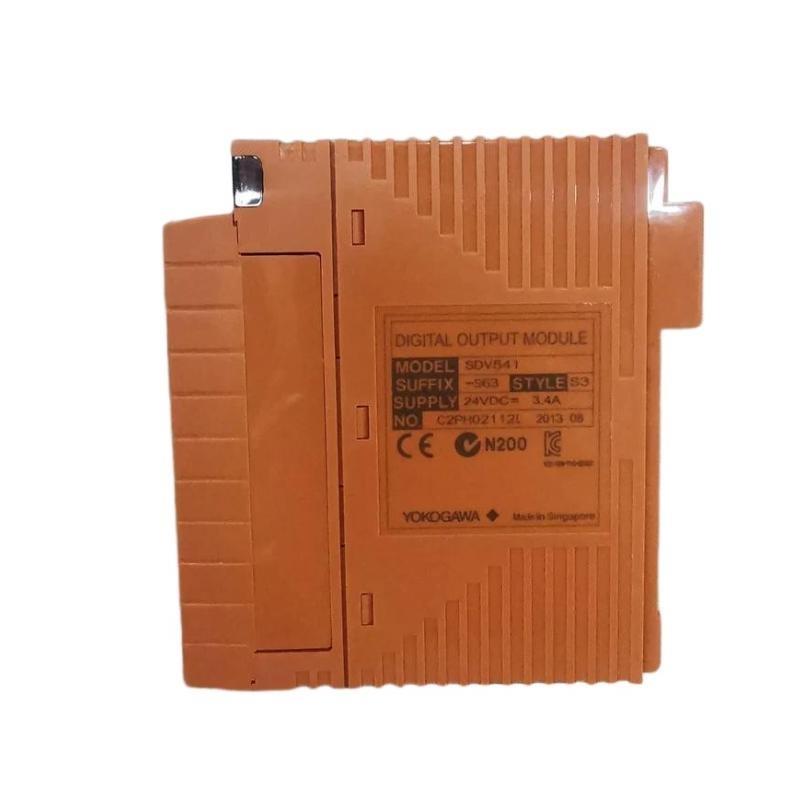

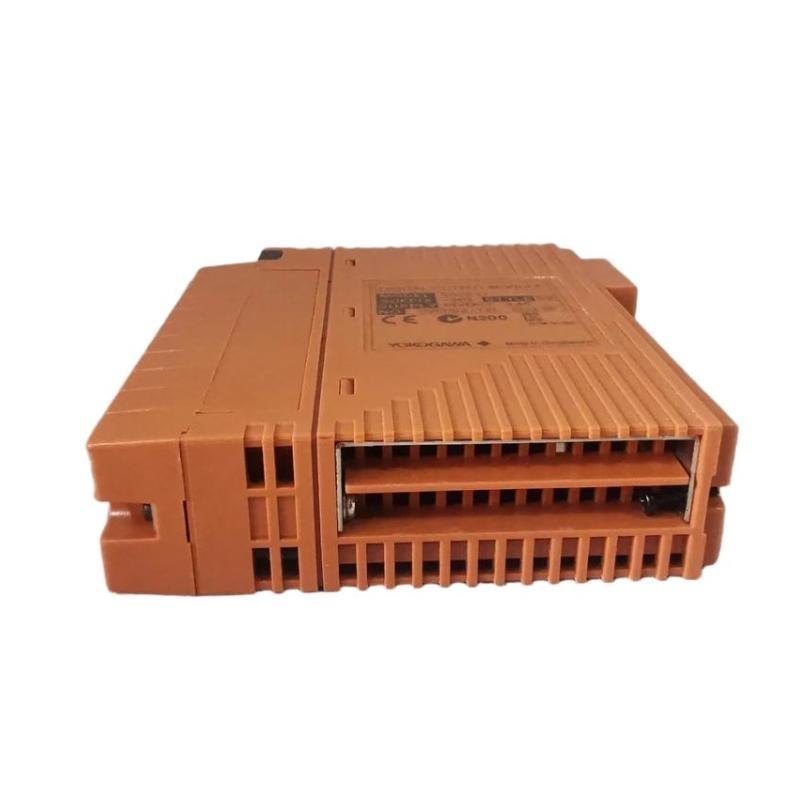

The Yokogawa SDV541-S63 is an S3 Digital Output Module designed for high-performance digital control in industrial automation systems. It interfaces with field devices to control actuators, relays, and valves while providing advanced diagnostics and high-speed switching for critical processes.
Key Features
-
High-speed digital output for controlling field devices
-
16-channel output with individual channel diagnostics
-
Compatible with Yokogawa S3 autonomous controllers and I/O modules
-
Fault detection and protection against overloads and short circuits
-
Simplified wiring and installation with DIN rail or panel mounting
-
Robust design suitable for harsh industrial conditions
Technical Specifications
| Item | Specification |
|---|---|
| Modell Number | SDV541-S63 |
| Type | S3 Digital Output Module |
| Output Type | Digital (ON/OFF) |
| Number von Channels | 16 |
| Load Capacity | 0.5 A per channel |
| Output Voltage | 24 VDC |
| Response Time | < 5 ms |
| Isolation | Channel-to-channel and channel-to-system isolation |
| Operating Temperature | 0 °C to +55 °C |
| Storage Temperature | -20 °C to +70 °C |
| Power Consumption | 5 W typical |
| Mounting | DIN rail or panel mount |
| Dimensions | 130 x 107.5 x 32.8 mm |
| Gewicht | 0.31 kg |
| Compliance | CE, UL, CSA, RoHS |
Industry Applications
-
Oil & Gas – valve and actuator control, field device management
-
Power Generation – turbine and generator control systems
-
Petrochemical & Chemical – process automation and safety systems
-
Water & Wastewater – pump and valve actuation
-
Manufacturing – machine automation and process control
-
Food & Beverage – batch and continuous process automation
Advantages
-
High-speed and reliable digital output for precise control
-
Individual channel diagnostics for enhanced system reliability
-
Compatible with Yokogawa S3 autonomous controllers
-
Robust construction for harsh industrial environments
-
Simplifies field wiring and reduces installation errors
-
Supports predictive maintenance and real-time monitoring
Häufig gestellte Fragen (FAQ)
Q1: What is the main function von the SDV541-S63?
It provides 16-channel digital output signals for controlling actuators, relays, and valves.
Q2: Which systems is it compatible with?
It is compatible with Yokogawa S3 autonomous controllers and I/O modules.
Q3: What is the output voltage and current capacity?
24 VDC output with 0.5 A per channel.
Q4: How fast is the response time?
Less than 5 milliseconds per channel.
Q5: What is the operating temperature range?
0 °C to +55 °C.
Q6: Can it be mounted on a DIN rail?
Yes, it supports both DIN rail and panel mounting.
Q7: Does it provide diagnostics?
Yes, individual channel diagnostics and fault detection are included.
Q8: What industries commonly use this module?
Oil & Gas, Power Generation, Petrochemical, Water & Wastewater, Manufacturing, and Food & Beverage.
Q9: What are its dimensions and weight?
130 mm x 107.5 mm x 32.8 mm, approximately 0.31 kg.
Q10: Is it compliant with industry standards?
Yes, it meets CE, UL, CSA, and RoHS standards.
