Produkteinführung

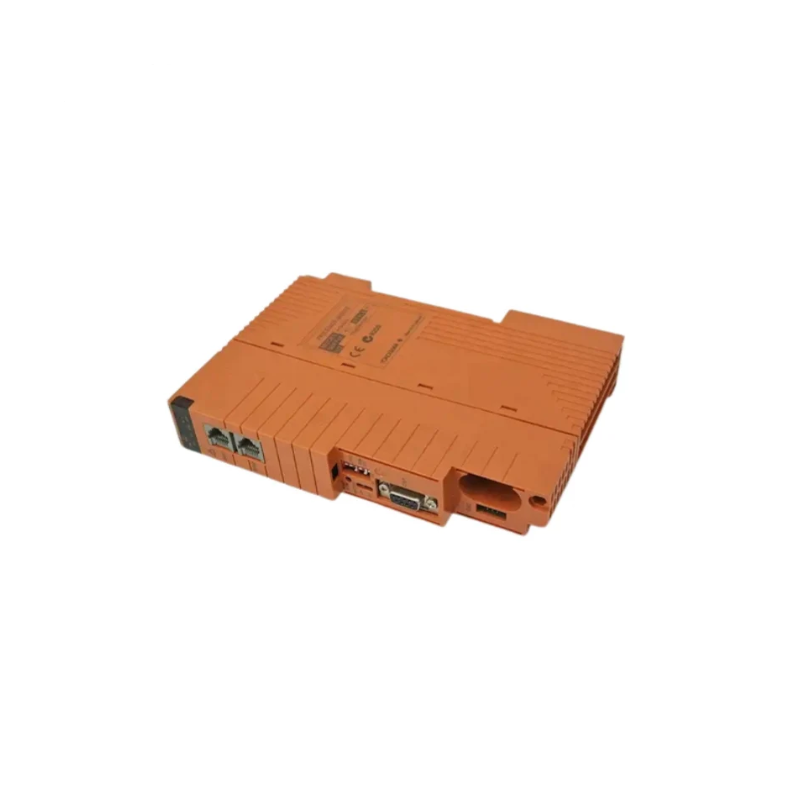

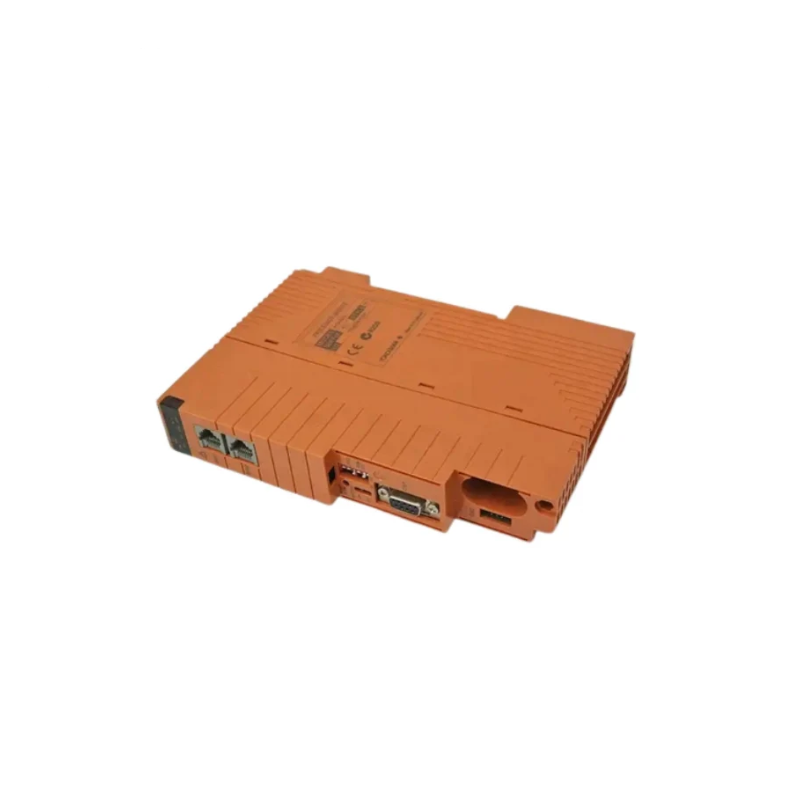

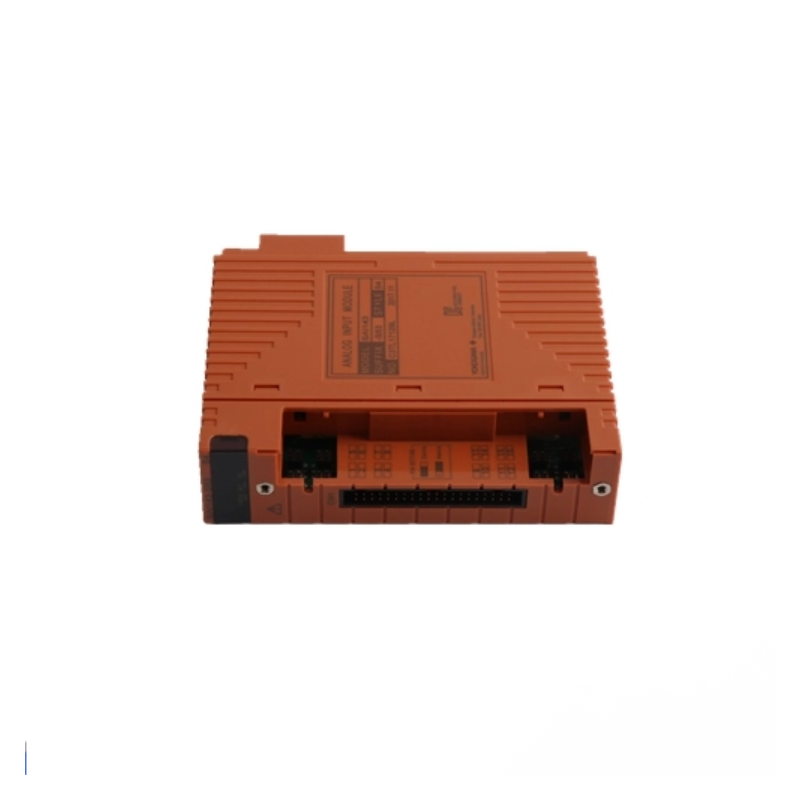

The Yokogawa SAI143-S53 is a high-performance analog input module designed for integration into the Yokogawa CENTUM VP and ProSafe-RS systems. Engineered for industrial-grade reliability and precision, it accommodates multiple analog signals, primarily 4–20 mA, with HART communication capabilities. This module enables accurate field data acquisition and smooth integration with control systems in process industries such as petrochemical, power generation, and water treatment facilities. It complies with international safety and environmental standards, making it suitable for both general-purpose and SIL-rated applications.
Produktspezifikationen
| Parameter | Details |
|---|---|
| Modell Number | SAI143-S53 |
| Type | Analog Input Module |
| Input Signal Type | 4–20 mA DC, HART compatible |
| Number von Channels | 16 channels |
| Input Isolation | Channel-to-channel and channel-to-ground |
| Resolution | 16-bit A/D conversion |
| Signal Type Support | AI (Analog Input), current loop |
| Communication Protocol | HART (Highway Addressable Remote Transducer) |
| Power Supply | Supplied via I/O base Stück |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Operating Humidity | 5% to 95% RH (non-condensing) |
| Dimensions | 130 x 107.5 x 32.8mm |
| Gewicht | 0.34 kg |
| Mounting | DIN Rail |
| Certifications | CE, ATEX, FM, SIL2/SIL3 (via system) |
Product Applications
The Yokogawa SAI143-S53 is ideally suited for applications requiring high-accuracy analog input acquisition and HART communication in demanding environments. Typical use cases include:
-
Oil & Gas Refineries: Monitoring pressure, temperature, and flow transmitters
-
Chemical Plants: Acquiring analog data from pH, conductivity, and level sensors
-
Power Plants: Input interface for environmental and turbine monitoring sensors
-
Water Treatment Facilities: Reading analog signals from flow and turbidity sensors
-
Pharmaceutical Manufacturing: Integration von analog sensors for batch process monitoring
-
Food & Beverage Processing: Centralized analog signal processing and monitoring
Product Advantages
-
Multi-channel Capability: 16 channels in a compact module, reducing cabinet space usage.
-
HART Communication Support: Allows advanced diagnostics and sensor calibration.
-
High Signal Accuracy: 16-bit resolution ensures reliable and precise analog measurements.
-
Rugged Design: Withstands wide temperature ranges and industrial conditions.
-
Flexible Integration: Compatible with both CENTUM VP and ProSafe-RS platforms.
-
Enhanced Safety: SIL compliance and isolation enhance system safety and reliability.
-
Modular Maintenance: Hot-swappable design for reduced downtime and maintenance cost.
Häufig gestellte Fragen (FAQ)
Q1: What type von signals does the SAI143-S53 module accept?
A1: It accepts 4–20 mA analog signals and supports HART-enabled devices.
Q2: Is the module compatible with non-HART transmitters?
A2: Yes, it works with both HART and standard 4–20 mA transmitters.
Q3: How many channels are available in this module?
A3: The SAI143-S53 provides 16 independent analog input channels.
Q4: Can I use this module in SIL-certified safety systems?
A4: Yes, it supports integration in SIL2/SIL3 systems when used with certified safety platforms.
Q5: What is the resolution von the input signal conversion?
A5: The module features a 16-bit A/D conversion for high precision.
Q6: How is the SAI143-S53 installed?
A6: It is mounted on a DIN rail and interfaces via a system baseplate.
Q7: What environmental conditions can it tolerate?
A7: It operates between -20°C to +70°C with 5–95% non-condensing humidity.
Q8: Does the module provide galvanic isolation?
A8: Yes, it features channel-to-channel and channel-to-ground isolation.
Q9: Is it hot-swappable?
A9: Yes, the module supports hot-swapping for maintenance without system shutdown.
Q10: What control systems are compatible with SAI143-S53?
A10: It integrates with Yokogawa’s CENTUM VP and ProSafe-RS systems.
