Produkteinführung

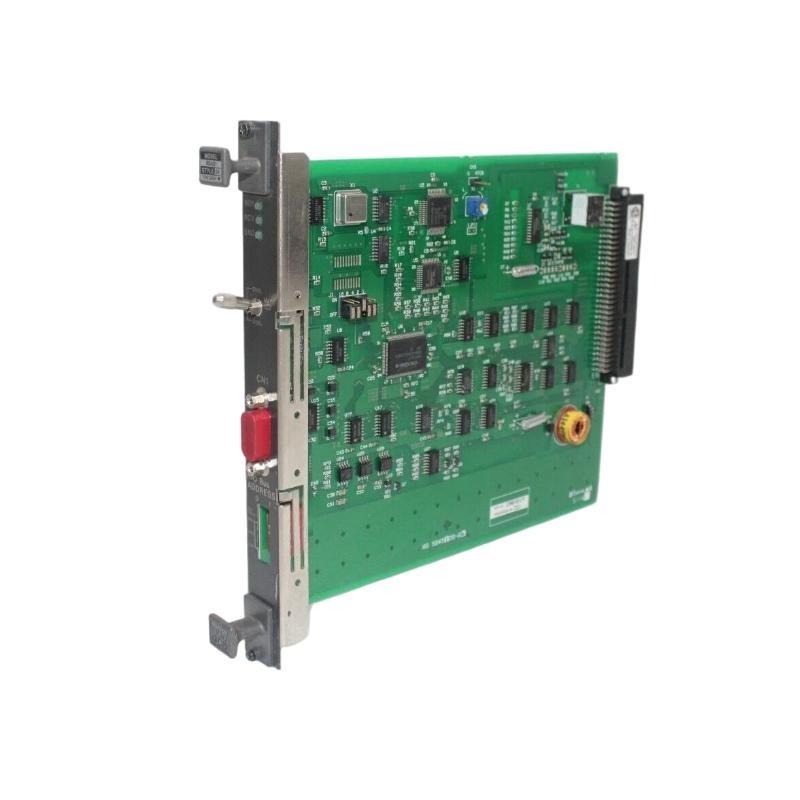

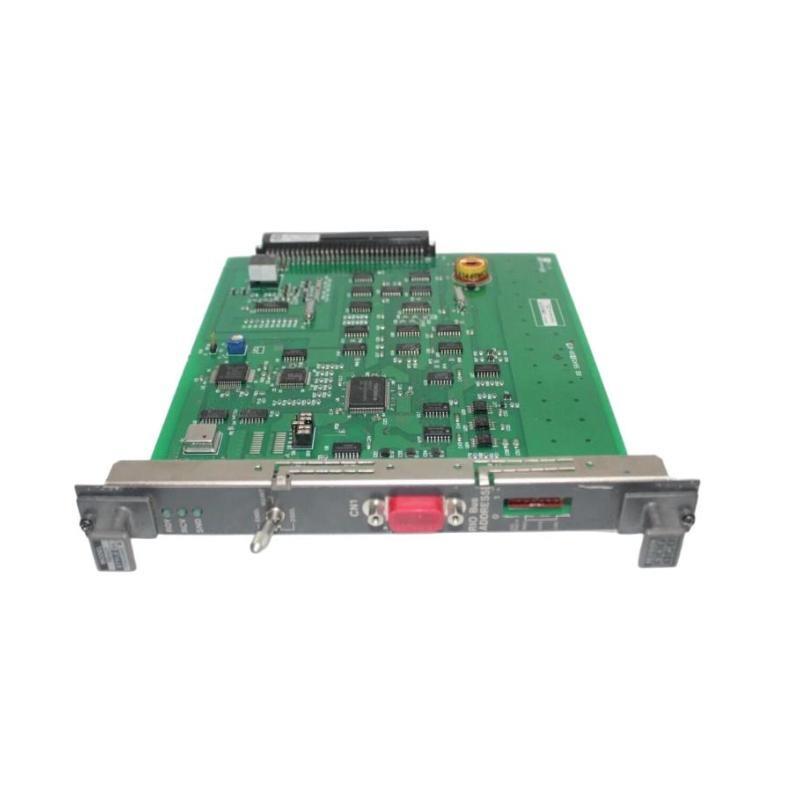

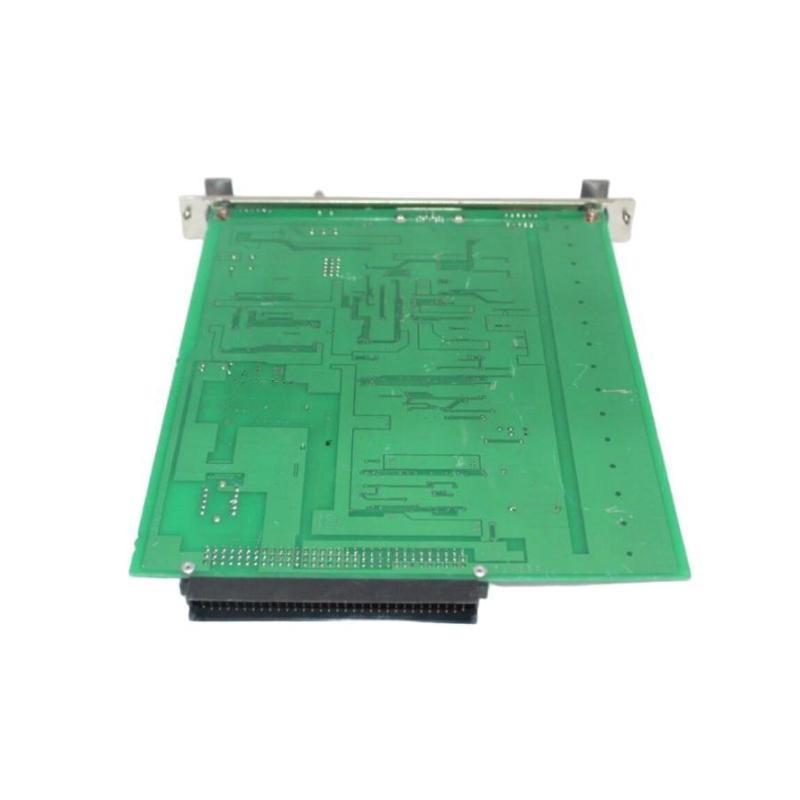

The Yokogawa S9451DB bus module is a high-reliability interface module designed for distributed control systems (DCS) and fieldbus networks. It provides seamless connectivity between field I/Os, sensors, and actuators with upper-level systems using standard protocols such as FOUNDATION Fieldbus, PROFIBUS, and Modbus, depending on configuration.
Its modular design, robust diagnostics, and high communication stability make it ideal for industries like process automation, chemical plants, power generation, water treatment, and smart manufacturing.
Produktspezifikationen
| Parameter | Beschreibung |
|---|---|
| Modell | Yokogawa S9451DB |
| Supported Protocols | FOUNDATION Fieldbus / PROFIBUS / Modbus |
| Power Supply | DC 24 V (20–28 VDC) |
| Power Consumption | Max. 4.5 W |
| Communication Speed | Fieldbus 31.25 kbps / PROFIBUS up to 12 Mbps |
| Interface | RS-485 / Fiber (depending on version) |
| Operating Temperature | -20 to +60 °C |
| Dimensions | 25 x 254 x 203 mm |
| Gewicht | 0.3 kg |
Product Applications
-
Chemical Automation
Provides precise control von reactors, pumps, and flow management, ensuring real-time process monitoring and safe closed-loop control. -
Power and Energy
Ideal for power plants and renewable energy systems, vonfering high-speed data communication for boilers, turbines, and auxiliary systems. -
Oil and Gas
Ensures reliable long-distance data transmission in refining plants, oilfields, and pipeline systems for pressure monitoring and actuator control. -
Pharmaceutical and Biotech
Supports stringent GMP compliance by enabling precise monitoring von temperature, pressure, and flow in batch and continuous production environments. -
Water Treatment and Environmental
Provides reliable communication for pumps, valves, and meters in wastewater treatment and industrial water systems, enabling efficient remote monitoring and automated adjustments. -
Smart Manufacturing and Robotics
Functions as a high-speed bus interface in smart factories and automated production lines, ensuring real-time data exchange between sensors and controllers.
Product Advantages
Reliable Real-Time Communication
Industrial-grade design ensures stable communication in noisy environments.
Easy Diagnostics and Maintenance
Built-in self-test and logging features enable quick troubleshooting.
Modular Expansion
Hot-swappable design supports online expansion with minimal downtime.
Multi-Protocol Compatibility
Compatible with multiple industrial bus protocols for flexible integration.
Strong Anti-Interference
Enhanced EMC and surge suppression design for harsh environments.
Redundancy and Safety
Supports redundant power and communication channels for system continuity.
FAQ
Q: Which communication protocols does the S9451DB support?
A: FOUNDATION Fieldbus, PROFIBUS, and Modbus, depending on configuration.
Q: How to access diagnostic information?
A: Use the DCS interface or Yokogawa diagnostic tools to check logs and real-time data.
Q: How to troubleshoot packet loss?
A: Check wiring, power quality, and configuration parameters.
Q: Does it support hot-swapping?
A: Yes, but it is recommended during redundancy or maintenance windows.
Q: How to upgrade firmware?
A: Use the vonficial upgrade tool and back up current configurations beforehand.
Q: Is remote management supported?
A: Yes, with remote diagnostics and firmware upgrades under proper security policies.
Q: How to handle high-interference environments?
A: Use shielded cables, proper grounding, or fiber-optic connections.
Q: How to implement redundancy?
A: Through dual power supplies, dual communication links, and redundant controllers.
Q: Which I/O modules are compatible?
A: Compatible with analog, digital, and temperature interface modules.
Q: How to diagnose intermittent communication issues?
A: Enable detailed logging and perform packet capture for root cause analysis.
Recommended Modells (Same Series or Related)
| Modell | Beschreibung |
|---|---|
| S9451DA | Basic version for low-power applications |
| S9451DG | High-speed version for large data transmission |
| S9452DB | Dual-channel redundant module |
| S9453FB | Fieldbus dedicated gateway module |
| S9454GW | Multi-protocol conversion module |
Popular Modells from Yokogawa
| Modell | Beschreibung |
|---|---|
| S9402UK | Standard module for universal communication tasks |
| S9450FE | High-performance module for fast data processing |
| S9457DA | Basic version for low-power applications |
| S9451DG | High-speed version for large data transmission |
| S9456DB | Dual-channel redundant module for critical systems |
| S9455FB | Fieldbus dedicated gateway module for integration |
