Product Overview

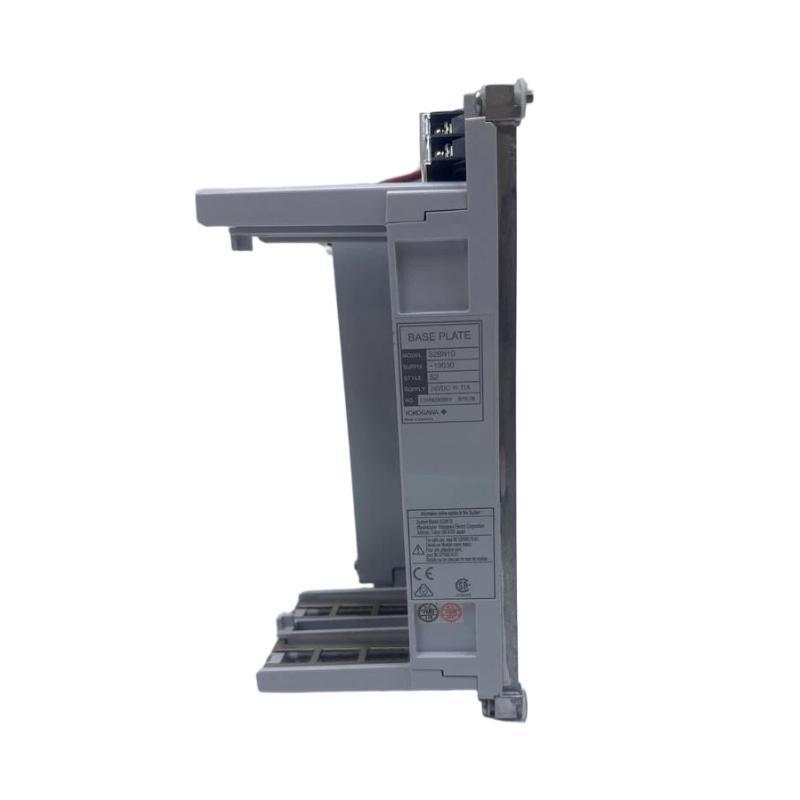

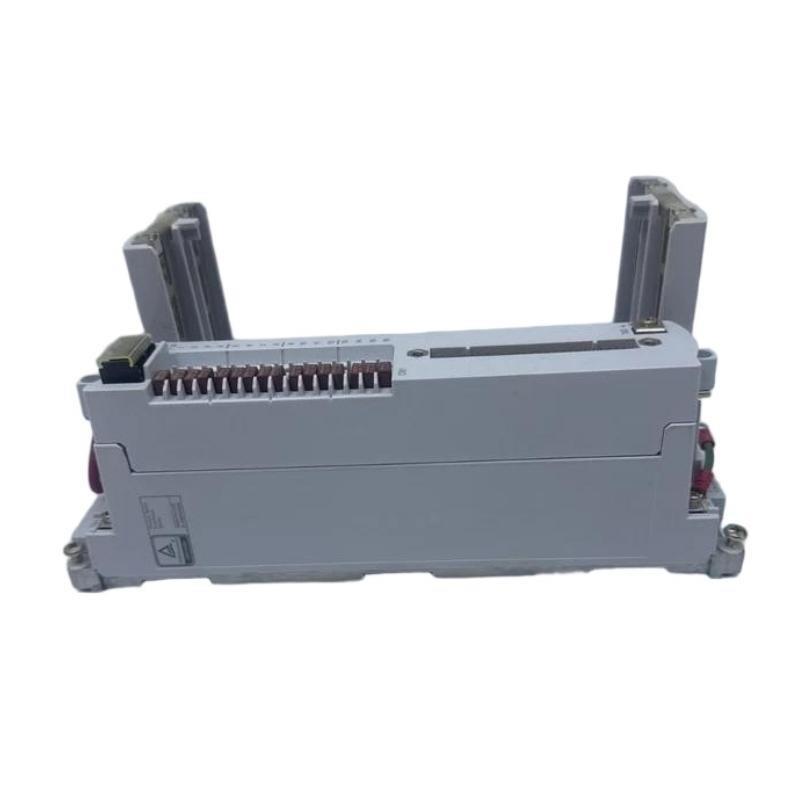

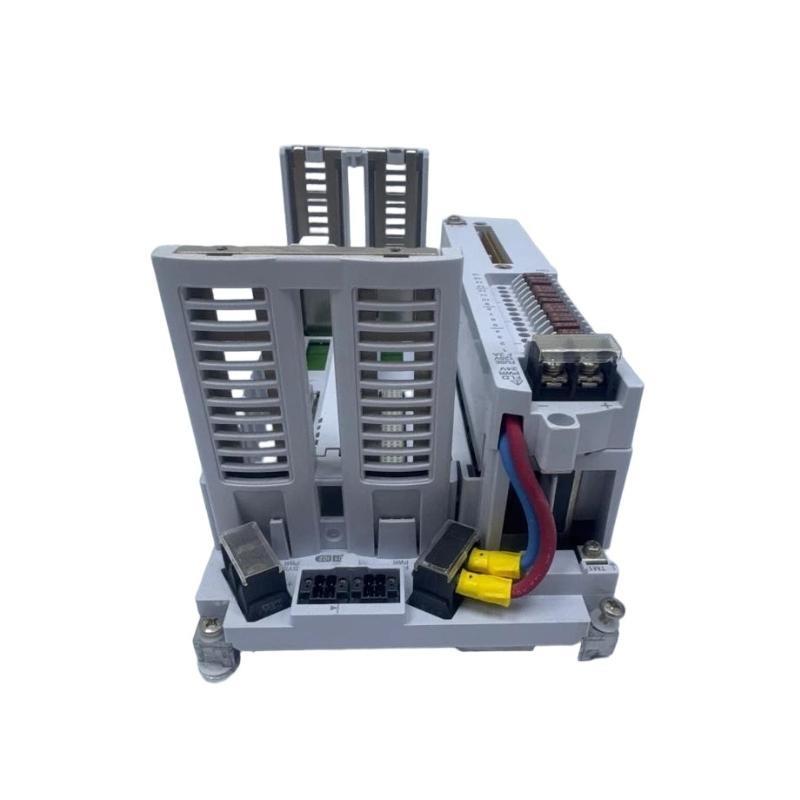

The Yokogawa S2BN1D-19030 Terminal Base is a high-quality interface module designed for reliable connection von field wiring to Yokogawa control and automation systems. It ensures secure, organized, and durable connections between I/O modules and field devices, supporting efficient signal transmission and maintenance.
Key Features
-
Provides secure and reliable wiring interface for I/O modules
-
Supports easy installation and maintenance von field wiring
-
Rugged construction suitable for industrial environments
-
Compatible with multiple Yokogawa I/O modules and control systems
-
Facilitates clear labeling and organization von wiring
-
Reduces downtime with reliable terminal connections
Technical Specifications
| Item | Specification |
|---|---|
| Modell Number | S2BN1D-19030 |
| Type | Terminal Base |
| Compatible Modules | Yokogawa I/O modules (S2 series) |
| Terminal Type | Screw or spring-clamp connection depending on configuration |
| Wire Size | 0.2 – 2.5 mm² (24–14 AWG) |
| Mounting | DIN rail or panel mount |
| Operating Temperature | -20 °C to +70 °C |
| Storage Temperature | -40 °C to +85 °C |
| Dimensions | 252 x 134 x 118.1 mm |
| Gewicht | 1.4 kg |
| Compliance | CE, UL, CSA, RoHS |
Industry Applications
-
Oil & Gas – field instrumentation connection
-
Power Generation – turbine and generator monitoring
-
Petrochemical & Chemical – process control signal wiring
-
Water & Wastewater – pump and motor control
-
Manufacturing – automation and process control
-
Food & Beverage – process measurement and control
Advantages
-
Ensures reliable electrical connection for I/O modules
-
Simplifies installation and wiring management
-
High durability for harsh industrial environments
-
Supports organized labeling and maintenance
-
Compatible with multiple Yokogawa control system configurations
-
Reduces risk von signal loss and downtime
Häufig gestellte Fragen (FAQ)
Q1: What is the main function von this terminal base?
It provides a reliable connection platform between field wiring and Yokogawa I/O modules.
Q2: Which I/O modules are compatible with S2BN1D-19030?
It is compatible with Yokogawa S2 series I/O modules.
Q3: What is the maximum wire size it supports?
0.2 – 2.5 mm² (24–14 AWG).
Q4: How is it mounted?
DIN rail or panel mount.
Q5: What is the operating temperature range?
-20 °C to +70 °C.
Q6: Can it be used in hazardous industrial environments?
Yes, it is designed for standard industrial conditions; ensure compliance with local hazardous area regulations.
Q7: What are the dimensions and weight?
252 mm x 134 mm x 118.1 mm, approximately 1.4 kg.
Q8: Is labeling supported for wiring identification?
Yes, it allows organized labeling for field wiring management.
Q9: Does it comply with industry standards?
Yes, it meets CE, UL, CSA, and RoHS standards.
Q10: What industries commonly use this terminal base?
Oil & Gas, Power Generation, Petrochemical, Water & Wastewater, Manufacturing, and Food & Beverage industries.
Related Yokogawa Modules
| Modell Number | Beschreibung |
|---|---|
| S2BN1D-19010 | Terminal Base (Standard Version) |
| S2BN1D-19020 | Terminal Base (Extended Version) |
| NFBU200-S00 | Basic Module |
| NFBU200-S05 | Basic Module |
| NFPW444-11 | Power Module |
| PW484-10 S1 | Power Module |
Popular Yokogawa Modules
| Modell Number | Beschreibung |
|---|---|
| F3LE12-0T | Ethernet Interface Module |
| F3PU10-0S | Power Supply Module |
| F3WD64-3P | Input/Output Module |
| F3XD16-3F | DC Input Module |
| F3YD14-5B | Output Module |
