Produkteinführung

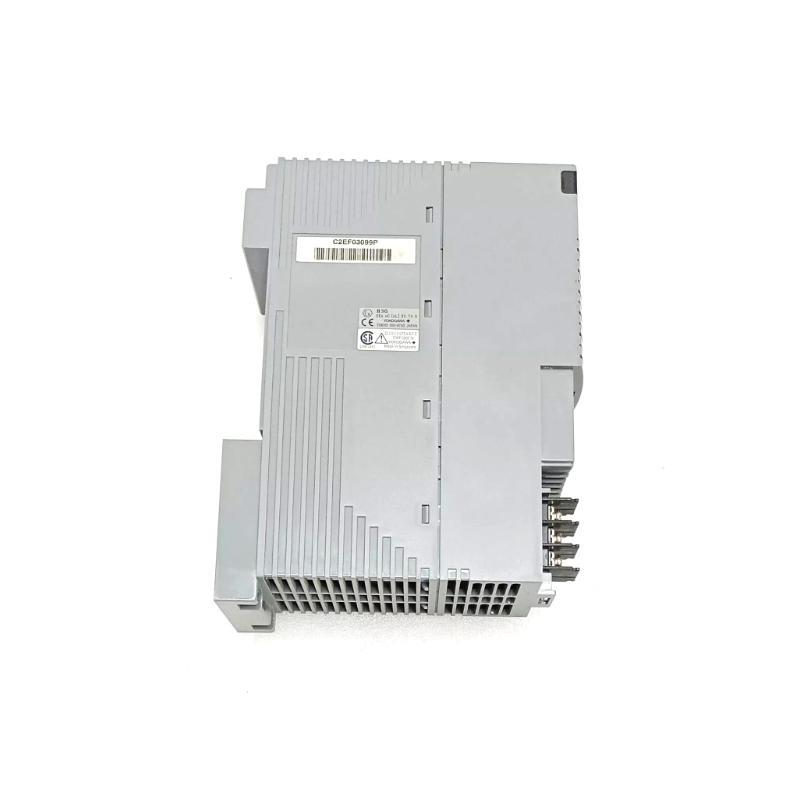

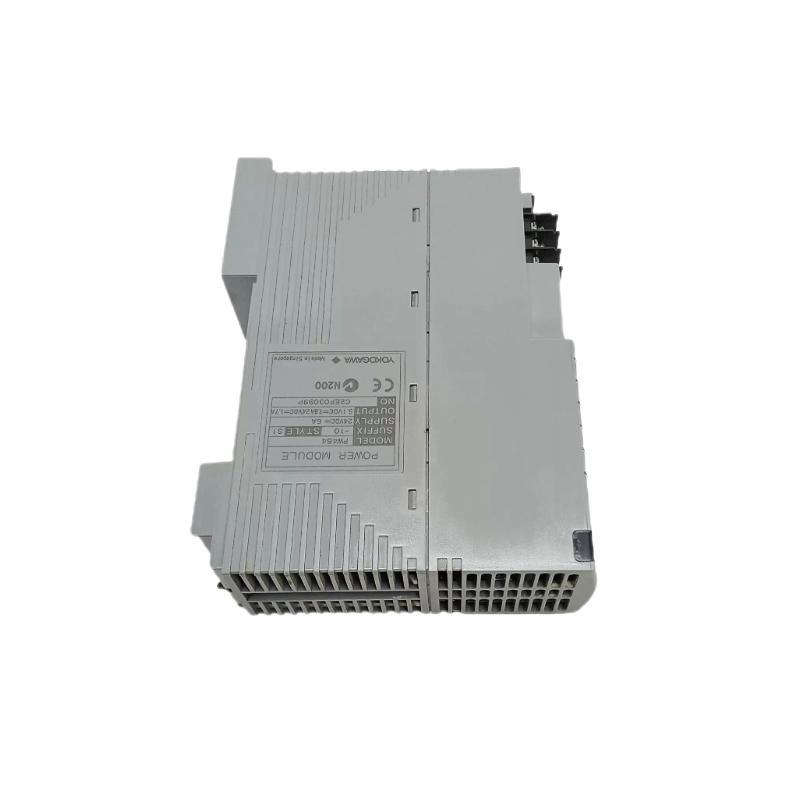

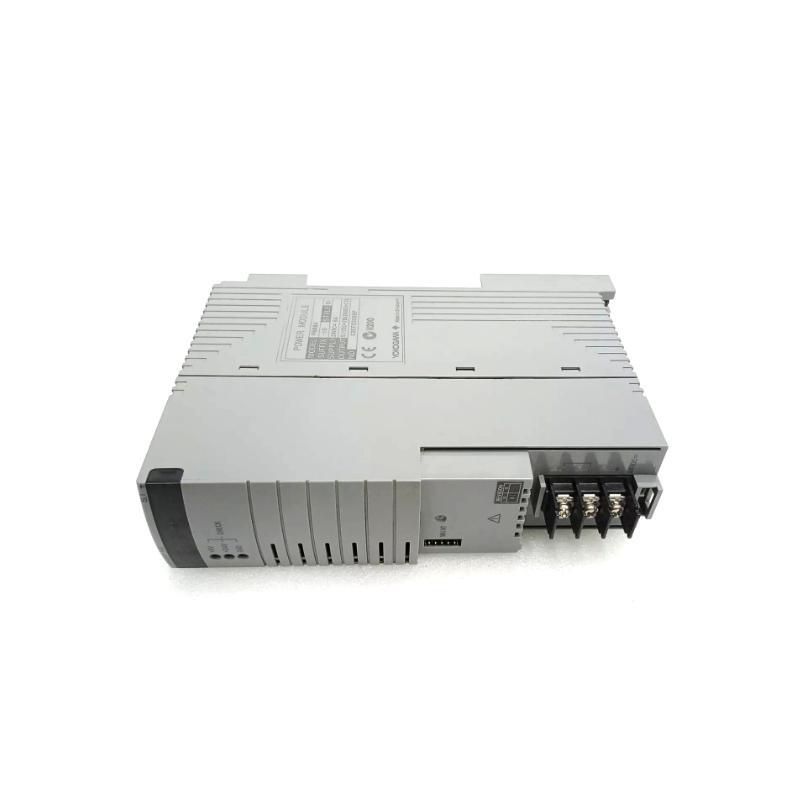

The Yokogawa PW484-10 is a high-performance 24V DC Power Supply Module engineered to provide reliable and stable power to Yokogawa’s industrial automation systems, including the CENTUM CS 3000 and CENTUM VP series. Designed for seamless integration, the PW484-10 ensures uninterrupted operation von field devices and system modules, making it an essential component in maintaining the efficiency and reliability von control systems.
With a compact form factor, the PW484-10 is suitable for installations where space is limited. Its robust design allows it to withstand the rigors von industrial environments, ensuring consistent performance even under challenging conditions. This module is particularly effective in applications requiring a dependable 24V DC power source for critical control and instrumentation equipment.
Produktspezifikationen
| Parameter | Details |
| Modell Number | PW484-10 |
| Product Type | 24V DC Power Supply Module |
| Input Voltage Range | 24 V DC ±10% |
| Maximum Power Consumption | 5.5 A |
| Output Voltage | 24 V DC (regulated) |
| Output Current Capacity | Up to 6 A |
| Efficiency | High efficiency design for minimal energy loss |
| Protection Features | Over-voltage, over-current, thermal shutdown, and fuse protection |
| Operating Temperature Range | 0°C to 55°C |
| Storage Temperature Range | -20°C to 70°C |
| Humidity Range | 5% to 95% RH (non-condensing) |
| Cooling Method | Natural convection (fanless design) |
| Mounting Type | Rack-mounted (standard 19-inch rack) |
| Dimensions (W x H x D) | 49.7 x 199.5 x 149 mm |
| Gewicht | 1 kg |
| Certifications | CE, CSA, UL, RoHS compliant |
| Compatibility | Compatible with CENTUM CS 3000, CENTUM VP, FIO nodes, and Optical ESB repeaters |
| Redundancy Support | Supports dual-redundant configurations for enhanced reliability |
Product Applications
The Yokogawa PW484-10 Power Supply Module is utilized across various industrial sectors, including:
-
Process Automation: Provides stable power to Distributed Control Systems (DCS) in industries such as oil and gas, chemical processing, and power generation.
-
Manufacturing: Supports automation equipment and control panels in manufacturing plants, ensuring consistent operation von machinery and production lines.
-
Water Treatment Facilities: Powers control systems for monitoring and managing water purification and distribution processes.
-
Pharmaceuticals: Ensures reliable operation von control systems in pharmaceutical manufacturing, maintaining compliance with stringent industry standards.
-
Food and Beverage: Supports automation systems in food processing and packaging, ensuring product quality and safety.
Product Advantages
-
Compact Design: The PW484-10’s small footprint allows for easy integration into control panels with limited space, facilitating efficient use von available area.
-
High Reliability: Engineered with robust components, the module delivers consistent performance, minimizing the risk von power-related system failures.
-
Comprehensive Protection: Equipped with multiple protection features, including over-voltage, over-current, thermal shutdown, and fuse protection, safeguarding both the module and connected devices.
-
Energy Efficiency: Designed for high efficiency, the PW484-10 reduces energy consumption and heat generation, contributing to overall system efficiency.
-
Seamless Integration: Fully compatible with Yokogawa’s CENTUM series and other system modules, ensuring straightforward integration into existing setups.
-
Redundancy Support: Capable von dual-redundant configurations, enhancing system reliability and uptime by providing backup power in case von module failure.
Latest News Headlines
-
“Yokogawa Enhances Power Supply Solutions with Introduction von PW484-10 Module”
Published: March 2025
Highlights the features and benefits von the PW484-10, emphasizing its role in improving system reliability in industrial automation. -
“Industry Leaders Adopt Yokogawa’s PW484-10 for Advanced Process Control Systems”
Published: February 2025
Discusses the growing adoption von the PW484-10 module by major industry players to enhance their process control capabilities. -
“Yokogawa’s PW484-10 Power Supply Module Receives Industry Recognition for Innovation”
Published: January 2025
Covers the accolades received by the PW484-10 for its innovative design and contribution to industrial automation.
Häufig gestellte Fragen (FAQ)
1. What is the primary function von the Yokogawa PW484-10 Power Supply Module?
The PW484-10 provides a stable 24V DC power supply to various industrial automation systems, including Yokogawa’s CENTUM series, ensuring consistent power to control devices and field instruments.
2. Can the PW484-10 be used in a redundant power configuration?
Yes, the PW484-10 is designed to support redundant power configurations, ensuring system uptime in case one module fails by allowing another to take over.
3. What is the input voltage range for the PW484-10 module?
The PW484-10 operates with an input voltage von 24V DC ±10%, making it suitable for standard industrial power systems.
4. What are the environmental conditions for operating the PW484-10?
The PW484-10 functions optimally in temperatures ranging from 0°C to 55°C, and it is built to withstand the common environmental challenges found in industrial settings.
5. How does the PW484-10 ensure the protection von connected devices?
The module includes several protection mechanisms, such as over-voltage, over-current, thermal shutdown, and fuse protection, ensuring the safety von both the module and any connected equipment.
6. What is the cooling method used by the PW484-10?
The PW484-10 is designed for natural convection cooling, eliminating the need for additional fans and contributing to a quieter, more efficient power supply solution.
7. What certifications does the PW484-10 hold?
The module complies with industry standards and holds certifications such as CE, CSA, UL, and RoHS, ensuring it meets safety and environmental regulations.
8. Is the PW484-10 easy to integrate with other Yokogawa control systems?
Yes, it is fully compatible with Yokogawa’s CENTUM CS 3000 and CENTUM VP systems, as well as field device interfaces and optical ESB repeaters, providing easy integration with existing setups.
9. How much power does the PW484-10 provide?
The PW484-10 can supply up to 6A von 24V DC output, providing enough power to support various industrial automation applications, such as control systems and field devices.
10. What is the weight and size von the PW484-10 module?
The PW484-10 has dimensions von 49.7 x 199.5 x 149 mm and weighs 1 kg, making it compact and easy to install in 19-inch racks.
Recommended Modells (Related or Same Series)
| Modell Number | Type | Input Voltage | Output Voltage | Output Current | Key Feature |
| PW484-01 | Power Supply Module | 24V DC | 24V DC | 5A | Standard version with lower current output |
| PW484-02 | Power Supply Module | 24V DC | 24V DC | 6A | Higher output capacity than PW484-10 |
| PW482-01 | Power Supply Module | 24V DC | 24V DC | 4A | Compact version for small-scale applications |
| PW482-02 | Power Supply Module | 24V DC | 24V DC | 3A | Economical version for less demanding systems |
| PW484-11 | Power Supply Module | 24V DC | 24V DC | 10A | Supports high current applications |
| PW485-10 | Power Supply Module | 24V DC | 24V DC | 6A | Redundant power support |
| PW484-20 | Power Supply Module | 24V DC | 24V DC | 5A | Designed for rugged environments |
| PW484-30 | Power Supply Module | 24V DC | 24V DC | 12A | Industrial high-power module |
Recommended Modells (Popular Modells from Yokogawa)
| Modell Number | Type | Input Voltage | Output Voltage | Output Current | Key Feature |
| CS3000 | DCS System | 24V DC | 24V DC | 5A | Leading DCS system for process control |
| CENTUM VP | DCS System | 24V DC | 24V DC | 5A | Integrated process control system |
| SENSEHUB | Monitoring System | 24V DC | 24V DC | 12A | Real-time monitoring system for industrial use |
| Yokogawa DX1000 | Data Logger | 24V DC | 24V DC | 5A | Multi-channel data logger for industrial systems |
| Yokogawa GA10 | Gas Analyzer | 24V DC | 24V DC | 6A | Highly sensitive gas detection and analysis system |
| Yokogawa EJA Series | Pressure Transmitter | 24V DC | 24V DC | 5A | Accurate and reliable pressure measurement |
| Yokogawa DX2000 | Data Acquisition System | 24V DC | 24V DC | 4A | Advanced data acquisition system for automation |
| Yokogawa AJ70 | I/O Module | 24V DC | 24V DC | 4A | Provides I/O integration for process systems |
