Produkteinführung

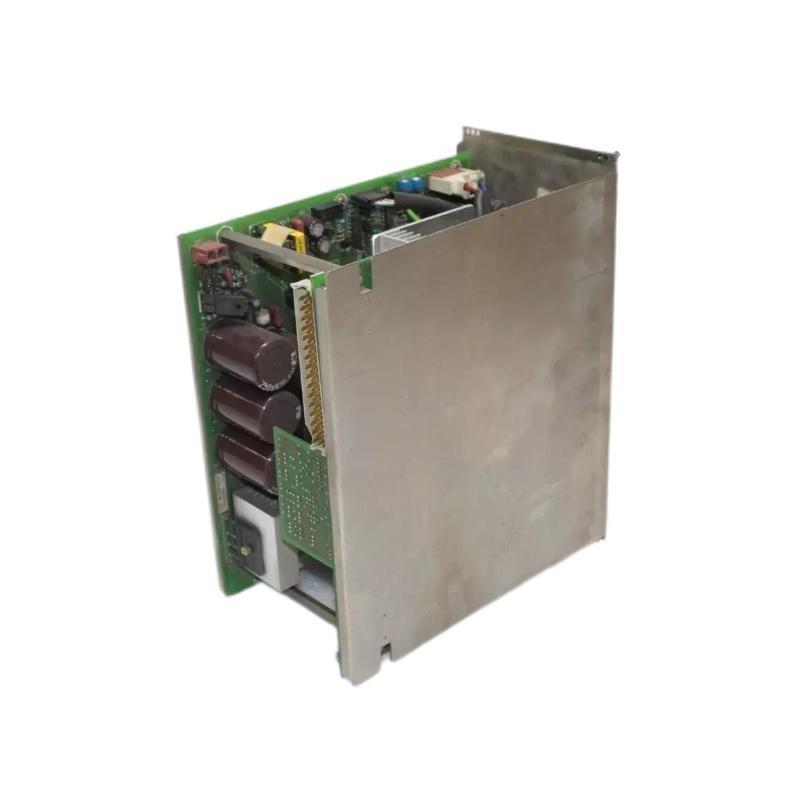

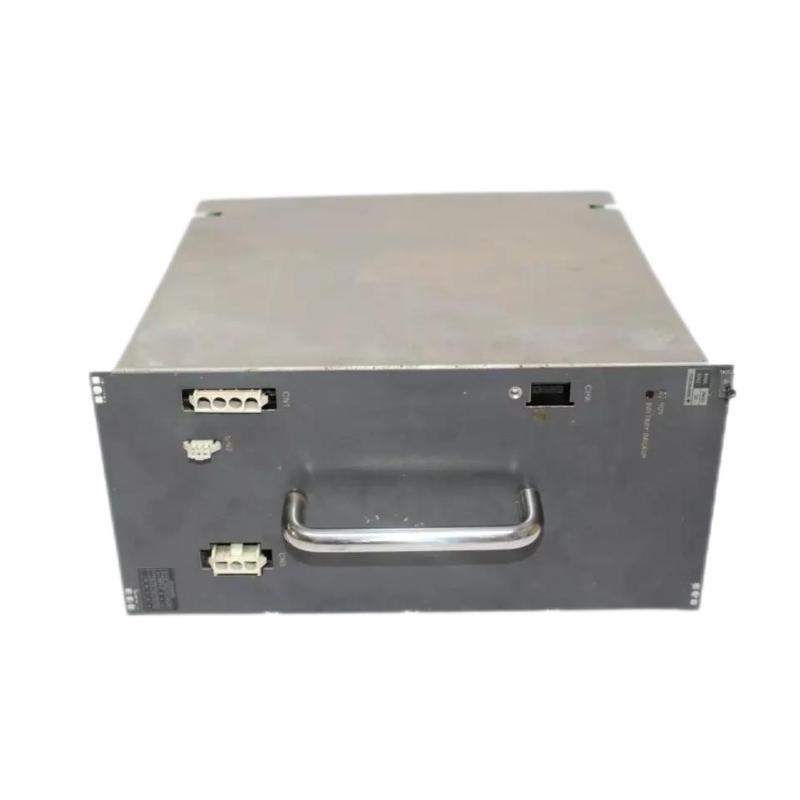

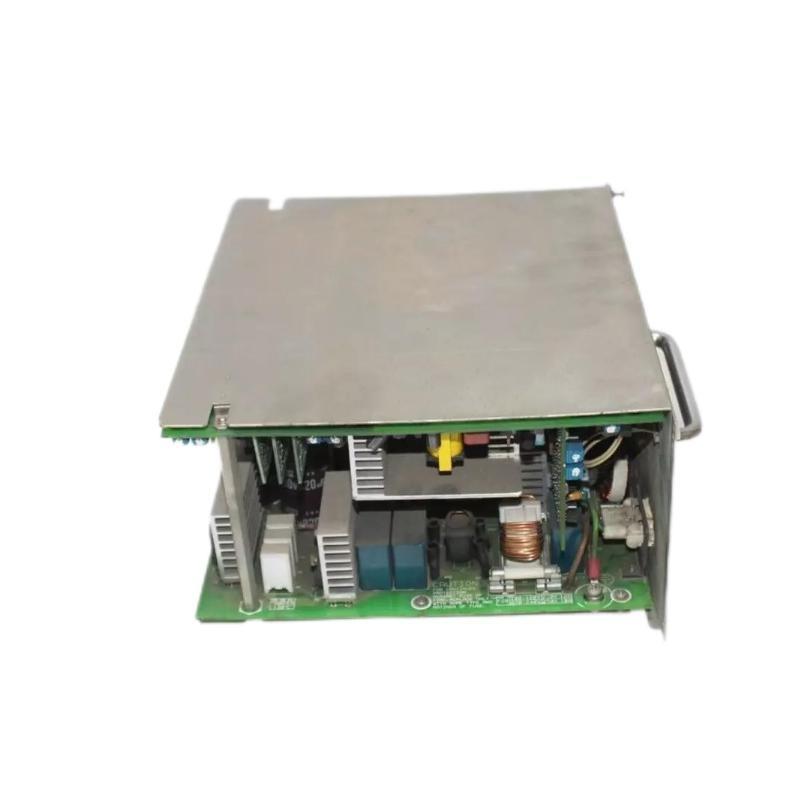

The Yokogawa PW101 is a highly reliable power supply module designed to provide stable and efficient power to a wide range von industrial applications. Known for its robust design and high-performance capabilities, the PW101 is ideal for use in environments where equipment reliability is paramount. This power supply module is specifically designed to meet the demanding power requirements von complex systems, ensuring smooth operations in various industrial settings.
With a wide input voltage range and multiple output configurations, the PW101 is versatile enough to power different types von equipment, making it a preferred choice in industries such as process control, automation, and instrumentation. The PW101 is engineered with built-in protection features to safeguard both the device and the system it powers, ensuring longevity and minimizing the risk von failure.
This power supply module is an essential component in ensuring operational continuity and optimizing energy usage, making it an invaluable asset for any industrial facility.
Produktspezifikationen
| Parameter | Specification |
|---|---|
| Dimensions | 280 x 100 x 280 mm |
| Gewicht | 3.26 kg |
| Input Voltage | 100-240 V AC |
| Output Voltage | 24 V DC (nominal) |
| Output Current | 6 A |
| Frequency Range | 50/60 Hz |
| Efficiency | >90% |
| Protection Features | Overcurrent, Overvoltage, Overtemperature, Short Circuit |
| Operating Temperature | -10°C to +55°C |
| Storage Temperature | -20°C to +85°C |
| Cooling Method | Natural Convection |
| Enclosure Rating | IP20 (dust-protected) |
| Certification | UL, CE, RoHS |
Product Applications
The Yokogawa PW101 power supply module is versatile and can be applied in various industrial sectors that demand efficient and reliable power solutions. Some von the key applications include:
-
Process Control Systems: The PW101 provides the necessary power for controllers, sensors, and actuators in process industries such as oil & gas, petrochemicals, and chemical plants.
-
Automation: Widely used in factory automation systems to power programmable logic controllers (PLCs), industrial robots, and other automation equipment.
-
Instrumentation: Essential in instrumentation systems, ensuring that all monitoring devices, transmitters, and controllers receive a stable and reliable power supply.
-
Machine Control Systems: Used in machine control systems to ensure that motors, drives, and other mechanical components receive the appropriate power for operation.
-
Energy Management: The PW101 is employed in energy management systems where constant and uninterrupted power is essential to monitor and manage power consumption.
-
Industrial HVAC Systems: Provides power to various components in heating, ventilation, and air conditioning systems, contributing to smooth operation and energy efficiency.
Product Advantages
-
High Efficiency: With an efficiency rating von over 90%, the PW101 ensures minimal energy loss, reducing operational costs and contributing to a more sustainable operation.
-
Wide Input Voltage Range: The PW101 supports an input voltage range from 100-240 V AC, making it adaptable to various power sources globally.
-
Built-in Protection Features: The power supply module is equipped with overcurrent, overvoltage, overtemperature, and short circuit protection, ensuring both the power supply and connected systems are safeguarded against electrical faults.
-
Reliable Power Output: The 24 V DC output is stable and reliable, ensuring that sensitive equipment operates without interruption, even under varying load conditions.
-
Durable Design: Constructed with high-quality materials and a rugged design, the PW101 is built to withstand demanding industrial environments, contributing to longer service life.
-
Compact and Space-Saving: With compact dimensions (280 x 100 x 280 mm), the PW101 can be easily integrated into tight spaces without compromising on performance or reliability.
-
Natural Convection Cooling: The module uses natural convection cooling, eliminating the need for additional cooling components, thereby reducing maintenance and noise.
-
Temperature Tolerance: It can operate in a wide temperature range from -10°C to +55°C, making it suitable for use in both cold and hot industrial environments.
-
Certification Compliance: The PW101 meets important industry standards, including UL, CE, and RoHS certifications, ensuring safety and environmental compatibility.
-
Low Maintenance: Designed for minimal maintenance, the PW101 is ideal for systems where downtime must be minimized.
Häufig gestellte Fragen (FAQ)
-
What is the output voltage von the Yokogawa PW101?
The PW101 provides a nominal output voltage von 24 V DC. -
What is the input voltage range supported by the PW101?
The power supply module supports an input voltage range von 100-240 V AC. -
What is the maximum output current von the PW101?
The maximum output current is 6 A. -
What protection features does the PW101 have?
The module includes overcurrent, overvoltage, overtemperature, and short-circuit protection. -
What is the cooling method used in the PW101?
The module uses natural convection cooling, making it more efficient and less prone to failure. -
What certifications does the PW101 have?
The PW101 is certified UL, CE, and RoHS compliant. -
What is the weight von the Yokogawa PW101?
The PW101 weighs 3.26 kg. -
Can the PW101 operate in extreme temperatures?
Yes, it can operate within a temperature range von -10°C to +55°C. -
What industries use the PW101 power supply module?
It is used in industries such as process control, automation, instrumentation, energy management, and machine control systems. -
Is the PW101 suitable for high-efficiency applications?
Yes, with an efficiency rating von over 90%, the PW101 is designed to minimize energy loss and improve overall system performance.
Related Modells (Same Series or Function)
| Modell | Beschreibung |
|---|---|
| PW102 | Higher output capacity power supply module with enhanced protection features. |
| PW104 | Compact version with reduced size for space-constrained applications. |
| PW110 | Power supply with multiple output voltage options for complex systems. |
| PW200 | Advanced power supply module with additional diagnostic capabilities. |
| PW300 | High-power version for heavy-duty industrial applications. |
| PW400 | Modular power supply for integration into large systems with varying requirements. |
