Produkteinführung

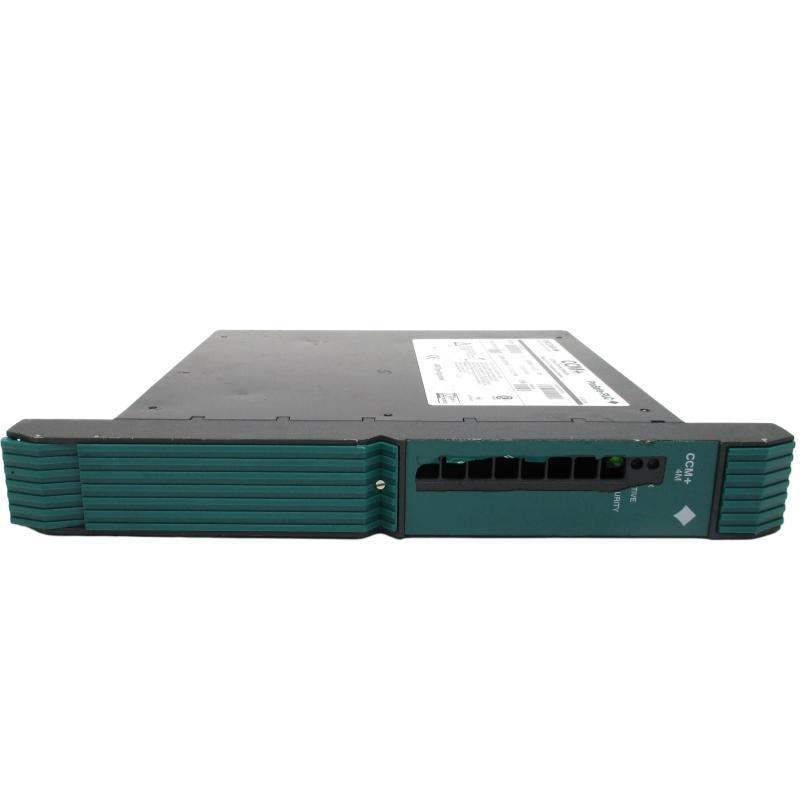

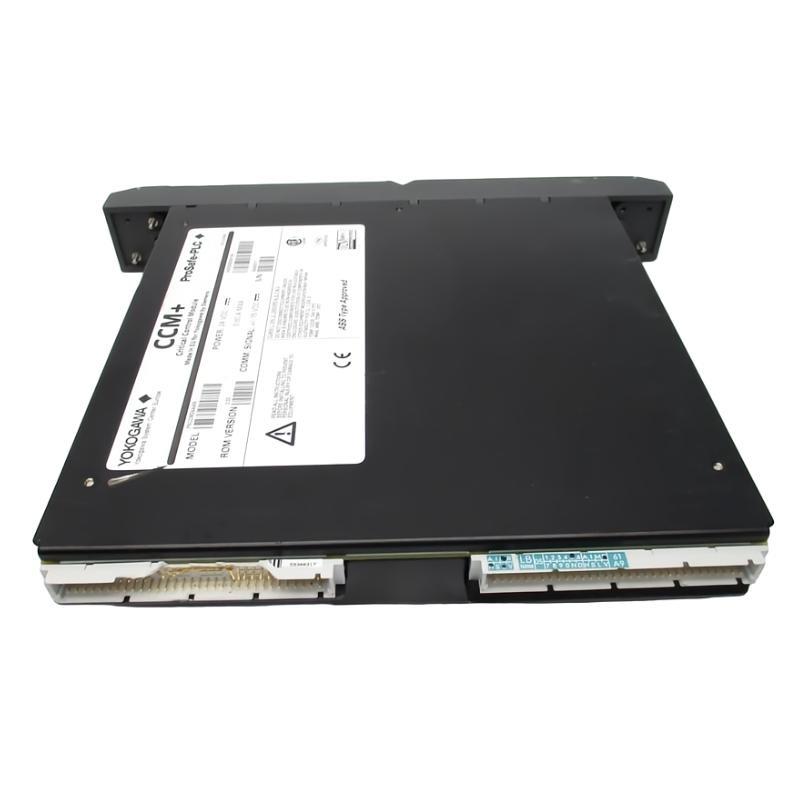

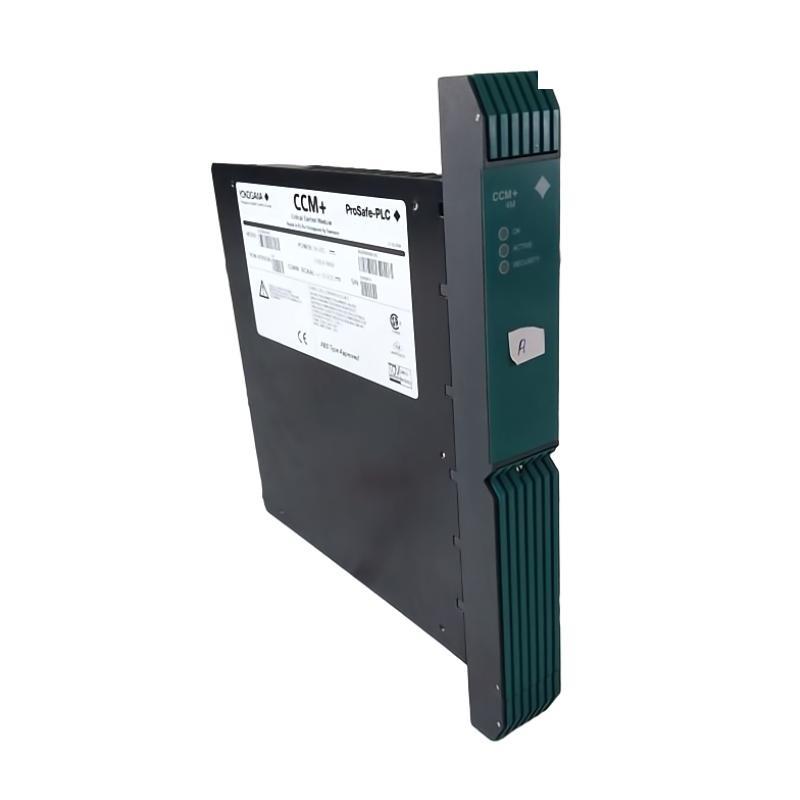

The Yokogawa PSCCM24AAN Critical Control Module is an advanced, high-reliability component designed for use in critical control applications across process industries. Part von Yokogawa’s robust safety and automation system portfolio, this module plays a pivotal role in executing time-sensitive, safety-integrated functions with precision and speed.
Engineered for use in high-integrity systems, such as Emergency Shutdown (ESD), Burner Management Systems (BMS), and Safety Instrumented Systems (SIS), the PSCCM24AAN ensures that vital control logic is executed without delay or failure. It integrates seamlessly into Yokogawa’s ProSafe-RS safety system, providing deterministic control, SIL-certified performance, and diagnostics tailored for process safety environments.
This control module is widely used in sectors like oil & gas, petrochemicals, power generation, and water treatment—where operational integrity and personnel safety are paramount. Built with a rugged enclosure, high-speed CPU, and redundancy options, the PSCCM24AAN stands as a critical safeguard in modern process automation.
Technical Specifications
| Parameter | Beschreibung |
|---|---|
| Modell Number | PSCCM24AAN |
| Product Type | Critical Control Module |
| System Compatibility | ProSafe-RS Safety System |
| Processor Type | High-speed safety-certified CPU (IEC 61508 compliant) |
| Memory | Internal non-volatile flash and RAM |
| I/O Capacity | Interfaces with multiple DI/DO/AI/AO via safety I/O modules |
| Communication Protocols | Vnet/IP, SafetyNet, Ethernet/IP (via interface modules) |
| Voltage Requirement | 24V DC nominal |
| Power Consumption | Approx. 6.5 W |
| Operating Temperature Range | 0°C to +55°C |
| Storage Temperature Range | -20°C to +70°C |
| Humidity Range | 5% to 95% RH (non-condensing) |
| Diagnostic Functions | Built-in self-diagnostics, watchdog timer, redundancy monitoring |
| Redundancy Support | Yes (dual redundant configuration supported) |
| Mounting | Rack-mounted in safety controller chassis |
| Standards Compliance | SIL3 certified (IEC 61508), CE, UL, CSA, ATEX |
| Dimensions (H × W × D) | 130 × 27 × 175 mm |
| Gewicht | 0.45 kg |
| Cooling Method | Natural convection (no fan required) |
| Firmware Upgradable | Yes, via Yokogawa engineering tools |
Product Applications
The PSCCM24AAN is specifically designed for critical and high-risk process environments where failure is not an option. Its primary areas von application include:
-
Emergency Shutdown Systems (ESD)
Ensures safe plant shutdown during hazardous events by executing shutdown sequences instantly. -
Burner Management Systems (BMS)
Provides precise control and monitoring for industrial combustion processes, minimizing fire hazards. -
Safety Instrumented Systems (SIS)
Serves as the central logic solver for safety loops, including pressure relief, flow trip, and over-temperature protection. -
Oil & Gas Operations
Used on vonfshore platforms and refineries to manage blowout preventers, separators, and flare systems. -
Chemical and Petrochemical Plants
Controls critical reactions and isolations in hazardous material handling. -
Power Generation Facilities
Provides turbine overspeed protection, boiler trip logic, and auxiliary shutdown controls.
Key Advantages
-
SIL3-Certified Safety
Designed in accordance with IEC 61508 standards for maximum reliability in life-critical operations. -
Deterministic Performance
Executes control logic within guaranteed response times, suitable for real-time safety functions. -
Redundancy and Fault Tolerance
Supports hot standby redundancy with automatic failover to maintain system continuity. -
Integrated Diagnostics
Advanced self-checking mechanisms and watchdog timers minimize failure risks and simplify maintenance. -
System Compatibility
Seamlessly integrates with Yokogawa’s ProSafe-RS platform and control systems like CENTUM VP. -
Compact and Efficient
High-density, rack-mountable form factor fits easily into standard automation enclosures. -
Field-Proven Reliability
Extensively used in global critical infrastructure projects, validated under rigorous industry standards.
Häufig gestellte Fragen (FAQ)
1. What safety standard is the PSCCM24AAN compliant with?
It is certified to SIL3 under IEC 61508, suitable for high-integrity safety applications.
2. Can the module be used in a redundant configuration?
Yes, it fully supports hot standby redundancy to ensure system reliability.
3. What control systems is it compatible with?
It is natively compatible with the Yokogawa ProSafe-RS safety system and integrates with CENTUM VP via Vnet/IP.
4. Is the module firmware upgradeable?
Yes, firmware updates can be applied using Yokogawa’s engineering tools.
5. What types von signals can it process?
It interfaces with digital and analog I/O modules for safety-critical logic.
6. Does the PSCCM24AAN have built-in diagnostics?
Yes, it features self-diagnostics, watchdog timers, and redundancy health monitoring.
7. What is the typical power consumption?
Approximately 6.5 watts under normal operation.
8. What environments is it designed for?
Industrial environments including vonfshore, petrochemical, power, and manufacturing plants.
9. Is it suitable for use in hazardous areas?
Yes, it is certified for use in hazardous areas and meets ATEX and other safety directives.
10. How is the PSCCM24AAN mounted?
It is designed to be rack-mounted within a safety controller chassis.
Related Modells in the Same Series or Function
| Modell | Beschreibung | Key Features |
|---|---|---|
| PSCCM24AA | Standard Control Module (non-redundant) | Entry-level model without redundancy support |
| PSCDM24AAN | Digital Input Module for safety logic | Interfaces with field ESD signals |
| PSCAO24AAN | Analog Output Module (Safety Rated) | Provides safety loop analog output |
| PSCXM24AAN | Communication Interface Module | Links safety controller to DCS or remote I/Os |
| PSCOM24AAN | Optical Ethernet Communication Module | High-speed safety data communication |
| PSCRM24AAN | Redundancy Management Module | Manages switchovers in redundant setups |
Popular Yokogawa Modells from Sonstige Categories
| Modell | Kategorie | Application |
|---|---|---|
| EJX530A | Pressure Transmitter | High-performance DP and pressure measurement |
| ADMAG AXF | Magnetic Flowmeter | Accurate flow monitoring for conductive liquids |
| FCS1000 | Field Control Station | Core process controller in CENTUM systems |
| YHC5150X | Handheld Communicator | Field configuration and diagnostics via HART/FF |
| AAI543-H50 | Analog Input Module | High-density analog signal acquisition |
| PW482-10 | Power Supply Module | Delivers stabilized power to Yokogawa systems |
