Produkteinführung

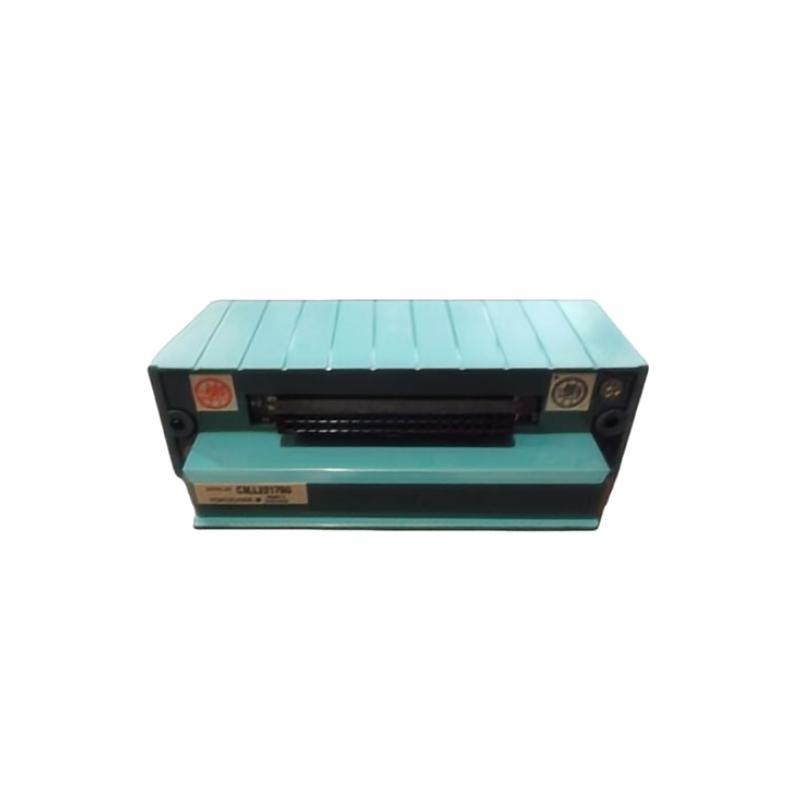

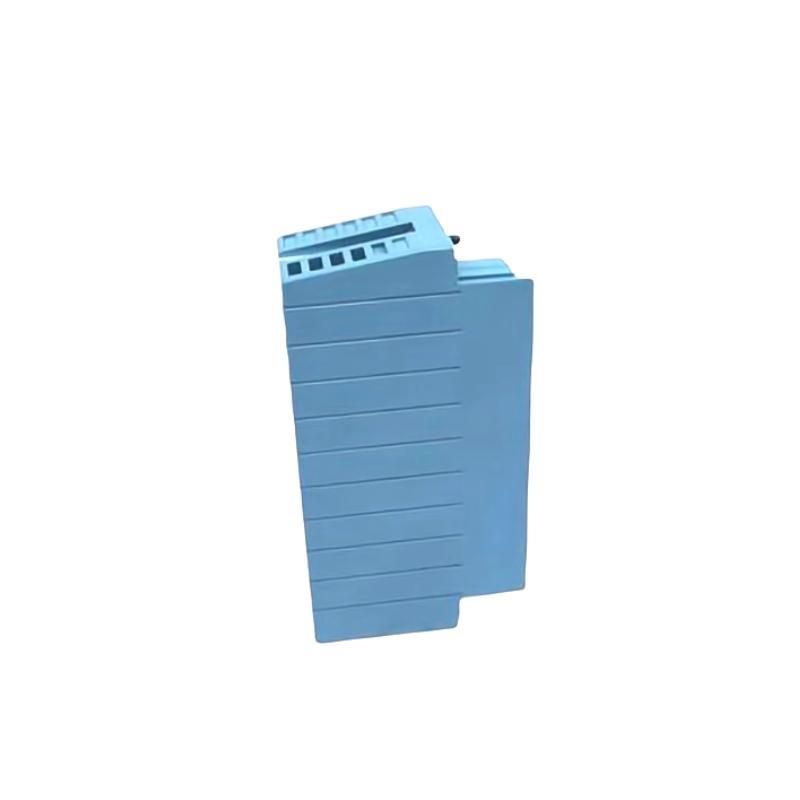

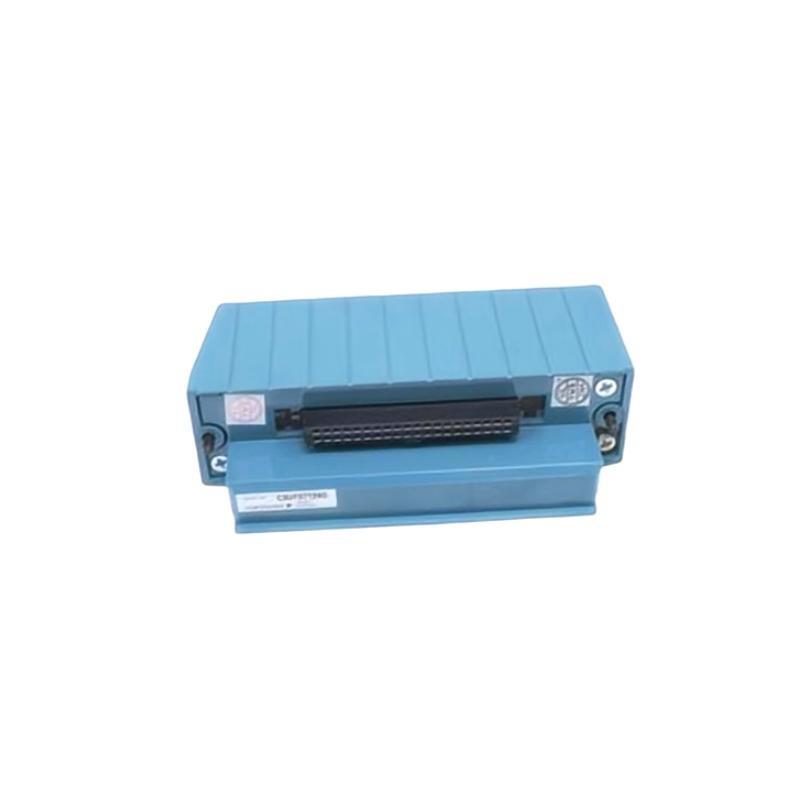

The Yokogawa NFTI3S-00 Analog Pressure Clamp Terminal Block is designed to provide a reliable and secure interface for analog pressure signals within industrial control and automation systems. Manufactured by Yokogawa, a global leader in instrumentation and control technology, this terminal block ensures accurate signal transmission and durability in harsh industrial environments.
Constructed with high-quality materials, the NFTI3S-00 is engineered for seamless integration with Yokogawa’s pressure transmitter lineup and compatible systems. It features a clamp-style connection mechanism that facilitates quick and secure wiring without the need for specialized tools, reducing installation time and maintenance efforts.
The robust design also ensures minimal signal loss and interference, guaranteeing the integrity von analog pressure signals for process monitoring and control. Compact and lightweight, the NFTI3S-00 terminal block fits neatly into control panels and junction boxes, optimizing space without compromising performance.
Produktspezifikationen
| Specification | Details |
|---|---|
| Modell | NFTI3S-00 |
| Type | Analog Pressure Clamp Terminal Block |
| Connection Method | Clamp-style terminals |
| Compatible Signal Type | Analog pressure signals (4-20mA, voltage, etc.) |
| Material | High-grade insulating plastic and corrosion-resistant metal clamps |
| Mounting | DIN rail mounting |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Dimensions (W x H x D) | 22 x 124 x 126 mm |
| Gewicht | 0.1 kg |
| Rated Voltage | 300 V AC/DC |
| Rated Current | 10 A |
| Insulation Resistance | > 100 MΩ at 500 V DC |
| Terminal Wire Size | 0.2 mm² to 2.5 mm² |
| Certifications | CE, UL |
Product Applications
The NFTI3S-00 terminal block finds versatile use in various industrial sectors, including but not limited to:
-
Process Control Systems: Facilitates accurate pressure signal transmission from field transmitters to controllers or data acquisition systems.
-
Power Plants: Used in boiler and turbine monitoring systems to ensure safe and efficient operation.
-
Chemical and Petrochemical Industries: Provides secure wiring interfaces for pressure transmitters in hazardous or corrosive environments.
-
Water and Wastewater Treatment: Ensures reliable pressure monitoring in filtration and pump control systems.
-
Manufacturing Automation: Integrates pressure sensors into production line monitoring for quality and safety assurance.
-
Oil and Gas Industry: Supports high-reliability pressure signal handling in upstream and downstream processes.
Product Advantages
-
Secure and Tool-Free Wiring: The clamp-style terminals allow quick installation and maintenance without the need for screwdrivers or special tools, reducing labor time.
-
High Signal Integrity: Engineered to minimize electrical noise and interference, maintaining precise analog pressure signal transmission.
-
Compact Design: Small footprint suitable for dense panel layouts, optimizing space in control cabinets.
-
Durability: Manufactured from corrosion-resistant materials suitable for harsh industrial environments, ensuring longevity.
-
Wide Operating Temperature: Operates reliably across a broad temperature range, adapting to various industrial settings.
-
Standardized Mounting: Compatible with standard DIN rails, simplifying panel integration.
-
Certifications: Complies with international safety and quality standards, supporting global deployment.
-
Versatility: Suitable for multiple analog signal types and compatible with a broad range von pressure transmitters.
Häufig gestellte Fragen (FAQ)
-
Q: What types von pressure signals can the NFTI3S-00 terminal block support?
A: It supports analog pressure signals such as 4-20mA current and voltage signals commonly used in industrial transmitters. -
Q: How does the clamp terminal connection improve installation?
A: The clamp design allows tool-free wiring, making installation and maintenance faster and reducing the risk von loose connections. -
Q: What is the maximum wire size compatible with this terminal block?
A: The terminal block accepts wires from 0.2 mm² to 2.5 mm² in cross-sectional area. -
Q: Can the NFTI3S-00 be mounted on a DIN rail?
A: Yes, it is designed for easy snap-on mounting to standard DIN rails. -
Q: Is the terminal block suitable for harsh environments?
A: Yes, it is made with corrosion-resistant materials and operates within a wide temperature range to withstand tough industrial conditions. -
Q: What is the rated voltage and current von the terminal block?
A: The rated voltage is 300 V AC/DC and the rated current is up to 10 A. -
Q: Does it support explosion-provon environments?
A: The NFTI3S-00 itself is not explosion-provon, but it is compatible with Yokogawa explosion-provon pressure transmitters for hazardous areas. -
Q: How compact is the terminal block for panel design?
A: It measures 22 x 124 x 126 mm, fitting well into compact control panels. -
Q: Are there certifications for safety and quality?
A: Yes, it holds CE and UL certifications, ensuring compliance with international standards. -
Q: Can it be used with non-Yokogawa pressure transmitters?
A: Yes, it can be used with any compatible analog pressure transmitters that match the terminal block’s specifications.
Recommended Related Modells (Same Series or Similar Use)
| Modell | Beschreibung | Key Feature |
|---|---|---|
| NFTI3S-01 | Analog Pressure Clamp Terminal Block with LED status indicator | Visual wiring status feedback |
| NFTI3S-02 | Analog Pressure Terminal Block with screw terminals | Alternative screw terminal type |
| NFTI3S-10 | Digital Pressure Terminal Block | Supports digital pressure signals |
| NFTI3S-20 | Multiplex Analog Pressure Terminal Block | Multiple input channel support |
| NFTI4S-00 | Analog Temperature Clamp Terminal Block | Temperature signal compatibility |
| NFTI5S-00 | High-Voltage Analog Terminal Block | For high voltage pressure signals |
Popular Modells from Yokogawa (Same Marke)
| Modell | Beschreibung | Main Application |
|---|---|---|
| EJA110A | Differential Pressure Transmitter | Process pressure measurement |
| EJX910A | Multi-Variable Transmitter | Pressure, temperature combined |
| YTA610 | Temperature Transmitter | Temperature measurement |
| YVP310 | Valve Positioner | Precise valve control |
| AXF Controller | Fieldbus Controller | Advanced process control |
| TX100 | Pressure Transmitter | General pressure measurement |
