Produkteinführung

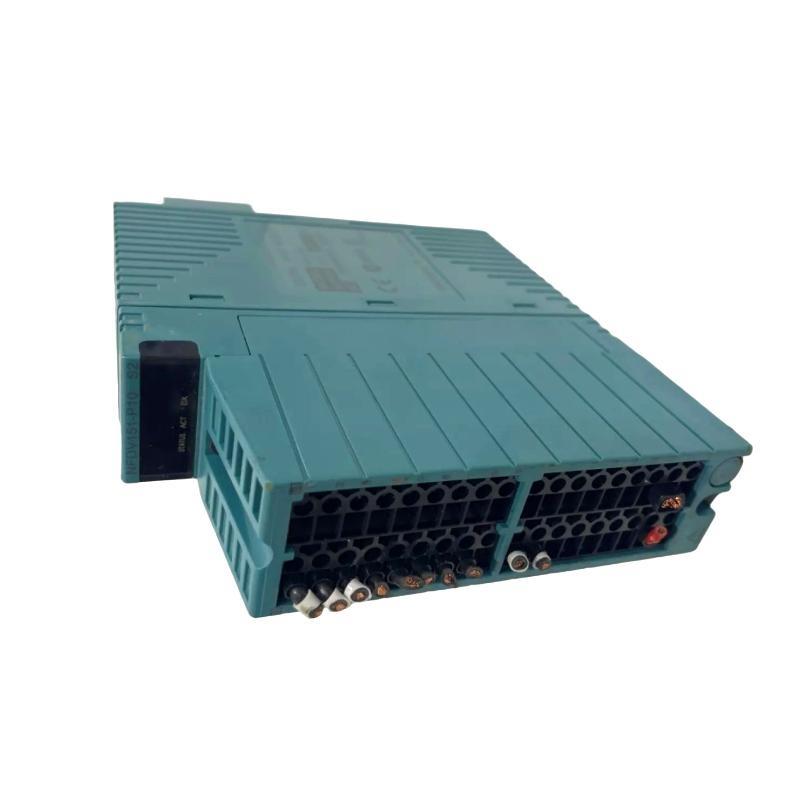

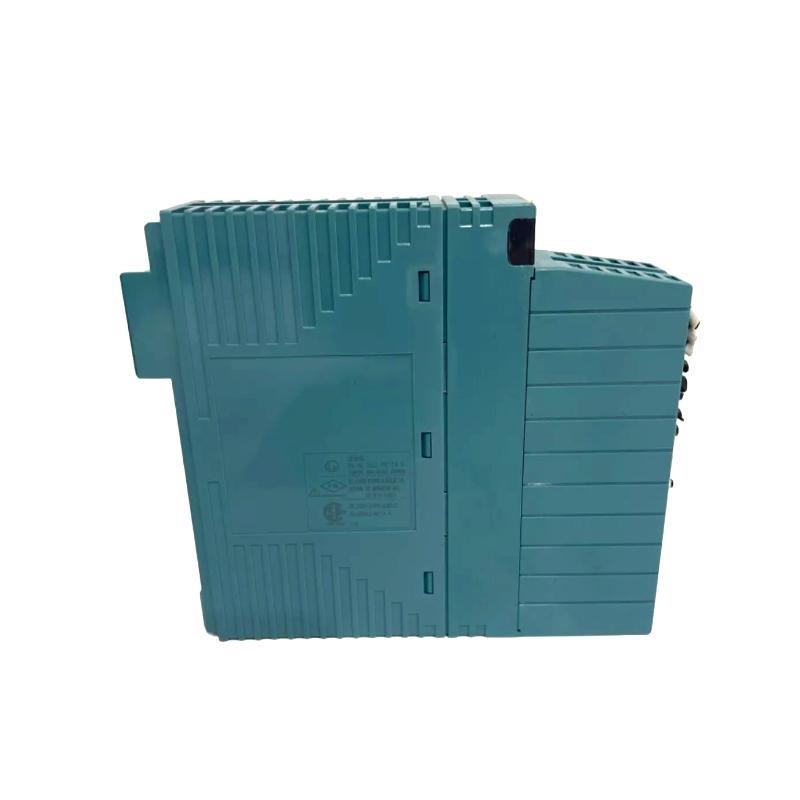

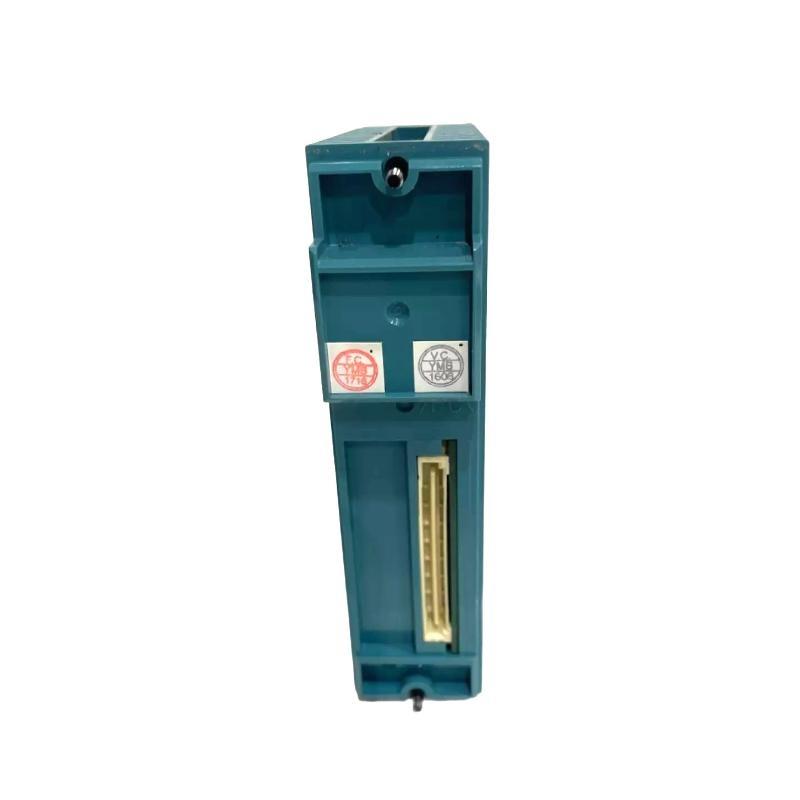

The Yokogawa NFDV557-S00 S2 Digital Output Module is a high-performance digital output Stück designed for advanced process control systems. As a key component von the Yokogawa distributed control system (DCS), this module provides reliable and precise digital signal output capabilities to interface with field devices such as valves, actuators, relays, and other automation equipment.
This module is engineered to deliver high-speed switching, robust fault detection, and seamless integration with the Yokogawa CENTUM VP platform. It supports both ON/OFF control and complex interlocking logic, ensuring that plant operations can be conducted safely and efficiently.
Its modular design allows for easy maintenance and scalability, making it suitable for both large-scale industrial plants and smaller automation systems requiring dependable digital control.
Specifications
| Parameter | Specification |
|---|---|
| Modell | NFDV557-S00 S2 |
| Module Type | Digital Output Module |
| Number von Channels | 16 channels |
| Output Type | Relay contact output |
| Output Voltage Range | 24 VDC / 120 VAC / 230 VAC (configurable) |
| Output Current | 0.5 A per channel |
| Isolation | Optically isolated between channels and system |
| Response Time | < 5 ms |
| Power Consumption | 3 W typical |
| Operating Temperature | 0–55°C |
| Storage Temperature | -20–70°C |
| Humidity | 5–95% RH, non-condensing |
| Communication Interface | Backplane interface to DCS |
| Diagnostics | Short-circuit detection, overload alarm |
| Dimensions (W × H × D) | 32.8 × 130.9 × 130 mm |
| Gewicht | 0.3 kg |
| Certification | CE, UL |
Applications
The NFDV557-S00 S2 Digital Output Module is widely applied in:
-
Industrial Automation: Controlling solenoid valves, motor starters, and alarms.
-
Process Industries: Oil & gas, petrochemical, water treatment plants, and chemical processing.
-
Power Plants: Distributed control von auxiliary systems and plant monitoring.
-
Manufacturing Systems: Automated machinery requiring precise ON/OFF signal outputs.
-
Safety Interlocks: Integration with safety systems for emergency shutdown or process protection.
Advantages
-
High Reliability: Robust design with optical isolation ensures long-term operation without failure.
-
Fast Response: Response times below 5 ms allow for precise control von time-sensitive processes.
-
Fault Diagnostics: Built-in short-circuit detection and overload alarms enhance system safety.
-
Flexible Configuration: Supports multiple voltage levels and field device compatibility.
-
Modular Design: Easily replaceable and scalable within a Yokogawa DCS rack.
-
Seamless Integration: Fully compatible with Yokogawa CENTUM VP systems, ensuring smooth communication and control.
-
Compact and Lightweight: Dimensions and weight allow for high-density installation in control cabinets.
-
Global Compliance: Certified with CE and UL standards for international deployment.
Häufig gestellte Fragen (FAQ)
-
Can the NFDV557-S00 S2 module handle AC output?
Yes, it can be configured for 120 VAC or 230 VAC relay outputs. -
What is the maximum output current per channel?
Each channel supports up to 0.5 A. -
Does the module provide isolation between channels?
Yes, channels are optically isolated from each other and from the system. -
How does the module detect short-circuits?
The module continuously monitors the output lines and triggers an alarm if a short is detected. -
Can it integrate with other Yokogawa DCS modules?
Yes, it is fully compatible with CENTUM VP and other Yokogawa digital input/output modules. -
What is the typical response time for outputs?
The response time is less than 5 ms, ensuring fast and accurate signal control. -
Can this module be used in hazardous environments?
The standard module is intended for general industrial environments; versions for hazardous areas require additional certification. -
How many channels are supported per module?
The module supports 16 digital output channels per Stück. -
What diagnostics are available for maintenance?
It provides overload and short-circuit alarms for each channel, allowing for quick troubleshooting. -
What communication interface does it use to connect to the DCS?
It uses the backplane interface for seamless integration with the Yokogawa control system.
Related Modells (Same Series / Similar Functionality)
| Modell | Channels | Output Type | Voltage Options | Gewicht |
|---|---|---|---|---|
| NFDV557-S01 | 16 | Relay | 24 VDC / 120 VAC | 0.45 kg |
| NFDV557-S02 | 32 | Relay | 24 VDC / 230 VAC | 0.85 kg |
| NFDV557-S03 | 16 | Solid-state | 24 VDC | 0.40 kg |
| NFDV557-S04 | 8 | Relay | 24 VDC / 120 VAC | 0.35 kg |
| NFDV557-S05 | 16 | Triac | 230 VAC | 0.50 kg |
| NFDV557-S06 | 32 | Relay | 24 VDC | 0.90 kg |
Popular Yokogawa Modells (Same Marke)
| Modell | Type | Channels | Voltage Options | Gewicht |
|---|---|---|---|---|
| NFDV161-P50 | Analog Output Module | 8 | 4–20 mA | 0.60 kg |
| NFDV162-P60 | Analog Input Module | 16 | 4–20 mA | 0.55 kg |
| NFDV511-S00 | Digital Input Module | 16 | 24 VDC | 0.50 kg |
| NFDV512-S01 | Digital Input Module | 32 | 24 VDC | 0.80 kg |
| NFDV557-S07 | Digital Output Module | 16 | 24 VDC / 120 VAC | 0.45 kg |
| NFDV558-S00 | High-speed Output Module | 16 | 24 VDC | 0.55 kg |
