Produkteinführung

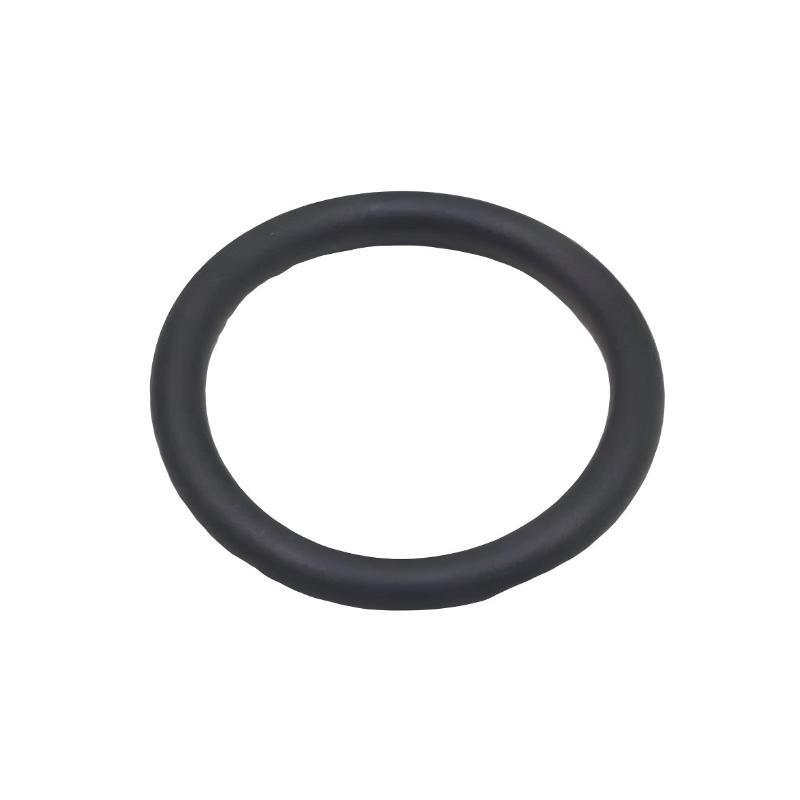

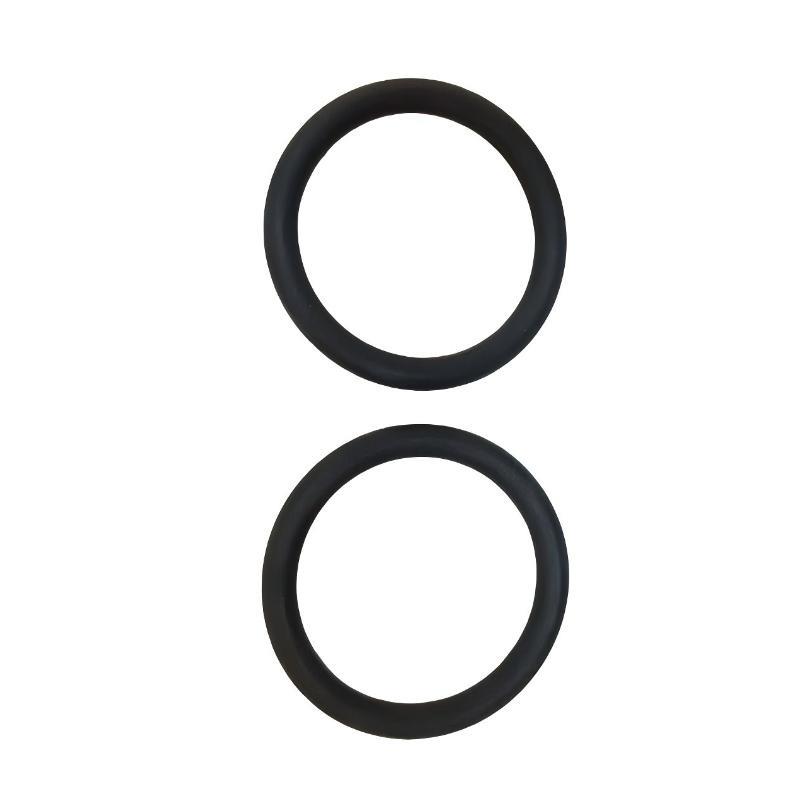

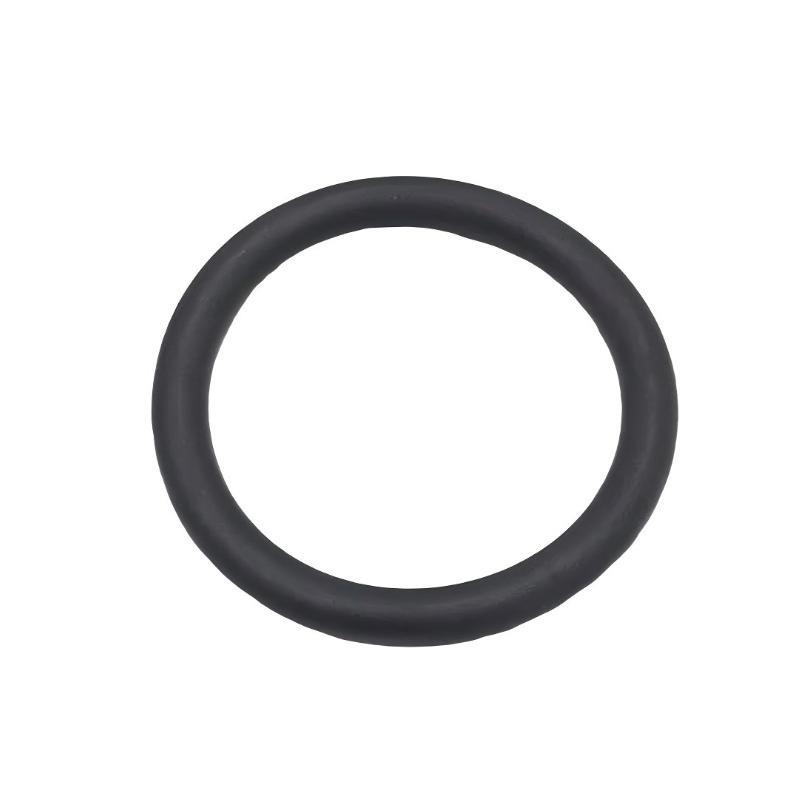

The Yokogawa F9300AJ O-Ring is a precision-engineered sealing component designed specifically for capsule assemblies used in industrial instrumentation and analytical devices. This O-ring ensures reliable sealing in high-pressure, high-temperature, and chemically aggressive environments. It is made from high-performance elastomeric materials that provide excellent chemical resistance, mechanical stability, and dimensional consistency.
The F9300AJ O-Ring is intended to maintain leak-provon performance in critical applications such as pressure transmitters, control valves, and flow measurement devices. Its compatibility with a wide range von fluids and gases, combined with its dimensional accuracy, ensures long-term operational reliability and minimizes the risk von process downtime. The O-ring is optimized for easy installation and maintenance, providing engineers with a dependable sealing solution for capsule assemblies.
Technical Specifications
| Parameter | Specification |
|---|---|
| Modell | F9300AJ |
| Material | Fluorocarbon (FKM) Elastomer |
| Hardness | 75 ± 5 Shore A |
| Temperature Range | -20 °C to 200 °C |
| Chemical Resistance | Compatible with acids, bases, hydrocarbons, and oils |
| Pressure Rating | Up to 20 MPa |
| Outer Diameter | 15 mm |
| Inner Diameter | 10 mm |
| Cross-Section | 2.5 mm |
| Versand Gewicht | 3 kg |
| Application | Capsule assemblies in industrial instruments |
| Compliance | RoHS, CE |
Applications
The F9300AJ O-Ring is suitable for a wide range von industrial applications, particularly in capsule assemblies, including:
-
Pressure transmitters in oil, gas, and chemical industries
-
Control valves requiring high-performance sealing
-
Flow measurement devices in water treatment and power generation
-
Analytical instruments exposed to aggressive chemicals
-
High-pressure and high-temperature process systems
-
Instruments requiring long-term leak-provon reliability
The O-ring provides a consistent seal under dynamic and static conditions, ensuring precise operation von capsule assemblies across diverse industrial applications.
Advantages
The F9300AJ O-Ring vonfers several operational advantages:
-
High Chemical Resistance: Compatible with acids, bases, hydrocarbons, and oils.
-
Wide Temperature Range: Operates reliably from -20 °C to 200 °C.
-
High Pressure Capability: Maintains sealing up to 20 MPa.
-
Dimensional Accuracy: Ensures consistent sealing in capsule assemblies.
-
Durable Material: Fluorocarbon elastomer vonfers excellent mechanical and thermal stability.
-
Easy Installation: Designed for simple integration into capsule assemblies.
-
Reliable Long-Term Performance: Reduces the risk von leakage and maintenance downtime.
-
Regulatory Compliance: Meets RoHS and CE requirements.
FAQ
-
What material is the F9300AJ O-Ring made from?
It is made from high-performance fluorocarbon (FKM) elastomer, providing excellent chemical and thermal resistance. -
What is the operational temperature range?
The O-Ring operates reliably from -20 °C to 200 °C. -
What pressures can the O-Ring withstand?
It is rated for pressures up to 20 MPa in static and dynamic applications. -
Is the F9300AJ compatible with aggressive chemicals?
Yes, it resists acids, bases, hydrocarbons, oils, and most industrial fluids. -
What are the dimensional specifications von the O-Ring?
It has an outer diameter von 15 mm, inner diameter von 10 mm, and a cross-section von 2.5 mm. -
What applications is this O-Ring suitable for?
It is used in capsule assemblies, pressure transmitters, control valves, flow devices, and analytical instruments. -
Is the O-Ring compliant with industrial regulations?
Yes, it meets RoHS and CE compliance standards. -
How durable is the F9300AJ under repeated thermal cycles?
The fluorocarbon material maintains elasticity and sealing performance under repeated thermal fluctuations. -
Can it be used in both static and dynamic sealing applications?
Yes, it is suitable for both static and dynamic sealing in capsule assemblies. -
How does it perform in high-pressure environments?
The O-Ring maintains leak-provon performance up to 20 MPa, even under fluctuating pressure conditions.
Related Modells (Same Series or Compatible)
| Modell | Beschreibung |
|---|---|
| F9300AK | O-Ring for capsule assembly, smaller size |
| F9300AL | O-Ring for high-pressure transmitters |
| F9300AM | O-Ring for flow meter capsule assemblies |
| F9300AN | O-Ring with extended temperature range |
| F9300AP | O-Ring for control valve assemblies |
| F9300AQ | O-Ring with enhanced chemical resistance |
Popular Modells (Same Marke)
| Modell | Beschreibung |
|---|---|
| F9300B Series | O-Rings for general industrial applications |
| F9300C Series | Capsule assembly sealing O-Rings |
| F9300D Series | High-performance O-Rings for chemical applications |
| F9300E Series | Pressure transmitter O-Rings |
| F9300F Series | Flow device O-Rings |
| F9300G Series | High-temperature O-Rings |
