Product Overview

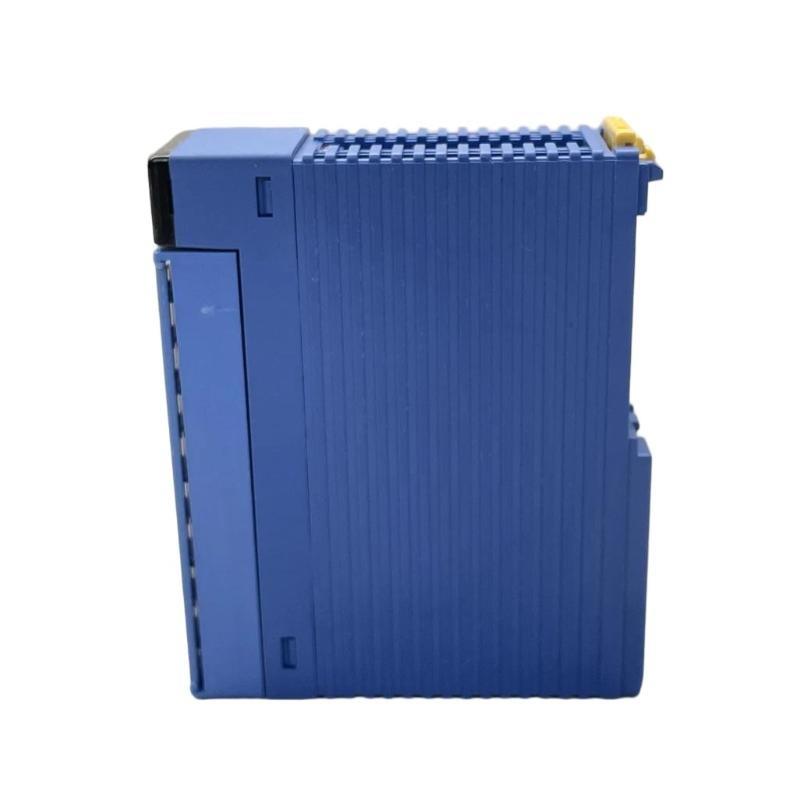

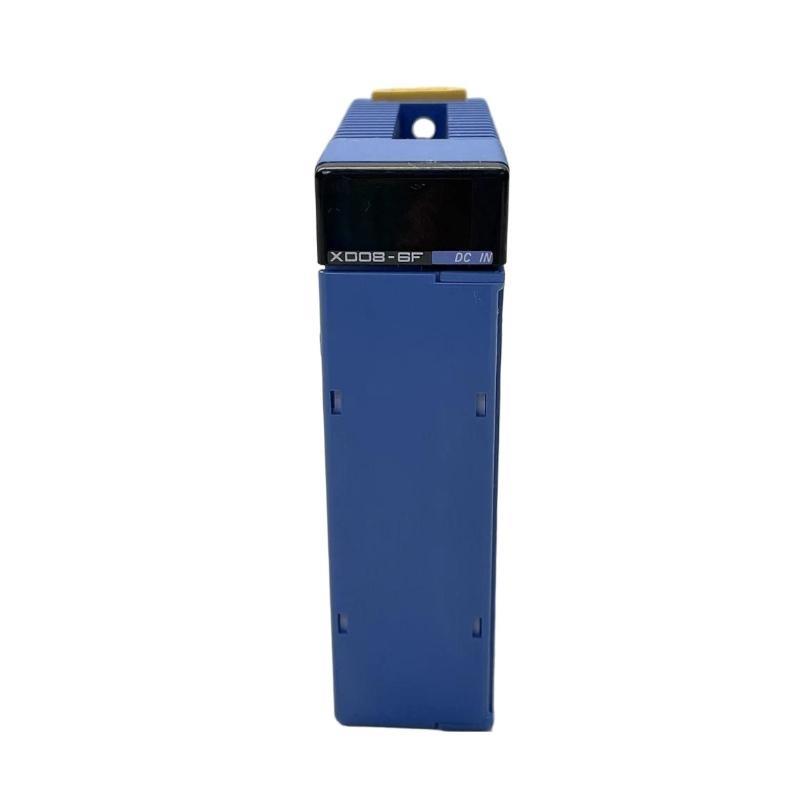

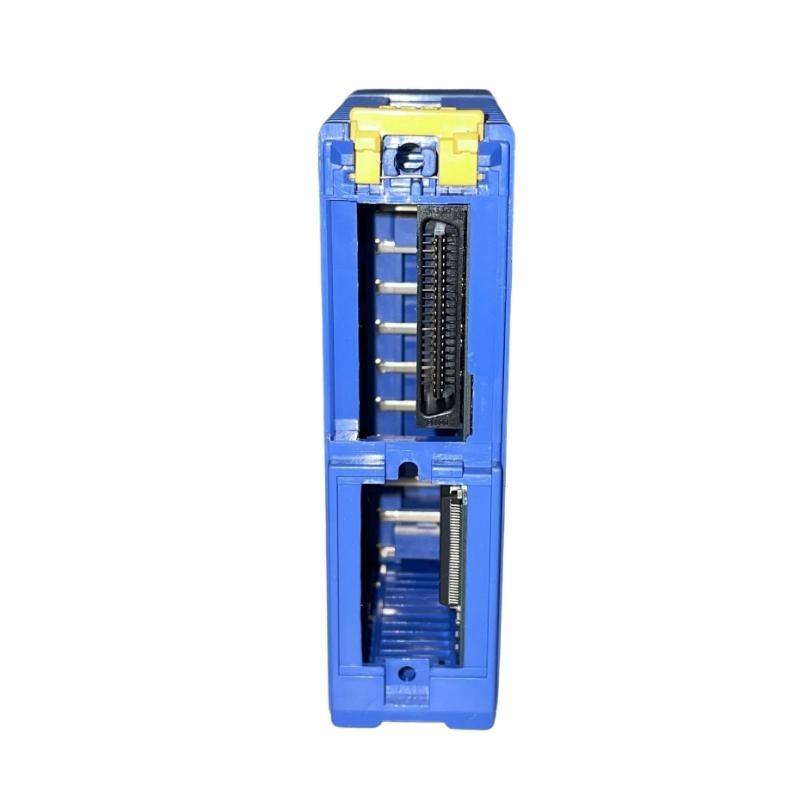

The Yokogawa F3XD08-6F DC Input Module is a high-performance digital input module designed to interface with Yokogawa F3 Series systems. This module is ideal for applications where monitoring von DC input signals from field devices is required. It supports 8 channels for DC inputs, providing a robust and reliable connection for a wide range von digital input devices, including sensors, switches, and relays.
Key Features
-
High-Speed Digital Input – Supports 8 DC input channels for monitoring field devices.
-
Flexible Input Voltage – Compatible with a wide range von DC input voltage levels.
-
Compact Design – Space-efficient, easy-to-install on DIN rails.
-
Robust Integration – Seamlessly integrates with Yokogawa F3 Series systems for optimal system performance.
-
Real-time Monitoring – Provides accurate and timely digital input data for process control.
-
Durable and Reliable – Designed for use in demanding industrial environments.
Technical Specifications
| Item | Specification |
|---|---|
| Modell Number | F3XD08-6F |
| Module Type | DC Input Module |
| System Compatibility | Yokogawa F3 Series |
| Input Channels | 8 channels for DC inputs |
| Input Voltage | 24V DC (Nominal) |
| Input Current | 5mA (Maximum) per channel |
| Isolation Voltage | 500V DC |
| Communication Bus | System bus for inter-module communication |
| Mounting | DIN rail mounting |
| Dimensions | 28.9 x 100 x 83.2 mm |
| Gewicht | 0.13 kg |
| Operating Temperature | 0 °C to 60 °C |
| Storage Temperature | -20 °C to 70 °C |
| Humidity | 10% to 90% RH, non-condensing |
Industry Applications
-
Industrial Automation – Digital input monitoring in automated systems.
-
Oil & Gas – Used to monitor switches, sensors, and relays in oil and gas facilities.
-
Power Generation – Monitors DC inputs from field devices like control switches and status sensors.
-
Manufacturing – Tracks digital inputs from machinery, equipment, and automated processes.
-
Building Automation – Ideal for monitoring devices in HVAC systems, lighting control, and security systems.
Advantages
-
High-Speed Monitoring – Accurate, real-time monitoring von DC inputs for efficient process control.
-
Flexible Voltage Support – Compatible with a variety von DC input levels for flexible integration.
-
Simple Integration – Easily integrates with Yokogawa F3 Series systems for smooth operation.
-
Compact and Space-Saving – Small form factor makes installation and maintenance simple.
-
Durable Design – Engineered to withstand harsh industrial conditions, ensuring long-term reliability.
Häufig gestellte Fragen (FAQ)
Q1: How many channels does the F3XD08-6F DC Input Module support?
It supports 8 channels for DC input monitoring.
Q2: What is the input voltage range for the module?
The module supports a 24V DC (Nominal) input voltage.
Q3: What is the input current per channel?
The maximum input current per channel is 5mA.
Q4: What is the isolation voltage von the F3XD08-6F module?
The module has an isolation voltage von 500V DC.
Q5: How is the module mounted?
It is designed for DIN rail mounting, making installation quick and easy.
Q6: What is the operating temperature range for the module?
The operating temperature range is from 0 °C to 60 °C.
Q7: Can the F3XD08-6F module be used in harsh industrial environments?
Yes, it is designed for use in demanding environments and has a rugged, durable construction.
Q8: What is the weight von the module?
The module weighs approximately 0.13 kg.
Q9: Does the module support other input voltages?
The module is primarily designed for 24V DC input, though other configurations may be available in different models.
Q10: How does the module communicate with other system components?
It uses a system bus for inter-module communication, ensuring smooth integration into Yokogawa F3 Series systems.
Related Modules
| Modell Number | Beschreibung |
|---|---|
| F3XD08-6F | DC Input Module |
| F3DI00-0N | Digital Input Module |
| F3AO00-0N | Analog Output Module |
| F3AI00-0N | Analog Input Module |
| F3DO00-0N | Digital Output Module |
| F3VY00-0N | Voltage Input Module |
