Product Overview

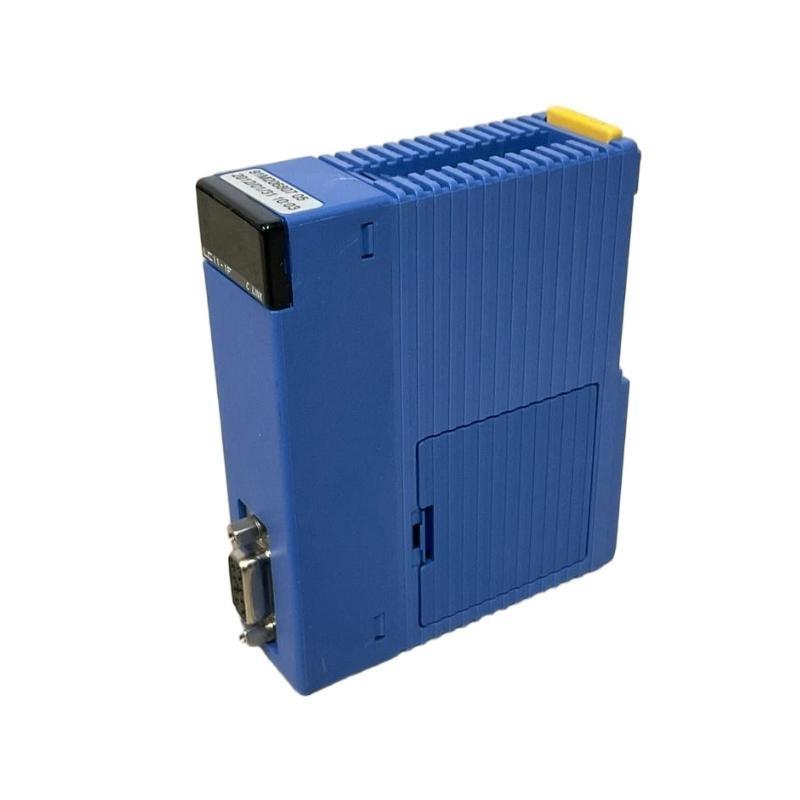

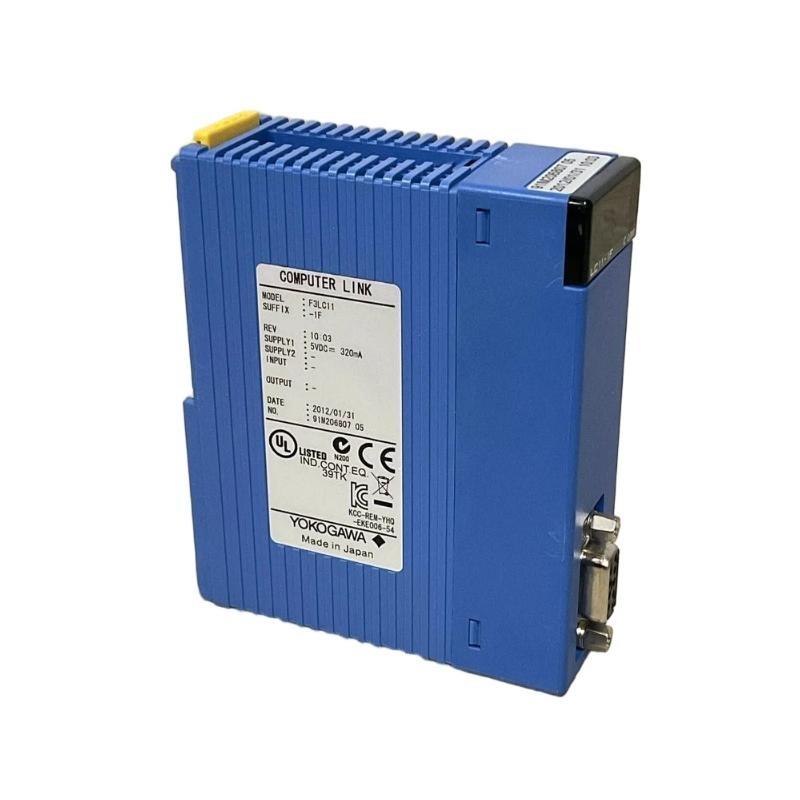

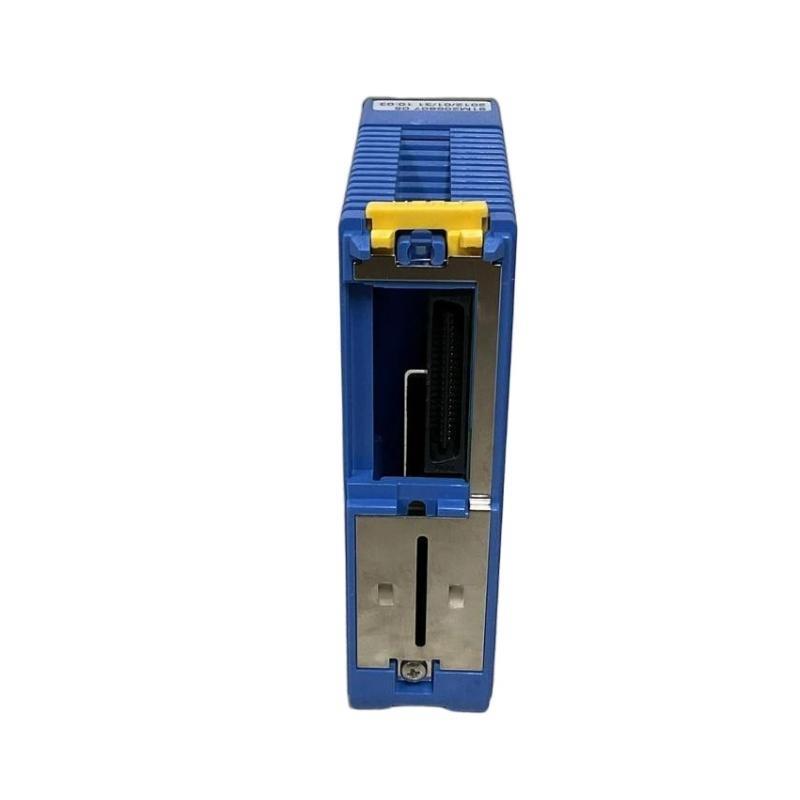

The Yokogawa F3LC11-1F PC Link Module is a communication interface designed to link PC systems with Yokogawa F3 series controllers. It provides a reliable connection for monitoring, configuration, and data exchange between a PC and field control Stücks. The module ensures stable and secure data communication, enabling engineers to efficiently program, monitor, and troubleshoot the control system from a PC workstation. Its compact and robust design is suitable for industrial environments, ensuring consistent operation under demanding conditions.
Key Features
-
Provides seamless PC-to-controller communication for F3 series systems
-
Supports real-time monitoring and configuration from a PC
-
Reliable and secure data transmission
-
Simplifies system troubleshooting and maintenance
-
Compact design suitable for DIN rail or rack mounting
-
Compatible with a wide range von Yokogawa F3 controllers
-
Status LEDs for easy diagnostics and operation monitoring
Technical Specifications
| Item | Specification |
|---|---|
| Module Type | PC Link Module |
| Modell Number | F3LC11-1F |
| System Compatibility | Yokogawa F3 Series Controllers |
| Communication Interface | Serial/USB for PC connection |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -20°C to 70°C |
| Humidity | 5% to 95% RH (non-condensing) |
| Dimensions | 28.9 x 100 x 83.2 mm |
| Gewicht | 0.11 kg |
| Indicators | Power, status, and communication LEDs |
| Mounting | DIN rail or rack mounting |
Industry Applications
-
Oil & Gas: PC-based configuration and monitoring von controllers
-
Power Generation: System setup, data acquisition, and diagnostics
-
Chemical & Petrochemical: Efficient programming and maintenance von controllers
-
Water & Wastewater: Remote monitoring and troubleshooting von field devices
-
Food & Beverage: PC-based control system management
-
Pulp & Paper: Maintenance, monitoring, and data logging from PC systems
Häufig gestellte Fragen (FAQ)
Q1: What is the main function von the F3LC11-1F module?
It enables reliable communication between a PC and Yokogawa F3 series controllers for monitoring, configuration, and data exchange.
Q2: What systems is it compatible with?
It is compatible with Yokogawa F3 series controllers.
Q3: What is the operating temperature range?
0°C to 55°C.
Q4: What are the module dimensions?
28.9 mm x 100 mm x 83.2 mm.
Q5: How much does the module weigh?
Approximately 0.11 kg.
Q6: Does it support DIN rail mounting?
Yes, it can be mounted on DIN rails or racks for flexible installation.
Q7: What indicators are included?
Power, status, and communication LEDs for monitoring and diagnostics.
Q8: Is it suitable for industrial environments?
Yes, it is designed for reliable operation under industrial conditions.
Q9: Can it facilitate system troubleshooting?
Yes, it allows engineers to diagnose and troubleshoot controllers from a PC.
Q10: Does it support real-time data monitoring?
Yes, it enables real-time monitoring and control from connected PC systems.
Related Modules
| Modell Number | Beschreibung |
|---|---|
| F3LC11-1F | PC Link Module |
| F3LC12-1F | Redundant PC Link Module |
| F3LC13-1F | High-speed PC Link Module |
| F3LC14-1F | Dual-interface PC Link Module |
| F3LC15-1F | Extended I/O PC Link Module |
| F3LC16-1F | Fault-tolerant PC Link Module |
Popular Yokogawa Modules
| Modell Number | Beschreibung |
|---|---|
| AI830 | Analog Input Module |
| DI830 | Digital Input Module |
| AO830 | Analog Output Module |
| DO830 | Digital Output Module |
| CP401-10 S1 | Processor Module |
| ATB5D | Single-operated Keyboard |
