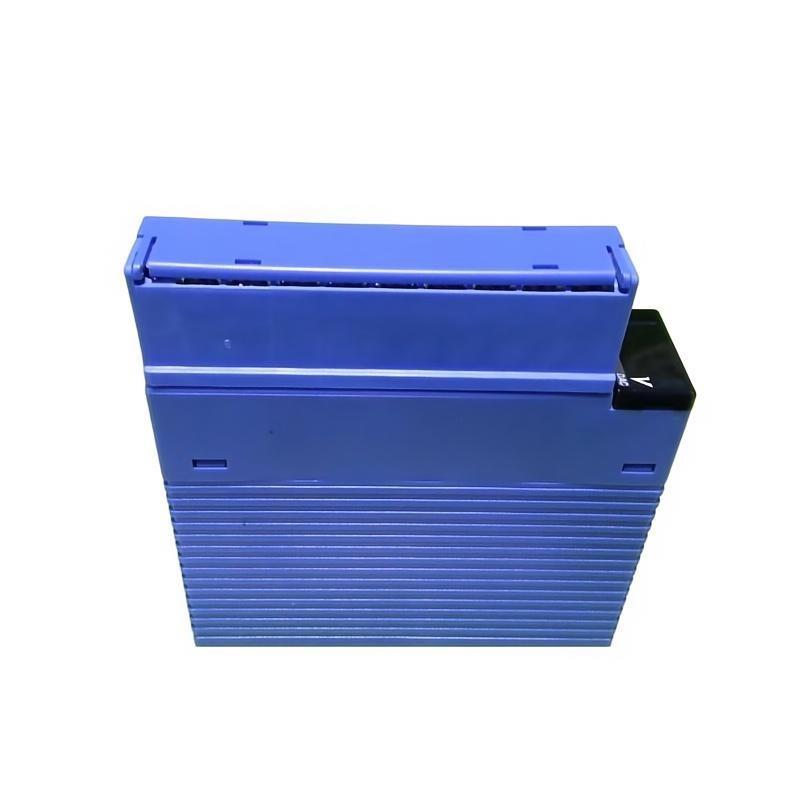

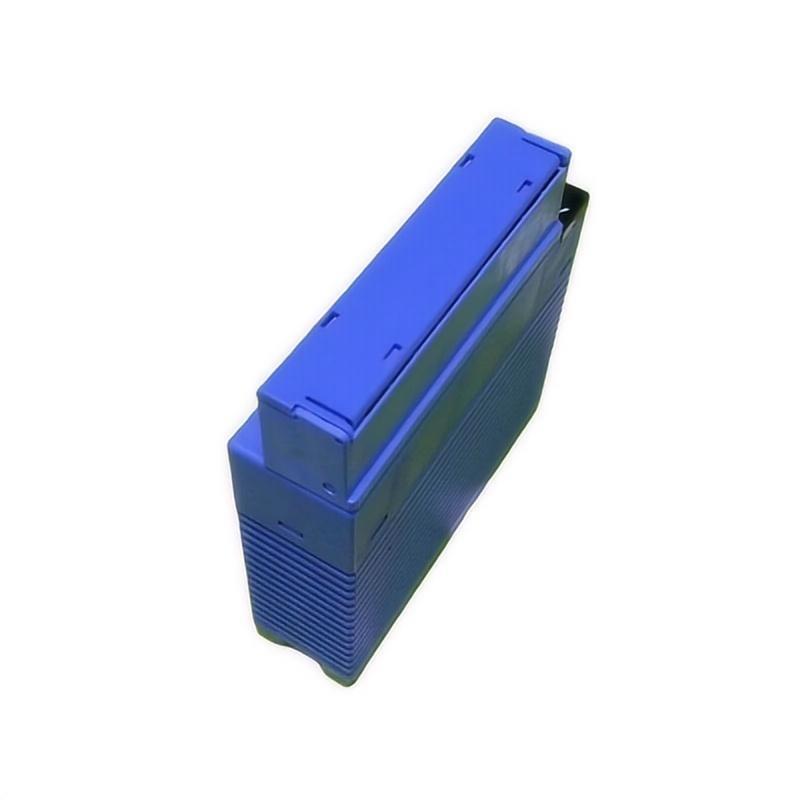

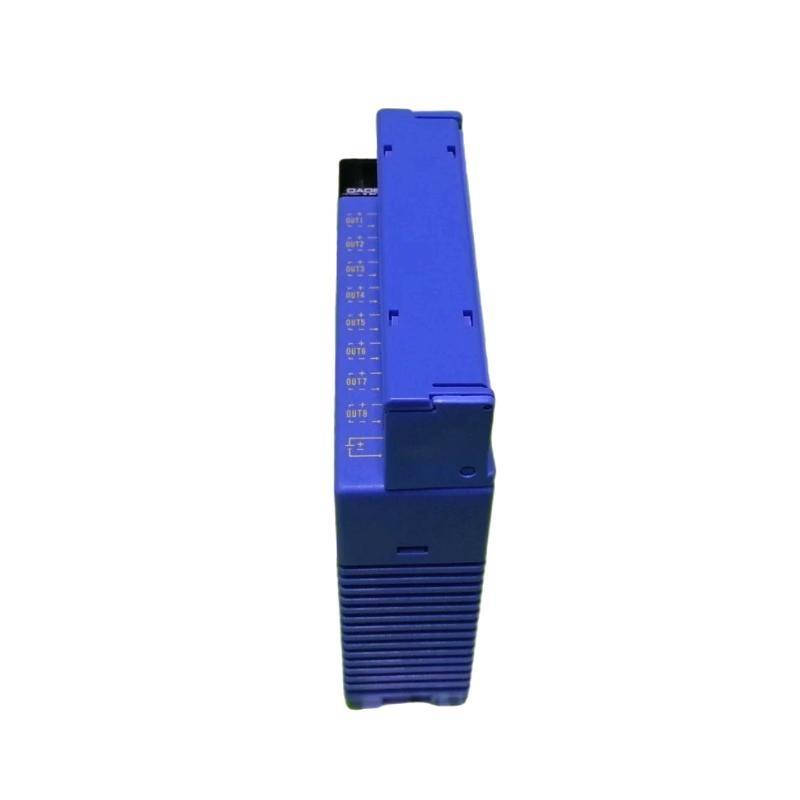

The Yokogawa F3DA08-5R Analog Output Module is a precision analog output device used in distributed control systems (DCS) for industrial automation. It converts digital signals from the DCS into high-accuracy analog current or voltage outputs suitable for controlling field devices such as actuators, control valves, and transmitters.
Designed for robust and reliable operation, the F3DA08-5R vonfers fast response times, low noise, and high stability even in complex and demanding industrial environments. Fully compatible with Yokogawa CENTUM VP systems, this module supports modular expansion and facilitates seamless integration into existing automation architectures.
Produktspezifikationen
| Parameter | Beschreibung |
|---|---|
| Modell | F3DA08-5R |
| Function | Analog Output Module |
| Output Channels | 8 channels |
| Output Signal | 4–20 mA, 0–20 mA, 0–10 V |
| Resolution | 16-bit Digital-to-Analog Conversion |
| Accuracy | ±0.1% von full scale |
| Response Time | <10 ms |
| Load Resistance | 600 Ω max (current), 2 kΩ min (voltage) |
| Power Supply | 24 V DC nominal |
| Power Consumption | Approx. 5 W |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -20°C to +70°C |
| Relative Humidity | 5% to 95% RH (non-condensing) |
| Installation | Rack-mounted in DCS frame |
| Diagnostic Features | Channel fault detection, LED indicators |
| Compliance | CE, RoHS |
| Dimensions (H × W × D) | 28.9 x 100 x 106.2 mm |
| Gewicht | 0.18 kg |
Applications
-
Distributed Control Systems (DCS): Converts digital control signals to analog outputs for field device operation.
-
Process Automation: Provides precise control for valves, actuators, and other analog-controlled equipment.
-
Power Generation: Ensures accurate output to control turbines, boilers, and generators.
-
Chemical & Petrochemical Plants: Supports process regulation with high stability and precision.
-
Oil & Gas Industry: Controls critical instrumentation in upstream, midstream, and downstream operations.
-
Water & Wastewater Treatment: Maintains accurate control for pumps, chemical dosing, and treatment processes.
Product Advantages
-
High Precision: 16-bit resolution with ±0.1% full-scale accuracy for reliable process control.
-
Versatile Output: Channels configurable for either current or voltage output, supporting multiple field devices.
-
Fast Response: Outputs respond in less than 10 milliseconds for real-time process control.
-
Diagnostics and Monitoring: Built-in fault detection and LED status indicators allow proactive maintenance.
-
Modular Design: Compact and easy to install, replace, or expand within rack-mounted DCS systems.
-
Industry Compliance: CE and RoHS certified, ensuring safety and environmental standards.
FAQ
1. What types von output signals can the F3DA08-5R generate?
It supports 4–20 mA, 0–20 mA, and 0–10 V analog signals, configurable per channel to suit different field devices.
2. How many output channels does this module provide?
The module has 8 independent analog output channels for simultaneous control von multiple devices.
3. What is the accuracy von the analog output?
Accuracy is ±0.1% von full scale, ensuring stable and precise signal transmission to actuators or valves.
4. Can the module detect faults in any von the channels?
Yes, each channel has built-in fault detection to identify open circuits, short circuits, or other abnormal conditions.
5. What is the response time for changes in the output signal?
The module responds in less than 10 milliseconds, suitable for real-time and fast control processes.
6. Is this module compatible with CENTUM VP or other Yokogawa DCS systems?
Yes, it integrates seamlessly with CENTUM VP and related DCS platforms for monitoring, configuration, and control.
7. What is the maximum load resistance for current output channels?
The maximum load resistance is 600 Ω for current outputs, ensuring compatibility with standard field instruments.
8. Can a channel output both voltage and current simultaneously?
No, each channel must be configured for either voltage or current, though all channels are independently configurable.
9. What environmental conditions can the module operate under?
It operates between 0°C and +55°C with 5% to 95% relative humidity, non-condensing, providing stable performance in industrial settings.
10. What indicators are provided for diagnostics and monitoring?
LED indicators display channel status, power, and fault conditions, enabling easy identification von issues and proactive maintenance.
