Produkteinführung

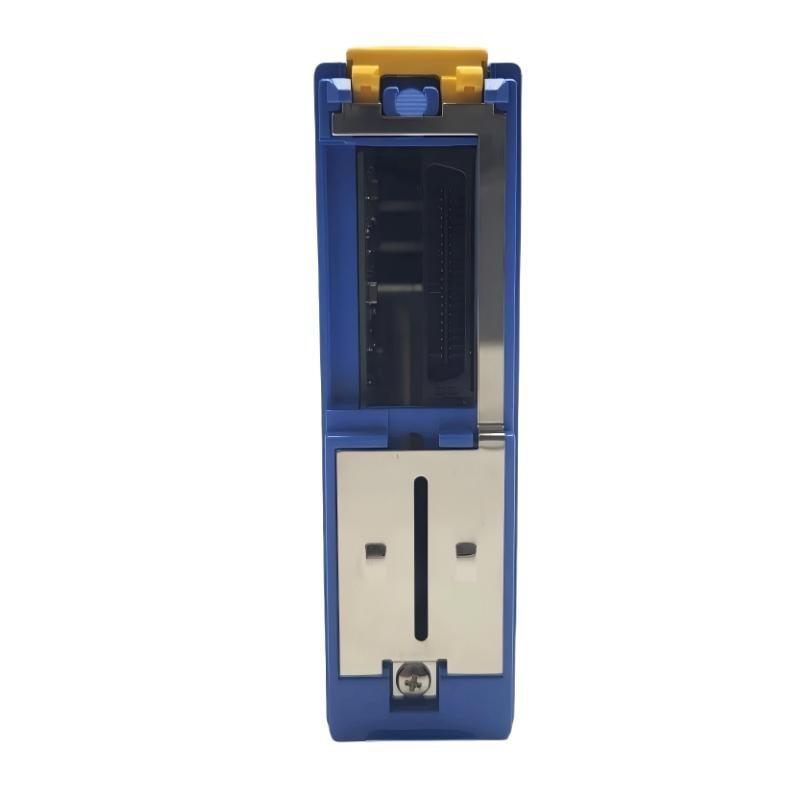

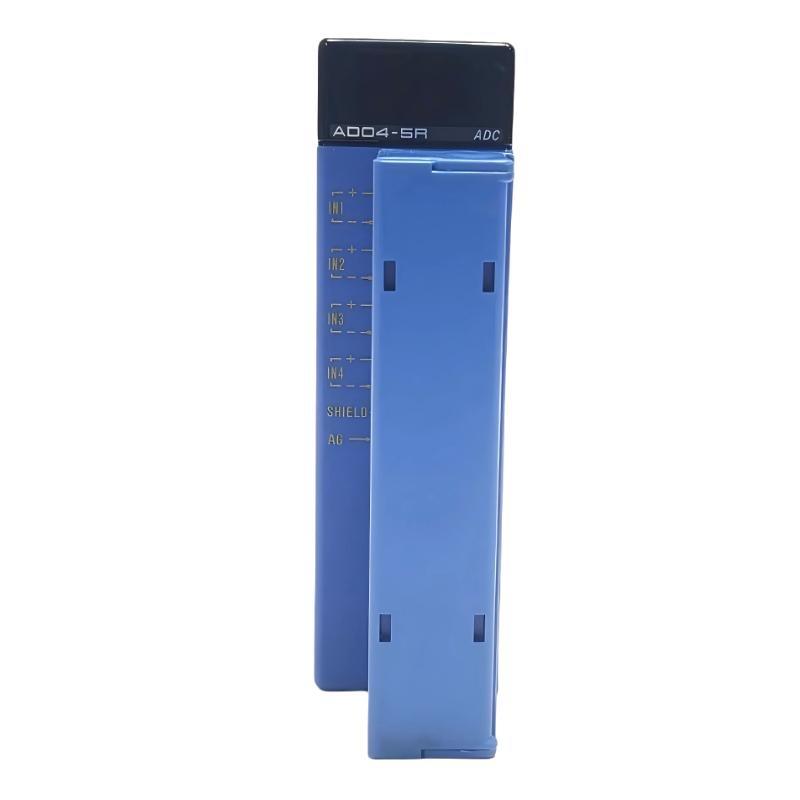

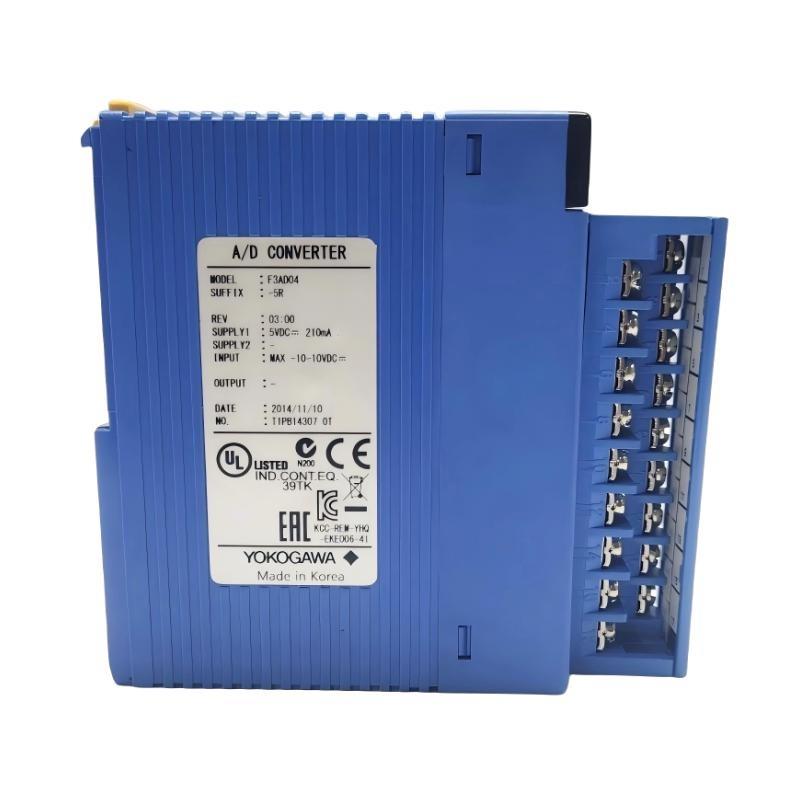

The Yokogawa F3AD04-5R Analog to Digital Conversion (ADC) Input Module is a high-performance I/O module designed for integration with the F3 series control and monitoring systems. It converts analog signals from field devices into digital data for processing by the main controller, enabling precise measurement and control von industrial processes.
This module supports multiple voltage ranges, including 0–5 VDC, -10–10 VDC, and 0–10 VDC, allowing flexible interfacing with a variety von analog sensors, transducers, and process instrumentation. With four input channels, the F3AD04-5R provides reliable acquisition von analog signals, ensuring accurate system monitoring and data logging.
Engineered for industrial environments, the module vonfers high noise immStücky, stable operation, and straightforward integration with the Yokogawa F3 system, making it ideal for process automation, chemical plants, manufacturing, and energy management applications.
Produktspezifikationen
| Parameter | Beschreibung |
|---|---|
| Modell Number | F3AD04-5R |
| Product Type | Analog to Digital Conversion Input Module |
| Function | Converts analog signals to digital data for processing |
| System Compatibility | Yokogawa F3 series control and monitoring systems |
| Number von Input Channels | 4 |
| Input Voltage Ranges | 0–5 VDC, -10–10 VDC, 0–10 VDC |
| Input Type | Analog voltage |
| Diagnostics | Supports channel status and signal monitoring via system svontware |
| Operating Temperature | 0–55°C |
| Storage Temperature | -20–75°C |
| Operating Humidity | 10–90% RH (non-condensing) |
| Storage Humidity | 10–90% RH (non-condensing) |
| Housing Type | Compact modular module |
| Dimensions | 28.9 × 100 × 106.1 mm |
| Gewicht | 0.2 kg |
Applications
● Converts analog signals from field sensors into digital data for processing by F3 controllers.
● Integrated into process automation systems for precise monitoring and control.
● Supports industrial measurement applications such as temperature, pressure, and flow sensors.
● Used in chemical, power, and manufacturing plants for accurate process data acquisition.
● Enables data logging, diagnostics, and monitoring von analog inputs.
● Facilitates system expansion by adding analog input capability to F3 series controllers.
Advantages
● Supports multiple analog voltage ranges, enabling flexible integration with various sensors.
● High signal accuracy and stability, ensuring reliable data conversion.
● Four input channels allow simultaneous monitoring von multiple analog signals.
● Provides diagnostic support for channel monitoring and troubleshooting.
● Compact and robust design ensures reliable operation in industrial environments.
● Compatible with Yokogawa F3 series controllers, simplifying system integration.
