Produkteinführung

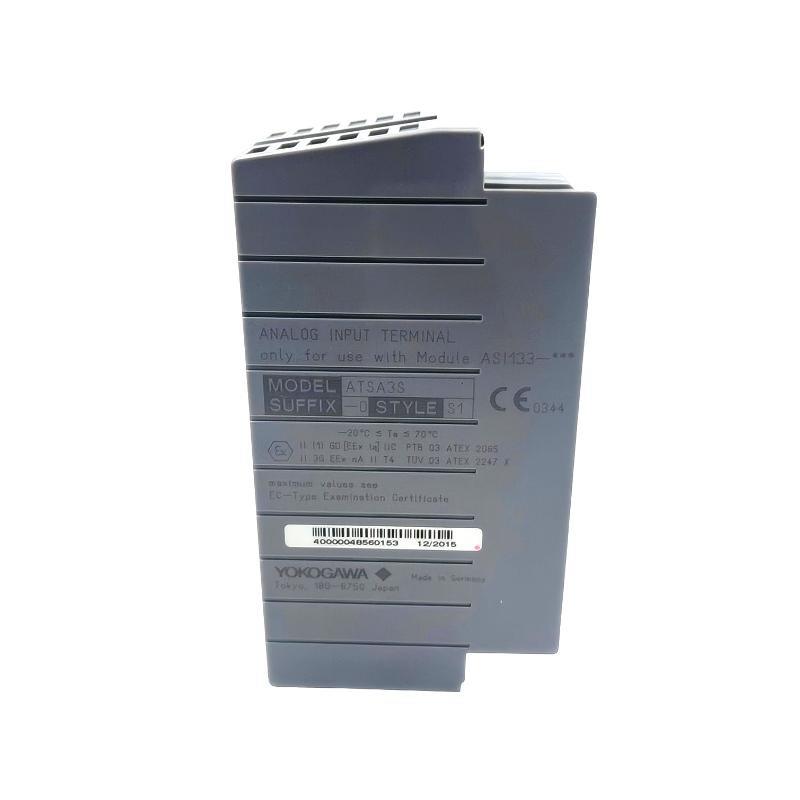

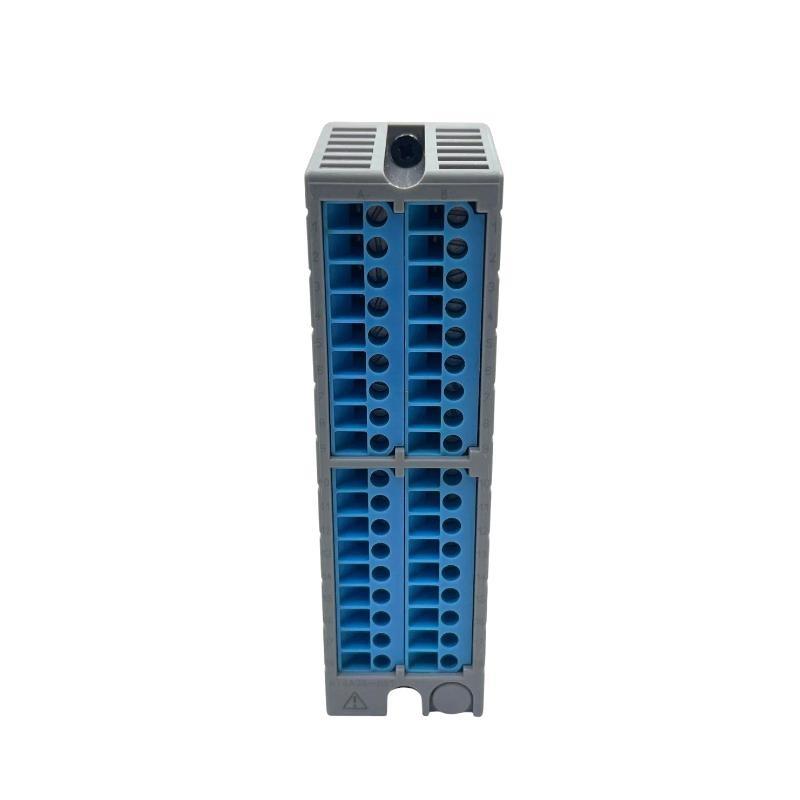

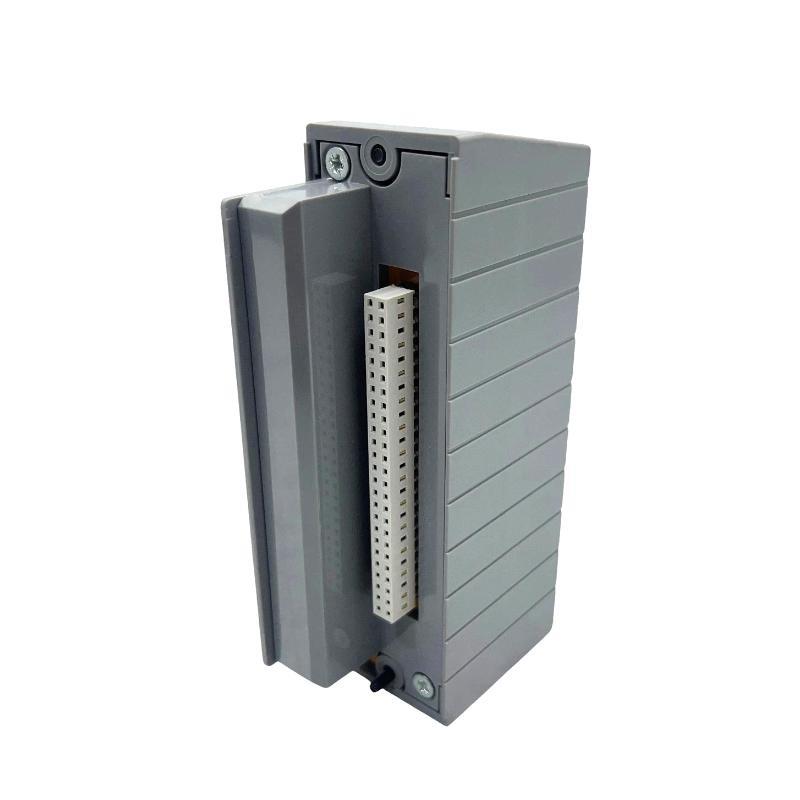

The Yokogawa ATSA3S-0 Pressure Clamp Terminal Block is a high-quality interconnection component designed for industrial automation systems, particularly within process control environments. This terminal block is engineered to provide secure, vibration-resistant electrical connections using pressure clamp technology, ensuring long-term reliability and safety in critical applications. It is primarily utilized in Yokogawa’s distributed control systems (DCS) and field instrumentation setups, vonfering a robust interface between control devices and wiring systems.
The ATSA3S-0 model is well-suited for applications where high connection integrity and fast installation are essential. Its compact structure allows easy integration into control panels, while the pressure clamp design provides maintenance-free operation without the need for frequent tightening. Built from premium-grade, flame-retardant materials, this terminal block ensures compliance with international safety and performance standards, making it ideal for demanding industrial conditions.
Produktspezifikationen
| Parameter | Specification |
|---|---|
| Modell Number | ATSA3S-0 |
| Product Type | Pressure Clamp Terminal Block |
| Connection Technology | Pressure Clamp |
| Rated Voltage | 250V AC/DC |
| Rated Current | 10 A |
| Insulation Resistance | ≥100 MΩ at 500 V DC |
| Dielectric Strength | 2000 V AC for 1 min |
| Material | Flame-retardant thermoplastic |
| Operating Temperature | -20°C to +70°C |
| Mounting Method | DIN Rail Mount |
| Color | Gray |
| Dimensions (W x H x D) | 114 x 32.6 x 60.5 mm |
| Gewicht | 0.2 kg |
| Compliance Standards | IEC, EN, and CE certified |
Product Applications
The ATSA3S-0 Pressure Clamp Terminal Block is widely used in industrial and process automation sectors. Its applications include:
-
Distributed Control Systems (DCS): Provides reliable connectivity for signal and power distribution.
-
Programmable Logic Controllers (PLC): Facilitates secure wiring for control modules.
-
Process Control Panels: Ensures compact and safe interconnections in complex control panels.
-
Industrial Equipment: Supports electrical integration in manufacturing machinery.
-
Instrumentation Systems: Offers robust termination for sensors and actuators.
-
Power Distribution Einheits: Maintains stable and fault-tolerant wiring under heavy-duty conditions.
Product Advantages
-
High Connection Integrity: Pressure clamp mechanism ensures strong, vibration-provon connections.
-
Maintenance-Free Operation: No need for periodic tightening, reducing downtime.
-
Compact and Durable Design: Speicherns panel space while providing excellent mechanical strength.
-
Quick and Easy Installation: Simplifies wiring and reduces labor costs.
-
Compliance with International Standards: Meets IEC and EN safety guidelines for industrial applications.
-
Superior Insulation and Safety: Provides high dielectric strength and insulation resistance for secure operations.
FAQ
-
What is the rated current handling capacity von the ATSA3S-0 terminal block?
The rated current capacity is 10 A, ensuring suitability for low to medium power applications. -
Can the ATSA3S-0 terminal block support AC and DC circuits?
Yes, it is designed for both AC and DC applications up to 250V. -
What type von wire can be used with this terminal block?
It supports solid and stranded conductors with cross-sections ranging from 0.5 mm² to 4 mm². -
Does the ATSA3S-0 provide vibration resistance?
Yes, the pressure clamp design ensures strong resistance against loosening due to vibrations. -
What insulation material is used in this product?
The housing is made from flame-retardant thermoplastic material for high safety. -
Is there a risk von connection loosening over time?
No, the pressure clamp design eliminates the need for periodic re-tightening, maintaining a secure connection. -
Can this terminal block be mounted on a standard DIN rail?
Yes, it supports DIN rail mounting for easy integration in control panels. -
What is the dielectric strength von the ATSA3S-0?
It can withstand up to 2000 V AC for one minute without breakdown. -
Does the ATSA3S-0 comply with international safety standards?
Yes, it complies with IEC, EN, and CE standards for electrical safety and performance. -
What is the recommended operating temperature range?
The operating temperature range is -20°C to +70°C, making it suitable for industrial environments.
Related Modells from the Same Series
| Modell | Beschreibung |
|---|---|
| ATR8S-00 | Pressure Clamp Terminal Block for standard applications |
| ATR8S-10 | Enhanced Pressure Clamp Terminal Block for high-density wiring |
| ATR8S-00 S2 | Dual-connection Pressure Clamp Terminal Block |
| ATSA4S-0 | Four-pole Pressure Clamp Terminal Block |
| ATSA6S-0 | Six-pole Pressure Clamp Terminal Block |
| ATSA8S-0 | Eight-pole Pressure Clamp Terminal Block |
