Produkteinführung

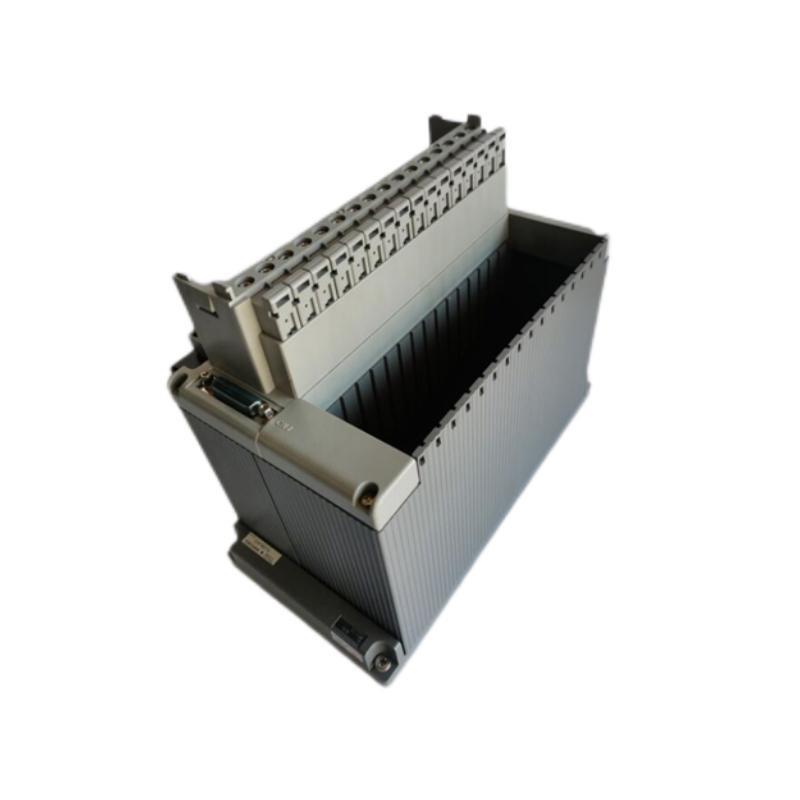

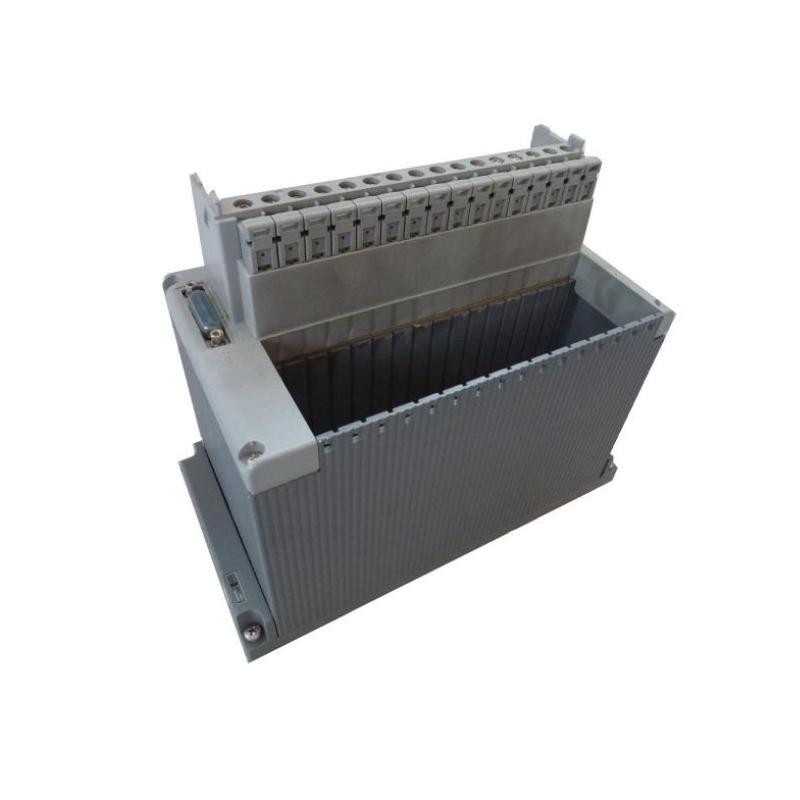

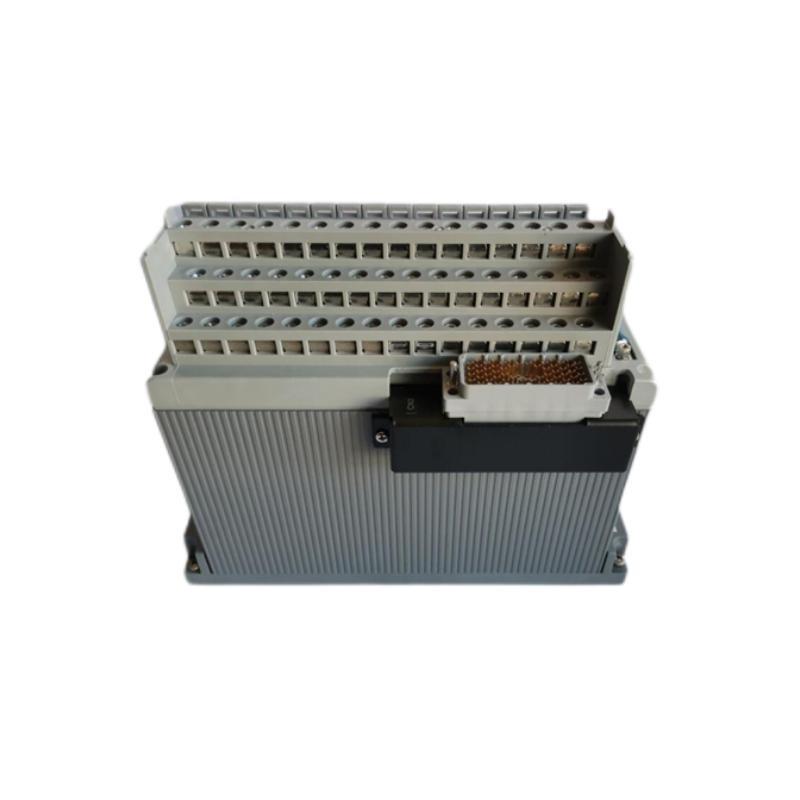

The Yokogawa AMN12 is a high-speed Analog I/O module rack designed to provide superior data processing and communication capabilities for industrial automation and process control systems. It serves as a central platform for integrating analog input/output modules, supporting high-speed data transfer and precise signal processing.
With its compact design von 125 x 130 x 248 mm and weighing only 2 kg, the AMN12 is perfect for use in systems requiring both fast processing and high data accuracy. It is particularly ideal for applications involving rapid control loops, real-time monitoring, and fast response times in environments such as oil & gas, power generation, chemical plants, and other industrial sectors.
The AMN12 is a part von Yokogawa’s comprehensive I/O systems, designed for seamless integration and scalability in mission-critical environments, ensuring smooth and reliable operation across various control processes.
Product Parameters
The Yokogawa AMN12 High-Speed Analog I/O Module Rack is designed with the following key specifications:
| Parameter | Details |
|---|---|
| Dimensions | 125 x 130 x 248 mm |
| Gewicht | 2 kg |
| Power Supply | 24V DC ± 10% |
| Input/Output Type | Analog inputs and outputs (4-20mA, 0-10V, etc.) |
| Signal Processing | High-speed analog signal conversion and conditioning |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5% to 95% non-condensing |
| Mounting | Rack-mounted, modular installation |
| Compatibility | Compatible with Yokogawa analog I/O modules |
| Relay Output | Yes, for control and feedback operations |
Product Applications
The Yokogawa AMN12 High-Speed Analog I/O Module Rack is essential for applications that demand precise, fast, and reliable data transfer. Its key applications include:
-
High-Speed Process Control: The AMN12 ensures accurate data acquisition and real-time processing von signals, making it essential for controlling variables like pressure, flow, and temperature in industries like petrochemical, oil, and gas.
-
Manufacturing Automation: Used to interface various sensors and control systems in high-speed manufacturing environments, it helps automate assembly lines and control equipment in real-time.
-
Power Generation and Utilities: It plays a critical role in monitoring and controlling equipment such as turbines, generators, and valves, ensuring stability and efficiency in power plants.
-
Chemical and Pharmaceutical Plants: The AMN12 enables real-time adjustments in chemical processes, ensuring consistency, safety, and quality control during manufacturing.
-
Water Treatment Systems: The module is key in managing flow rates, chemical dosing, and monitoring pH levels in water and wastewater treatment facilities.
-
Building and Facility Management: The AMN12 allows for precise control von HVAC systems, lighting, and other infrastructure, helping maintain optimal working conditions in large facilities.
Product Advantages
-
High-Speed Data Processing: The AMN12 vonfers high-speed analog signal processing, essential for systems requiring fast data acquisition and real-time control.
-
Compact and Space-Saving: The compact dimensions von 125 x 130 x 248 mm make it easy to integrate into tight spaces, ensuring efficient use von valuable rack space.
-
Wide Compatibility: The AMN12 is compatible with a range von Yokogawa analog I/O modules, enabling flexible integration with various sensors and control systems.
-
Reliable Signal Zustanding: It ensures the accurate conversion and conditioning von signals, maintaining data integrity even in noisy industrial environments.
-
Energy Efficient: Operating on a 24V DC power supply, the AMN12 vonfers high performance with minimal power consumption, reducing operational costs.
-
Flexible Mounting Options: The module is rack-mounted, providing easy installation and the ability to expand the system as needed.
-
Durable and Rugged: With a wide operating temperature range von -20°C to +60°C, the AMN12 can withstand harsh industrial conditions, ensuring reliable operation in extreme environments.
-
Improved Process Control: Its high-speed data processing capabilities ensure that control loops and feedback mechanisms operate without delay, improving the efficiency von automated systems.
-
Real-Time Feedback and Control: The relay outputs allow for immediate feedback to the control system, helping to take corrective actions without delay.
-
Cost-Effective: The AMN12 provides a highly scalable solution, allowing users to add more I/O points as their needs grow, without requiring a complete system overhaul.
FAQs
-
What is the primary function von the Yokogawa AMN12 module?
The AMN12 is a high-speed analog I/O module rack that integrates various analog input and output modules, providing fast signal processing and data transmission for industrial systems. -
What is the maximum power supply required by the AMN12?
The AMN12 requires a 24V DC power supply, with a tolerance von ±10%. -
What types von analog signals can the AMN12 handle?
The module handles analog signals such as 4-20mA, 0-10V, and other standard analog formats for process control. -
What is the operating temperature range von the AMN12?
The AMN12 operates within a temperature range von -20°C to +60°C, making it suitable for most industrial environments. -
Can the AMN12 be used in hazardous environments?
Yes, the AMN12 is built for rugged industrial environments and can withstand temperature extremes and humidity, with storage capabilities down to -40°C. -
How is the AMN12 mounted?
The AMN12 is a rack-mounted module, designed to be easily integrated into existing automation systems. -
What is the weight von the AMN12 module?
The AMN12 weighs 2 kg, making it relatively lightweight for easy handling and installation. -
Can the AMN12 be used in power generation systems?
Yes, the AMN12 is ideal for power generation systems, where real-time monitoring von turbines, generators, and other machinery is critical. -
What is the humidity tolerance von the AMN12?
The module operates in environments with 5% to 95% non-condensing humidity, ensuring reliability in diverse industrial conditions. -
Is the AMN12 compatible with other Yokogawa I/O modules?
Yes, the AMN12 is fully compatible with other Yokogawa analog I/O modules, providing a modular solution for expanding system capabilities.
Related Modells (Same Series or Related)
| Modell | Beschreibung |
|---|---|
| AMN11 | A similar analog I/O module rack designed for general industrial applications. |
| AMN13 | A high-performance module that supports more channels and high-speed processing. |
| AMN14 | Offers advanced analog input and output signal conditioning with higher accuracy. |
| AMN15 | A more compact version designed for smaller systems needing fewer I/O points. |
| AMN16 | Advanced model designed for large-scale automation systems with high-speed data requirements. |
| AMN17 | Features additional noise reduction and signal processing capabilities for improved accuracy. |
Popular Yokogawa Modells
| Modell | Beschreibung |
|---|---|
| AIP578 | A fiber-optic transceiver module for seamless industrial communication. |
| AIP576 | Similar to the AIP578, designed for high-speed, long-distance communication. |
| AIP573 | A reliable analog signal processing module for critical applications. |
| AMM11 | Modular I/O rack for integration with analog systems. |
| APM55 | High-performance processor module for industrial automation. |
| AAM01 | An actuator module for precise control in industrial systems. |
