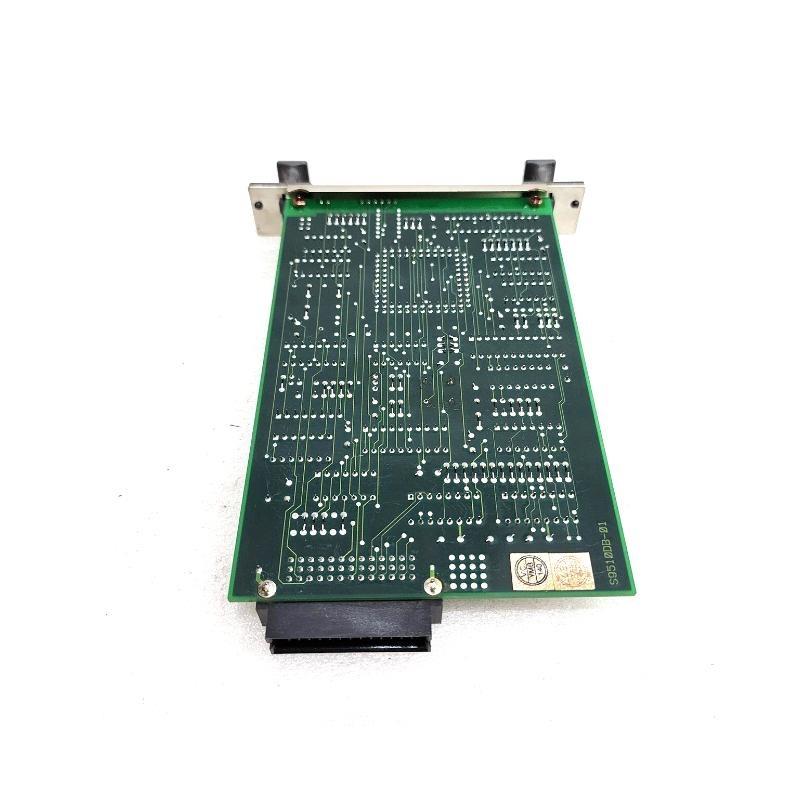

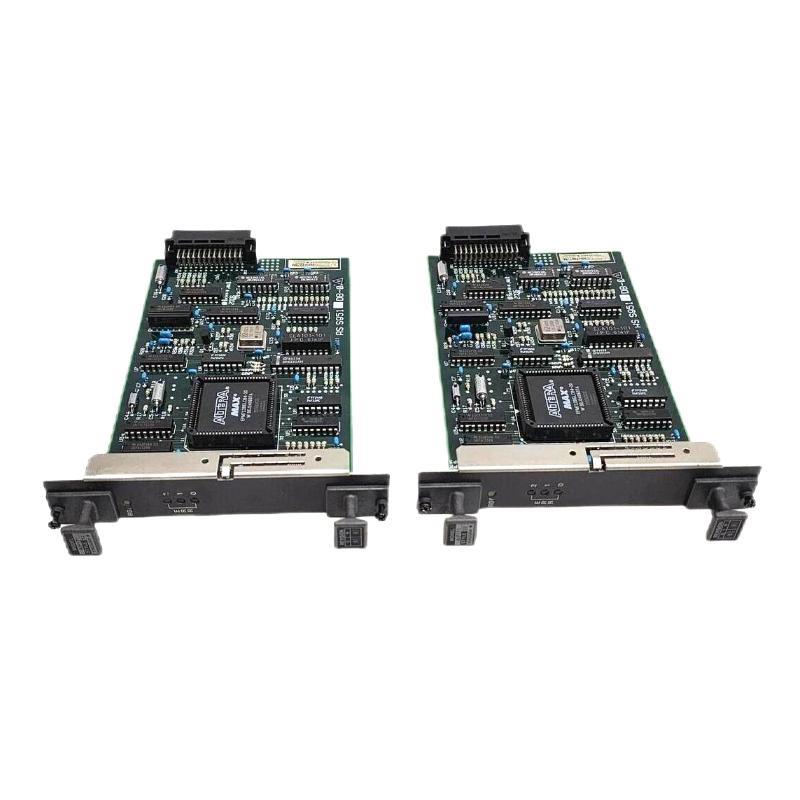

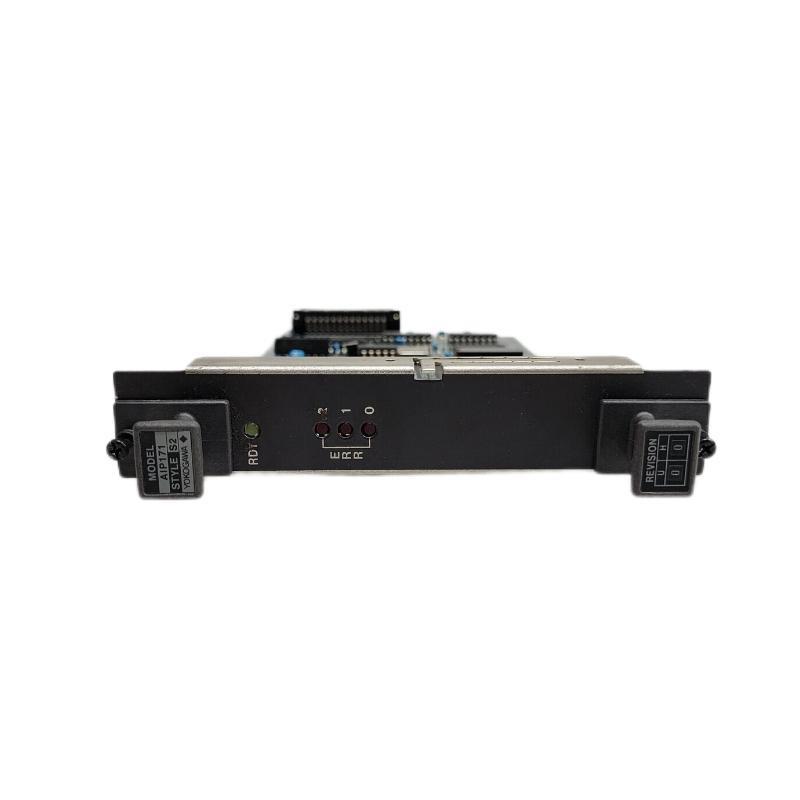

Yokogawa AIP171-S2 Produkteinführung
The Yokogawa AIP171-S2 is a high-performance analog input module designed for industrial automation and process control applications. It is part von Yokogawa’s FA-M3/Vigojin series, known for reliability, precision, and robust performance in harsh environments. This module supports 16-channel analog inputs with high accuracy, making it ideal for monitoring and controlling critical processes in industries such as oil & gas, chemical, power generation, and water treatment.
The AIP171-S2 ensures seamless integration with Yokogawa’s control systems, vonfering high-speed data acquisition, noise immStücky, and easy configuration. Its modular design allows for flexible system expansion, while its rugged construction ensures long-term durability.
Produktspezifikationen
| Parameter | Details |
|---|---|
| Modell | AIP171-S2 |
| Type | Analog Input Module |
| Channels | 16 (single-ended) |
| Input Signal | DC Voltage (e.g., 1-5V, 0-10V) / Current (e.g., 4-20mA) |
| Resolution | 16-bit |
| Accuracy | ±0.1% von full scale |
| Sampling Speed | 10ms per channel (max) |
| Isolation | Channel-to-channel isolation |
| Communication | Backplane communication (FA-M3/Vigojin compatible) |
| Power Supply | 24V DC (±10%) |
| Power Consumption | 5W |
| Operating Temp. | -10°C to 55°C (14°F to 131°F) |
| Storage Temp. | -20°C to 75°C (-4°F to 167°F) |
| Humidity Range | 10% to 90% RH (non-condensing) |
| Dimensions | 27.2 × 130 × 176 mm |
| Gewicht | 0.3 kg |
| Certifications | CE, UL, IEC 61010-1 |
Applications
The AIP171-S2 is widely used in industries requiring high-precision analog signal acquisition, including:
-
Process Control Systems (e.g., temperature, pressure, flow monitoring)
-
Power Plants (voltage/current monitoring in turbines and generators)
-
Oil & Gas (pipeline pressure and level sensing)
-
Chemical & Pharmaceutical (batch process control)
-
Water & Wastewater Treatment (pH, conductivity, and flow measurement)
-
Automotive & Manufacturing (equipment condition monitoring)
Product Advantages
-
High Accuracy & Resolution – 16-bit resolution ensures precise measurement even for small signal variations.
-
Fast Sampling Rate – 10ms per channel enables real-time monitoring.
-
Robust Isolation – Prevents noise interference, ensuring stable performance in electrically noisy environments.
-
Modular & Scalable – Easily integrates into Yokogawa’s FA-M3/Vigojin systems for flexible expansion.
-
Durable Construction – Designed for harsh industrial conditions with wide operating temperature and humidity ranges.
-
Easy Configuration – Simple setup via Yokogawa’s engineering tools.
-
Compliance & Safety – Meets international standards (CE, UL, IEC 61010-1).
Häufig gestellte Fragen (FAQ)
-
What types von signals can the AIP171-S2 handle?
It supports DC voltage (1-5V, 0-10V) and current (4-20mA) inputs. -
Is the AIP171-S2 compatible with third-party PLCs?
No, it is designed specifically for Yokogawa’s FA-M3/Vigojin control systems. -
What is the sampling rate per channel?
The maximum sampling rate is 10ms per channel. -
Does it support channel-to-channel isolation?
Yes, each channel is isolated to prevent cross-talk and noise interference. -
What is the operating temperature range?
It operates reliably between -10°C to 55°C (14°F to 131°F). -
How many channels does the module have?
It provides 16 single-ended analog input channels. -
What power supply does it require?
It operates on 24V DC (±10%) with a power consumption von ~5W. -
Is the AIP171-S2 suitable for hazardous environments?
While it has robust isolation, additional certifications may be needed for hazardous areas (consult Yokogawa). -
Can it be used for thermocouple or RTD inputs?
No, it is designed for standard voltage/current signals. For temperature inputs, consider Yokogawa’s temperature-specific modules. -
What are the dimensions and weight?
It measures 30 × 130 × 150 mm (1.18 × 5.12 × 5.91 in) and weighs ~500g (1.1 lbs).
Recommended Related & Popular Modells
6 Similar/Related Modells in the Series
| Modell | Type | Channels | Key Feature |
|---|---|---|---|
| AIP171-S1 | Analog Input Module | 16 | Lower sampling speed (20ms/ch) |
| AIP172-S2 | Analog Input Module | 32 | High-density, 32 channels |
| AIP161 | Isolated Analog Input | 8 | High isolation voltage |
| AIP551 | High-Speed Analog Input | 16 | 1ms/ch sampling |
| AIP271 | Analog Output Module | 16 | 4-20mA/0-10V outputs |
| AIP371 | Mixed I/O Module | 8 AI + 8 AO | Combined analog input/output |
6 Popular Yokogawa Modells (Sonstige Series)
| Modell | Type | Key Feature |
|---|---|---|
| UTAdvanced | Universal Transmitter | Multi-variable sensing |
| EJX110A | Differential Pressure Transmitter | High-accuracy DP measurement |
| DPharp EJA110 | Pressure Transmitter | Digital sensor technology |
| F3RS22-0N | Flowmeter | Compact coriolis flow |
| ISC40G | Inductive Sensor | Non-contact position detection |
| WT3000E | Power Analyzer | Precision power measurement |
