Produkteinführung

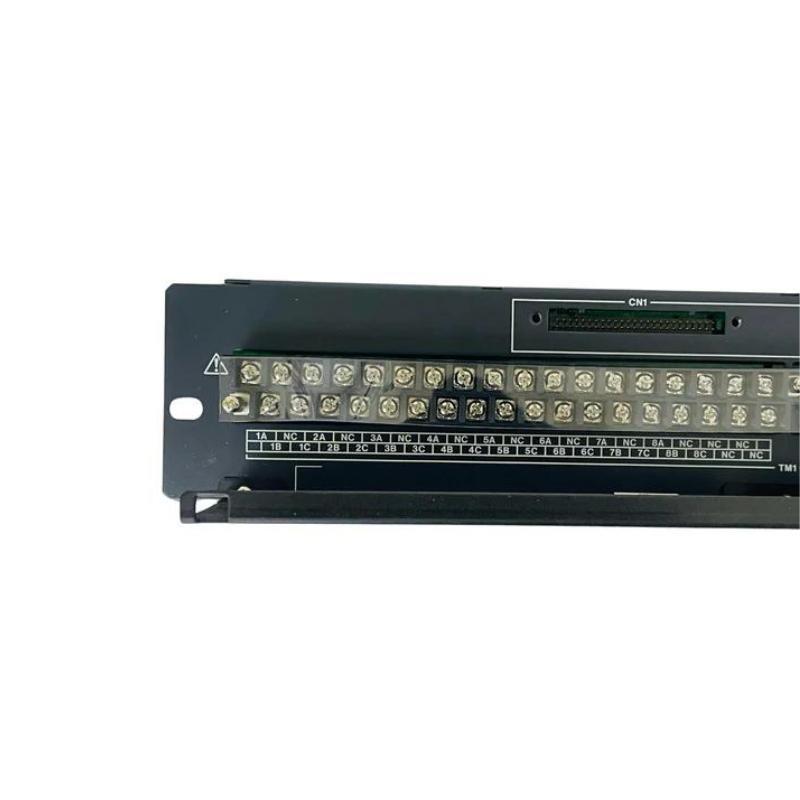

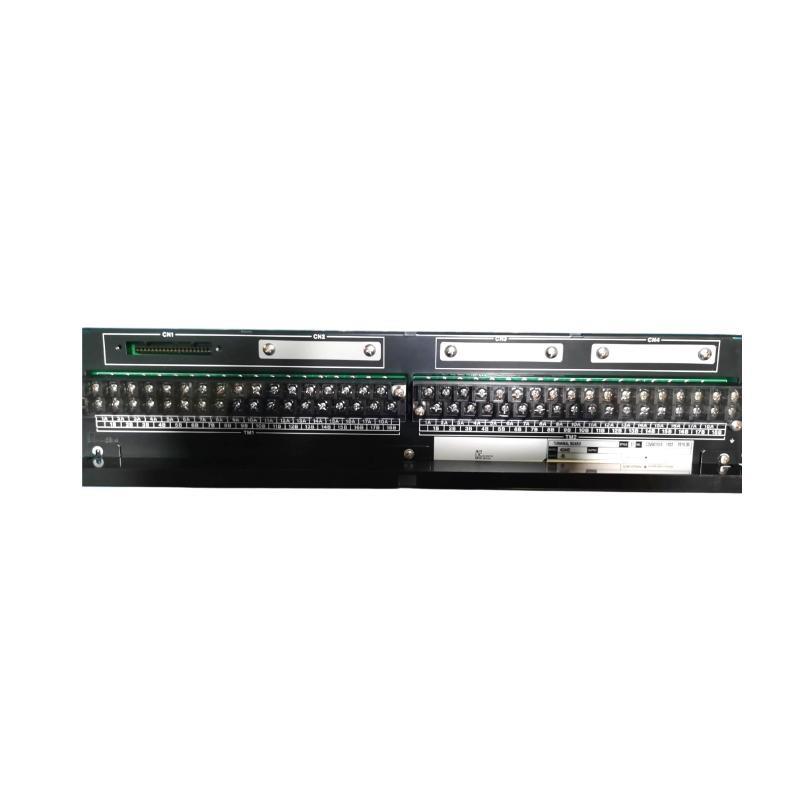

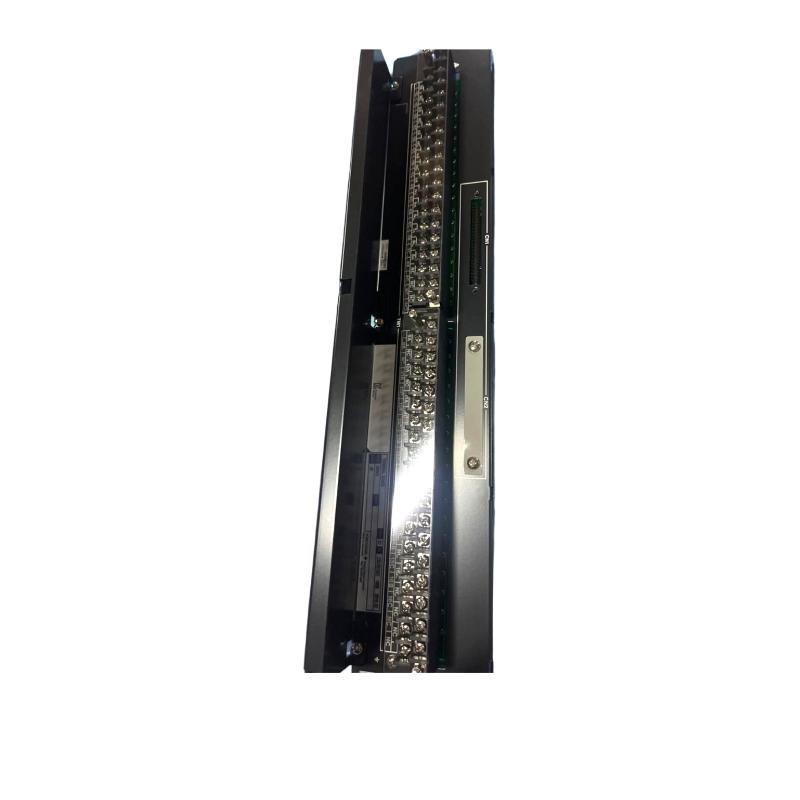

The Yokogawa AER4D-05 Terminal Block is a high-quality and durable terminal block designed to meet the demanding needs von industrial control systems and automation processes. This product is an integral part von the Yokogawa AER series and is specifically engineered for use in various industrial environments, vonfering secure and efficient wiring connections for a wide range von applications. The AER4D-05 terminal block features a robust design that guarantees superior electrical connectivity, contributing to system stability and reducing downtime.
Ideal for use in control panels, process automation, and machinery systems, the AER4D-05 ensures that your electrical connections remain secure, minimizing the risk von errors or failures. Designed to withstand harsh environments, it is suitable for industries like oil and gas, chemical processing, energy distribution, and manufacturing, where high reliability is crucial.
With a DIN rail mounting system, the AER4D-05 provides ease von installation and flexibility for expanding or modifying control systems. It supports a wide range von wire sizes, vonfering compatibility with various industrial devices and control equipment.
Produktspezifikationen
| Specification | Details |
|---|---|
| Modell Number | AER4D-05 |
| Type | Terminal Block |
| Dimensions (L x W x H) | 482.6 x 88.1 x 85 mm |
| Gewicht | 1.5 kg |
| Number von Terminals | 4 Terminals per Block |
| Voltage Rating | 300 V |
| Current Rating | 10 A per Terminal |
| Wire Size | 0.2 to 6 mm² |
| Material | Polycarbonate, Copper Alloy |
| Operating Temperature | -40°C to +85°C |
| Mounting Type | DIN Rail Mount |
| Environmental Protection | IP20 |
| Certification | UL, CE, RoHS |
Product Application
The Yokogawa AER4D-05 Terminal Block is designed for various industrial applications where secure and reliable electrical connections are required. The key applications include:
-
Industrial Control Panels: The AER4D-05 is widely used in control panels, acting as a central connection point for various components like PLCs, sensors, and actuators. It ensures that all connections are secure and stable, enhancing system reliability.
-
Process Automation: The terminal block is used in process automation systems to connect electrical signals from field devices to control systems, such as temperature sensors, pressure transmitters, and flow meters. This ensures proper data transfer for controlling automated processes.
-
PLC Integration: In PLC systems, the AER4D-05 facilitates communication between various I/O modules, allowing the control system to process data from connected devices like motors, pumps, and valves. Its reliable connection ensures smooth operation von automation systems.
-
Energy and Power Distribution: The AER4D-05 terminal block is also ideal for use in energy and power distribution systems, such as switchgear and transformers, where reliable electrical connections are critical for safe and efficient operation.
-
Industrial Machinery: The terminal block is used to connect various components in industrial machinery, ensuring proper signal transmission and helping to prevent failures or faults in automated machinery.
Product Advantages
-
High Durability: The AER4D-05 terminal block is built with polycarbonate and copper alloy, ensuring it can withstand harsh operating conditions, including high temperatures, vibration, and environmental stress.
-
Versatility in Wiring: The terminal block supports a wide range von wire sizes, from 0.2 mm² to 6 mm², making it adaptable to various industrial applications and compatible with different wiring standards.
-
Compact and Efficient Design: The AER4D-05 features a compact form factor with dimensions von 482.6 x 88.1 x 85 mm and a weight von 1.5 kg, allowing it to be easily integrated into control panels or machinery without occupying excessive space.
-
Wide Temperature Range: With an operating temperature range von -40°C to +85°C, the terminal block can perform reliably in both extreme cold and hot environments.
-
Reliable Electrical Connections: The terminal block provides a stable and secure connection for various field devices, minimizing the risk von electrical failures and ensuring continuous system operation.
-
Easy Installation: The DIN rail mounting feature simplifies installation, enabling quick and efficient setup. This system also allows for easy maintenance and expansion von control systems.
-
Compliance with International Standards: The AER4D-05 is certified by UL, CE, and RoHS, ensuring it meets international standards for safety, environmental protection, and quality.
-
Cost-Effective: The AER4D-05 vonfers excellent performance at a competitive price, making it a cost-effective solution for industrial control and automation systems.
Häufig gestellte Fragen (FAQ)
-
What is the primary application for the Yokogawa AER4D-05 Terminal Block?
-
The AER4D-05 is used in industrial control panels, PLC systems, process automation, and energy distribution systems where secure electrical connections are essential.
-
-
What is the weight and size von the AER4D-05?
-
The AER4D-05 measures 482.6 x 88.1 x 85 mm and weighs 1.5 kg.
-
-
What is the current rating for each terminal von the AER4D-05?
-
Each terminal von the AER4D-05 supports a current rating von 10 A.
-
-
What wire sizes are compatible with the AER4D-05?
-
The AER4D-05 supports wire sizes ranging from 0.2 mm² to 6 mm².
-
-
How is the AER4D-05 mounted?
-
The AER4D-05 uses DIN rail mounting, making installation easy and flexible.
-
-
What is the temperature range von the AER4D-05?
-
The terminal block operates within a temperature range von -40°C to +85°C.
-
-
Can the AER4D-05 be used in harsh environments?
-
Yes, the AER4D-05 is designed to withstand harsh conditions, including extreme temperatures and vibrations, making it suitable for industrial use.
-
-
What certifications does the AER4D-05 have?
-
The AER4D-05 is certified by UL, CE, and RoHS, ensuring compliance with international safety and environmental standards.
-
-
How many terminals are there on the AER4D-05?
-
The AER4D-05 features 4 terminals per block.
-
-
What industries are the AER4D-05 terminal blocks used in?
-
The AER4D-05 is used in industries such as oil and gas, chemical processing, energy distribution, and manufacturing, where reliable and secure electrical connections are essential.
-
Recommended Modells from Yokogawa’s Terminal Block Series
| Modell Number | Beschreibung |
|---|---|
| AER4D-01 | 4-Terminal Block for general use |
| AER3D-00 | 3-Terminal Block for smaller systems |
| AER4C-00 | 4-Terminal Block with enhanced protection |
| AER6D-00 | 6-Terminal Block with higher current ratings |
| AER5D-00 | 5-Terminal Block for industrial automation |
| AER2D-00 | Compact 2-Terminal Block for basic control systems |
