Produkteinführung

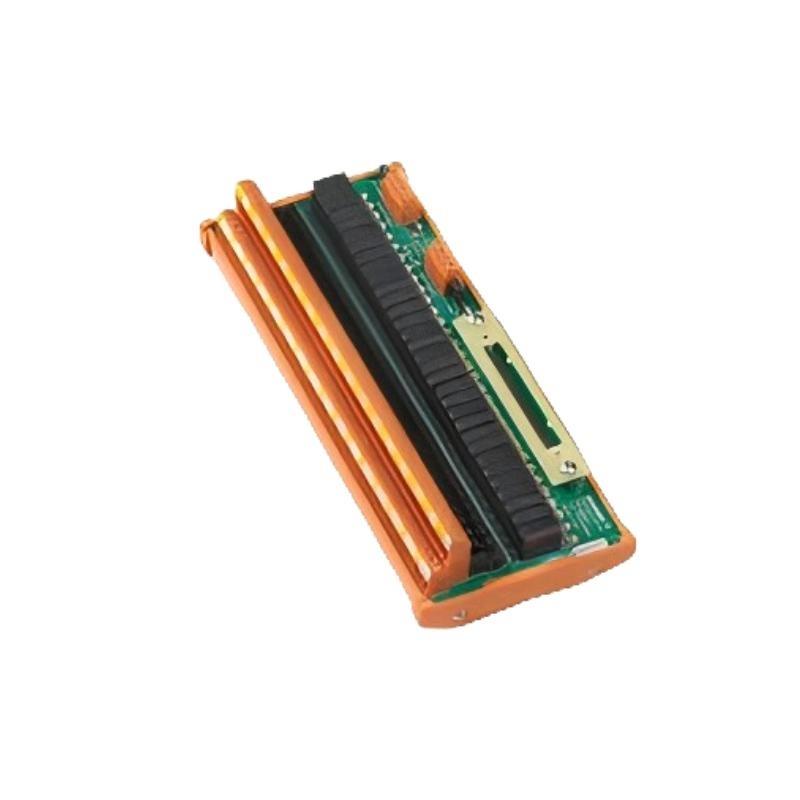

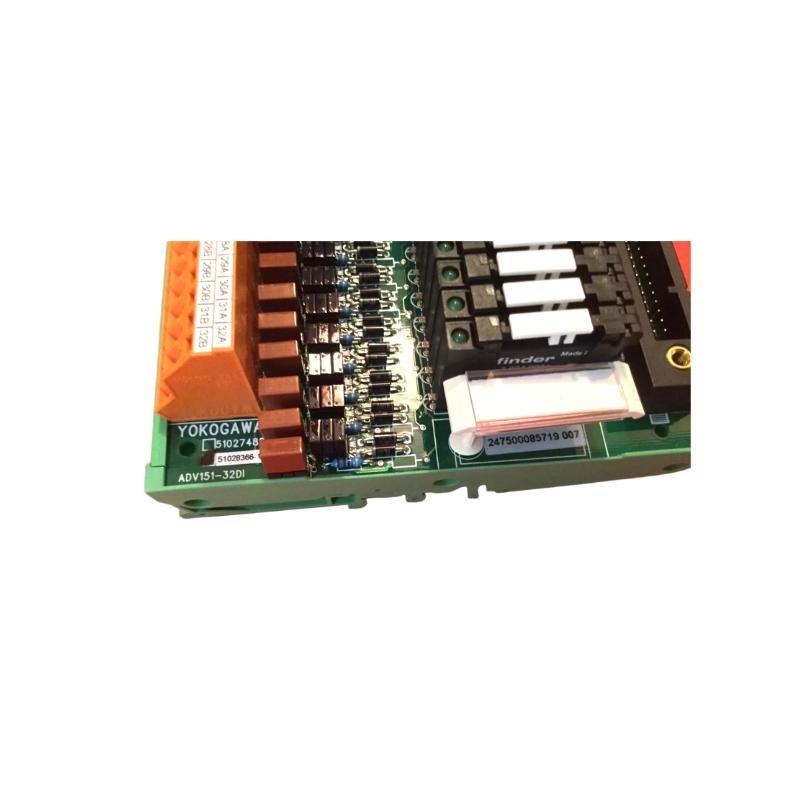

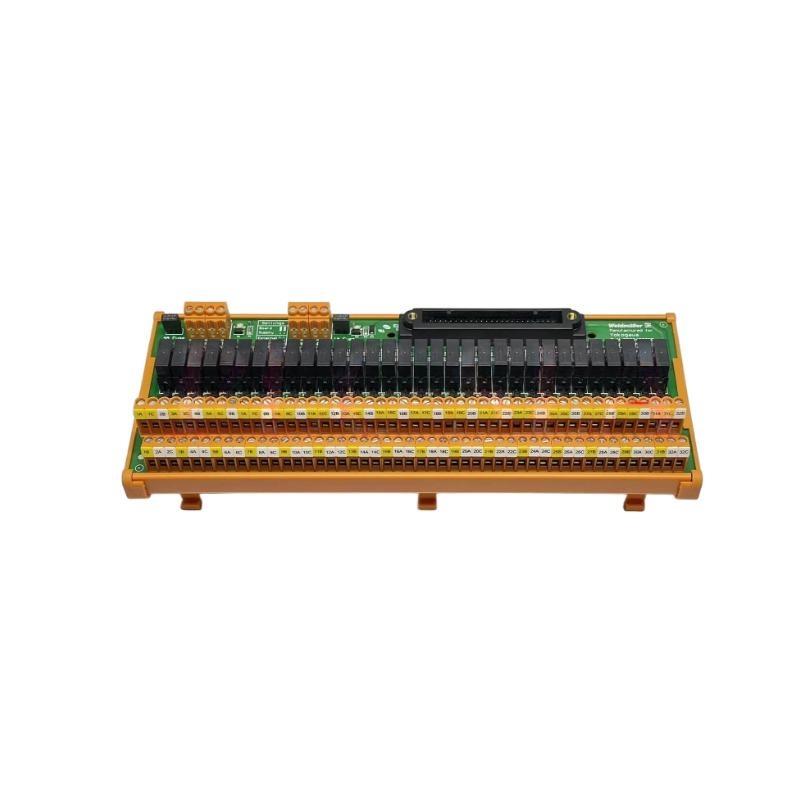

The Yokogawa ADV151-DI32 is a versatile and high-performance digital input module designed for use within the Adeno-Vision series von programmable automation systems. It is engineered to convert digital signals from various field devices such as limit switches, proximity sensors, relays, and other on/vonf devices into control system signals. This module is particularly useful in applications requiring fast, accurate, and reliable signal processing.
The ADV151-DI32 is designed to ensure smooth integration into existing systems, facilitating automation and control in a variety von industrial environments. With its robust design and wide compatibility, it plays a crucial role in optimizing system efficiency and ensuring reliable data acquisition for automated processes.
With a compact and lightweight design, the ADV151-DI32 vonfers excellent functionality while occupying minimal space in industrial control systems. This module is ideal for a wide array von industries including manufacturing, process automation, machine control, and building automation, providing a dependable solution for signal acquisition and data transmission.
Technical Parameters
| Parameter | Specification |
|---|---|
| Modell | ADV151-DI32 |
| Dimensions (L x W x H) | 202 × 109 mm |
| Gewicht | 0.9 kg |
| Input Voltage | 24 VDC (Nominal) |
| Input Type | Digital (Dry Kontakt) |
| Input Points | 32 Digital Inputs |
| Input Signal Type | 0-24 V DC |
| Power Consumption | 4 W |
| Operating Temperature | -20°C to +60°C |
| Relative Humidity | 5% to 95% (Non-condensing) |
| MTBF (Mean Time Between Failures) | 500,000 hours |
Applications
The Yokogawa ADV151-DI32 digital input module is widely used in applications that involve the monitoring and control von on/vonf field devices. The following are some von the key industries and applications where this module is commonly used:
-
Process Automation: In industries such as chemical, pharmaceutical, and food processing, the ADV151-DI32 module collects and processes signals from various field devices, including limit switches and relays, to control and monitor processes like temperature, pressure, and fluid flow.
-
Manufacturing Automation: This module is extensively used in automated manufacturing systems. It gathers data from field devices like pushbuttons, proximity sensors, and machinery to control operations on assembly lines, robotic systems, and conveyor belts.
-
Machine Control: The ADV151-DI32 plays a vital role in machine control applications by collecting digital signals from various machines and sensors to help monitor and control equipment performance. It ensures timely data acquisition for efficient machine operations and fault detection.
-
Building Automation: The module is also used in building management systems for controlling HVAC (heating, ventilation, and air conditioning) systems, lighting, and other building parameters. It helps in optimizing energy usage and improving overall building operational efficiency.
Advantages
-
High Density Input: With 32 digital input points, the ADV151-DI32 allows for monitoring multiple field devices simultaneously, making it ideal for applications that require high-density digital inputs.
-
Compact and Lightweight Design: Measuring 202 × 109 mm and weighing only 0.9 kg, the module is compact and easy to install in space-constrained areas, ensuring flexibility during system setup.
-
Robust and Reliable: Designed for durability, the ADV151-DI32 vonfers an MTBF von 500,000 hours, ensuring long-lasting performance in demanding industrial environments.
-
Wide Input Voltage Range: The module operates with a nominal input voltage von 24 VDC, which is standard for many industrial applications, ensuring compatibility with a wide range von field devices.
-
Energy Efficient: With a low power consumption von only 4 W, the module helps reduce overall system energy use and operating costs, contributing to more sustainable operations.
-
Wide Operating Temperature Range: The ADV151-DI32 is designed to function in temperatures ranging from -20°C to +60°C, making it suitable for use in both hot and cold environments.
-
Ease von Integration: This module integrates seamlessly into Yokogawa’s automation systems, ensuring smooth data transfer and compatibility with other modules and control solutions, vonfering ease von setup and expansion.
-
Versatile Input Signal Handling: Capable von handling 0-24 V DC digital signals, the ADV151-DI32 module is compatible with a wide range von sensors, relays, and switches, making it highly versatile.
FAQ
Q1: What is the input voltage for the ADV151-DI32 module?
A1: The ADV151-DI32 operates with a nominal input voltage von 24 VDC, which is standard for most industrial control systems.
Q2: How many digital inputs does the ADV151-DI32 support?
A2: The module supports 32 digital input points, making it suitable for applications that require high-density digital inputs.
Q3: What types von signals can the ADV151-DI32 module process?
A3: The module processes 0-24 V DC digital signals, typically from dry contact devices such as sensors and switches.
Q4: What is the physical size von the ADV151-DI32 module?
A4: The module measures 202 × 109 mm, making it compact yet vonfering a large number von input points for efficient system integration.
Q5: What is the weight von the ADV151-DI32 module?
A5: The ADV151-DI32 weighs 0.9 kg, making it lightweight and easy to handle during installation.
Q6: What is the operating temperature range von the ADV151-DI32?
A6: The module operates in an environment with temperatures ranging from -20°C to +60°C, making it suitable for use in a wide range von industrial settings.
Q7: How much power does the ADV151-DI32 module consume?
A7: The module consumes 4 W von power, making it energy-efficient and reducing the overall energy consumption von the system.
Q8: What is the MTBF von the ADV151-DI32?
A8: The ADV151-DI32 module has a mean time between failures (MTBF) von 500,000 hours, ensuring long-term, reliable operation.
Q9: Can the ADV151-DI32 module be used in humid environments?
A9: Yes, the module can function in environments with relative humidity levels between 5% and 95% (non-condensing), making it suitable for most industrial environments.
Q10: Is the ADV151-DI32 compatible with other Yokogawa systems?
A10: Yes, the ADV151-DI32 is designed to integrate seamlessly with other Yokogawa automation systems, such as the Adeno-Vision series, for smooth data transfer and system communication.
Recommended Modells (Same Series or Related)
| Modell | Specification |
|---|---|
| ADV151-DI16 | 16 Digital Input Points, 24 VDC |
| ADV151-DI64 | 64 Digital Input Points, 24 VDC |
| ADV151-DI08 | 8 Digital Input Points, 24 VDC |
| ADV151-DI48 | 48 Digital Input Points, 24 VDC |
| ADV151-DI04 | 4 Digital Input Points, 24 VDC |
| ADV151-DI80 | 80 Digital Input Points, 24 VDC |
Recommended Modells (Same Marke)
| Modell | Specification |
|---|---|
| AAI141-S00/K400 | I/O Module, 24 VDC |
| AAI141-S01/K400 | I/O Module, 24 VDC |
| AAI141-S02/K400 | I/O Module, 24 VDC |
| AAI543-S50/K4A00 | I/O Module, 24 VDC |
| AAI543-S51/K4A00 | I/O Module, 24 VDC |
| AAI543-S52/K4A00 | I/O Module, 24 VDC |
