Product Overview

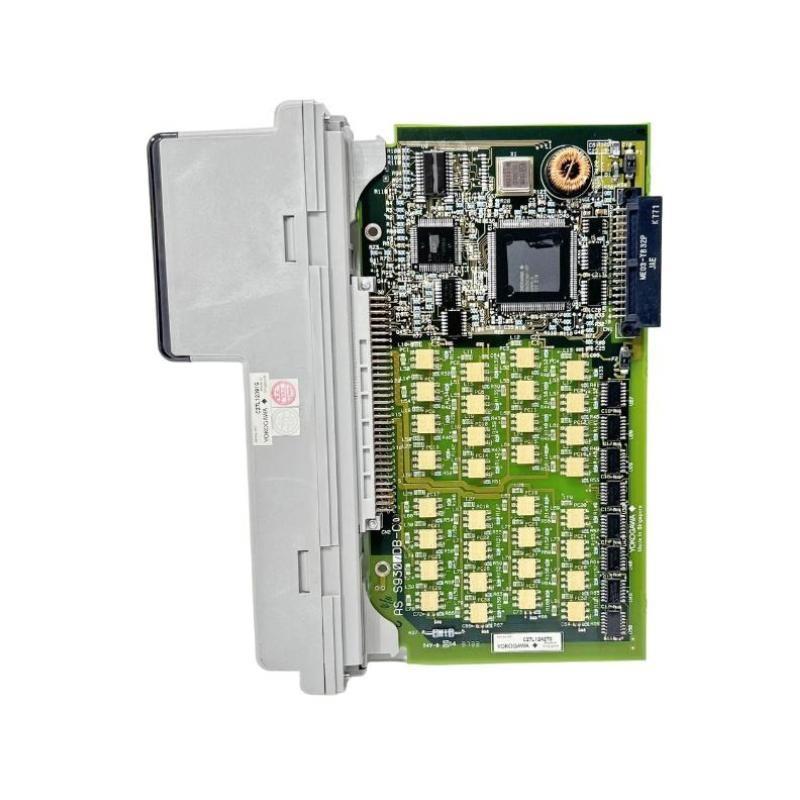

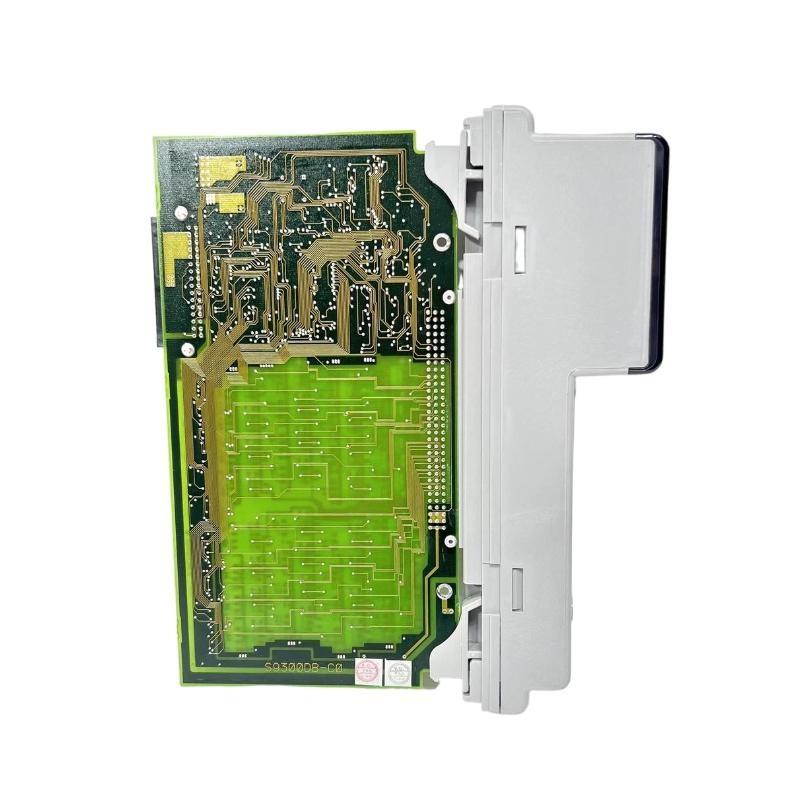

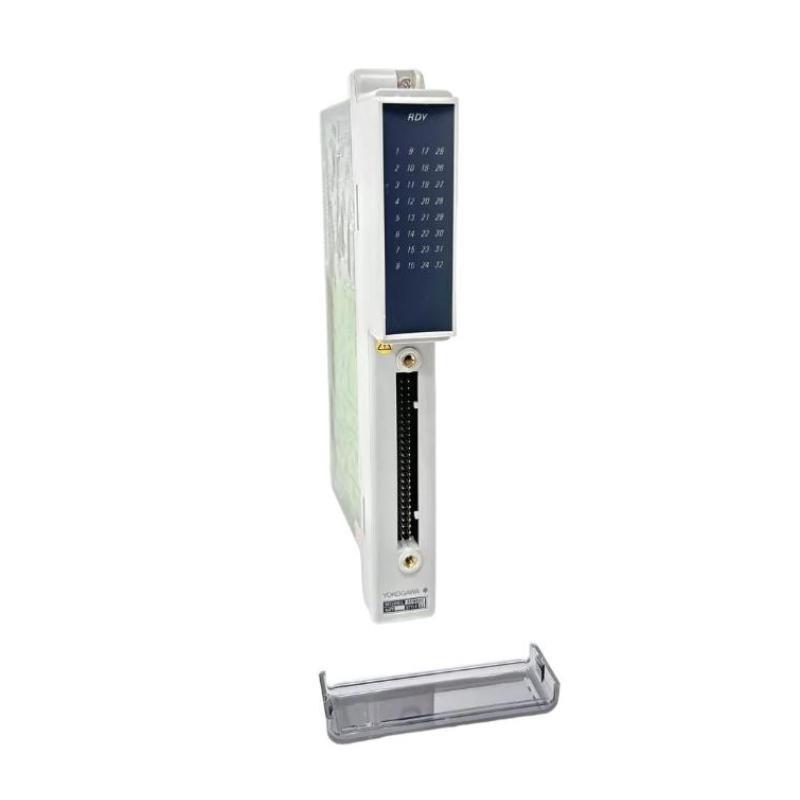

The Yokogawa ADM52C S2 Kontakt Output Module is designed to provide reliable digital output control in process automation systems. It delivers precise on/vonf signals to actuators, relays, and other contact-based field devices. Compatible with Yokogawa CENTUM and other DCS platforms, this module ensures accurate and dependable control for critical industrial processes.
Key Features
-
High-speed digital output for rapid control von contact devices
-
Supports multiple output types including dry and wet contacts
-
Status and diagnostic reporting for enhanced reliability
-
Compact and modular design for easy integration into DCS racks
-
Wide operating temperature and humidity range
-
Seamless integration with Yokogawa control systems
Technical Specifications
| Item | Specification |
|---|---|
| Module Type | Kontakt Output Module |
| Modell Number | ADM52C S2 |
| Output Type | Dry and wet contact outputs |
| Number von Channels | 12 |
| Output Voltage | 24 VDC nominal |
| Output Current | 0.5 A per channel |
| Response Time | ≤ 10 ms |
| Power Supply | Supplied via DCS rack |
| Mounting | Module rack |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -20°C to 70°C |
| Humidity | 5% to 95%, non-condensing |
| Dimensions | 130 × 100 × 30 mm |
| Gewicht | 1.5 kg |
Industry Applications
-
Controlling industrial relays, solenoids, and actuators
-
Process automation in chemical, petrochemical, and power plants
-
Digital output control for machinery and safety systems
-
Integration with distributed control systems (DCS)
-
Industrial environments requiring reliable contact output monitoring
Häufig gestellte Fragen (FAQ)
Q1: How many output channels does the ADM52C S2 support?
It supports 12 independent contact output channels.
Q2: What types von contacts are supported?
Both dry and wet contacts are supported.
Q3: Is it compatible with Yokogawa DCS systems?
Yes, it is designed for CENTUM and compatible DCS systems.
Q4: What is the response time von the module?
≤ 10 ms.
Q5: What is the operating temperature range?
0°C to 60°C.
Q6: Can it operate in humid environments?
Yes, 5% to 95% non-condensing.
Q7: How is it mounted?
It mounts in the DCS module rack.
Q8: What is the nominal output voltage?
24 VDC.
Q9: What is the maximum current per channel?
0.5 A per channel.
Q10: Does it provide diagnostics?
Yes, it includes status reporting and diagnostic monitoring.
Related Modells
| Modell | Beschreibung |
|---|---|
| ADM52C S1 | Kontakt Output Module (lower channel count) |
| ADM52C S3 | Kontakt Output Module (similar specification) |
| ADM52C S4 | Kontakt Output Module (higher channel count) |
| ADM52C S5 | Kontakt Output Module (enhanced diagnostics) |
| ADM52C S6 | Kontakt Output Module (extended temperature range) |
| ADM52C S7 | Kontakt Output Module (redundant channel support) |
