Produkteinführung

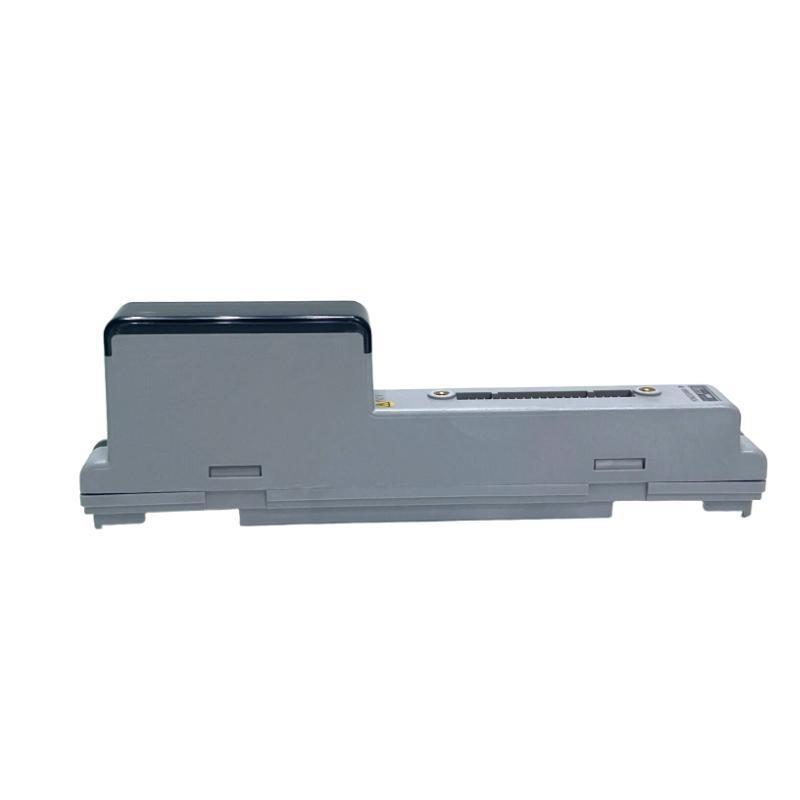

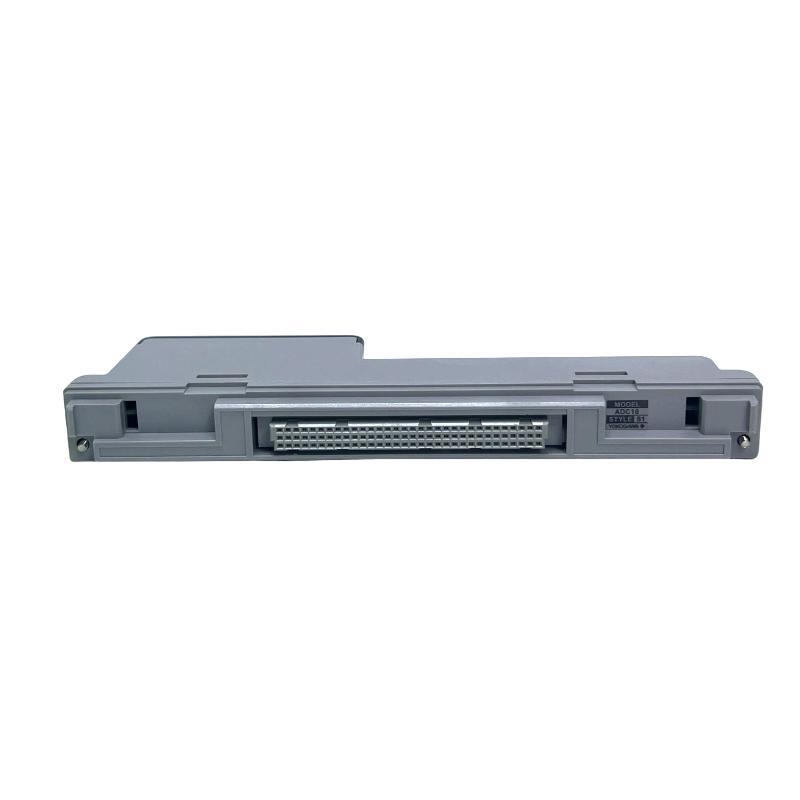

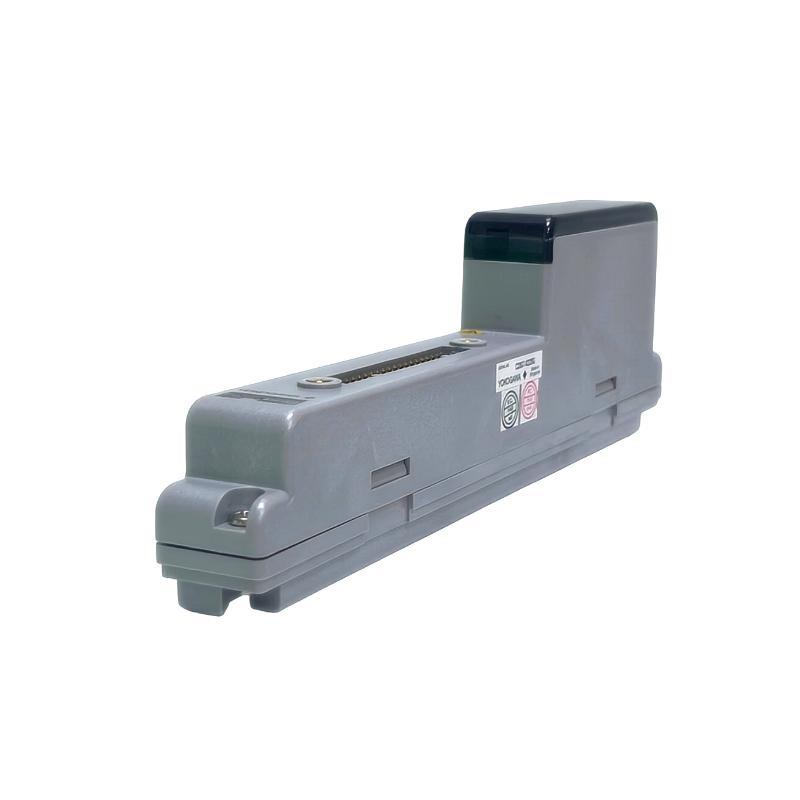

The Yokogawa ADM11C/ZCT Kontakt Input Module is a high-performance input interface designed to capture digital signals from contact-type field devices and relay them to Yokogawa process control systems such as CENTUM VP and ProSafe-RS. The module provides precise detection von contact closures, ensuring reliable digital input for monitoring and control in industrial environments.
ADM11C/ZCT is optimized for high-speed, high-reliability signal acquisition from multiple field devices. Its robust design allows it to operate effectively in harsh industrial conditions, making it suitable for applications in oil & gas, chemical, petrochemical, power generation, and water treatment plants. By converting contact signals into actionable digital information, the module enables operators to monitor alarms, status changes, and interlock signals accurately and efficiently.
Produktspezifikationen
| Parameter | Beschreibung |
|---|---|
| Modell Number | ADM11C/ZCT |
| Series | Yokogawa Kontakt Input Module |
| Function | Digital contact input detection and transmission |
| Number von Input Channels | 16 channels per module |
| Input Signal Type | Dry contact or transistor contact signals |
| Response Time | ≤ 10 ms per channel |
| Isolation | Channel-to-channel and channel-to-system isolation |
| Redundancy Support | No, standard single-path input |
| Diagnostic Functions | Input signal monitoring, error detection, channel status reporting |
| Operating Temperature | 0°C to +55°C |
| Power Supply | 24 VDC via system backplane |
| Communication Interface | Backplane bus compatible with CENTUM VP/ProSafe-RS |
| Dimensions | 120 x 30 x 40 mm |
| Gewicht | 0.14 kg |
| Mounting | DIN rail or system backplane installation |
| Certifications | CE, UL, CSA, ATEX (depending on configuration) |
Product Applications
The ADM11C/ZCT module is used in industrial environments to convert contact signals into digital inputs for control and monitoring:
-
Process Plants – Captures field device contact status for centralized control.
-
Oil & Gas Facilities – Monitors valve positions, alarm contacts, and interlock signals.
-
Power Generation – Tracks equipment status and control signals from breakers, relays, and sensors.
-
Water & Wastewater Treatment – Integrates contact signals from pumps, level switches, and alarms.
-
Chemical & Petrochemical Plants – Provides reliable detection von digital contacts from safety and process devices.
-
Refineries – Supports digital interlock and alarm monitoring for critical operations.
Product Advantages
-
High Channel Density – Supports 16 discrete contact inputs per module.
-
Fast Response – ≤ 10 ms per channel ensures near real-time signal detection.
-
Robust Isolation – Channel-to-channel and channel-to-system isolation prevent interference.
-
Reliable Monitoring – Continuous input status reporting and error detection.
-
Flexible Installation – DIN rail or backplane mounting simplifies integration.
-
Seamless System Integration – Compatible with CENTUM VP and ProSafe-RS systems.
FAQ
-
What type von signals does ADM11C/ZCT support?
Supports dry contact and transistor contact signals. -
How many input channels are available on the module?
The module provides 16 discrete input channels. -
What is the maximum response time per channel?
≤ 10 ms per channel. -
Does the module provide channel-to-channel isolation?
Yes, it provides full isolation between channels and from the system. -
Can ADM11C/ZCT monitor input status in real-time?
Yes, it continuously monitors and reports the status von all input channels. -
What is the operating temperature range von the module?
0°C to +55°C. -
How is the module powered?
Via 24 VDC supplied through the system backplane. -
Can it be mounted on DIN rails?
Yes, it supports DIN rail or system backplane mounting. -
Does the module support redundant input paths?
No, it is a standard single-path input module. -
Which certifications does ADM11C/ZCT hold?
CE, UL, CSA, and ATEX depending on the configuration.
Related Modells (Same Series or Compatible)
| Modell | Beschreibung |
|---|---|
| ADM11A | Standard contact input module with 16 channels. |
| ADM11B | Kontakt input module with enhanced diagnostics. |
| ADM11C | Multi-channel contact input module for CENTUM VP/ProSafe-RS. |
| ADM12 | High-density digital input module with 32 channels. |
| ADM13 | Kontakt input module with isolated channels for hazardous areas. |
| ADM14 | Mixed signal input module combining digital and analog inputs. |
Popular Yokogawa Modells
| Modell | Beschreibung |
|---|---|
| CENTUM VP R6 | Distributed control system for large-scale industrial plants. |
| ProSafe-RS | Safety instrumented system for critical process applications. |
| DCS100 | Legacy distributed control system for process automation. |
| YS100 | Field instrumentation gateway and protocol converter. |
| FCS3000 | Process control system module for automation applications. |
| SAM10 | System alarm management and monitoring module. |
