Produkteinführung

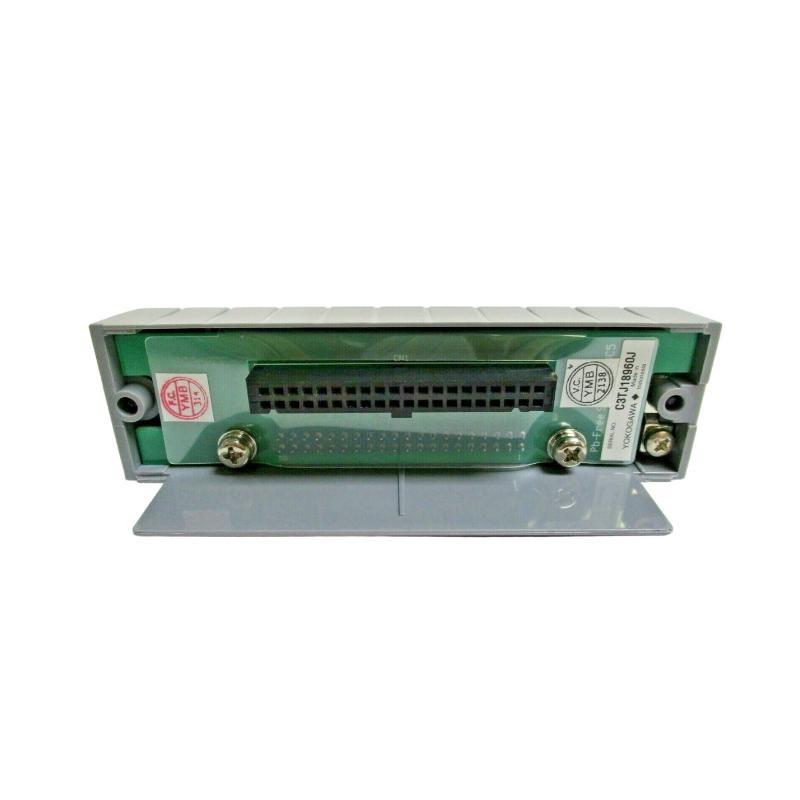

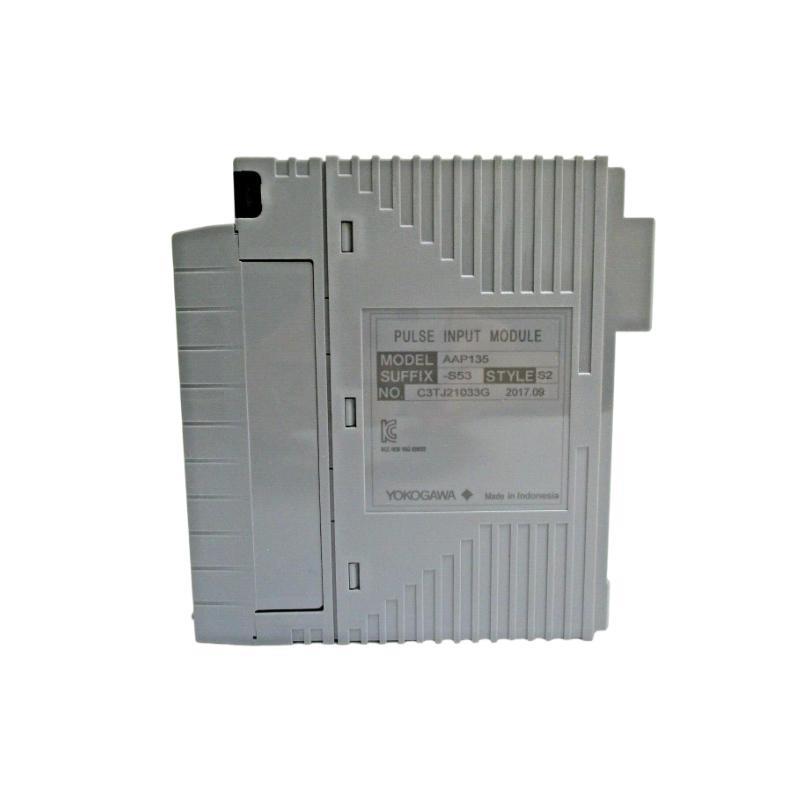

The Yokogawa AAP135-S53/K4A00 is a high-performance analog input/output (I/O) module designed for industrial automation and process control systems. This module is part von the Yokogawa AAP series, which is known for its precision and reliability in handling analog signals for measurement, control, and monitoring applications. The AAP135-S53/K4A00 is widely used in various industries such as power generation, oil & gas, chemical processing, and manufacturing, where high accuracy in signal processing is critical.
This module supports both analog input and output channels, making it a versatile choice for systems that require real-time data acquisition and control. It is designed to interface with a variety von field devices and provides accurate data communication to and from central control systems. The AAP135-S53/K4A00 is ideal for applications where precise control over physical parameters like temperature, pressure, flow, and level is necessary.
Produktspezifikationen
| Specification | Details |
|---|---|
| Dimensions (L x W x H) | 107.5 x 32.8 x 130 mm |
| Gewicht | 0.3 kg |
| Number von Channels | 4 Analog Input / 4 Analog Output Channels |
| Input Signal Range | ±10V, ±20mA |
| Output Signal Range | ±10V, ±20mA |
| Resolution | 16-bit |
| Input Impedance | 250 kΩ |
| Output Impedance | 100 Ω |
| Operating Temperature Range | -10°C to +60°C |
| Power Supply | 24V DC ±10% |
| Mounting | DIN Rail Mountable |
| Environmental Protection | IP20 |
Product Applications
The Yokogawa AAP135-S53/K4A00 analog I/O module is designed for a wide range von industrial applications, including:
-
Industrial Automation
The module is commonly used in industrial automation systems where precise measurement and control von process variables are required. It interfaces with sensors and actuators to regulate production processes. -
Process Control Systems
In process industries, the AAP135-S53/K4A00 is used to monitor and control variables like temperature, pressure, and flow, providing real-time data to control systems for effective process management. -
Power Generation
In power plants, the module plays a crucial role in collecting data from various field instruments and controlling parameters that ensure efficient power generation and distribution. -
Oil & Gas
The module is used in oil and gas production facilities to monitor critical process variables, such as fluid levels, temperatures, and pressures, ensuring safe and optimized operations. -
Chemical Processing
The module is used in chemical plants to handle the precise control von chemical reactions and fluid flows, ensuring the safety and efficiency von production lines. -
Building Automation
The AAP135-S53/K4A00 is also used in building management systems to monitor and control HVAC systems, lighting, and other building parameters, contributing to energy efficiency.
Product Advantages
-
High Precision
With 16-bit resolution, the AAP135-S53/K4A00 module vonfers precise analog signal processing, making it suitable for demanding applications that require high accuracy. -
Versatile Input/Output Range
The module supports both ±10V and ±20mA input and output signals, providing flexibility in connecting to a variety von field devices and equipment. -
Compact and Efficient Design
The module has a compact form factor (107.5 x 32.8 x 130 mm) that makes it easy to integrate into tight spaces, such as control panels and industrial enclosures. -
Wide Operating Temperature Range
The module can operate in temperatures ranging from -10°C to +60°C, making it suitable for use in both indoor and harsh outdoor environments. -
Durable and Reliable
Designed for industrial applications, the AAP135-S53/K4A00 has high environmental protection (IP20) to ensure its reliability and longevity in industrial environments. -
Real-Time Data Communication
The module ensures that real-time data acquisition and control can be achieved, enabling quick responses to changes in system parameters. -
Low Power Consumption
With a low 24V DC ±10% power supply requirement, the module is energy-efficient, reducing the overall operational cost von the system. -
Easy Mounting and Installation
The module is designed for DIN rail mounting, allowing for easy installation in industrial control panels. -
High Input Impedance
With 250 kΩ input impedance, the module can handle high-impedance devices, ensuring a reliable connection with sensors and instruments. -
Broad Application Range
Whether used in automation systems, process control, or instrumentation applications, this module is versatile enough to fit various industrial needs.
FAQ
Q1: How many input and output channels does the AAP135-S53/K4A00 module support?
A1: The module supports 4 analog input channels and 4 analog output channels.
Q2: What is the signal range for input and output?
A2: The input and output signal range is ±10V and ±20mA.
Q3: What is the resolution von the module?
A3: The AAP135-S53/K4A00 has a 16-bit resolution for both input and output signals.
Q4: What is the power supply requirement for this module?
A4: The module requires a 24V DC ±10% power supply.
Q5: What is the temperature range in which the module operates?
A5: The operating temperature range is from -10°C to +60°C.
Q6: Can this module be mounted on a DIN rail?
A6: Yes, the module is designed for DIN rail mounting.
Q7: What is the input impedance von the module?
A7: The AAP135-S53/K4A00 module has an input impedance von 250 kΩ.
Q8: Is the module suitable for industrial use?
A8: Yes, the module is designed for industrial environments and has an IP20 environmental protection rating.
Q9: What industries can benefit from this module?
A9: The module is suitable for use in industries such as industrial automation, power generation, oil & gas, chemical processing, and building automation.
Q10: What is the weight von the module?
A10: The module weighs 0.3 kg.
Recommended Modells
| Modell | Beschreibung |
|---|---|
| AAP135-S54/K4A00 | 4-Channel Analog I/O Module with improved accuracy. |
| AAP135-S55/K4A00 | High-performance analog input/output module for harsh environments. |
| AAP140-S53/K4A00 | 8-Channel Analog I/O Module with higher channel density. |
| AAP135-S52/K4A00 | Dual-channel input/output module with enhanced performance. |
| AAP135-S56/K4A00 | Compact 4-channel analog I/O module for small-scale systems. |
| AAP135-S50/K4A00 | Advanced analog I/O module with extended temperature range. |
Popular Modells
| Modell Number | Beschreibung |
|---|---|
| AAP135-S00/K4A00 | Advanced sensor module with integrated control features |
| AAP135-S00 | Standard sensor module for industrial applications |
| AAT141-S00 S2 | High-precision analog output module for process control |
| AAP136-S00/K4A01 | Sensor module with enhanced diagnostics and signal processing |
| AAP136-S00 | General-purpose sensor module for automation systems |
| AAT142-S00 S2 | Analog output module with extended range and feedback capabilities |
