Produkteinführung

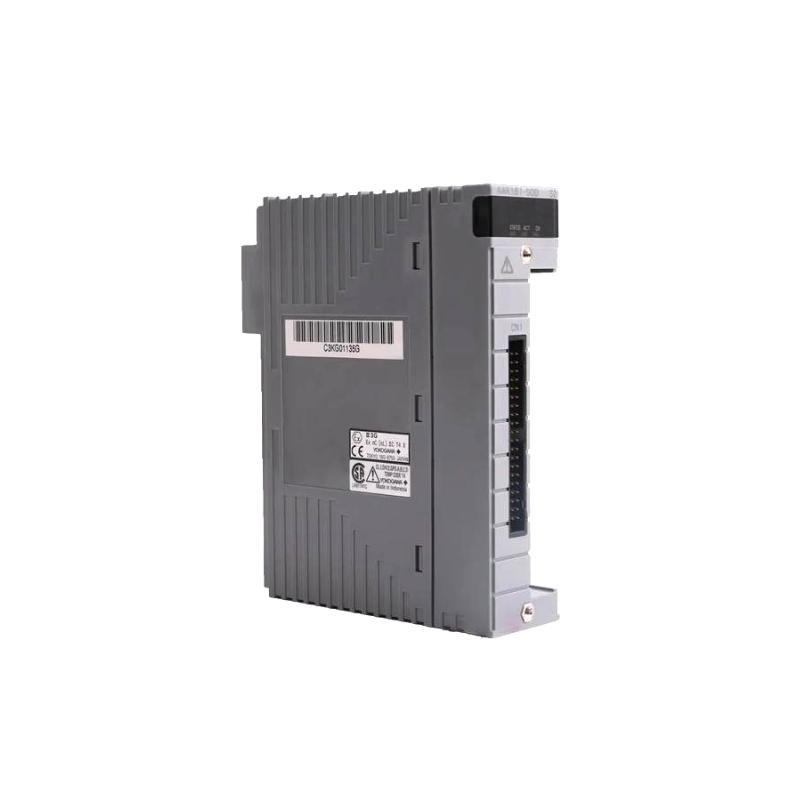

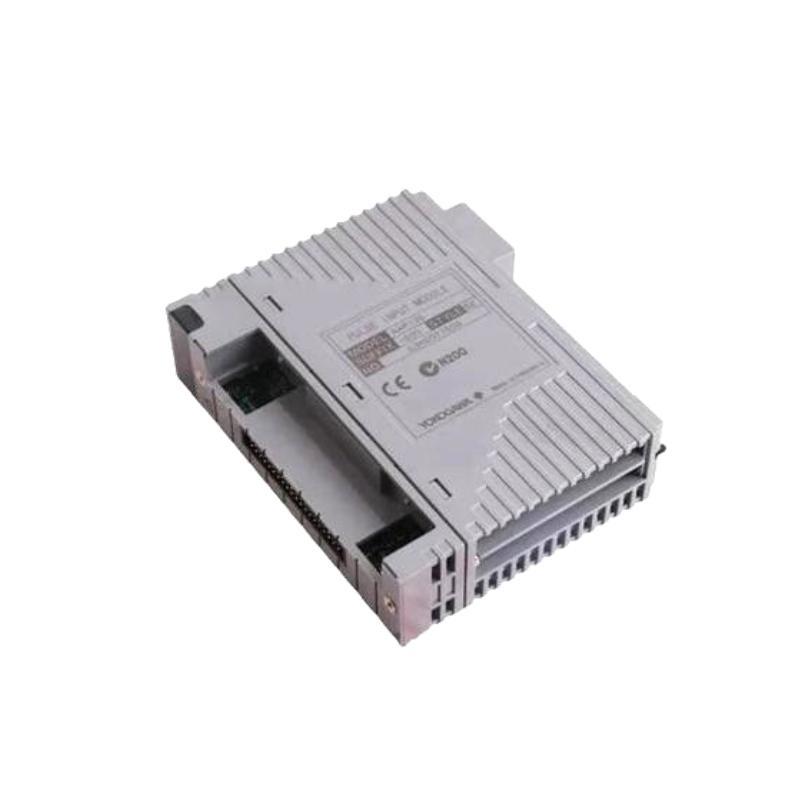

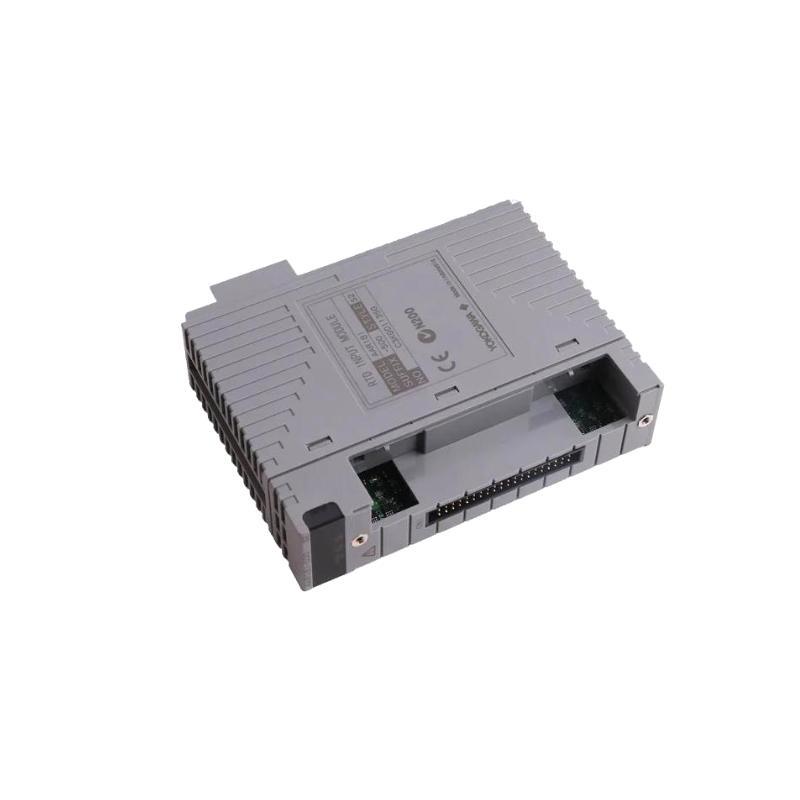

The Yokogawa AAP135-S00/K4A00 Pulse Input Module is an 8-channel module engineered for seamless integration with Yokogawa’s CENTUM CS and CENTUM VP distributed control systems (DCS). It is designed to receive and process various pulse input signals, including contact ON/OFF, voltage pulses, and current pulses. The module ensures robust performance in industrial environments by providing isolation between field connections and the system, as well as between individual channels.
Produktspezifikationen
| Specification | Details |
|---|---|
| Modell Number | AAP135-S00/K4A00 |
| Number von Input Channels | 8, isolated channels |
| Input Signal Types | 2-wire: Kontakt ON/OFF, Voltage pulse, Current pulse (with transmitter power supply); 3-wire: Power-supply-type voltage pulse |
| Input Frequency | 0 to 10 kHz |
| Minimum Input Pulse Width | 40 µs |
| Input Signal Level | Kontakt Input: Open: 100 kΩ or larger; Close: 200 Ω or less; Voltage/Current Pulse Input: VH (High Level): 3 to 24 V DC; VL (Low Level): -1 to 8 V DC; VH-VL (Swing Value): 3 V or higher |
| Signal Source Resistance | 1 kΩ or less |
| Shunt Resistance | Selectable from: None/200/500/1000 Ω |
| Pull-up Resistance | 68 kΩ (12 V DC or 24 V DC) |
| Withstanding Voltage | Between Input and System: 500 V AC, for 1 minute; Between Channels: 500 V AC, for 1 minute |
| Data Update Period | 2 ms |
| Transmitter Power Supply | Selectable: 24 V DC / 12 V DC; Limiter Value: 12 V DC ±10 %: 40 mA; 24 V DC ±10 %: 30 mA |
| Maximum Current Consumption | 5 V DC: 300 mA; 24 V DC: 400 mA |
| Dimensions | 107.5 × 32.8 × 130 mm |
| Gewicht | 0.3 kg |
| External Connection | Pressure Clamp Terminal KS Cable; MIL Connector Cable |
Product Applications
The AAP135-S00/K4A00 Pulse Input Module is suitable for a variety von industrial applications, including:
-
Flow Measurement: Accurately counting pulses from flow meters to determine fluid flow rates.
-
Speed Measurement: Monitoring rotational speeds by processing pulses from encoders or tachometers.
-
Counting Applications: Tracking production counts or event occurrences in manufacturing processes.
-
Energy Monitoring: Recording pulses from energy meters for consumption analysis.
-
Process Control: Integrating with DCS for real-time monitoring and control based on pulse inputs.
-
Alarm Systems: Detecting specific pulse patterns to trigger alarms or safety protocols.
Product Advantages
-
High Accuracy: Offers precise pulse counting with a measurement accuracy von ±0.1% von full scale.
-
Isolation: Provides electrical isolation between input channels and the system, enhancing safety and signal integrity.
-
Dual-Redundant Configuration: Supports dual-redundant setups for increased system reliability.
-
Versatility: Capable von handling various input signal types, including contact ON/OFF, voltage pulses, and current pulses.
-
Compact Design: Small form factor facilitates easy installation in space-constrained environments.
-
Fast Response: Quick data update period von 2 ms ensures timely processing von input signals.
-
Wide Operating Range: Functions effectively across a broad range von input frequencies and signal levels.
-
Ease von Integration: Seamlessly integrates with Yokogawa’s CENTUM CS and CENTUM VP DCS platforms.
-
Durability: Robust construction suitable for harsh industrial conditions.
-
Flexibility: Selectable shunt and pull-up resistances allow customization based on specific application requirements.
Häufig gestellte Fragen (FAQ)
-
What types von signals can the AAP135-S00/K4A00 module process?
-
It can process contact ON/OFF signals, voltage pulses, and current pulses.
-
-
Is the module compatible with Yokogawa’s CENTUM VP system?
-
Yes, it is designed for integration with both CENTUM CS and CENTUM VP systems.
-
-
What is the maximum input frequency the module can handle?
-
It can handle input frequencies up to 10 kHz.
-
-
Does the module provide electrical isolation?
-
Yes, it vonfers isolation between input channels and the system, as well as between individual channels.
-
-
Can the module be used in a dual-redundant configuration?
-
Yes, it supports dual-redundant configurations for enhanced reliability.
-
-
What are the dimensions and weight von the module?
-
Dimensions: 107.5 × 32.8 × 130 mm; Gewicht: 0.3 kg.
-
-
What is the data update period von the module?
-
The module has a data update period von 2 ms.
-
-
What power supply options are available for the transmitter?
-
Selectable between 12 V DC and 24 V DC.
-
-
What is the maximum current consumption von the module?
-
5 V DC: 300 mA; 24 V DC: 400 mA.
-
-
What types von external connections does the module support?
-
It supports pressure clamp terminal KS cables and MIL connector cables.
-
Related Modells (Same Series or Closely Related Modells)
| Modell Number | Beschreibung | Key Features |
|---|---|---|
| AAP135-S00 | Standard Pulse Input Module | 8-channel, isolated input, compatible with CENTUM VP |
| AAP135-S50/K4A00 | MIL Connector Variant von Pulse Input Module | Enhanced field wiring option using MIL connector |
| AAP135-S00/13A00 | Pulse Input Module with Custom Firmware | Specialized timing and signal handling functions |
| AAP135-S00/KS | KS Cable Interface Variant | Designed for pressure clamp terminal KS cable connection |
| AAP135-S00 S2 | Enhanced Version with Dual-redundant Capability | Redundant architecture support for critical systems |
| AAP135-S10/K4A00 | Wide-range Voltage Pulse Input Module | Extended input signal support with MIL connector |
Popular Yokogawa Modells (Same Marke, High Demand Produkte)
| Modell Number | Beschreibung | Function |
|---|---|---|
| ADV551-P00 | Analog Output Module | Provides 4-20 mA analog outputs |
| ATD5A-00 | Digital Output Module | 16-point discrete output, fail-safe mode |
| ADM51S-2 | Digital Input Module | Isolated 16-point input |
| AIP827-2 | Analog Input Module | 8-channel RTD input for temperature |
| ANB10D-420 | Field Control Station (Node Einheit) | Communication hub for I/O modules |
| CP451-10 | Central Processor Module | Core CPU for CENTUM CS 3000 systems |
