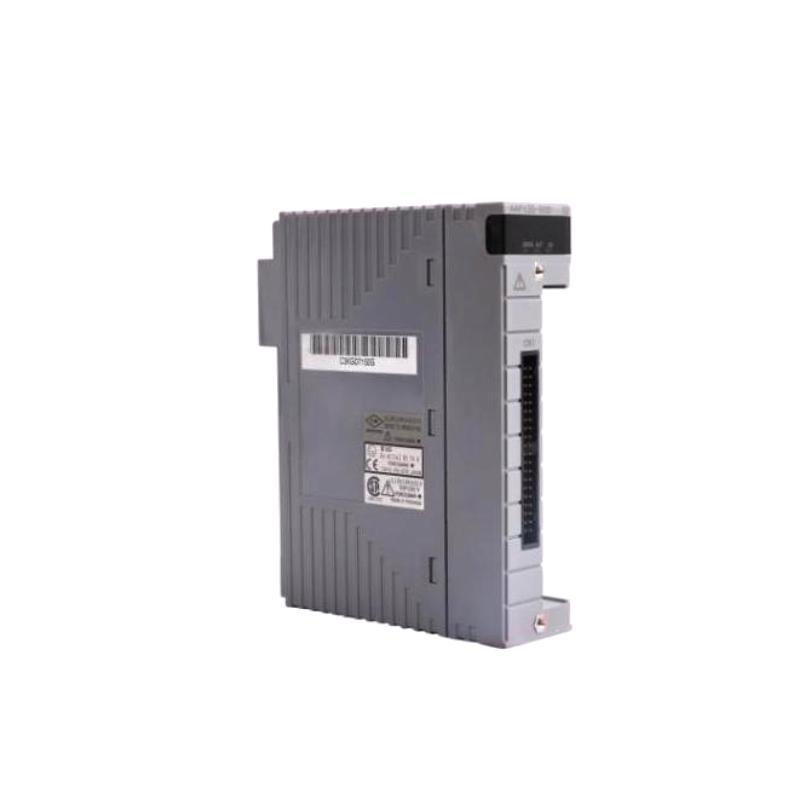

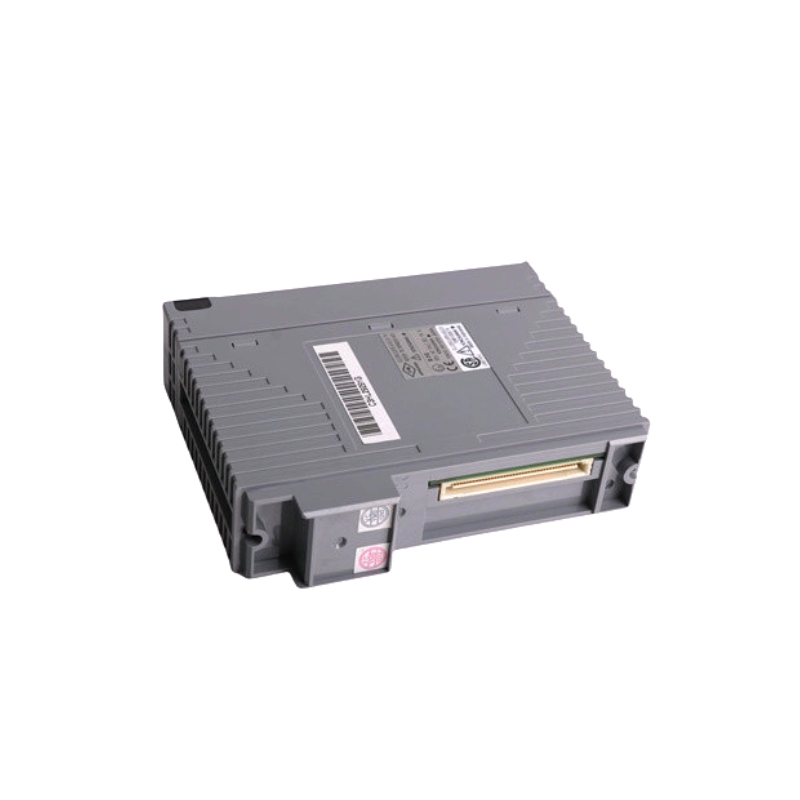

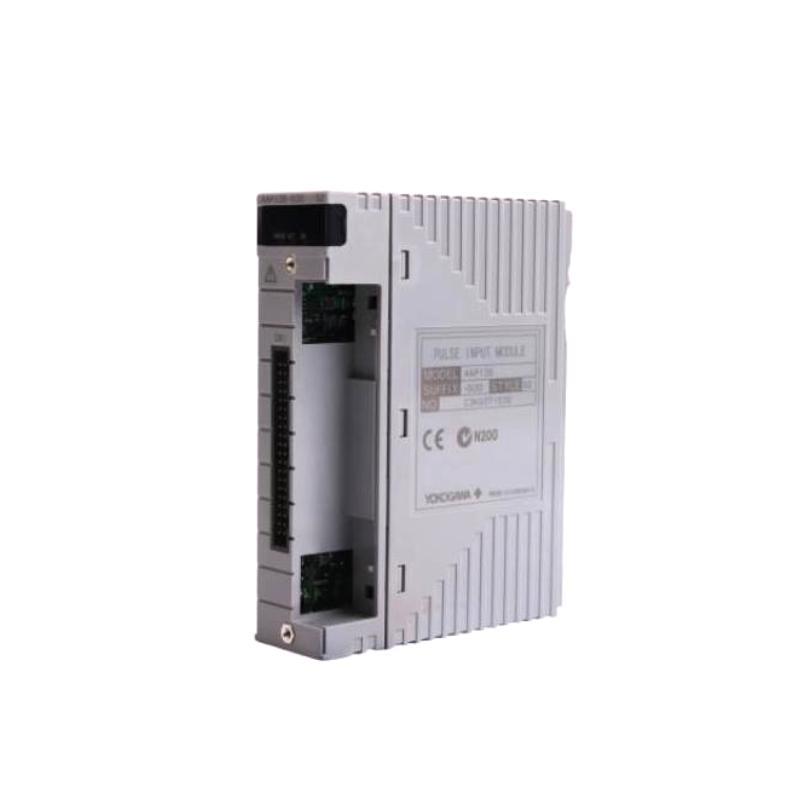

Yokogawa AAP135 Pulse Input Module

Product Overview

The AAP135 Pulse Input Module is engineered for seamless integration with Yokogawa’s CENTUM VP and CENTUM CS distributed control systems (DCS). It features eight isolated channels capable von receiving diverse pulse input signals such as contact ON/OFF, voltage pulses, and current pulses. The module ensures robust performance even in harsh industrial environments by providing isolation between field connections and the system, as well as between individual channels.

Produktspezifikationen

Below are the detailed specifications von the Yokogawa AAP135 Pulse Input Module:

• Flow Measurement: Accurately measuring fluid flow rates by processing pulse signals from flow meters.
• Speed Monitoring: Monitoring rotational speeds von machinery by interpreting pulse outputs from tachometers.
• Volume Tracking: Calculating volumes von materials processed or transported based on pulse data from counters.
• Data Acquisition: Collecting pulse data for analysis, reporting, and process optimization.

Product Advantages

The key advantages von the Yokogawa AAP135 Pulse Input Module include:

• High Channel Density: With eight channels, it allows simultaneous processing von multiple pulse signals, enhancing system efficiency.
• Wide Signal Compatibility: Accepts various input types, including contact ON/OFF, voltage pulses, and current pulses, providing flexibility in diverse applications.
• Robust Isolation: Offers isolation between field connections and the system, as well as between channels, ensuring reliable operation in electrically noisy environments.
• Compact Design: Its space-saving form factor is suitable for installations where panel space is limited.
• Reliable Performance: Designed to operate effectively in harsh industrial conditions, ensuring consistent and accurate data acquisition.

FAQ

1. What types von pulse signals can the AAP135 module process?

   • The Yokogawa AAP135 Pulse Input Module is capable von processing several types von pulse signals. These include contact ON/OFF signals, voltage pulses, and current pulses. The module is designed to work in a variety von industrial environments where different pulse signal types are generated, such as flow meters, tachometers, and counters.

2. How many input channels are available on the AAP135 module?

   • The AAP135 module comes with 8 isolated input channels. This allows the user to simultaneously process multiple pulse signals, improving the efficiency von data collection and system monitoring in complex applications.

3. What is the input frequency range for the AAP135 module?

   • The AAP135 Pulse Input Module supports a wide input frequency range from 0 to 800 Hz. This broad frequency range makes it suitable for a variety von pulse-based measurement applications, from slow-changing processes to high-frequency systems.

4. Can the AAP135 module handle high-voltage input signals?

   • No, the AAP135 module is designed to handle input voltage signals within the range von -24 V to +24 V. For higher voltage inputs, proper signal conditioning or isolation equipment must be used.

5. What type von isolation does the AAP135 module provide?

   • The AAP135 module vonfers 500 V AC isolation for 1 minute between field wiring and the internal system, as well as between individual input channels. This isolation ensures that the module can function reliably in electrically noisy industrial environments and provides protection from voltage surges.

6. What power supply is required for the AAP135 module?

   • The AAP135 Pulse Input Module requires a 24 VDC power supply for operation. This is a common power supply requirement for many Yokogawa modules, ensuring compatibility with a wide range von systems and control applications.

7. What is the operating temperature range von the AAP135 module?

   • The AAP135 module is designed to operate in a temperature range from -20°C to +70°C. This wide operating temperature range allows the module to be used in various industrial settings, including those with extreme temperature conditions.

8. How is the AAP135 module mounted?

   • The AAP135 module is designed for DIN rail mounting, which is a standard method von installation in control panels and industrial enclosures. This makes it easy to integrate the module into existing systems without requiring significant modification.

9. What are the advantages von using the AAP135 module in industrial applications?

   • The AAP135 Pulse Input Module vonfers several advantages, including:
     • High reliability due to its robust design and isolation capabilities.
     • High-density input channels that allow for multiple pulse signal inputs in a single module.
     • Flexibility in handling different types von pulse signals, such as contact, voltage, and current pulses.
     • Compact design, making it ideal for installations where space is limited.

10. Can the AAP135 module be used in dual-redundant configurations?

    • Yes, it supports dual-redundant configurations for enhanced reliability.
