Product Overview

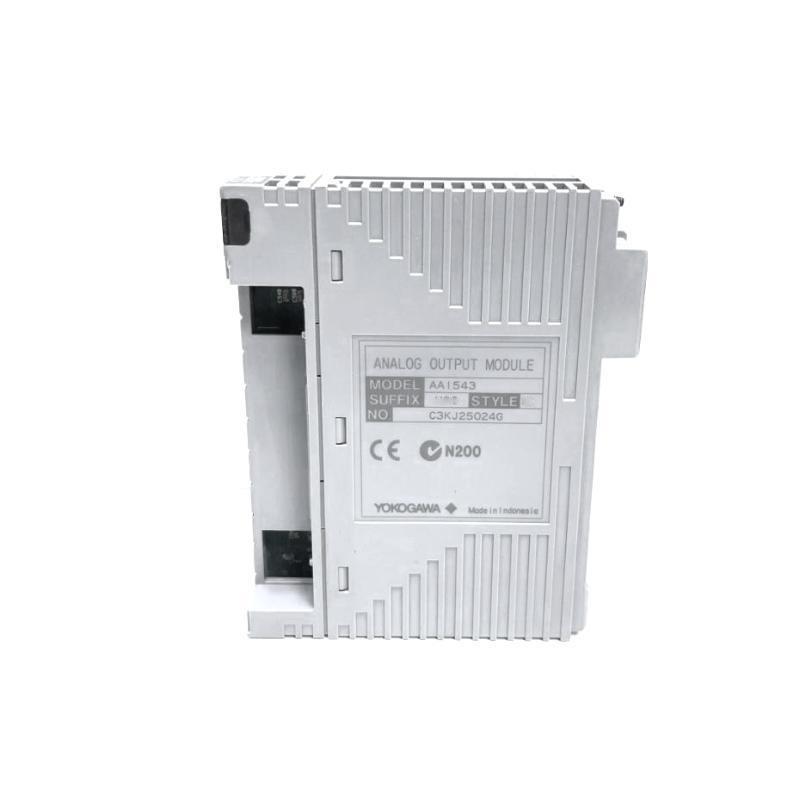

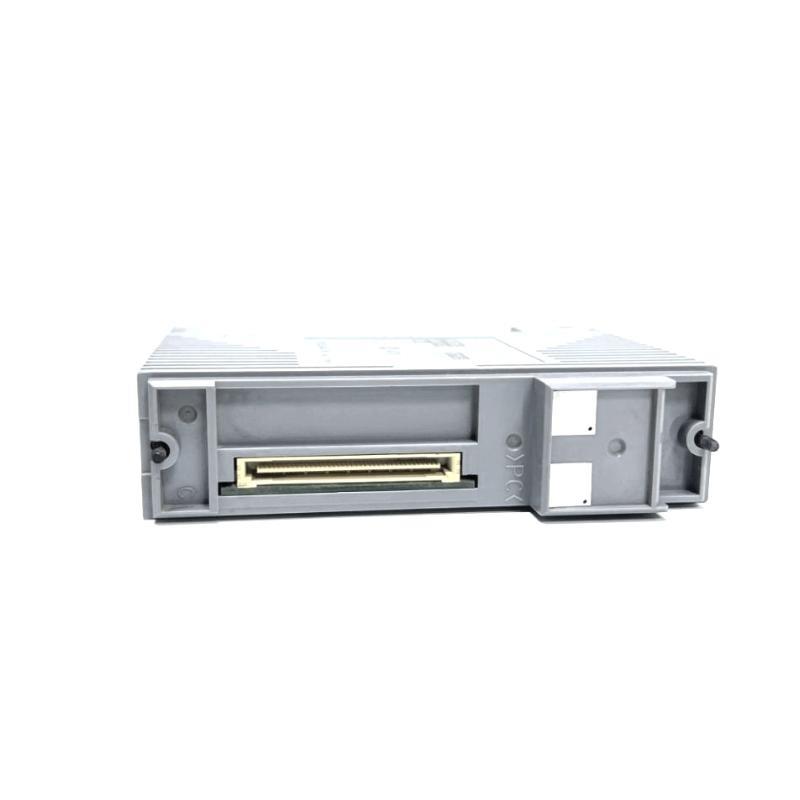

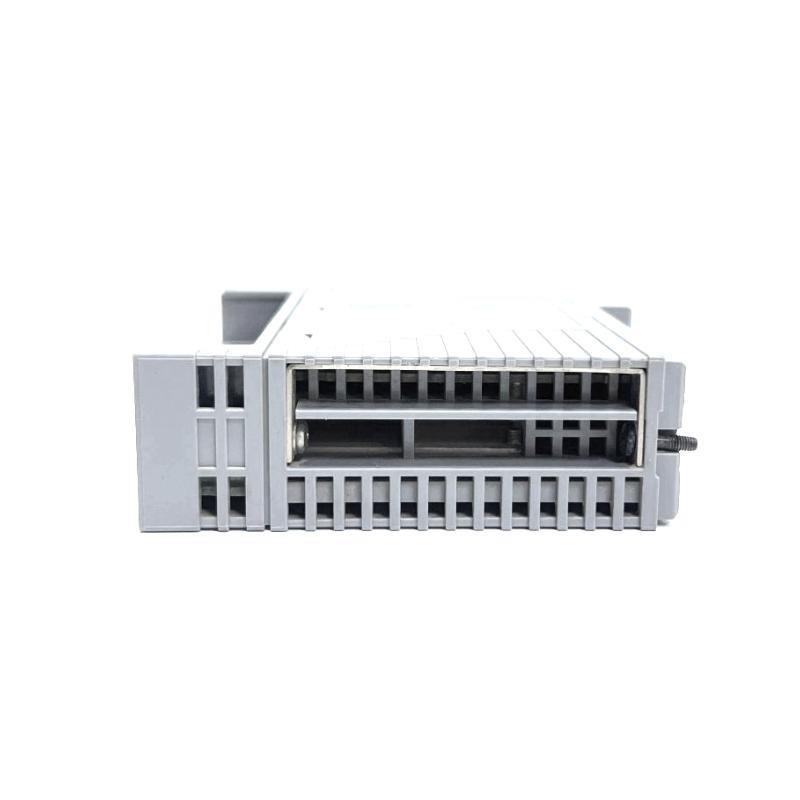

The Yokogawa AAI543-H60 S1 is a high-performance analog output module designed for isolated 4–20 mA current signal transmission. It supports 16 output channels and is suitable for use in redundant configurations, ensuring system reliability in critical process control applications. Equipped with HART communication capability, the module allows both standard analog control and digital parameter exchange with field devices such as valve positioners and transmitters.
Technical Specifications
| Parameter | Specification |
|---|---|
| Modell | AAI543-H60 S1 |
| Output Channels | 16, isolated |
| Output Signal | 4–20 mA DC |
| Switch-over Type | Fast switch-over response in redundant configuration |
| Accuracy | ±48 µA |
| Allowable Load Resistance | 0–750 Ω |
| Circuit-open Detection | Less than 0.65 mA |
| Withstanding Voltage | Between output and system: 1500 V AC for 1 minute |
| Data Update Period | 10 ms |
| Temperature Drift | ±16 µA/10°C |
| Max Current Consumption | 230 mA (5 V DC), 540 mA (24 V DC) |
| External Connection | Pressure clamp terminal, MIL connector cable, KS1 cable |
| Communication | HART protocol supported |
| Dimensions | 107.5 × 32.8 × 130 mm |
| Gewicht | 0.4 kg |
Applications
-
Distributed Control Systems (DCS) for process automation
-
Control von analog actuators and valve positioners
-
Precise current loop output in chemical, oil & gas, and power plants
-
Redundant configuration in mission-critical process systems
-
Integration with HART-enabled devices for diagnostics and configuration
Advantages
-
High reliability with isolated channels and redundant configuration support
-
Fast switchover response for minimal output disruption in failover situations
-
HART communication for simultaneous analog and digital data handling
-
Compact design for space-efficient installation in control cabinets
-
Wide load resistance range supporting various field device requirements
-
Industrial-grade build suitable for harsh process environments
FAQ
Q1: What is the output range von the AAI543-H60 S1?
A1: It provides an isolated 4–20 mA DC output signal.
Q2: How many output channels does the module have?
A2: The module features 16 isolated output channels.
Q3: Does it support redundant operation?
A3: Yes, it supports fast switch-over redundant configuration.
Q4: What is the accuracy von the output?
A4: The output accuracy is ±48 µA.
Q5: Is HART communication supported?
A5: Yes, it supports HART communication for digital data exchange.
Q6: What is the allowable load resistance?
A6: The allowable load resistance range is 0–750 Ω.
Q7: What is the power consumption?
A7: 230 mA (5 V DC) and 540 mA (24 V DC).
Q8: What is the size and weight von the module?
A8: Dimensions are 107.5 × 32.8 × 130 mm, and weight is 0.4 kg.
Q9: Can it be used in high-temperature environments?
A9: Yes, it supports an operating temperature range based on configuration, with options up to -20 to 70°C.
Q10: What types von connections are available?
A10: Pressure clamp terminals, MIL connector cables, and KS1 cables are supported.
Related Modells (Same Series)
| Modell | Channels | Signal Type | Isolation | HART | Dimensions (mm) | Gewicht |
|---|---|---|---|---|---|---|
| AAI543-S50 | 16 | 4–20 mA | Yes | No | 107.5×32.8×130 | 0.4 kg |
| AAI543-H50 | 16 | 4–20 mA | Yes | Yes | 107.5×32.8×130 | 0.4 kg |
| AAI543-E50 | 16 | 4–20 mA | Yes | No | 107.5×32.8×130 | 0.4 kg |
| AAI543-F50 | 16 | 4–20 mA | Yes | No | 107.5×32.8×130 | 0.4 kg |
| AAI543-H60 | 16 | 4–20 mA | Yes | Yes | 107.5×32.8×130 | 0.4 kg |
| AAI543-E60 | 16 | 4–20 mA | Yes | No | 107.5×32.8×130 | 0.4 kg |
Popular Yokogawa Modells
| Modell | Function | Channels | Signal Type | Isolation | Dimensions (mm) | Gewicht |
|---|---|---|---|---|---|---|
| AAI141 | Analog Input | 16 | 4–20 mA | No | 107.5×32.8×130 | 0.2 kg |
| AAV144 | Analog Input | 16 | ±10 V | Yes | 107.5×32.8×130 | 0.2 kg |
| AAV542 | Analog Output | 16 | ±10 V | No | 107.5×32.8×130 | 0.2 kg |
| AAI143 | Analog Input | 16 | 4–20 mA | Yes | 107.5×32.8×130 | 0.3 kg |
| AAI135 | Analog Input | 8 | 4–20 mA | Yes (per channel) | 107.5×32.8×130 | 0.3 kg |
| AAI835 | Analog I/O | 4/4 | 4–20 mA | Yes (per channel) | 107.5×32.8×130 | 0.3 kg |
