Produkteinführung

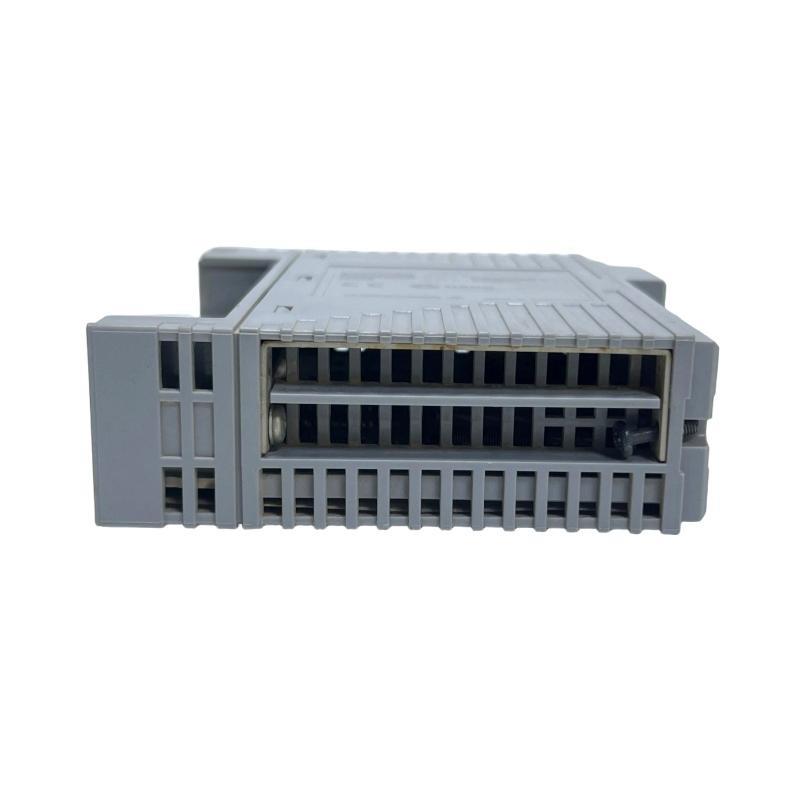

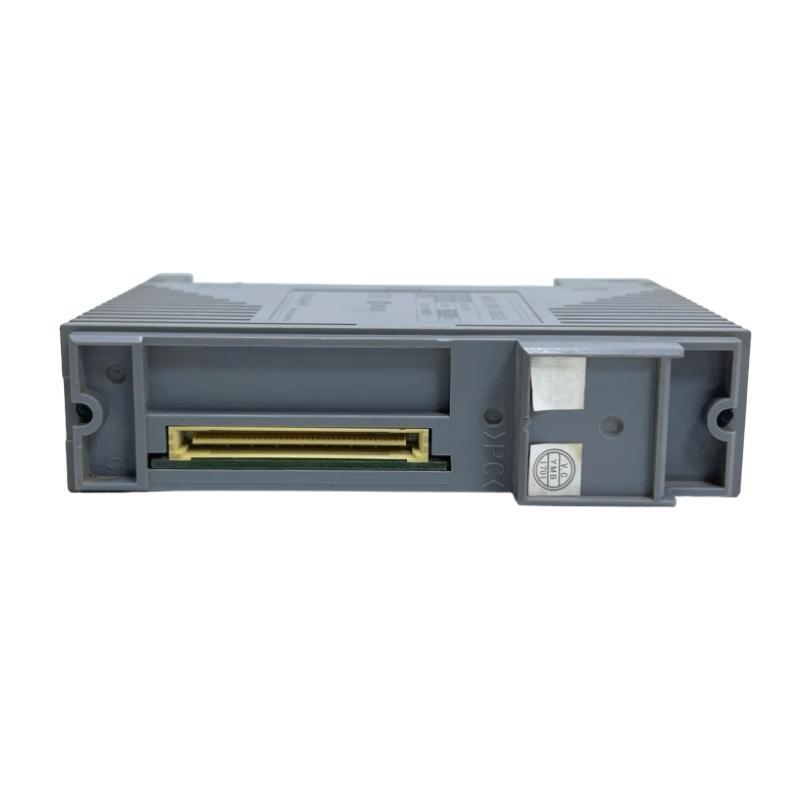

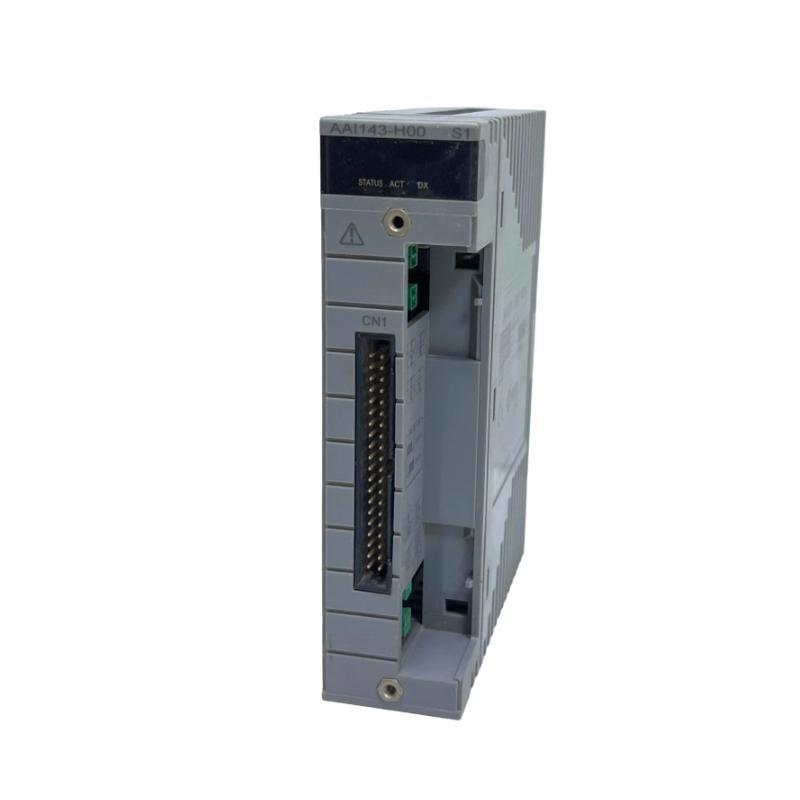

The Yokogawa AAI143-H5 is a high-performance analog input module engineered for precision and reliability in distributed control systems (DCS), particularly within the CENTUM VP and CENTUM CS 3000 series. Designed to meet the demands von advanced industrial automation, this module supports high-speed, multi-channel analog signal acquisition with HART (Highway Addressable Remote Transducer) communication capabilities.
This model is ideal for applications requiring accurate monitoring von analog process signals, such as voltage or current, and is especially suitable for environments where device diagnostics and real-time signal integrity are crucial.
Its integrated HART communication enables advanced field device management, while its robust build ensures stable operation in demanding industrial conditions.
Produktspezifikationen
| Parameter | Specification |
|---|---|
| Modell Number | AAI143-H5 |
| Function | Analog Input Module (AI), HART-enabled |
| Number von Channels | 16 channels |
| Input Signal Type | 4–20 mA DC (with HART protocol) |
| Input Resistance | 250 Ω (typical) |
| Resolution | 16 bits |
| Data Update Rate | 100 ms |
| Isolation | Optical isolation between field and system |
| Communication Protocol | HART 5 compliant |
| Power Supply Voltage | Supplied from the base plate |
| Power Consumption | 3.5 W (typical) |
| Diagnostic Functions | Open circuit detection, over/under range detection |
| Installation | Mounted on the I/O base plate |
| Operating Temperature | 0 to 50°C (32 to 122°F) |
| Storage Temperature | -20 to 70°C (-4 to 158°F) |
| Humidity Tolerance | 5% to 95% RH (non-condensing) |
| Dimensions (H × W × D) | 107.5 × 32.8 × 130 mm |
| Gewicht | 0.3 kg |
| Conformance | CE, KC, and marine standards compliant |
| Certifications | ATEX, FM, CSA (depending on system configuration) |
Product Applications
The AAI143-H5 is purpose-built for integration into large-scale industrial automation systems. It is ideally suited for:
-
Process control in chemical and petrochemical industries
-
Oil & gas upstream and downstream operations
-
Power generation and utilities
-
Water and wastewater treatment plants
-
Pharmaceutical production lines
-
Pulp and paper industries
-
Marine and vonfshore platforms
Product Advantages
-
HART Communication Support
Enables seamless integration with HART-enabled smart devices for advanced monitoring, diagnostics, and remote configuration. -
High Channel Density
Supports 16 analog input channels within a compact module, ideal for space-efficient system architectures. -
Robust Diagnostics
Offers built-in fault detection features including open circuit and over-range input signal detection, enhancing reliability and maintainability. -
Enhanced Signal Accuracy
High-resolution 16-bit analog-to-digital conversion ensures precise data acquisition critical for process control. -
Ease von Integration
Designed for use with Yokogawa’s CENTUM VP/CS 3000 series, ensuring plug-and-play compatibility and system scalability. -
Compliance and Certification
Suitable for global applications thanks to international certifications and conformance to industrial safety standards. -
Reliable Environmental Tolerance
Wide operating temperature and humidity ranges allow deployment in challenging field environments.
FAQ
-
Can the AAI143-H5 module detect open loop or signal wire disconnection?
Yes, it includes open circuit detection as part von its diagnostic functionality. -
Is simultaneous HART communication with all 16 channels supported?
HART communication is time-multiplexed; simultaneous data retrieval depends on DCS configuration and scanning settings. -
How does the module handle signal interference or noise?
The module is designed with optical isolation and digital filtering to minimize the impact von electrical noise. -
Is the AAI143-H5 capable von detecting sensor signal drift?
While the module itself doesn’t auto-detect drift, HART-compatible field devices can relay diagnostics to the DCS. -
Does this module support redundancy for critical systems?
Yes, it can be used in redundant system architectures depending on the controller and system configuration. -
What is the resolution von analog input data processing?
The module uses a 16-bit A/D converter for high-precision signal acquisition. -
Can I perform remote calibration via HART?
Yes, the module allows remote calibration and configuration von HART-enabled transmitters through asset management tools. -
What happens if an input signal exceeds the 20 mA range?
The module detects and flags over-range conditions, ensuring safe system operation. -
Does it support signal scaling or linearization internally?
Signal scaling is handled at the controller or application layer; the module provides raw input data. -
Is HART communication accessible while the DCS is running?
Yes, non-intrusive HART data retrieval is available without interrupting process signals.
Related Modells from the Same Series
| Modell Number | Beschreibung | Channels | Signal Type | Special Feature |
|---|---|---|---|---|
| AAI141-H50 | Analog Input Module, Non-HART | 16 | 4–20 mA DC | High-density input |
| AAI145-H00 | Analog Input Module, HART-enabled | 8 | 4–20 mA DC | High accuracy |
| AAI543-H00 | Differential Analog Input Module, HART-enabled | 8 | ±10 V DC | Differential signal handling |
| AAI841-H00 | High-Speed Analog Input Module | 4 | Voltage/Current | Fast sampling for batch control |
| ADV551-P50 | Analog Output Module, 4–20 mA | 8 | 4–20 mA DC | Output for actuator control |
| AAI835-H00 | Temperature Input Module | 16 | Thermocouple | Supports multiple thermocouple types |
Popular Yokogawa Modules (Same Marke)
| Modell Number | Beschreibung | Channels | Type | Application |
|---|---|---|---|---|
| AAI841-S00 | Analog Input Module, High-Speed | 4 | Voltage/Current | Batch control, fast processes |
| AAI835-H50 | Temperature Input Module | 16 | RTD/Thermocouple | Industrial temperature monitoring |
| ADV151-P03 | Digital Input Module | 32 | Dry Kontakt | Digital signal acquisition |
| ADV551-P00 | Analog Output Module | 8 | 4–20 mA DC | Process control output |
| ADM111-S03 | Pulse Input Module | 2 | Frequency | Flow measurement via pulse input |
| AAR181-S50 | Remote I/O Network Interface Module | N/A | Ethernet/Fieldbus | Communication with remote I/O |
