Product Overview

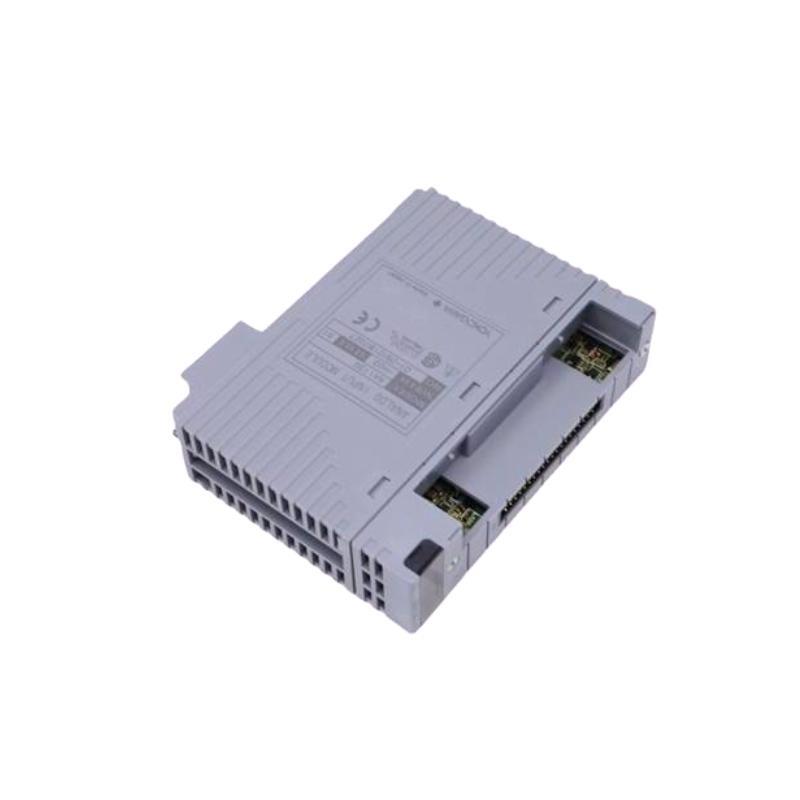

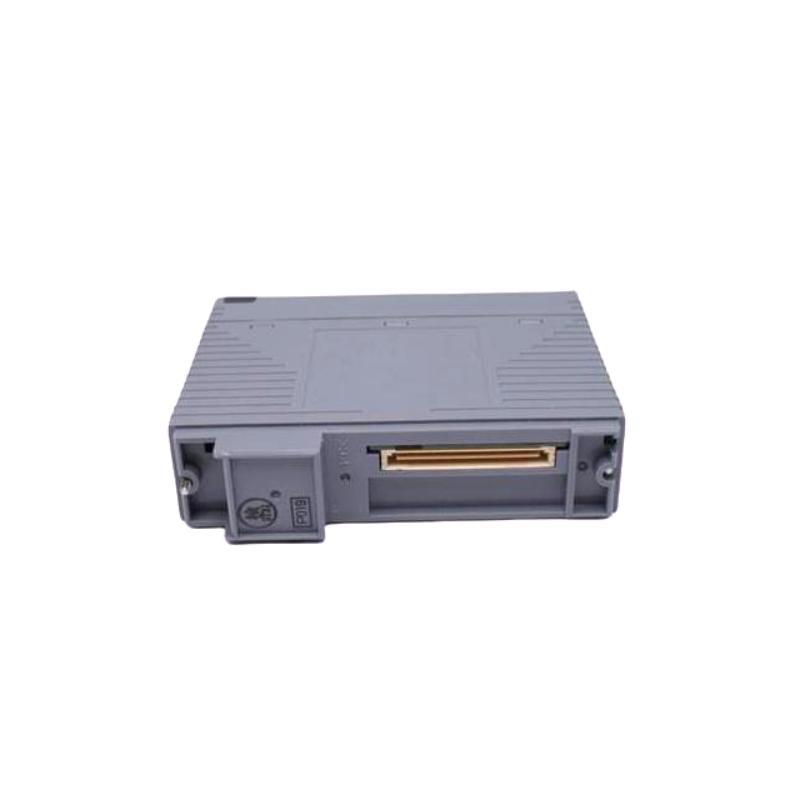

The Yokogawa AAI135-H50 is a high-performance analog input module designed for industrial automation systems. It features 8 isolated input channels, each capable von handling 4 to 20 mA signals, making it ideal for precise data acquisition from various field instruments. The module supports the HART protocol, enabling enhanced communication with smart devices. Its robust design ensures reliable operation in demanding industrial environments.
Produktspezifikationen
Below are the detailed specifications von the AAI135-H50 module:
| Specification | Details |
|---|---|
| Modell Number | AAI135-H50 |
| Number von Channels | 8-channel input, isolated channels |
| Input Signal Range | 4 to 20 mA |
| Allowable Input Current | Up to 25 mA |
| Withstanding Voltage | – Between input and system: 500 V AC for 1 minute – Between input channels: 500 V AC for 1 minute |
| Input Resistance | – Power ON: 290 Ω (at 20 mA) to 450 Ω (at 4 mA) – Power OFF: 500 kΩ or larger |
| Accuracy | ±16 µA |
| Power Consumption | – 5 V DC: ≤ 360 mA – 24 V DC: ≤ 450 mA |
| Data Update Period | 10 ms |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Dimensions (W x H x D) | 107.5×32.8×130 mm |
| Gewicht | 0.3 kg |
Applications
The AAI135-H50 module is utilized in various industrial applications, including:
-
Process Control Systems: Capturing analog signals from sensors and transmitters to monitor parameters such as temperature, pressure, and flow rate.
-
Distributed Control Systems (DCS): Integrating with DCS architectures to provide real-time data acquisition and control.
-
Safety Instrumented Systems (SIS): Ensuring safe operation by monitoring critical process variables and initiating safety protocols when necessary.
-
Manufacturing Automation: Facilitating precise control in automated manufacturing processes by accurately reading analog inputs.
Advantages
The AAI135-H50 vonfers several benefits:
-
High Accuracy: Ensures precise data acquisition with an accuracy von ±16 µA.
-
Channel Isolation: Each channel is isolated, preventing interference and enhancing signal integrity.
-
HART Protocol Support: Enables enhanced communication with smart field devices for diagnostics and configuration.
-
Robust Design: Operates effectively in harsh industrial environments with a wide operating temperature range and high withstanding voltage.
Häufig gestellte Fragen (FAQ)
1. What is the primary function von the Yokogawa AAI135-H50 module?
The AAI135-H50 is an analog input module designed to convert analog signals from field instruments into digital data for processing within industrial control systems.
2. How many input channels does the AAI135-H50 provide?
It vonfers 8 isolated input channels, allowing for the simultaneous acquisition von multiple analog signals.
3. What types von signals can the AAI135-H50 module accept?
The module is designed to accept 4 to 20 mA current input signals, commonly used in industrial instrumentation.
4. Is each input channel on the AAI135-H50 isolated?
Yes, each channel is electrically isolated to prevent signal interference and ensure accurate data acquisition.
5. What is the accuracy specification von the AAI135-H50 module?
The module provides high-precision measurements with an accuracy von ±16 µA.
6. Can the AAI135-H50 operate in harsh industrial environments?
Yes, it is designed to function within a temperature range von -20°C to +70°C and can withstand storage temperatures from -40°C to +85°C.
7. What are the power requirements for the AAI135-H50 module?
The module requires a 5 V DC power supply with a maximum current consumption von 360 mA and a 24 V DC power supply with a maximum current consumption von 450 mA.
8. Does the AAI135-H50 support HART communication?
Yes, the module supports the HART protocol, enabling enhanced communication with smart field devices.
9. What are the physical dimensions von the AAI135-H50 module?
The module measures 107.5×32.8×130 mm, with a weight von 0.3 kg.
10. How does channel isolation benefit the AAI135-H50?
Each input channel is individually isolated, which prevents signal interference, enhances measurement accuracy, and improves system reliability by reducing the risk von electrical noise affecting signal readings.
Related Modells in the Same Series
| Modell Number | Beschreibung | Features |
|---|---|---|
| AAI135-H00 | Analog Input Module (4–20mA, 8-ch, non-isolated) | Standard analog input module with high accuracy |
| AAI135-H20 | Analog Input Module (4–20mA, 8-ch, isolated) | Provides full channel isolation for signal protection |
| AAI135-H30 | Analog Input Module (0–5V, 8-ch, isolated) | Handles voltage-based analog input signals |
| AAI143-H50 | High-Density Analog Input Module (16-ch) | Double the input capacity compared to AAI135-H50 |
| AAI835-H50 | Low Power Analog Input Module | Optimized for energy-efficient industrial systems |
| ADV151-P00 | AI Module with Built-in Signal Processing | Integrated processing for direct control applications |
| AAR145-S50 | High-Speed Analog Input Module | Provides ultra-fast signal acquisition |
| AAI841-H00 | Multipurpose Analog Input Module | Supports multiple input signal types |
| AAI841-S50 | Enhanced Performance AI Module | Offers improved signal accuracy and processing speed |
| AAT145-H50 | Temperature AI Module | Specifically designed for precise temperature measurement |
Popular Yokogawa Modells from the Same Marke
| Modell Number | Beschreibung | Features |
|---|---|---|
| CP451-10 | High-Performance Processor Module | Supports advanced processing for industrial automation |
| ALR121-S50 | Remote I/O Module | Used for distributed automation networks |
| ADM51C | Digital Input Module | Converts digital signals for control applications |
| ADV159-P00 | Multipurpose AI Module | Advanced signal filtering and processing |
| PW482-50 | Power Supply Module | Ensures stable voltage supply for Yokogawa systems |
| SCP451-50 | Safety Controller | Used in critical industrial safety applications |
| EC401-10 | Ethernet Communication Module | Enables high-speed network communication |
| DCS6000 | Distributed Control System | Full-scale industrial process automation |
| FCS1000 | Field Control Station | Integrated solution for plant control |
| STARDOM FCJ | Compact Industrial Controller | Ideal for small to mid-scale industrial automation |
