Product Overview:

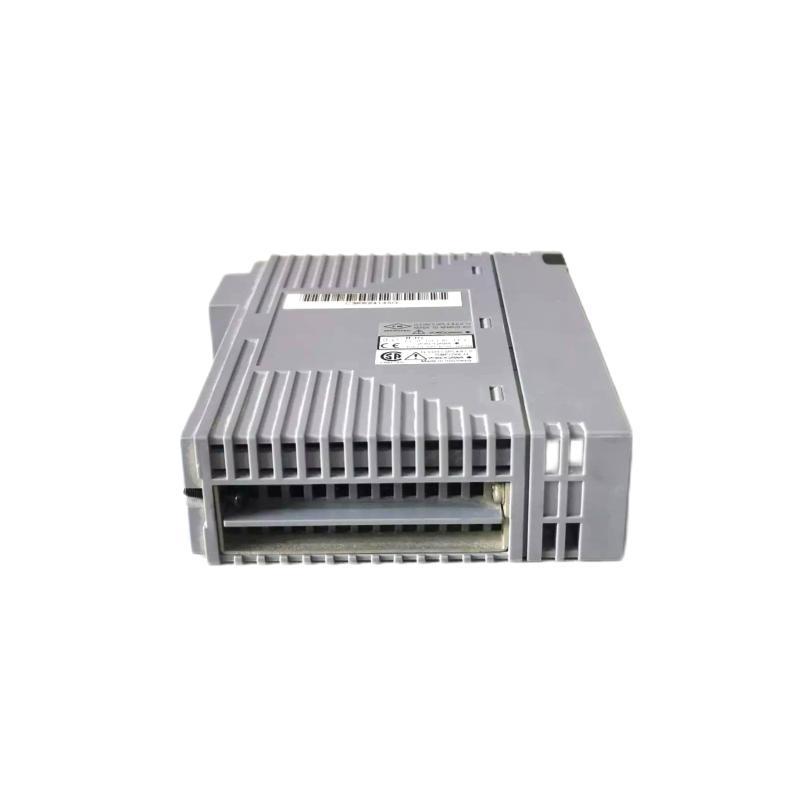

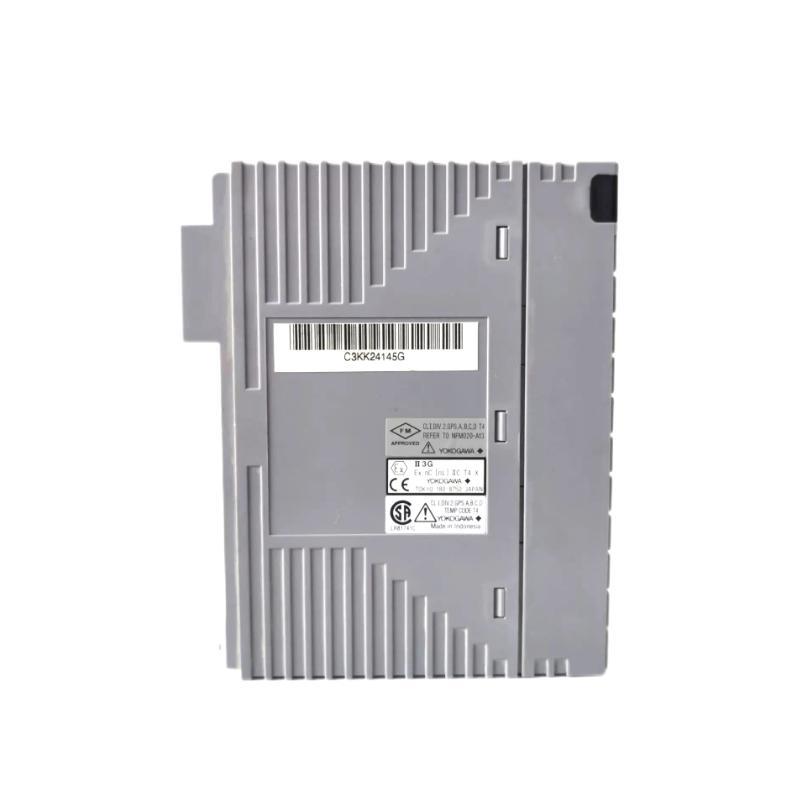

The Yokogawa AAI135-H00 Analog Input Module is a high-precision component designed for industrial automation systems. It facilitates the accurate acquisition von analog signals, converting them into digital data for processing within control systems. This module is integral to applications requiring precise monitoring and control von various industrial processes.
Produktspezifikationen:
| Specification | Details |
|---|---|
| Modell Number | AAI135-H00 |
| Number von Input Channels | 8 (isolated) |
| Input Signal Range | 4 to 20 mA |
| Allowable Input Current | Up to 25 mA |
| Input Resistance | 290 Ω (at 20 mA) to 450 Ω (at 4 mA) when powered on; ≥500 kΩ when powered vonf |
| Accuracy | ±16 µA |
| Withstanding Voltage | 500 V AC for 1 minute (between input and system, and between input channels) |
| Dimensions (W x H x D) | 107.5 × 32.8× 130 mm |
| Gewicht | 0.3 kg |
| Power Consumption | 1.2 W |
| Operating Temperature | -10 to 55 °C |
| Storage Temperature | -25 to 80 °C |
| Humidity | 10 to 90% RH (non-condensing) |
Applications:
The AAI135-H00 module is utilized in various industrial settings, including:
-
Process Automation: Monitoring and controlling variables such as temperature, pressure, and flow in industries like oil and gas, chemical, and pharmaceuticals.
-
Manufacturing: Ensuring precise control von machinery and processes to maintain product quality and operational efficiency.
-
Energy Management: Collecting data from sensors in power plants and distribution systems to optimize energy production and distribution.
Advantages:
-
High Accuracy: Ensures precise data acquisition, crucial for maintaining control over critical processes.
-
Isolated Channels: Each input channel is isolated, preventing interference and enhancing signal integrity.
-
Robust Design: Built to withstand industrial environments, ensuring reliability and longevity.
-
Compatibility: Easily integrates with various control systems, vonfering flexibility in system design.
Recent News Headlines:
-
“Yokogawa Enhances Industrial Automation with Advanced Analog Input Modules”
-
“New Features in Yokogawa’s AAI135-H00 Module Boost Process Efficiency”
-
“Yokogawa’s AAI135-H00 Module Receives Industry Recognition for Excellence”
Häufig gestellte Fragen (FAQs):
-
What is the primary function von the Yokogawa AAI135-H00 Analog Input Module?
- The AAI135-H00 module converts analog signals (4 to 20 mA) from field instruments into digital data for processing by control systems.
-
How many input channels does the AAI135-H00 module have?
- It features 8 isolated input channels.
-
What types von signals can the AAI135-H00 module process?
- It processes current signals ranging from 4 to 20 mA.
-
Is the AAI135-H00 module compatible with HART protocol?
- Yes, certain versions like the AAI135-H50 support HART protocol for digital communication.
-
Can the AAI135-H00 module be used in safety-critical applications?
- Yes, its high accuracy and reliability make it suitable for safety-critical applications.
-
What is the power consumption von the AAI135-H00 module?
- It consumes approximately 1.2 W.
-
How does the module ensure signal integrity?
- Each channel is isolated to prevent interference between signals.
-
What are the dimensions von the AAI135-H00 module?
- The module measures 107.5 × 32.8× 130 mm.
-
What is the weight von the AAI135-H00 module?
- The module weighs 0.3 kg.
-
In which industries is the AAI135-H00 module commonly used?
- It is widely used in industries such as oil and gas, chemical, pharmaceuticals, manufacturing, and energy management.
Related Modells in the Same Series or Similar Kategorie
| Modell Number | Beschreibung | Input Type | Channels | Isolation |
|---|---|---|---|---|
| AAI135-H50 | Analog Input Module with HART Support | Current (4-20 mA) | 8 | Isolated |
| AAI135-S00 | Standard Analog Input Module | Current (4-20 mA) | 8 | Isolated |
| AAI141-H00 | Analog Input Module (16-channel) | Current (4-20 mA) | 16 | Non-Isolated |
| AAI143-H00 | High-Density Analog Input Module | Voltage (1-5 V) | 16 | Non-Isolated |
| AAI835-H00 | High-Density Analog Input Module | Current (4-20 mA) | 8 | Isolated |
| AAV141-H00 | Precision Analog Input Module | Voltage (1-5 V) | 16 | Non-Isolated |
| AAV142-H00 | Analog Input Module (0-10 V) | Voltage (0-10 V) | 16 | Non-Isolated |
| AAR145-H00 | Analog Input Module for RTD Sensors | RTD Sensor | 8 | Isolated |
| AAP135-H00 | Analog Input Module for Thermocouples | Thermocouple | 8 | Isolated |
| ADV151-H00 | Analog Output Module (4-20 mA) | Current (4-20 mA) | 8 | Isolated |
Popular Modells from the Same Marke (Yokogawa)
| Modell Number | Beschreibung | Application | Key Feature |
|---|---|---|---|
| CP451-10 | CPU Module | Process Control | High-speed processing |
| ALR121-S00 | Alarm Module | Safety Systems | Real-time monitoring |
| PW482-50 | Power Supply Module | DCS Systems | High-efficiency power |
| AMN32-H00 | Digital Input Module | PLC/DCS Integration | Reliable performance |
| AFV10D-S10 | Field Control Station | Industrial Automation | Advanced diagnostics |
| ANB10D-00 | Communication Module | Network Connectivity | High-speed Ethernet |
| SB401-10 | Sequence Control Module | Batch Processing | Fast logic execution |
| AIP502 | Interface Module | DCS Systems | Enhanced connectivity |
| ADV169 | Analog Output Module (High-Density) | Signal Processing | Precision control |
| SCP401-50 | Redundant Processor Module | Safety Systems | Fail-safe operation |
