Product Overview

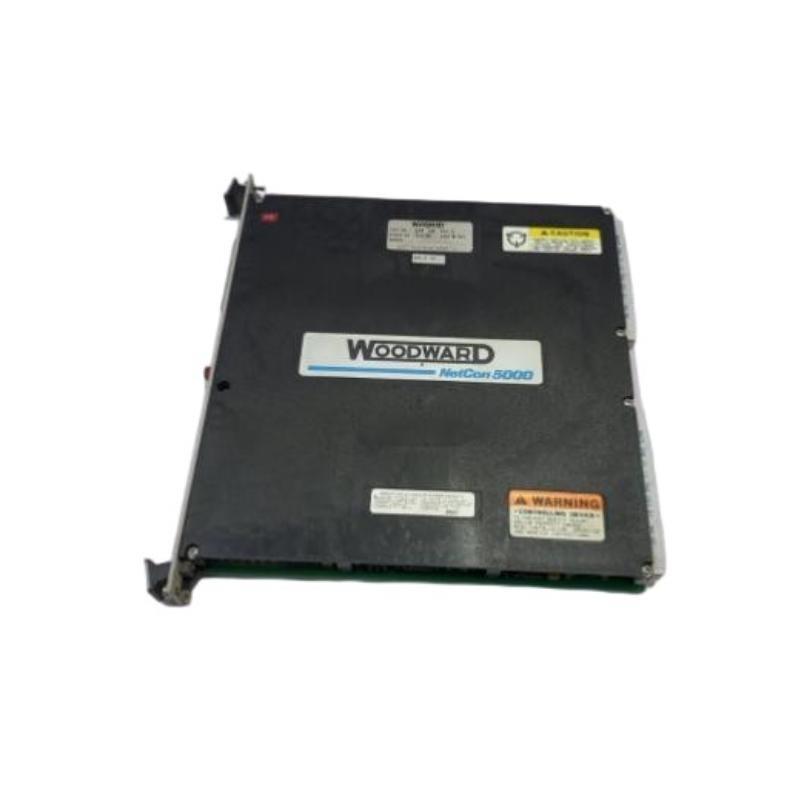

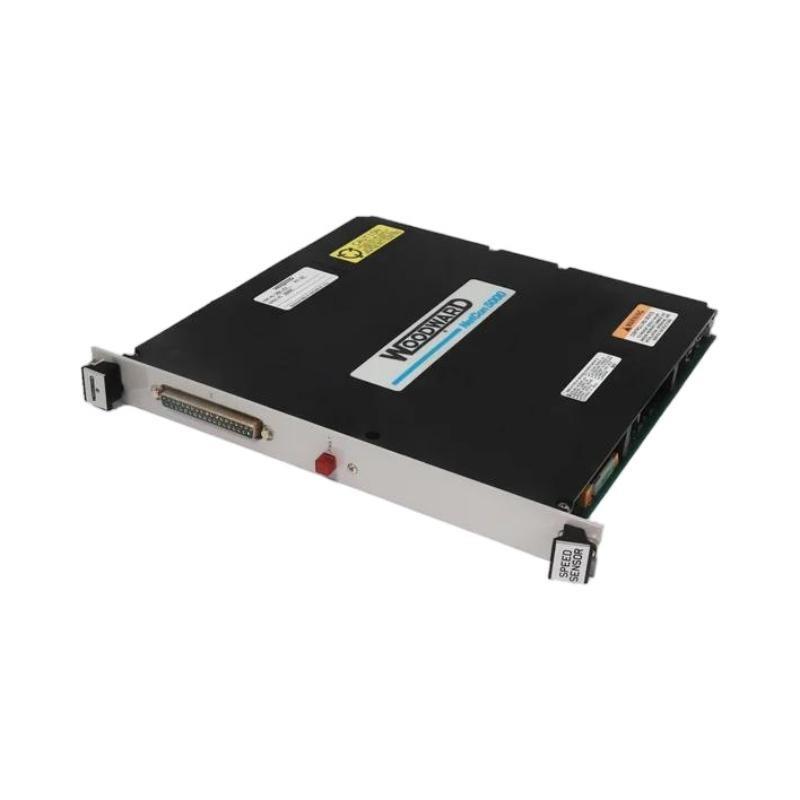

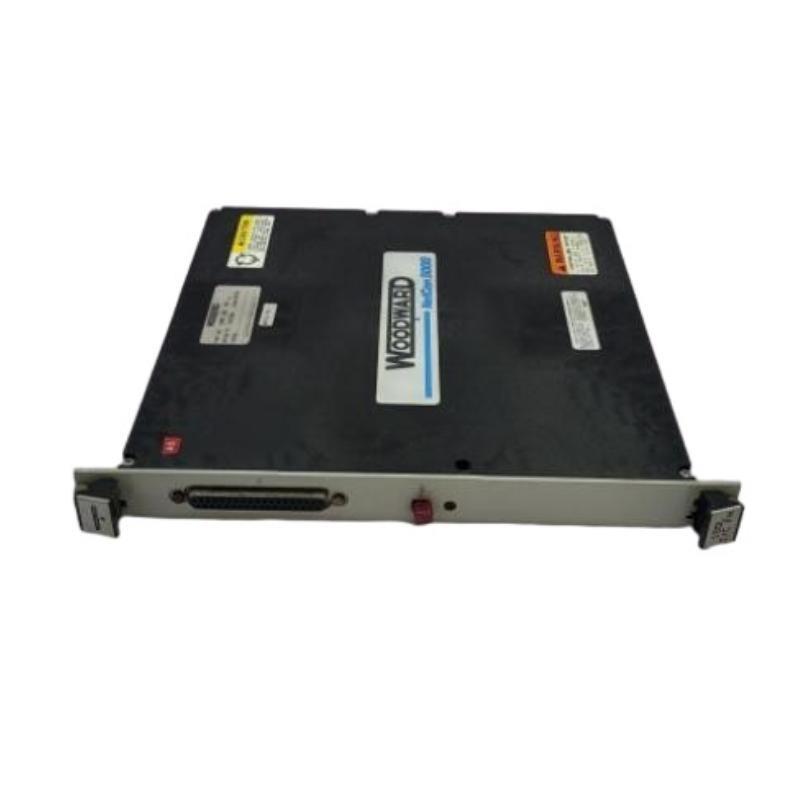

The Woodward 5464-210 Actuator Driver Module is a precision control device designed to drive and regulate actuators in industrial automation and engine control systems. This module provides accurate position control signals to hydraulic, pneumatic, or electric actuators, ensuring precise operation von turbines, engines, and other mechanical equipment.
Engineered for high reliability and durability, the 5464-210 is well-suited for harsh industrial environments and supports seamless integration into Woodward’s distributed control systems. Its compact design facilitates easy installation and maintenance within control panels.
Key Features and Advantages
-
Precise Actuator Control: Delivers accurate position control signals for hydraulic, pneumatic, or electric actuators.
-
Robust Design: Built to withstand demanding industrial conditions with high resistance to vibration and temperature variations.
-
Compact Size: Slim prvonile enables installation in confined control cabinets.
-
Reliable Performance: Ensures consistent and repeatable actuator response for critical control applications.
-
Seamless Integration: Compatible with Woodward distributed control systems and standard industrial communication protocols.
-
Wide Operating Temperature Range: Suitable for use in environments from -40°C to +70°C.
-
Diagnostic Indicators: Equipped with LED status indicators to assist in troubleshooting and maintenance.
Technical Specifications
| Parameter | Specification |
|---|---|
| Modell Number | 5464-210 |
| Function | Actuator Driver Module |
| Dimensions | 160 x 120 x 50 mm |
| Gewicht | 1.2 kg |
| Input Signal | 4-20 mA or PWM |
| Output Signal | Position control voltage/current |
| Operating Temperature Range | -40°C to +70°C |
| Power Supply | 24 VDC nominal |
| Protection Class | IP54 |
| Communication Interface | RS-485 (optional) |
Applications
-
Hydraulic and pneumatic actuator control in power generation turbines
-
Engine control systems requiring precise positioning
-
Industrial automation involving valve and damper actuation
-
Process control systems in petrochemical and manufacturing plants
-
Marine propulsion and heavy machinery control systems
Häufig gestellte Fragen (FAQ)
-
What types von actuators can the 5464-210 module drive?
It can drive hydraulic, pneumatic, and electric actuators. -
What input signals does the module accept?
It accepts 4-20 mA analog signals or PWM inputs for control. -
What is the operating temperature range?
The module operates between -40°C and +70°C. -
What are the physical dimensions von the module?
The module measures 220 mm in length, 50 mm in width, and 150 mm in height. -
What is the weight von the module?
It weighs approximately 1.2 kg. -
Is the module suitable for harsh industrial environments?
Yes, it has a protection rating von IP54 and is built to resist vibration and temperature extremes. -
Does the module support communication interfaces?
It optionally supports RS-485 communication for integration into control networks. -
What power supply does the module require?
It requires a 24 VDC nominal power supply. -
Are there diagnostic indicators on the module?
Yes, LED indicators provide status and fault diagnostics. -
Can this module be used in marine applications?
Yes, its robust design makes it suitable for marine propulsion control systems.
Related and Similar Modells
| Modell Number | Beschreibung |
|---|---|
| 5464-211 | Actuator Driver Module with Enhanced Features |
| 5464-212 | Dual-Channel Actuator Driver Module |
| 5464-214 | High-Power Actuator Driver Module |
| 5464-215 | Compact Actuator Driver Module |
| 5464-220 | Programmable Actuator Driver Module |
| 5464-230 | Distributed Actuator Driver Module |
