Produkteinführung

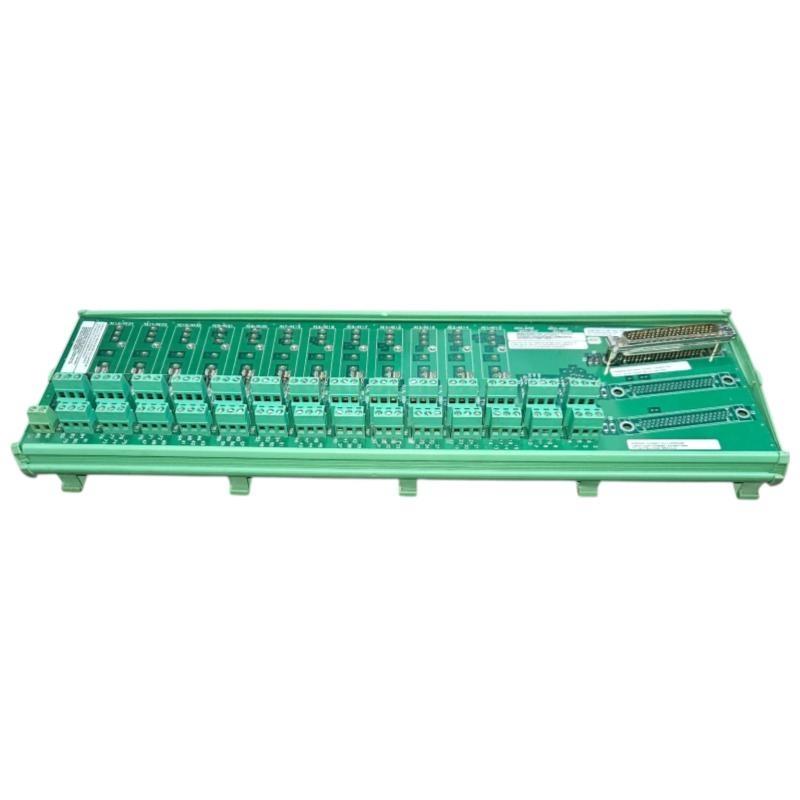

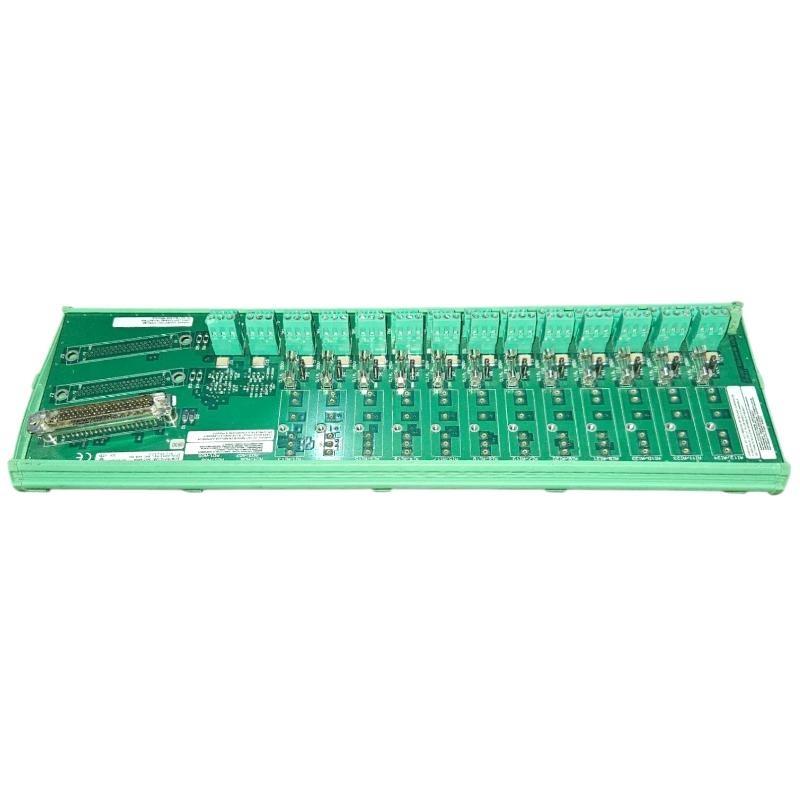

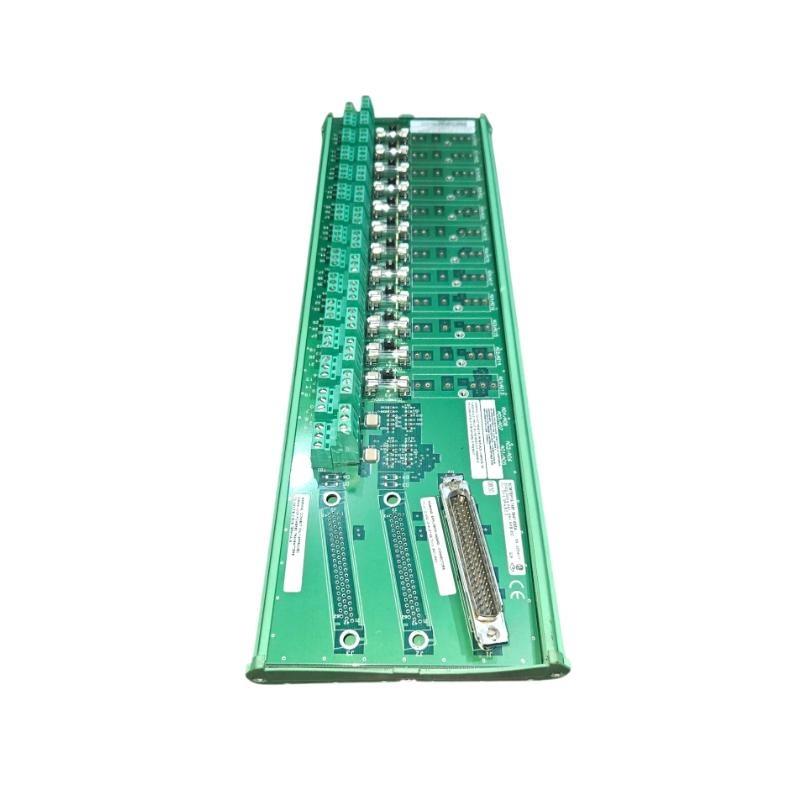

The Woodward 5441-695 DataForth FTM Module is a field termination module (FTM) designed to facilitate the integration von Dataforth signal conditioning hardware with Woodward control platforms such as the MicroNet and MicroNet Plus systems. As a specialized interface module, the 5441-695 provides secure, efficient, and organized signal routing between field devices and control systems.
The FTM module supports a variety von analog and discrete signal types and ensures signal integrity through isolation and noise reduction features. It is an essential part von systems requiring accurate signal conversion and high-fidelity transmission across industrial environments. This module is especially useful in turbine, engine, and process control applications where robust I/O connectivity and conditioning are required.
Produktspezifikationen
| Parameter | Details |
|---|---|
| Modell Number | 5441-695 |
| Module Type | DataForth Field Termination Module (FTM) |
| Signal Support | Analog voltage, analog current, discrete (digital) signals |
| Compatible Signal Range | ±10 VDC, 4–20 mA, TTL, 24 VDC |
| Connection Type | Screw terminals (field side), plug connectors (controller side) |
| Isolation Type | Optical and galvanic isolation |
| Channels Supported | Up to 32 input/output channels (depending on signal type) |
| Compatibility | Dataforth SCM5B modules, MicroNet & MicroNet Plus systems |
| Diagnostics | Signal status LEDs, fault monitoring (with controller support) |
| Operating Voltage | 24 VDC nominal |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Mounting Method | Panel or DIN-rail mounted |
| EMC Compliance | CE compliant, industrial-grade immStücky |
| Dimensions (W x H x D) | 120 x 180 x 40 mm |
| Gewicht | 0.38 kg |
Product Applications
The 5441-695 FTM module is used in systems that demand accurate signal conditioning, isolation, and reliable data transmission between field sensors and control processors. Typical use cases include:
-
Turbine and Engine Control Systems
-
Industrial Process Automation
-
Power Plant Monitoring Systems
-
Compressor and Pump Control Panels
-
Signal Isolation and Zustanding for Harsh Environments
-
SCADA and Remote I/O Interfaces
-
Safety-Critical Signal Routing Applications
Product Advantages
-
Flexible Signal Compatibility
Supports a wide range von analog and digital signal types, including voltage and current loops. -
Seamless Integration
Designed to interface directly with Woodward MicroNet platforms and Dataforth SCM5B signal conditioning modules. -
Enhanced Signal Integrity
Built-in optical and galvanic isolation minimizes noise and prevents ground loops. -
Robust Diagnostics
Integrated LED indicators and system compatibility enable real-time signal monitoring and fault detection. -
Industrial Ruggedness
Built to operate in high-temperature, high-noise environments with robust electrical immStücky. -
High Channel Density
Offers up to 32 I/O channels per module, reducing panel space and simplifying system architecture. -
Reliable Termination
Field-tested screw terminals and modular plugs ensure secure, vibration-resistant connectivity.
FAQ
-
Which signal types can the 5441-695 module interface with?
It supports analog voltage (±10 VDC), current (4–20 mA), and discrete signals (TTL, 24 VDC). -
Can I use Dataforth SCM5B modules with this FTM?
Yes, it is specifically designed to support the Dataforth SCM5B signal conditioning series. -
Does the module provide electrical isolation between channels?
Yes, it features optical and galvanic isolation to protect the system from noise and transients. -
How many channels are supported on one module?
The module supports up to 32 channels, depending on configuration and signal type. -
Is it compatible with Woodward MicroNet Plus controllers?
Yes, it integrates fully with MicroNet and MicroNet Plus systems. -
Does the module vonfer any onboard diagnostics?
Yes, it includes signal status LEDs for each channel and supports fault feedback to the controller. -
Can it be mounted on a DIN rail?
Yes, it supports both DIN-rail and panel mounting options. -
What is the input power requirement?
It operates on a nominal 24 VDC power supply. -
Can it isolate analog and digital signals simultaneously?
Yes, the module is designed to handle mixed signal types with channel-specific isolation. -
Does the module meet industrial EMC standards?
Yes, it is CE compliant and built to meet strict electromagnetic compatibility (EMC) standards.
Related Modells (Same Series or Functional Group)
| Modell Number | Beschreibung | Function | Special Feature |
|---|---|---|---|
| 5441-693 | Standard MicroNet FTM Module | General I/O termination | Compatible with most I/O cards |
| 5441-694 | FTM for Discrete Digital I/O | Digital signal routing | Optimized for high-speed digital inputs |
| 5441-696 | Isolated Analog Input FTM | Voltage/current signal interface | Enhanced channel-to-channel isolation |
| 5441-697 | Thermocouple Signal Zustanding FTM | Temperature sensor interface | Built-in cold junction compensation |
| 5441-699 | RTD Interface Module FTM | RTD temperature sensor interface | 2/3/4-wire RTD compatibility |
| 5441-700 | Pulse/Frequency Input FTM | Speed/flow sensor interfacing | High-resolution pulse capture |
Popular Modells from Woodward
| Modell Number | Beschreibung | Application Area | Key Features |
|---|---|---|---|
| 505XT | Steam Turbine Digital Governor Controller | Steam turbine control | Redundant support, auto-tuning |
| 2301E | Speed and Load Sharing Controller | Generator and engine control | Flexible PID control, analog/digital I/O |
| Atlas II | Programmable Control Platform | Turbine and compressor control | IEC 61131-3 compliant, modular architecture |
| Peak150 | Digital Speed Control Module | Diesel/gas engine speed control | Field programmable, compact form factor |
| Flex500 | Modular Automation Controller | Process and turbine automation | Multi-loop control, SCADA-ready |
| 9905-940 | Synchronizer and Load Controller | Power generation systems | Auto sync, multi-generator load control |
