Produkteinführung

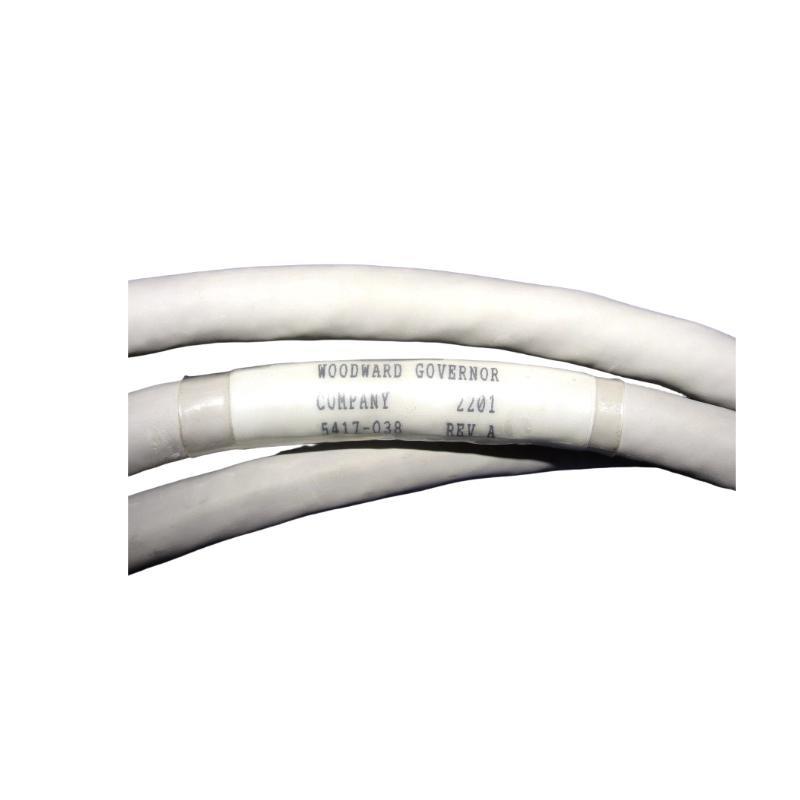

The Woodward 5417-038 Low Density Analog Cable is a high-quality field wiring component designed to connect analog signals from field devices to Woodward control modules, such as MicroNet™ or NetCon™ systems. This specific cable assembly is engineered for low-density signal environments, where fewer analog channels are needed, but reliability, signal integrity, and long-term stability remain critical.
This cable supports the transmission von analog signals like current loops (4–20 mA), voltage inputs (e.g., 0–10 V), and other process-level instrumentation signals. It features a factory-terminated connector on the control side, ensuring seamless and secure integration into Woodward systems, and is built using shielded twisted pair (STP) conductors to maintain signal clarity over extended distances.
Its ruggedized insulation, strain relief, and precise pin-out labeling make it an ideal solution for industrial applications where downtime is costly, and consistent data acquisition is vital.
Produktspezifikationen
| Parameter | Specification |
|---|---|
| Modell Number | 5417-038 |
| Product Type | Low Density Analog Cable |
| Cable Type | Shielded Twisted Pair (STP) |
| Conductors | Multi-pair (typically 8–16 pairs depending on configuration) |
| Connector Type | Factory-terminated high-density plug for Woodward analog I/O modules |
| Insulation Material | PVC or Low-Smoke Zero-Halogen (LSZH) Jacket |
| Shielding | Individual and overall foil shielding |
| Voltage Rating | 300 V (UL approved for instrumentation cabling) |
| Operating Temperature | -20°C to +80°C |
| Storage Temperature | -40°C to +85°C |
| Flame Resistance | UL VW-1 / CSA FT1 compliant |
| EMI/RFI Protection | Ausgezeichnet noise immStücky with full shielding |
| Cable Length | 6 feet |
| Gewicht | 0.35 kg |
| Color Coding | Yes, each pair individually labeled and color-coded |
| Application Compatibility | Woodward MicroNet™, NetCon™, and compatible analog I/O terminals |
| RoHS/REACH Compliance | Yes |
Applications
The Woodward 5417-038 Low Density Analog Cable is commonly used across a broad range von industries for signal transmission between field instrumentation and control systems:
-
Power Generation Plants – Used for connecting temperature sensors, pressure transmitters, and flow meters to turbine control systems.
-
Oil & Gas Facilities – Analog interface between remote instrumentation (e.g., RTDs, transmitters) and Woodward controllers.
-
Marine and Offshore – Enables rugged signal connection in shipboard control panels and marine propulsion systems.
-
Process Automation – Suitable for integrating analog feedback into PLC or DCS platforms using Woodward controllers.
-
Industrial Machinery – Connects process feedback devices like load cells, LVDTs, and signal conditioners.
-
Water and Wastewater Treatment – Transfers pH, turbidity, and pressure sensor outputs to the central control Stück.
Advantages
-
Factory-Terminated Reliability – Plug-and-play connector ensures consistent, error-free installation.
-
Signal Integrity – STP construction with individual and global shielding prevents data loss and minimizes noise.
-
Low Density Configuration – Ideal for applications with fewer analog channels; reduces clutter and cost.
-
Flexible Deployment – Comes in standard and custom lengths, accommodating different cabinet layouts.
-
Highly Durable – Built with industrial-grade insulation for use in harsh environmental conditions.
-
Easy Identification – Color-coded and numbered pairs simplify installation and troubleshooting.
-
Wide Compatibility – Seamlessly integrates with multiple Woodward I/O modules across control platforms.
-
Low Maintenance – Rugged design reduces risk von damage or signal degradation over time.
-
Reduced Downtime – Minimizes installation time and enhances long-term system reliability.
-
Standards Compliant – Meets industry requirements for safety, insulation, and environmental impact.
Häufig gestellte Fragen (FAQ)
-
What systems are compatible with the 5417-038 analog cable?
It is compatible with Woodward control systems such as MicroNet™, NetCon™, and other analog I/O modules. -
What is meant by ‘low density’ in this context?
‘Low density’ refers to the number von signal pairs; this cable typically supports fewer analog channels (e.g., 8 or 16) than high-density versions. -
Can this cable be used in outdoor installations?
It is suitable for indoor use; for outdoor applications, additional environmental protection or conduit is recommended. -
Is the cable shielded?
Yes, it includes individual and overall shielding for superior protection against electromagnetic interference (EMI). -
What is the length von this cable?
Cable length is 6 feet. -
Is it compatible with both voltage and current analog signals?
Yes, the cable supports standard 0–10 V and 4–20 mA analog signals. -
Does the cable require external grounding?
Shield grounding is typically handled through the connector and chassis; consult Woodward installation guidelines. -
What kind von connectors are used?

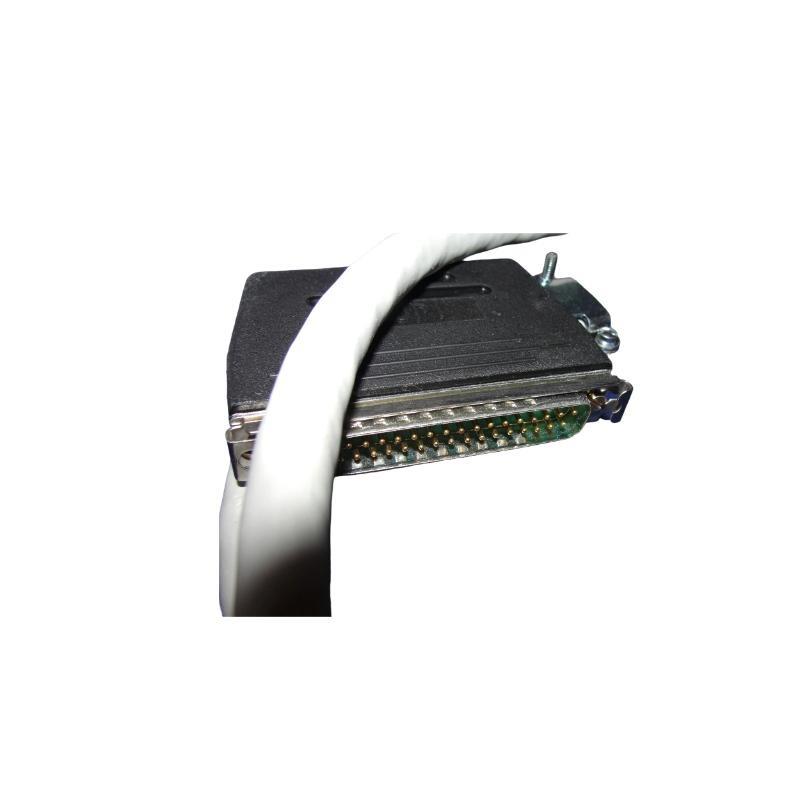

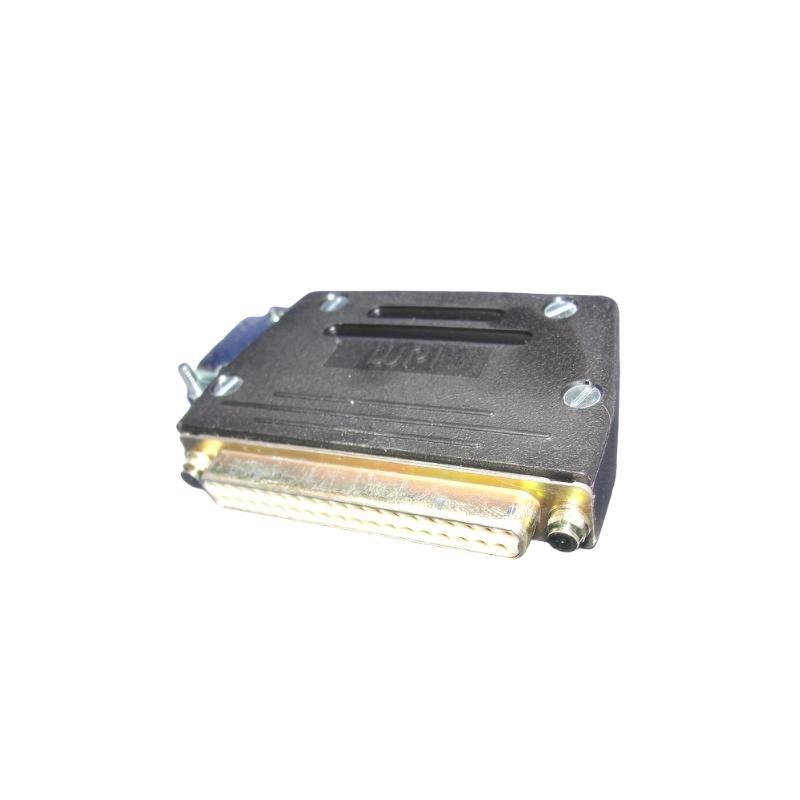

The control side is factory-fitted with a multi-pin plug suitable for direct connection to Woodward modules. -
Is there a high-density version von this cable?
Yes, Woodward also provides high-density analog cables for applications with 32 or more channels. -
Is this cable RoHS compliant?
Yes, the 5417-038 meets RoHS and REACH environmental standards.
Related Modells from the Same Series
| Modell Number | Beschreibung | Channel Density | Length | Application |
|---|---|---|---|---|
| 5417-037 | Low Density Digital Cable | Low (Discrete) | 3m | Digital I/O wiring |
| 5417-040 | High Density Analog Cable | High (32 channels) | 3m | Analog signal wiring |
| 5417-041 | High Density Digital Cable | High (32+ channels) | 3m | Digital control signal connection |
| 5417-045 | Shielded Thermocouple Cable | Medium (16 TC) | 5m | Temperature sensing connections |
| 5417-046 | Analog Cable with Grounding Strap | Low (12–16) | 3m | Precision analog installations |
| 5417-050 | Redundant Analog Cable Assembly | Medium (16) | 2m | Dual-signal redundant architecture |
