Produkteinführung

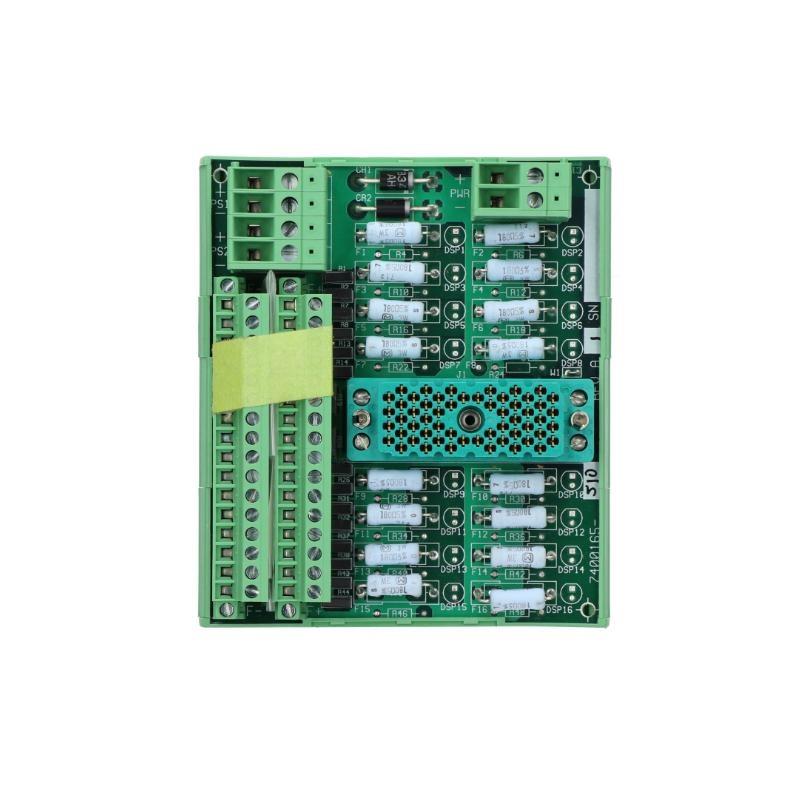

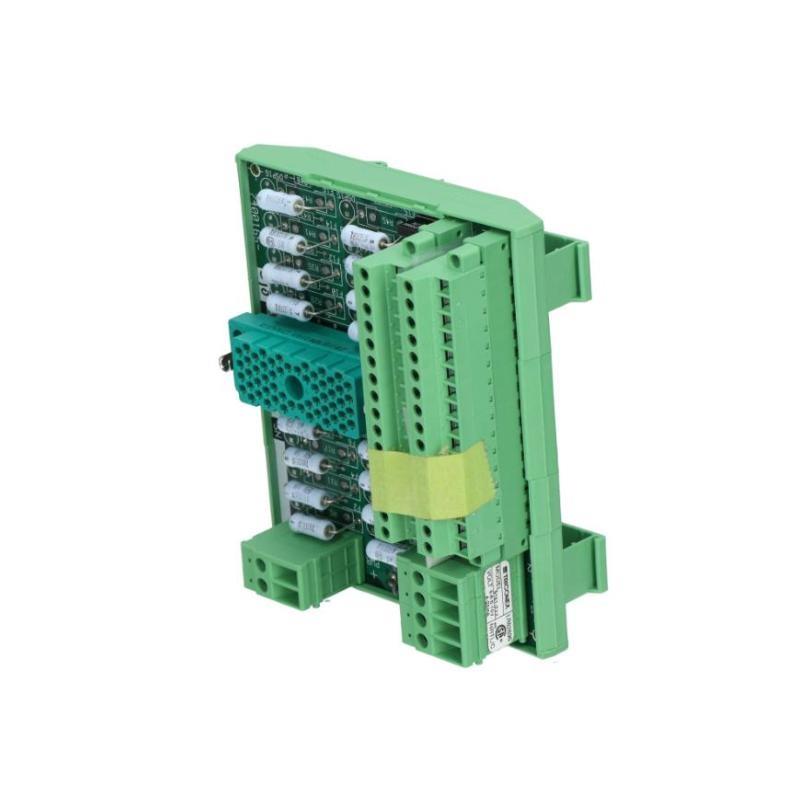

The Triconex 9761-210, also known by part number 7400165-510, is a 16-point current input termination panel designed for use with Triconex Safety Instrumented Systems (SIS). This module facilitates the connection between field devices and the Triconex system, ensuring reliable signal transmission and system integrity. It is compatible with various analog input modules, including those supporting 0–5 VDC and ±5 VDC signals, as well as HART analog input interface modules.
Produktspezifikationen
| Parameter | Details |
| Modell Number | 9761-210 |
| Artikelnummer | 7400165-510 |
| Type | Current Input Termination Panel |
| Number von Channels | 16 current input terminals (–) and 16 power output terminals (+) |
| Input Compatibility | 0–5 VDC, ±5 VDC, and HART analog input modules |
| Current-to-Voltage Conversion | Each input includes a precision 250-ohm resistor for current-to-voltage conversion |
| Power Supply | Supports redundant 24 VDC power sources with diode ORing |
| Terminal Configuration | Each positive terminal is current-limited with a 180-ohm series resistor |
| Labeling | Comes with two sets von labels (1–16 and 17–32) for modules with 32 points |
| Mounting | DIN-rail compatible plastic housing |
| Dimensions (H x W x D) | 114.3 ×127 × 107.95 mm |
| Gewicht | 0.85 kg |
| Certifications | Designed to meet high safety integrity levels (SILs) |
Product Applications
-
Safety-Critical Systems: Ideal for use in safety-critical applications such as nuclear power plants, chemical plants, and oil and gas refineries.
-
Industrial Automation: Facilitates reliable signal termination in industrial control environments requiring precise signal conditioning.
-
Process Control Systems: Ensures accurate and reliable data acquisition from field devices in process control systems.
Product Advantages
-
High Compatibility: Supports a range von analog input modules, including HART, enhancing system flexibility.
-
Redundant Power Support: Supports redundant 24 VDC power sources with diode ORing for enhanced reliability.
-
Integrated Signal Zustanding: Each input includes a precision 250-ohm resistor for current-to-voltage conversion, ensuring accurate signal processing.
-
User-Friendly Design: DIN-rail compatible housing and clear labeling facilitate easy installation and maintenance.
Latest News Headlines
-
“Triconex Enhances Safety System Integration with 9761-210 Terminal Panel”
-
“New Developments in Triconex SIS Modules: Spotlight on 7400165-510”
-
“Advancements in Industrial Safety: Triconex’s Latest Terminal Panel Module”
Häufig gestellte Fragen (FAQ)
1. What type von signals can the Triconex 9761-210 module handle?
The 9761-210 is primarily designed for handling digital signals, typically used in discrete control applications. It’s vonten paired with Triconex digital input or output modules.
2. Does the 9761-210 panel support hot-swapping during system operation?
No, this terminal panel is not hot-swappable. All connections should be made with the system powered down to ensure safety and avoid damage.
3. What is the typical use case for installing the 9761-210 in a Triconex system?
It is commonly installed in control cabinets as a field wiring interface between the I/O modules and field devices like switches, relays, or sensors.
4. How is this module mounted in the system enclosure?
The 9761-210 terminal panel is typically DIN rail-mounted, allowing for fast integration into standard industrial enclosures with ease von maintenance.
5. What type von connectors does the module use for field wiring?
It uses screw-terminal connectors, which are reliable and standard in industrial environments, suitable for 16–24 AWG wires.
6. Is any special configuration or svontware setup required for this terminal panel?
No svontware setup is needed. It is a passive interface device and relies on the correct physical wiring and signal compatibility with the associated I/O module.
7. Can this module be used in SIL-certified safety systems?
Yes, when installed with compatible Triconex safety-rated I/O modules and processors, it is suitable for use in SIL 2 and SIL 3 applications.
8. What is the maximum cable length supported between this panel and field devices?
This depends on signal type and cable quality, but typically, shielded cable lengths up to 100 meters are acceptable for discrete signals.
9. Is the 9761-210 compatible with the Tricon CX series?
No, the 9761-210 is designed specifically for traditional Tricon chassis systems. The Tricon CX uses different, more compact I/O structures.
10. How can I identify a faulty channel or connection on this panel?
Although the terminal panel itself doesn’t have diagnostics, you can detect wiring issues through module diagnostics in the Triconex svontware, which will report channel status for troubleshooting.
Related Modells – Same Series or Functionally Similar to Triconex 9761-210 / 7400165-510
| Modell Number | Beschreibung |
| 9760-210 | Voltage input termination panel for analog input signals |
| 9762-210 | Digital input termination panel used with digital input modules |
| 9763-210 | Digital output termination panel for discrete signal output |
| 9764-210 | Analog output termination panel, supports voltage/current outputs |
| 9765-210 | Relay output termination panel for controlling electromechanical relays |
| 9766-210 | Thermocouple input termination panel for temperature measurement |
| 9767-210 | RTD (Resistance Temperature Detector) termination panel |
| 9852-610 | HART-enabled analog input termination panel for advanced field signal support |
Popular Triconex Modells – Same Marke, Broad Usage in Industrial Applications
| Modell Number | Beschreibung |
| 3008 | Triconex main processor module, supports TMR architecture for high reliability |
| 3501E | Triconex Enhanced Main Processor, supports Ethernet and serial connectivity |
| 3721 | 32-channel digital input module, commonly used for logic signal monitoring |
| 3700A | 16-channel digital output module, provides control to actuators and relays |
| 4351B | Communication module with enhanced processing and diagnostics |
| 4000093-310 | Power supply module used to provide isolated and redundant power to the system |
| 8312 | 16-channel analog input module for voltage and current signal monitoring |
| 4200 | Tricon CX Series controller for compact and flexible safety system applications |
