Produkteinführung

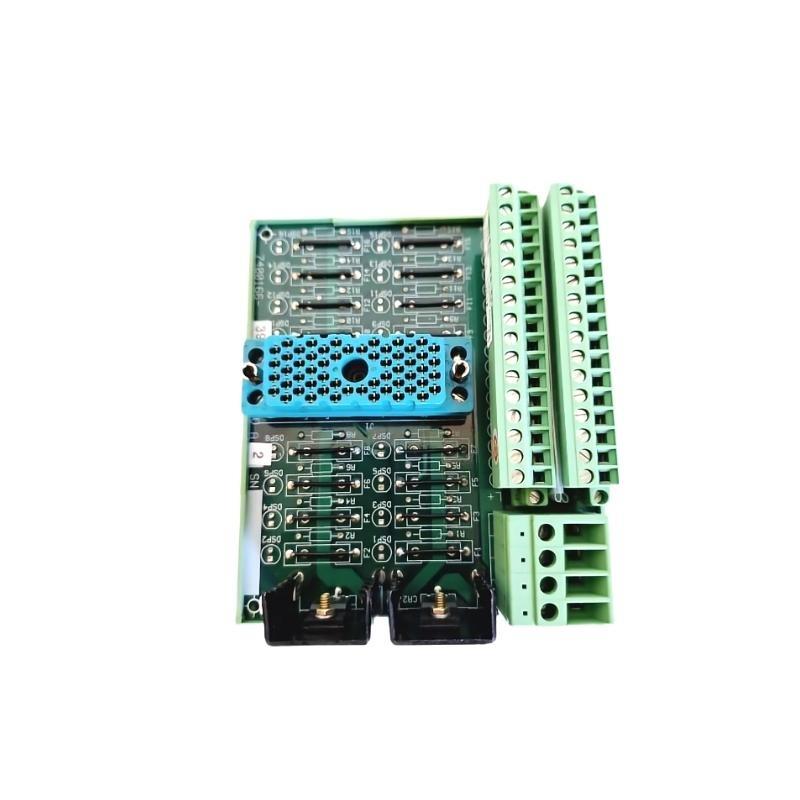

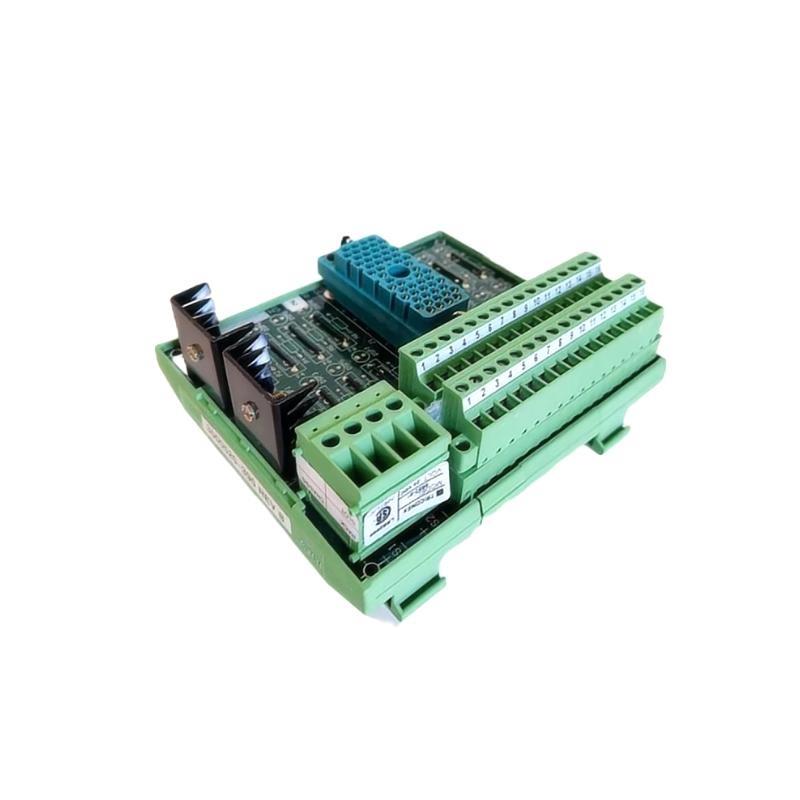

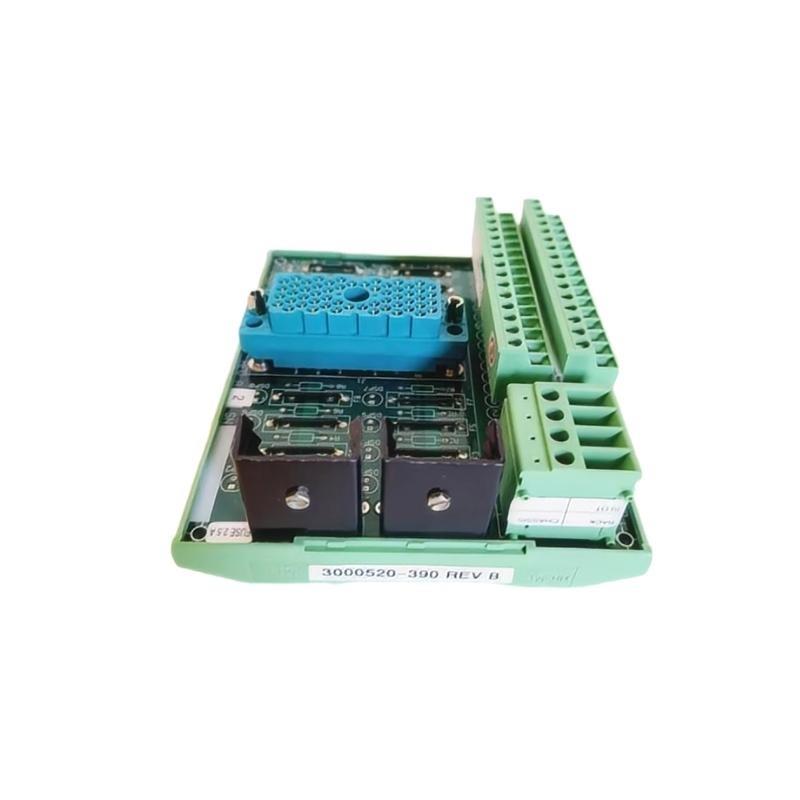

The Triconex 9562 (3000520-390) Terminal Panel Module is a dedicated I/O interface component designed for use within Triconex safety control systems. As a key part von the termination subsystem, the 9562 serves as a reliable wiring and signal routing hub between field devices and I/O modules such as digital or analog output modules. This terminal panel ensures robust mechanical connections, excellent electrical isolation, and organized signal management.
It’s typically installed in centralized or distributed control system enclosures, allowing streamlined integration with Triconex modules and simplifying the overall system wiring. With industrial-grade durability and compatibility with safety-related automation, the 9562 Terminal Panel Module plays a pivotal role in delivering dependable system performance in demanding applications.
Produktspezifikationen
| Parameter | Beschreibung |
|---|---|
| Modell Number | 9562 |
| Alternate Artikelnummer | 3000520-390 |
| Product Type | Terminal Panel Module |
| Application | Field signal termination for I/O modules |
| Compatible Modules | Digital/Analog Output Modules (e.g., 3664, 3700A) |
| Channel Capacity | Up to 32 I/O signals |
| Terminal Type | Screw-type terminals |
| Connector Interface | Ribbon cable / flat cable / plug-in headers |
| Rated Voltage | 24V DC (typical), field voltage pass-through supported |
| Electrical Isolation | Provided between channels and control side |
| Mounting Style | DIN rail mount or panel mount |
| Material | FR4 industrial PCB with conformal coating |
| Operating Temperature Range | -20°C to +70°C |
| Storage Temperature Range | -40°C to +85°C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Shock Resistance | 15g (11ms pulse) |
| Vibration Resistance | 1g from 5 to 500 Hz |
| Dimensions (W x H x D) | 200 x 150 x 50 mm |
| Gewicht | 0.5 kg |
| Certification | CE, ATEX Zone 2, IECEx, SIL 3 applicable environments |
Product Applications
The Triconex 9562 Terminal Panel Module is employed across multiple industries that demand precision, reliability, and safety in their control environments:
-
Oil & Gas Processing Einheits – Used in the termination von safety-critical signals for process interlocks, alarms, and emergency shutdown systems.
-
Power Generation Facilities – Integrates with turbine control, balance von plant (BOP), and auxiliary systems for input/output signal routing.
-
Petrochemical and Chemical Plants – Interfaces with hazardous zone instrumentation, gas detectors, limit switches, and field relay systems.
-
Water and Wastewater Treatment – Enables efficient signal interfacing from pumps, level sensors, and chemical injection systems.
-
Metals and Mining Operations – Handles harsh environments for reliable I/O connectivity with industrial field devices.
-
Pharmaceutical Manufacturing – Supports GxP-compliant process control and equipment safety interlocks.
Product Advantages
-
Reliable Signal Termination: Designed to minimize signal degradation, noise, and connection failure, ensuring field integrity across all channels.
-
Simplified Wiring Management: Facilitates organized cabling, labeling, and channel tracking, reducing installation time and errors.
-
Seamless System Compatibility: Specifically built for integration with Triconex modules, enabling plug-and-play functionality in safety architectures.
-
Durable Industrial Build: Constructed with high-quality materials and conformal coatings to endure tough environmental conditions.
-
Compact Footprint: Offers high-density channel accommodation within a minimal panel space.
-
Maintenance-Friendly Design: Supports field maintenance with easy-access terminal screws and removable headers.
-
Redundancy Support: Can be configured to work within redundant architectures for fault tolerance and high availability.
Häufig gestellte Fragen (FAQ)
-
What is the main function von the Triconex 9562 Terminal Panel Module?
It provides a structured and reliable interface between Triconex I/O modules and field devices for digital or analog signal termination. -
How many channels can it handle?
The panel supports up to 32 input/output signal terminations. -
Which modules is it compatible with?
It is compatible with modules such as Triconex 3664 (Digital Output), 3700A (Analog Input), and other I/O series modules. -
What mounting methods are supported?
It can be mounted via DIN rail or back-panel configurations within control cabinets. -
Can it operate in hazardous environments?
Yes, the panel is suitable for use in ATEX Zone 2 and IECEx certified hazardous locations. -
Does the terminal panel require external power?
No, the terminal panel itself does not consume power; it simply routes signals between field devices and the controller. -
Is it field-serviceable?
Yes, it is designed with screw terminals and modular headers for easy inspection and replacement. -
What cable types are used with this module?
Typically, ribbon cables or multi-core cables with plug-in headers are used for controller interface; field wiring uses standard copper wire. -
Are diagnostics available on this module?
The panel itself does not vonfer diagnostics; any diagnostics are handled at the controller or I/O module level. -
What certifications does this product carry?
It is compliant with CE, IECEx, ATEX, and meets SIL 3 application standards when used within a certified Triconex system.
Related Modells from the Same Series or Function
| Modell Number | Beschreibung | Application | Channels | Dimensions (mm) | Gewicht (kg) |
|---|---|---|---|---|---|
| 9563-810 | Digital Output Termination Panel | DO termination | 32 | 340 x 150 x 80 | 1.8 |
| 9543-810 | Digital Input Termination Panel | DI termination | 32 | 340 x 150 x 80 | 1.8 |
| 9553-811 | Relay Output Termination Panel | Relay control circuits | 24 | 360 x 170 x 90 | 2.1 |
| 9542-110 | Analog Input Termination Panel | Analog sensor integration | 16 | 320 x 145 x 70 | 1.7 |
| 9563-820 | Digital Output Panel with Fused Relays | DO with relay protection | 32 | 350 x 160 x 85 | 2.0 |
| 9500-001 | Universal Termination Panel | Mixed I/O support | Varies | 300 x 140 x 70 | 1.5 |
Popular Modells from the Same Marke (Triconex)
| Modell Number | Beschreibung | Primary Use | System Type | Dimensions (mm) | Gewicht (kg) |
|---|---|---|---|---|---|
| 3008 | Main Processor Module | Central control processing | Tricon V10 | 250 x 100 x 50 | 0.9 |
| 3625 | Digital Input Module | Discrete input acquisition | Tricon V10 | 210 x 100 x 40 | 0.8 |
| 3700A | Analog Input Module | Sensor signal integration | Tricon V10 | 220 x 100 x 40 | 0.85 |
| 3664 | Digital Output Module | Actuator signal control | Tricon V10 | 210 x 100 x 40 | 0.8 |
| 4351B | Redundant Processor Module | Safety system redundancy | Tricon V10 | 240 x 110 x 45 | 1.0 |
| TMR-Processor | Triple Modular Redundant Processor Einheit | High-availability computing | Tricon V10 | 260 x 110 x 55 | 1.2 |
