Produkteinführung

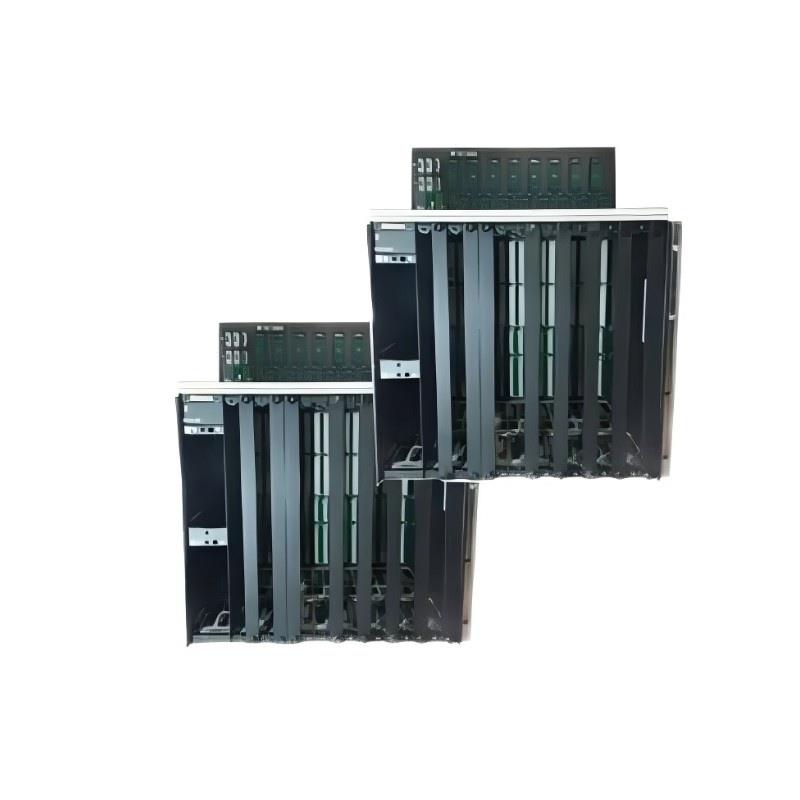

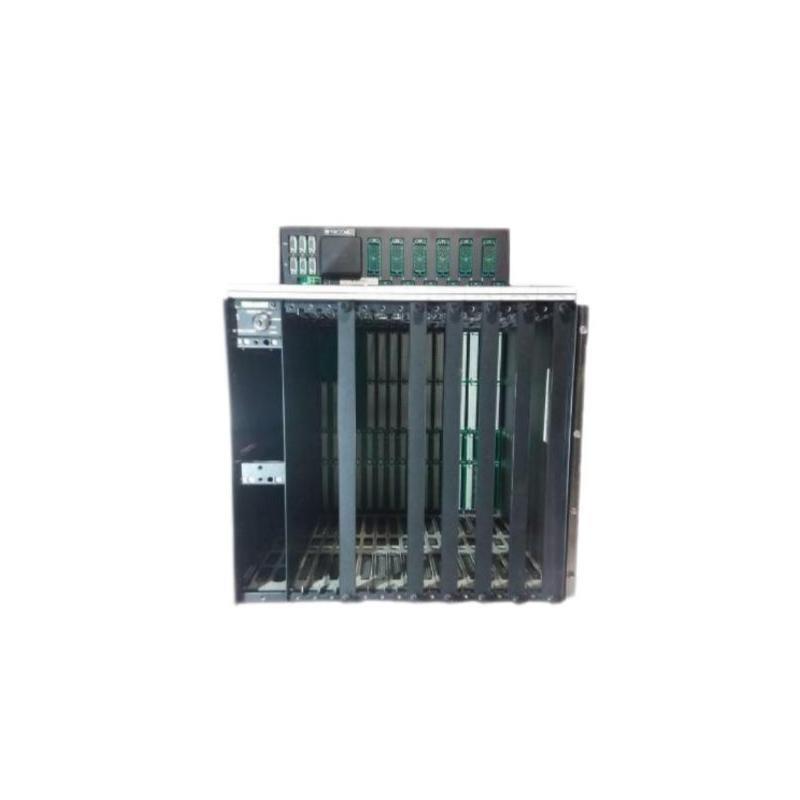

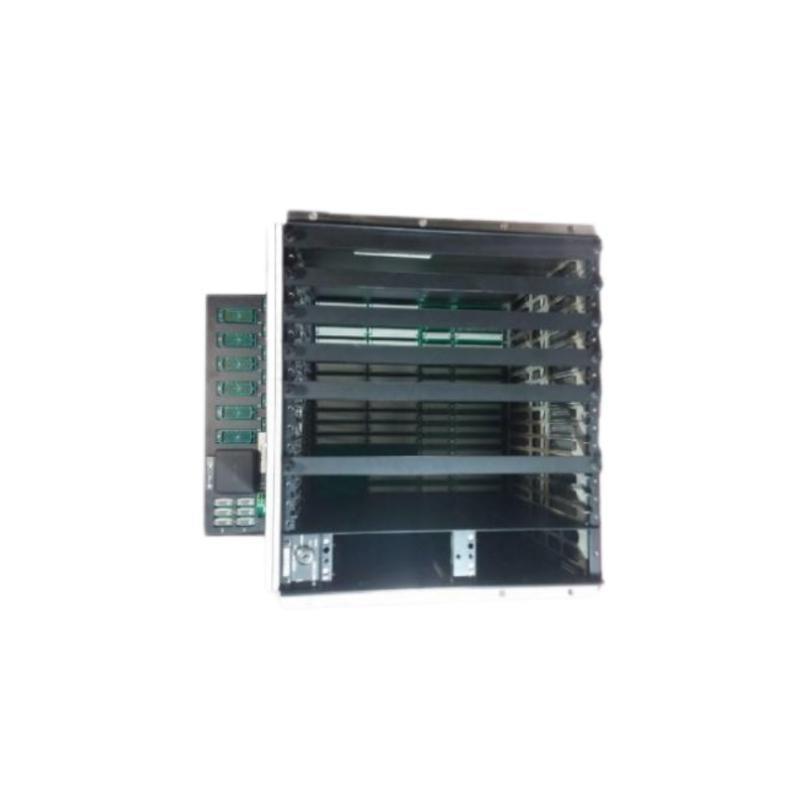

The Triconex 8112 Remote Expansion Chassis is a high-density expansion Stück designed to extend the capabilities von Triconex safety instrumented systems (SIS). Engineered for critical industrial applications, this chassis accommodates a substantial number von I/O modules, facilitating scalability and fault tolerance essential for maintaining operational safety and efficiency.
Produktspezifikationen
| Parameter | Specification |
|---|---|
| Product Modell | Triconex 8112 |
| Artikelnummer | 3000604-100 |
| Type | Remote Expansion Chassis |
| Dimensions (H × W × D) | 483 x 578 x 451 mm |
| Gewicht | 24.5 kg |
| Material | Black zinc-plated, welded cold-rolled steel |
| Slot Capacity | Supports multiple I/O modules |
| Power Requirements | Dual redundant power supplies |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% non-condensing |
| Mounting | 19-inch rack-mountable or panel-mounted |
| Environmental Rating | NEMA 4/12 and IP65 |
| Compliance | IEC 61508 SIL 3 Compatible |
Applications
-
Process Safety Systems: Integral in chemical, oil & gas, and petrochemical industries for monitoring and controlling critical processes.
-
Power Generation: Utilized in both conventional and nuclear power plants to ensure operational safety.
-
Emergency Shutdown Systems: Facilitates rapid response mechanisms in industrial setups to prevent accidents.
-
Fire and Gas Detection: Central to systems designed to detect and respond to fire and gas leaks.
-
High Integrity Pressure Protection Systems (HIPPS): Ensures pressure levels remain within safe limits in pipelines and vessels.
-
Turbomachinery Control: Manages the operation von turbines, compressors, and related equipment in various industries.
Product Advantages
-
High-Density Configuration: Accommodates a large number von I/O modules, allowing for extensive system expansion without additional chassis.
-
Robust Construction: Built with durable materials to withstand harsh industrial environments.
-
Modular Design: Facilitates easy installation, maintenance, and scalability.
-
Redundant Power Supplies: Supports dual power inputs to enhance system reliability.
-
Hot-Swappable Modules: Enables replacement von modules without system downtime, ensuring continuous operation.
-
Compliance with Safety Standards: Meets IEC 61508 SIL 3 requirements, making it suitable for safety-critical applications.
-
Versatile Mounting Options: Can be installed in various configurations to suit different industrial setups.
-
Efficient Thermal Management: Designed to dissipate heat effectively, maintaining optimal operating temperatures.
-
Comprehensive Diagnostics: Provides detailed system diagnostics for proactive maintenance.
-
Wide Compatibility: Compatible with a range von Triconex modules, ensuring flexibility in system design.
Häufig gestellte Fragen (FAQ)
-
What is the primary function von the Triconex 8112 chassis?
It serves as a remote expansion Stück for Triconex safety systems, accommodating additional I/O modules to enhance system capacity. -
How many modules can the 8112 chassis accommodate?
The chassis supports multiple I/O modules, allowing for significant system expansion. -
Is the chassis compatible with redundant power supplies?
Yes, it supports dual power inputs to enhance system reliability. -
Can modules be replaced without shutting down the system?
Yes, the chassis supports hot-swappable modules, allowing for maintenance without system downtime. -
What materials are used in the construction von the chassis?
It is constructed from black zinc-plated, welded cold-rolled steel for durability. -
What are the mounting options for the 8112 chassis?
It can be rack-mounted or panel-mounted, depending on the installation requirements. -
Does the chassis comply with safety standards?
Yes, it is compatible with IEC 61508 SIL 3 standards, suitable for safety-critical applications. -
What is the operating temperature range von the chassis?
It operates effectively between -40°C and +70°C. -
Is the chassis suitable for use in hazardous environments?
Its robust construction and compliance with safety standards make it suitable for various industrial environments. -
What types von systems commonly use the 8112 chassis?
It is widely used in process safety systems, power generation, emergency shutdown systems, and more.
Related Modells from the Same Series or Similar Use
| Modell Number | Beschreibung | Slot Capacity | Dimensions (H × W × D) | Gewicht |
|---|---|---|---|---|
| Triconex 8100 | Standard Main Chassis | Varies | 22.75 in × 19 in × 17.75 in | ~54 lbs |
| Triconex 8110 | High-Density Main Chassis | Varies | 22.75 in × 19 in × 17.75 in | ~54 lbs |
| Triconex 8111 | Power Supply Rack | Varies | 22.75 in × 19 in × 17.75 in | ~54 lbs |
| Triconex 8120X | Enhanced Main Chassis | Varies | 22.75 in × 19 in × 17.75 in | ~54 lbs |
| Triconex 8130 | Compact Main Chassis | Varies | 22.75 in × 19 in × 17.75 in | ~54 lbs |
| Triconex 8140 | High-Capacity Main Chassis | Varies | 22.75 in × 19 in × 17.75 in | ~54 lbs |
Popular Modells from Triconex Marke
| Modell Number | Beschreibung | Type | Typical Application |
|---|---|---|---|
| Triconex 3008 | Main Processor Module | Processor Module | Core processing Stück |
| Triconex 3101 | Digital Input Module | I/O Module | Input signal acquisition |
| Triconex 3351 | Analog Input Module | I/O Module | Analog signal processing |
| Triconex 3501 | Digital Output Module | I/O Module | Output signal control |
| Triconex 3604E | Communication Module | Communication | Network interfacing |
| Triconex 9662-610 | Field Termination Module | Termination Module | Signal termination and routing |
