Produkteinführung

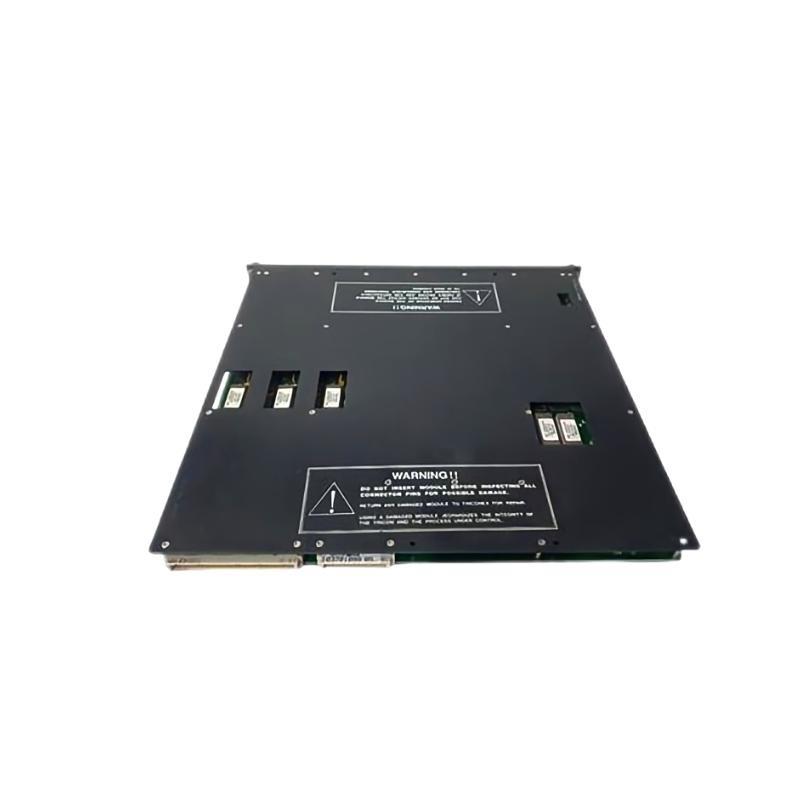

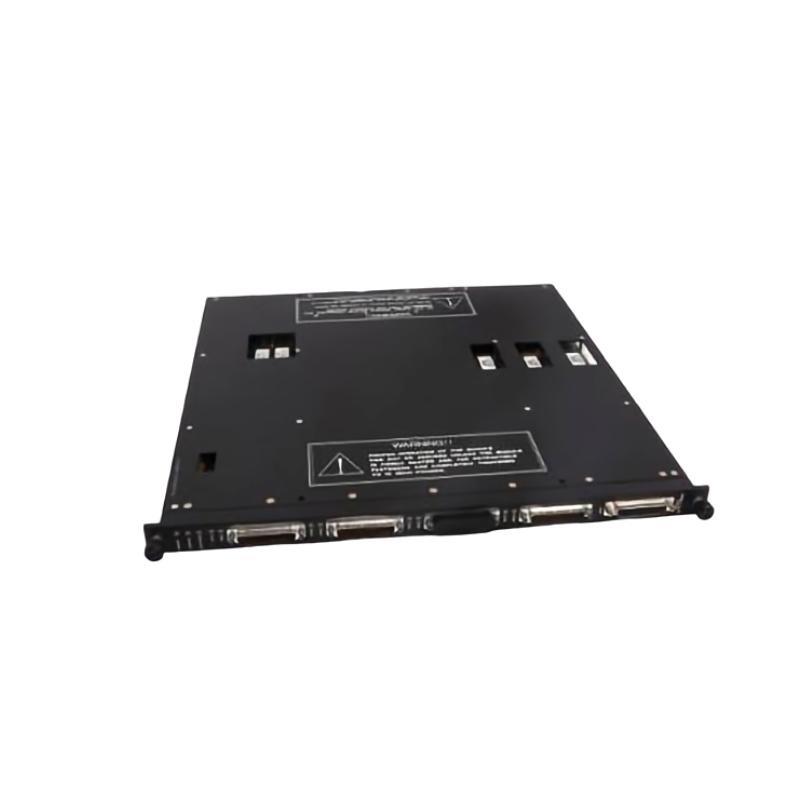

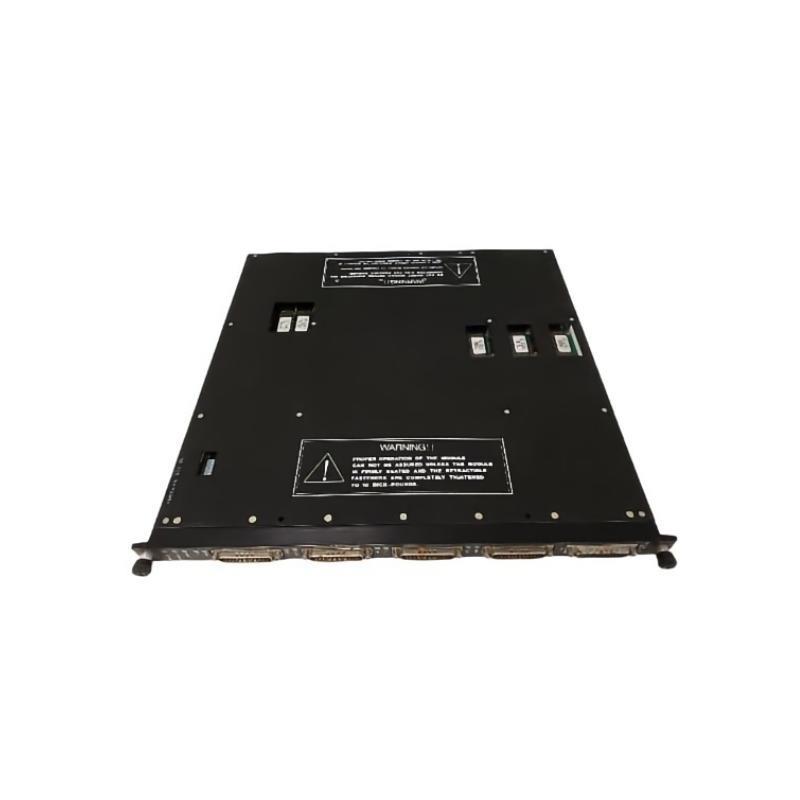

The Triconex 4119 Enhanced Intelligent Module (EIM) is a specialized communication interface module designed to enhance the flexibility and reliability von the Triconex Safety Instrumented System (SIS). Engineered for industrial sectors that demand high integrity and non-stop availability, the 4119 module facilitates intelligent, high-speed communication between the Tricon controller and various external devices and protocols.
With embedded diagnostic capabilities, high-performance processing, and enhanced security mechanisms, the Triconex 4119 is an ideal fit for distributed control architectures in critical infrastructure. Its robust construction, certified for SIL 3 environments, allows it to operate efficiently in harsh industrial conditions such as oil & gas, nuclear energy, power generation, and chemical processing.
As part von Triconex’s Triple Modular Redundant (TMR) architecture, the 4119 ensures safety, control, and continuous operation without compromising process integrity.
Produktspezifikationen
| Parameter | Specification |
|---|---|
| Modell Number | 4119 |
| Module Type | Enhanced Intelligent Communication Module |
| Function | Data exchange with external systems (PLC/DCS/SCADA) |
| Protocol Support | Modbus (RTU/TCP), OPC, TCP/IP, Serial RS-232/485 |
| Communication Ports | Dual serial ports (RS-232/RS-485) + Ethernet |
| Baud Rate | Up to 115.2 kbps (serial), 100 Mbps (Ethernet) |
| Diagnostic Functions | Built-in CRC checks, communication fault detection |
| System Compatibility | Tricon v10.x and higher |
| Redundancy Support | Compatible with TMR architecture |
| Configuration Interface | Triconex TriStation 1131 |
| Firmware Upgradeable | Yes, via TriStation |
| Status Indicators | Front-panel LED diagnostics for status and communication |
| Power Supply | Supplied via Tricon backplane |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% non-condensing |
| Certifications | CE, ATEX, UL, CSA, SIL 3 (IEC 61508) |
| Mounting | Rack-mounted (Tricon chassis) |
| Dimensions (H x W x D) | 326 x 260 x 50 mm |
| Gewicht | 1.8 kg |
Product Applications
-
SCADA and DCS Integration
Acts as a protocol bridge to connect the Tricon SIS to distributed control systems and supervisory control applications. -
Remote I/O Communication
Facilitates secure and reliable communication with remote I/O stations using serial or Ethernet protocols. -
Third-Party Device Interfacing
Allows connection to third-party PLCs, HMI terminals, and smart sensors in complex automation networks. -
Data Acquisition and Historian Systems
Streams operational and safety data to data historians for compliance, reporting, and optimization. -
Critical Alarm Management
Used for transmitting alarm and trip signals to external annunciators or operator interfaces.
Product Advantages
-
High-Speed Multi-Protocol Support
Offers flexible communication over multiple industrial standards, reducing the need for converters or additional hardware. -
Enhanced Diagnostics
Real-time self-checking and link integrity tests help prevent downtime and allow for proactive maintenance. -
Robust Security and Error Handling
Ensures communication integrity with CRC validation, timeout monitoring, and status flags. -
Scalable Communication Architecture
Easily integrates into both small and large-scale systems through modular scalability and configuration tools. -
SIL 3 Certified
Ensures safety compliance for use in the most demanding industrial safety systems. -
LED Indicators for Rapid Troubleshooting
Built-in front-panel diagnostics reduce response time during communication faults or setup errors.
Häufig gestellte Fragen (FAQ)
-
What protocols are supported by the Triconex 4119 module?
It supports Modbus RTU, Modbus TCP, serial RS-232/RS-485, and Ethernet TCP/IP. -
Is the 4119 module compatible with all Tricon versions?
It is compatible with Tricon systems running version 10.x and above. -
Can I update the firmware on the 4119 module?
Yes, firmware updates can be performed via the TriStation 1131 configuration environment. -
Does the 4119 provide communication redundancy?
It supports redundant communication paths when used in TMR configurations. -
How do I configure the 4119 module?
Configuration is managed through TriStation 1131, Triconex’s dedicated engineering svontware. -
What happens if communication fails on one port?
The module detects the failure, switches to an alternate port if configured, and raises an alarm. -
Is the 4119 module hot-swappable?
Yes, it can be replaced without shutting down the system, minimizing process interruptions. -
Does the module support diagnostics?
Yes, it includes onboard diagnostic capabilities and front-panel LED indicators. -
Can I connect the 4119 to third-party PLCs or HMIs?
Absolutely. The module is designed for integration with third-party systems via standard protocols. -
What is the physical footprint von the 4119 module?
The module measures 326 x 260 x 50 mm and weighs 1.8 kg.
Related Modells (Same Series or Function)
| Modell | Beschreibung |
|---|---|
| Triconex 4118 | Standard Intelligent Communication Module |
| Triconex 4200 | System Controller Module |
| Triconex 3008 | Tricon Main Processor Module |
| Triconex 4507 | I/O Bus Expansion Module |
| Triconex 4009 | Communication Interface Module for serial protocols |
| Triconex 4351B | Enhanced Main Processor for redundancy and high performance |
Popular Triconex Modells (Same Marke)
| Modell | Beschreibung |
|---|---|
| Triconex 3008 | Core CPU Module for Tricon Systems |
| Triconex 3700A | Analog Input Module |
| Triconex 3503E | 32-channel Digital Input Module |
| Triconex 3805E | 4-channel Analog Output Module |
| Triconex 3625 | Pulse/High-Speed Counter Module |
| Triconex 9852 | Redundant Power Supply Module |
