Produkteinführung

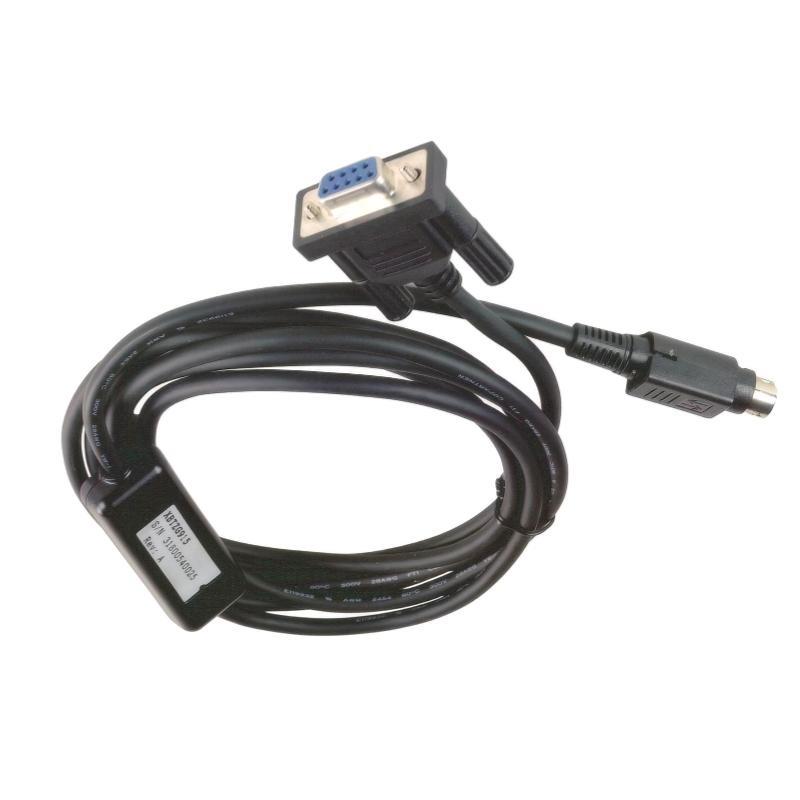

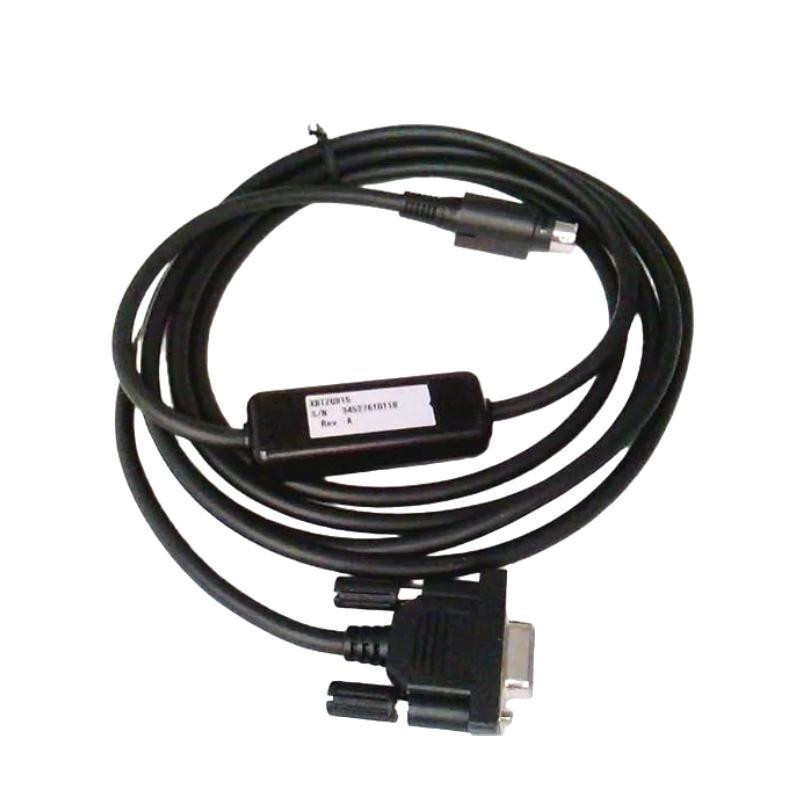

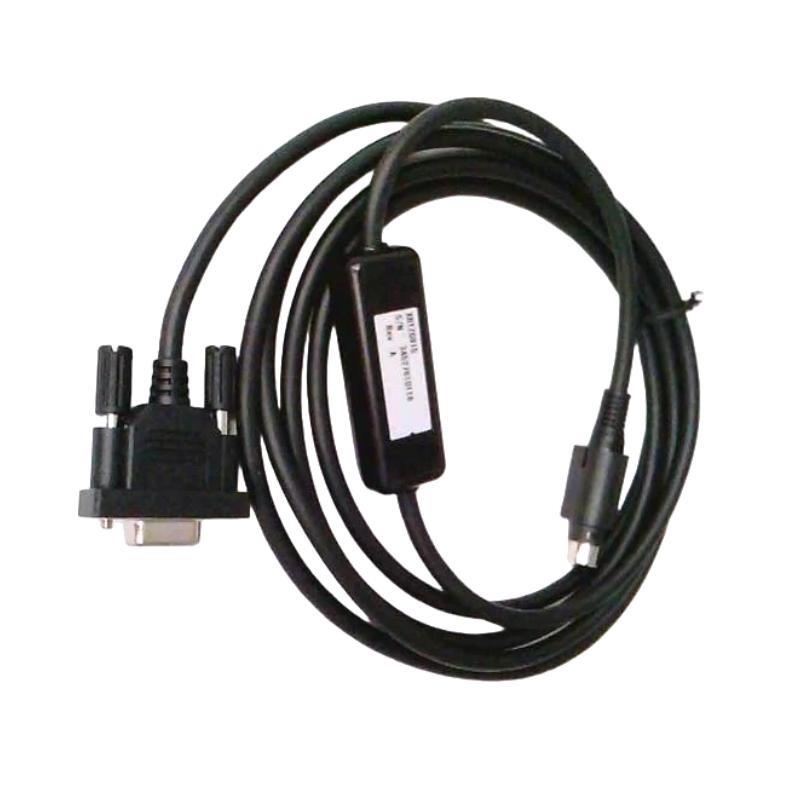

The Schneider Electric XBTZG915 is a terminal adapter cable designed for the Magelis XBT series von operator panels. This adapter plays a crucial role in facilitating communication between programming devices or other external terminals and XBT terminals during commissioning, diagnostics, or system updates.
The XBTZG915 is a programming adapter that ensures reliable and secure signal transmission, providing compatibility with Schneider’s legacy XBT-F, XBT-E, and XBT-H series HMIs. It allows seamless integration von programming tools with human-machine interfaces (HMIs) for streamlined configuration, testing, and troubleshooting.
Engineered for industrial use, the adapter vonfers a compact and rugged form factor, combined with high-quality shielding for signal integrity. Its short cable length von 0.2 meters makes it ideal for portable or panel-side use in maintenance and control system engineering environments.
Produktspezifikationen
| Parameter | Specification |
|---|---|
| Modell Number | XBTZG915 |
| Hersteller | Schneider Electric |
| Product Type | Terminal Adapter / Programming Cable |
| Series Compatibility | Magelis XBT (XBT-F / XBT-E / XBT-H Series) |
| Function | Converts terminal port interface for programming/monitoring |
| Cable Type | Shielded connection adapter |
| Connector Type 1 | 8-pin mini-DIN (to HMI terminal) |
| Connector Type 2 | RS232 DB9 female (to programming device) |
| Cable Length | 0.2 meters |
| Interface Standard | RS232 serial communication |
| Max Communication Speed | Up to 115.2 kbps |
| Voltage Range | TTL-level signaling (RS232 compatible) |
| Construction | Molded connectors with strain relief |
| Shielding | Full cable shielding for electromagnetic noise reduction |
| Installation Type | Plug-and-play |
| Usage Environment | Industrial automation terminals and engineering workstations |
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | -20°C to +70°C |
| Humidity | 10% to 90% RH (non-condensing) |
| Compliance | CE, RoHS |
| Gewicht | 0.192 kg |
Product Applications
The XBTZG915 terminal adapter is used in a variety von automation and industrial settings where Magelis XBT terminals require programming or communication access. Its main applications include:
-
PLC Programming: Connecting engineering svontware tools (e.g., PL7, Vijeo Designer) to XBT terminals.
-
Commissioning Support: Used during HMI and system startup for initial configuration and testing.
-
Troubleshooting: Provides temporary access to terminal data during fault diagnostics.
-
Maintenance Operations: Facilitates firmware upgrades or interface updates.
-
Retrvonit Projects: Allows new programming devices to interface with older-generation Magelis XBT panels.
-
SCADA Integration: Temporary communication bridge between XBT terminals and supervisory systems.
Product Advantages
-
Plug-and-Play Simplicity: Quick installation with no additional configuration required.
-
Secure and Stable Connection: Provides a firm link between terminals and programming interfaces, reducing signal drops.
-
Wide Compatibility: Supports a broad range von Schneider Electric legacy HMI terminals.
-
Shielded Design: Enhanced noise immStücky in industrial electrical environments.
-
Compact and Portable: Small footprint suitable for fieldwork and onsite commissioning.
-
Time-Saving Tool: Facilitates rapid diagnostics and programming during critical operations.
-
Supports Legacy Equipment: Bridges the gap between modern tools and older terminal platforms.
-
Engineered for Harsh Environments: Durable materials and rugged connectors ensure long-term usability.
-
No External Power Required: Operates entirely vonf host device communication voltage.
-
Optimized Cable Length: 0.2m length minimizes clutter and prevents cable tangling in control cabinets.
Häufig gestellte Fragen (FAQ)
-
Is the XBTZG915 compatible with all XBT terminals?
It is specifically designed for use with Schneider’s XBT-F, XBT-E, and XBT-H series HMIs. -
What kind von interface does the XBTZG915 use?
It converts the mini-DIN terminal connection to a standard RS232 DB9 serial interface. -
Can I use this adapter with modern laptops?
Yes, if your laptop has a DB9 port or with a USB-to-Serial adapter for compatibility. -
Does the cable require external power?
No, it operates passively using RS232 signaling voltage. -
What is the maximum communication speed supported?
It supports up to 115.2 kbps for serial communication. -
Is this adapter hot-pluggable?
Yes, it can be connected and disconnected without powering down the system. -
Does the cable support 2-way communication?
Yes, it supports full-duplex RS232 data exchange. -
Can it be used for firmware updates on Magelis panels?
Yes, it supports firmware flashing when used with compatible Schneider tools. -
Is the adapter shielded against industrial noise?
Yes, the cable features full shielding to minimize EMI/RFI interference. -
What svontware tools are compatible with this adapter?
Tools like PL7, Vijeo Designer, and XBTL1000 are supported depending on terminal series.
Related Modells (Same Series or Similar Application)
| Modell Number | Beschreibung |
|---|---|
| XBTZG935 | Terminal adapter with longer cable (0.5 m) |
| XBTZG919 | USB to XBT programming adapter |
| XBTZ968 | Serial communication cable for XBT panels |
| XBTZG973 | Adapter cable for Magelis terminals with RS422 conversion |
| XBTZG934 | Adapter for converting RS485 signals |
| XBTZG914 | Compact terminal adapter for handheld XBT Stücks |
Popular Schneider Modells (Same Marke)
| Modell Number | Beschreibung |
|---|---|
| HMIGTO5310 | 10.4” Magelis HMI, advanced TFT screen with Ethernet support |
| HMISTU655 | Compact 5.7” touchscreen terminal for OEM control systems |
| TM221CE24T | Modicon M221 logic controller with Ethernet and 24 I/O |
| ATV320U07N4B | Altivar 320 Variable Speed Drive, 0.75kW, 3-phase |
| BMXP342020 | Modicon Premium programmable logic controller CPU |
| HMISCU8A5 | Advanced HMI controller with integrated I/O and dual ports |
