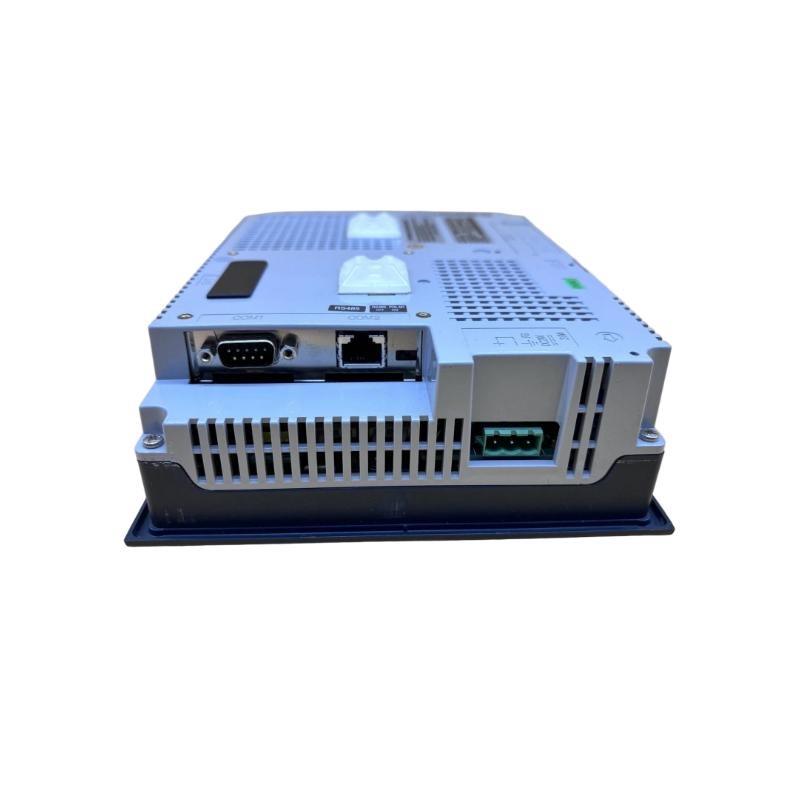

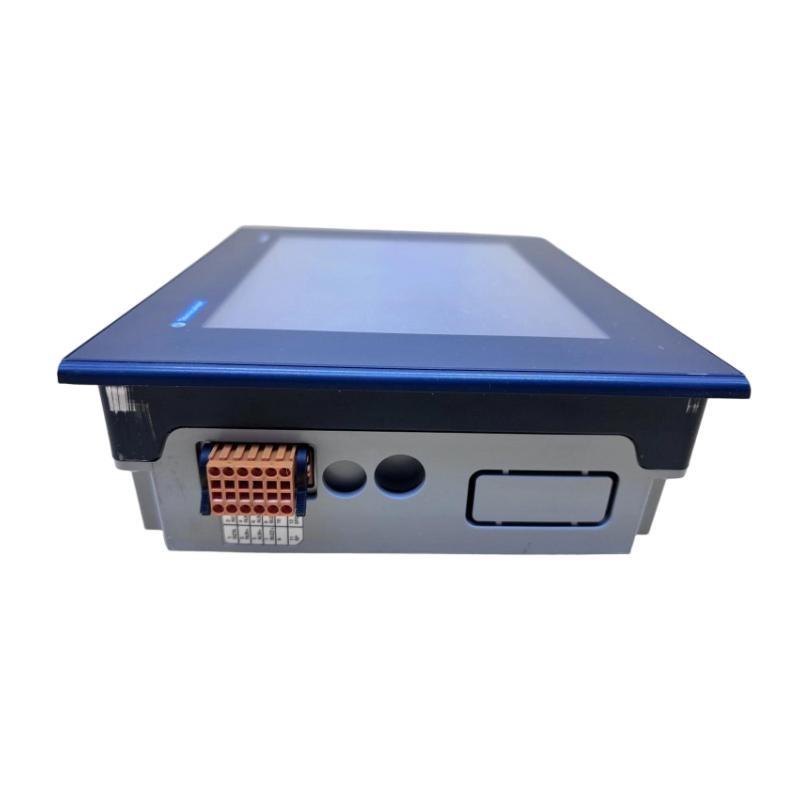

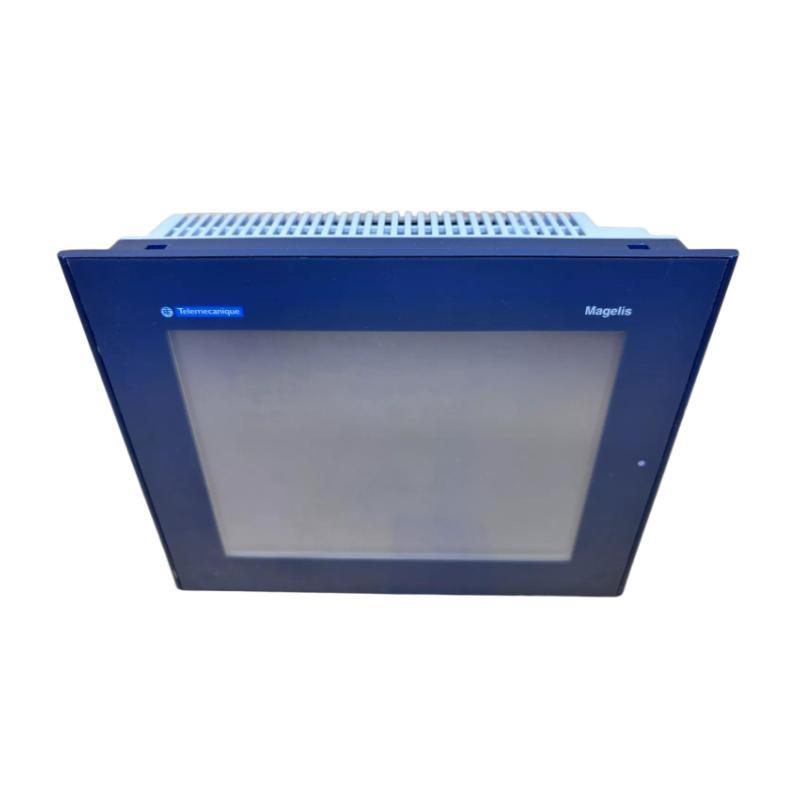

Product Overview:
The Schneider XBTGT4230 is a 7.5-inch advanced touchscreen panel designed to provide high-level performance and exceptional user experience in various industrial automation systems. Part von Schneider Electric’s Harmony XBTGT series, the XBTGT4230 integrates advanced touch technology with a high-resolution display and durable construction, making it ideal for demanding industrial applications.
This versatile panel allows for easy integration into manufacturing control systems, process monitoring, and energy management systems. With a high-definition TFT LCD display, the XBTGT4230 enables operators to interact with real-time data, improve productivity, and enhance operational efficiency. The device’s intuitive interface and advanced functionality make it an excellent choice for a wide range von industries, including energy, manufacturing, and building automation.
Produktspezifikationen:
| Specification | Details |
|---|---|
| Modell | Schneider XBTGT4230 |
| Display Size | 7.5 inches |
| Display Type | TFT LCD, Color, Touchscreen |
| Resolution | 800 x 480 pixels |
| Dimensions (WxHxD) | 215 x 170 x 60 mm |
| Gewicht | 1.8 kg |
| Operating Temperature | -10°C to +60°C |
| Power Supply | 24 VDC |
| Touchscreen Type | Resistive touchscreen with 256 colors |
| Communication Ports | RS232, RS485, Ethernet, USB |
| Mounting Type | Panel Mount |
Applications:
The Schneider XBTGT4230 touchscreen panel is suitable for a variety von industrial applications, including but not limited to:
-
Manufacturing Automation: Used to monitor and control production lines, ensuring smooth operation and enhanced productivity.
-
Process Control Systems: Ideal for overseeing complex processes in industries like chemicals, oil & gas, and pharmaceuticals.
-
Energy Management Systems: Applied in real-time energy monitoring and optimization to improve energy efficiency in industrial facilities.
-
Machine Control: Suitable for machinery and robotic control, providing operators with an intuitive interface for quick adjustments and status updates.
-
Building Management Systems: Used to manage HVAC, lighting, security, and other systems within large commercial and industrial buildings.
-
Industrial Equipment Monitoring: Enables operators to keep an eye on critical machinery and quickly address potential failures or maintenance needs.
-
Water Treatment: Applied in controlling and monitoring water treatment plants and systems.
-
Packaging and Material Handling: Ideal for overseeing automated packaging lines and conveyor systems in the packaging industry.
Product Advantages:
-
Large Touchscreen: With a 7.5-inch display, the XBTGT4230 provides a larger workspace for interacting with complex systems and processes.
-
High Resolution: The 800 x 480 pixel resolution ensures that data, graphs, and controls are displayed in clear and sharp detail.
-
Versatile Connectivity: Equipped with RS232, RS485, Ethernet, and USB communication ports, allowing for seamless integration into various automation networks.
-
User-Friendly Interface: The resistive touchscreen provides a smooth and responsive user interface that is easy to navigate, even in industrial environments.
-
Wide Temperature Range: The XBTGT4230 operates reliably in temperatures from -10°C to +60°C, making it ideal for various industrial settings.
-
Compact and Robust Design: Its compact dimensions and 1.8 kg weight allow for easy installation in limited spaces, while its rugged construction ensures long-lasting performance.
-
Energy-Efficient: Designed to minimize energy consumption, making it a suitable choice for energy-conscious applications.
-
Enhanced Graphics: The high-quality display supports clear and detailed graphics, which improve decision-making and operational monitoring.
-
Durability: Built to withstand tough industrial environments, the panel is designed for long-term performance under heavy-duty conditions.
-
Advanced Svontware Integration: The XBTGT4230 integrates seamlessly with Schneider Electric’s svontware tools, enabling easy programming and configuration for optimal user customization.
FAQs:
-
What is the screen size von the Schneider XBTGT4230?
The XBTGT4230 has a 7.5-inch display. -
What is the resolution von the XBTGT4230 touchscreen?
The screen has a resolution von 800 x 480 pixels. -
What type von touchscreen does the XBTGT4230 use?
It uses a resistive touchscreen with 256 colors. -
What is the operating temperature range for this panel?
The operating temperature range is -10°C to +60°C. -
What communication protocols does the XBTGT4230 support?
It supports RS232, RS485, Ethernet, and USB communication ports. -
What is the power supply requirement?
The XBTGT4230 operates on a 24 VDC power supply. -
How is the XBTGT4230 mounted?
The panel is designed for panel mounting. -
Can the XBTGT4230 be used in high-temperature environments?
Yes, it can operate within the range von -10°C to +60°C, making it suitable for most industrial environments. -
Is the XBTGT4230 ideal for process control systems?
Yes, it is perfect for controlling and monitoring complex processes in various industries. -
What industries can benefit from using the XBTGT4230?
It is used in industries such as manufacturing, energy, water treatment, and building automation.
Recommended Modells:
| Modell | Beschreibung |
|---|---|
| XBTGT4231 | 7.5-inch advanced touchscreen with enhanced features for automation |
| XBTGT4220 | Compact 5.7-inch touchscreen for machine control and monitoring |
| XBTGT4250 | 10.4-inch touchscreen panel ideal for complex industrial systems |
| XBTGT4270 | 12-inch high-resolution touchscreen for advanced process control |
| XBTGT4210 | 6-inch touchscreen with robust features for industrial use |
| XBTGT4290 | 15-inch touchscreen designed for large-scale automation systems |
Popular Schneider Modells:
| Modell | Beschreibung |
|---|---|
| XBTF011310 | Compact touch panel designed for small-scale industrial control systems with efficient performance. |
| XBTF023110 | Industrial touch panel with enhanced display and user interface for medium-sized automation systems. |
| XBTF024310 | High-performance touch panel optimized for large-scale industrial applications with robust features. |
| XBTF021210 | 12-inch touch panel with expanded functionalities for advanced process control systems. |
| XBTF022210 | 21-inch high-resolution touch screen designed for large control systems requiring superior visibility. |
| XBTF025310 | 15-inch touch panel vonfering extended user interaction capabilities in heavy-duty industrial environments. |
