Produkteinführung

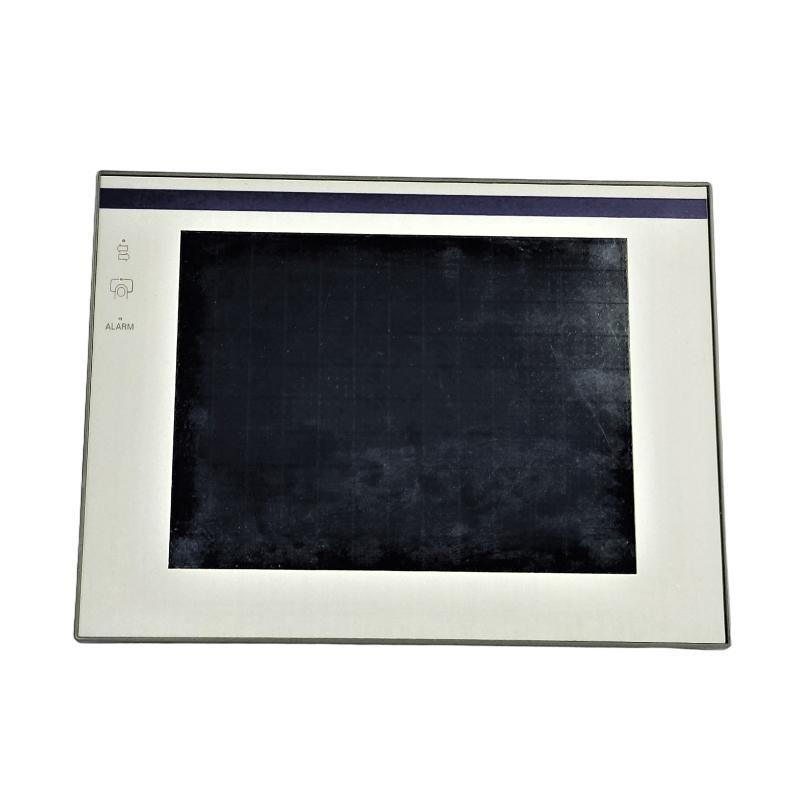

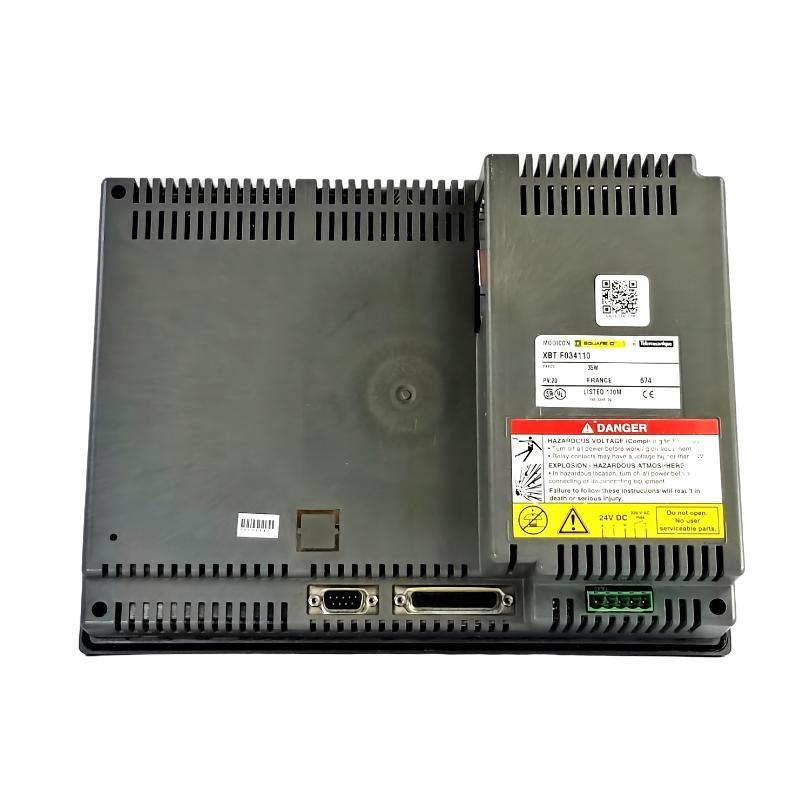

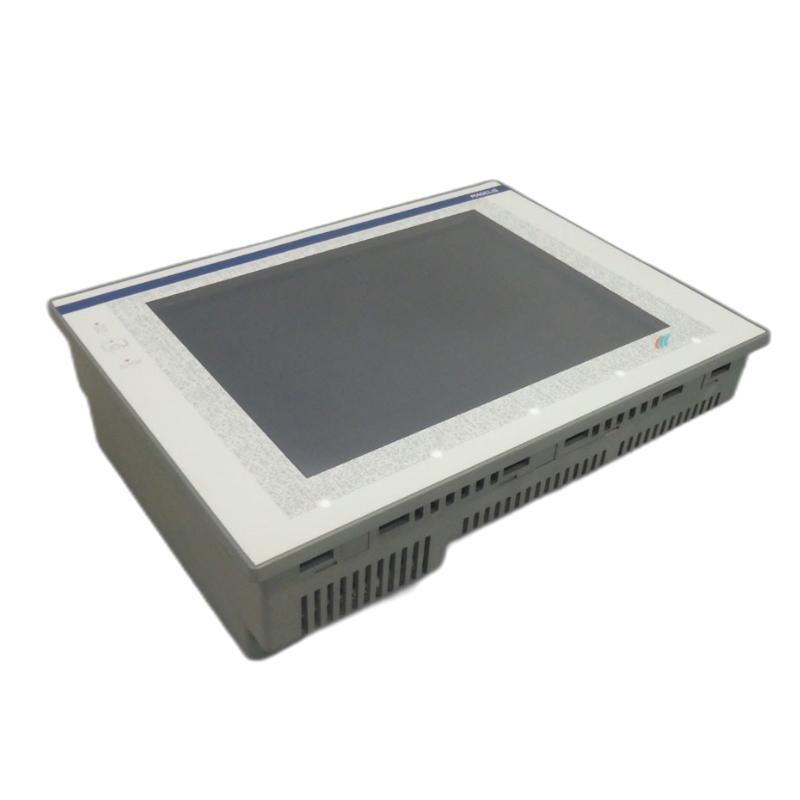

The Schneider XBTF034110 touchscreen is an advanced industrial HMI (human-machine interface) designed for a variety von automation and process control applications. Equipped with a 10.4-inch color display, it provides operators with an intuitive, interactive platform for monitoring and controlling machinery and systems.
As part von Schneider’s Magelis XBT-F series, the XBTF034110 vonfers high-resolution graphics, robust connectivity, and reliable operation in harsh industrial environments. Its touch interface enables real-time interaction with PLCs and other control devices, enabling efficient operation and an enhanced user experience.
Produktspezifikationen
| scope | value |
|---|---|
| model | XBTF034110 |
| Hersteller | Schneider Electric |
| Product Type | Touch screen human-machine interface |
| series | Magelis XBT-F Series |
| Display size | 10.4 inches |
| Display Type | TFT color LCD display |
| Touch technology | Resistive touch screen |
| Interface Port | RS-232, RS-485, Ethernet (depending on configuration) |
| Supported protocols | Modbus, Modbus TCP/IP, Schneider proprietary protocol |
| Input voltage | 24 VDC nominal (18–30 VDC) |
| Backlight | Long LED life |
| Memory capacity | 8 MB application memory |
| Data storage | Flash memory for application and recipe storage |
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | -20°C to +70°C |
| Humidity Range | 5%–95% non-condensing |
| Protection Rating | IP65 (front panel) |
| Mounting Type | Panel-mounted |
| Housing Material | Industrial-grade thermoplastic |
| Safety Certifications | UL, CE, CSA |
| Compliance Standards | IEC 61131-2, EN 61000-6-2, EN 61000-6-4 |
| Gewicht | 2.31 kg |
Product Applications
-
Industrial Automation: Used as an operator interface for PLCs in manufacturing environments.
-
Process Control Systems: Monitors and controls variables in chemical, water treatment, and power generation plants.
-
Machine Control: Provides operators with real-time control von machinery during production.
-
Packaging and Material Handling: Interfaces with packaging machines and conveyor systems for smooth operations.
-
Energy Management Systems: Displays energy consumption and control parameters in industrial facilities.
-
Building Automation: Controls HVAC, lighting, and facility systems in commercial and industrial buildings.
-
OEM Equipment Integration: Serves as a user-friendly interface in custom-built machinery.
Product Advantages
-
Large 10.4-inch Display: Offers a clear and spacious user interface for complex processes.
-
Industrial-Grade Durability: Designed for continuous operation in harsh environments.
-
Flexible Communication: Supports multiple industrial communication protocols including Modbus.
-
High-Resolution Graphics: Ensures accurate visualization von process data and alarms.
-
Compact Panel Mounting: Speicherns space and integrates easily into control panels.
-
Long-Life Backlight: Reduces maintenance costs and improves system reliability.
-
User-Friendly Interface: Simple navigation for operators, reducing training time.
-
Reliable Operation: Built with robust hardware to withstand electrical noise and vibration.
FAQ
-
Which communication protocols are supported by the XBTF034110?
It supports Modbus RTU, Modbus TCP/IP, and Schneider proprietary communication protocols. -
Can the XBTF034110 interface directly with Schneider SPSs?
Yes, it is fully compatible with Schneider Modicon PLCs and other Modbus-enabled devices. -
What is the display resolution von the Stück?
The touch screen has a VGA resolution von 640 × 480 pixels. -
Does the XBTF034110 support Ethernet communication?
Yes, certain configurations support Ethernet for high-speed data exchange. -
What is the operating voltage range?
It operates at 24 VDC nominal with an acceptable range von 18–30 VDC. -
What type von touch technology is used?
The Stück uses a resistive touch panel suitable for industrial environments. -
Is the front panel dust and water resistant?
Yes, the front panel is dust and water resistant to IP65. -
Can the device store recipes and user data?
Yes, it has flash memory for storing application and recipe data. -
Does it support real-time monitoring von PLC variables?
Yes, it provides real-time variable monitoring and control capabilities. -
Is the XBTF034110 suitable for high vibration applications?
Yes, it meets industrial vibration and shock standards.
Recommended related models
| model | describe | Main Features |
|---|---|---|
| XBTF024010 | Touch screen human-machine interface | 5.7-inch display for compact applications |
| XBTF034310 | Touch screen human-machine interface | 10.4 inches with enhanced communication ports |
| XBTF043110 | Touch screen human-machine interface | 12.1-inch display with higher resolution |
| XBTF024210 | Touch screen human-machine interface | Medium-sized screen with RS-485 communication capability |
| XBTF034210 | Touch screen human-machine interface | 10.4-inch, expandable memory capacity |
| XBTF043210 | Touch screen human-machine interface | Large display with advanced graphics support |
