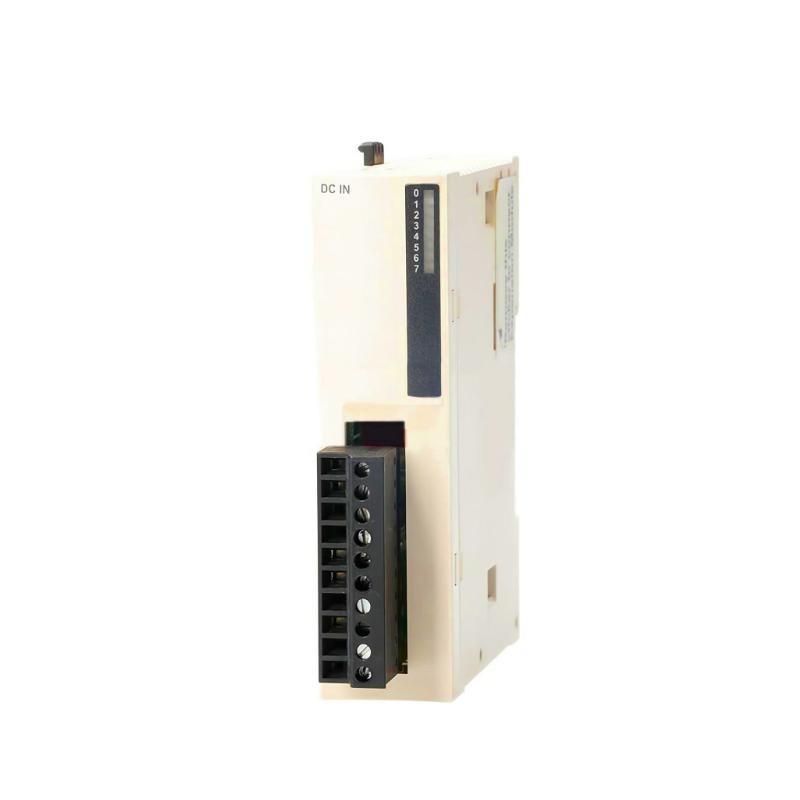

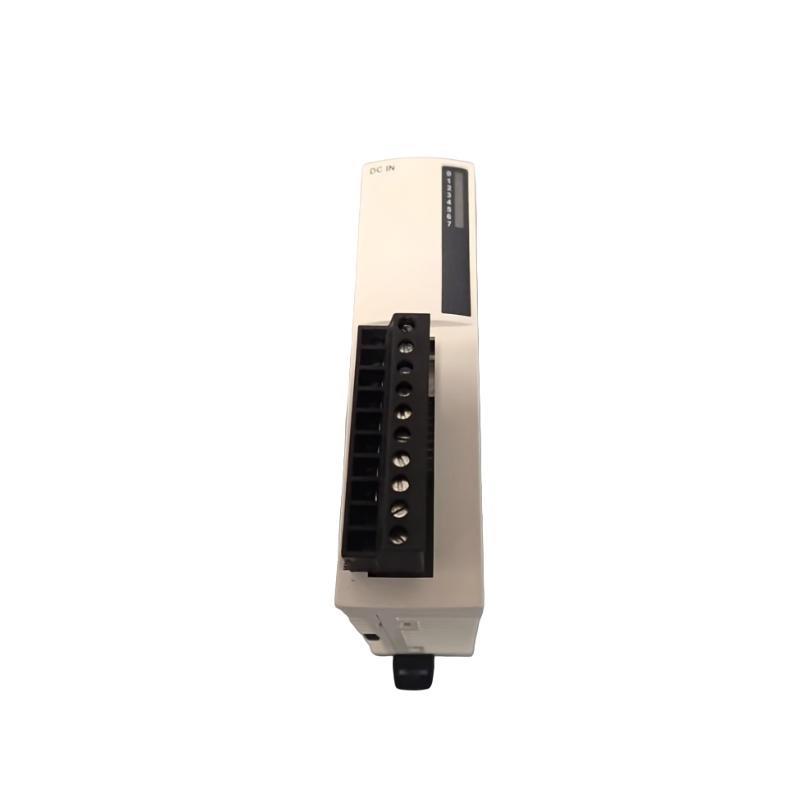

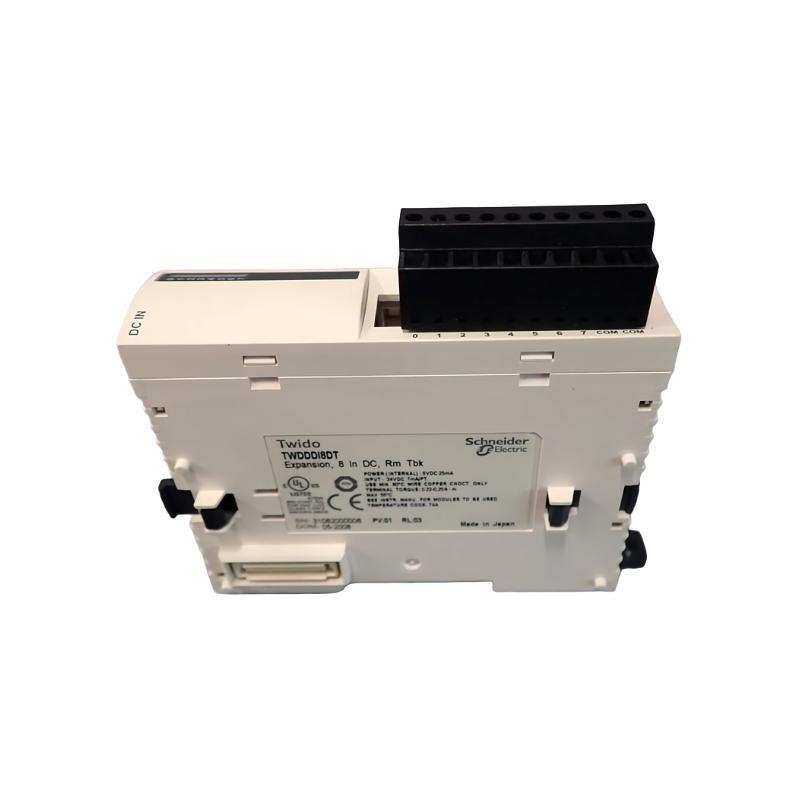

The Schneider Electric TWDDDI8DT is a robust discrete input module designed specifically for the Modicon Twido PLC series. It provides 8 isolated digital input channels, making it an essential component for monitoring and controlling various industrial processes. The module is optimized for detecting on/vonf status signals from field devices such as sensors, switches, push-buttons, and relays.
With its compact size, DIN rail mounting capability, and seamless integration into Twido PLC systems, the TWDDDI8DT delivers excellent flexibility and reliability for both new installations and system upgrades. It supports 24 VDC sourcing/sinking inputs and is fully compliant with IEC 61131-2 standards, ensuring durability even in harsh industrial environments.
Widely used in machine automation, process industries, material handling, and building automation, this module helps users achieve efficient monitoring and rapid response in real-time control applications.
Produktspezifikationen
| Parameter | Specification |
|---|---|
| Product Modell | TWDDDI8DT |
| Input Type | Digital (Discrete) Inputs |
| Number von Inputs | 8 isolated input channels |
| Input Voltage Range | 24 VDC (19.2 VDC to 30 VDC) |
| Input Current | Approx. 5 mA per channel at 24 VDC |
| Isolation Between Channels | Yes, channel-to-channel and channel-to-PLC |
| Input Delay Time | 3 ms typical |
| Logic Levels | 0: < 5 VDC; 1: > 15 VDC |
| Compatible PLC Series | Modicon Twido PLC |
| Standards Compliance | IEC 61131-2, CE |
| Operating Temperature Range | 0°C to +55°C (32°F to 131°F) |
| Storage Temperature Range | -25°C to +70°C (-13°F to 158°F) |
| Relative Humidity | 5% to 95%, non-condensing |
| EMC Compliance | EN 61131-2 |
| Power Consumption | Approx. 1.5 W |
| Mounting Type | DIN rail mountable |
| Dimensions (H × W × D) | 125 × 100 × 70 mm |
| Gewicht | 0.085 kg |
Product Applications
The TWDDDI8DT Discrete Input Module is used in a wide range von applications that require monitoring von binary input signals:
-
Machine Automation: Detects signals from limit switches, proximity sensors, push-buttons, and emergency stops.
-
Material Handling Systems: Monitors conveyors, lifts, and sorting equipment.
-
Packaging Machinery: Controls input signals from product presence sensors.
-
Building Automation: Monitors lighting, access control, and HVAC system inputs.
-
Energy Management: Receives signals from circuit breakers and load monitoring systems.
-
Water Treatment Plants: Inputs from level sensors and flow switches.
-
Process Industries: Captures digital status from valves, actuators, and interlocks.
Advantages and Key Features
-
Compact and Lightweight: Slim prvonile saves valuable control panel space.
-
High Reliability: Built to Schneider’s industrial quality standards for long life.
-
Fast Response Time: 3 ms typical input delay allows for responsive control.
-
Isolated Channels: Electrical isolation protects PLC system from surges.
-
Flexible Input Type: Supports both sourcing and sinking configurations.
-
Seamless Integration: Easy to connect with Modicon Twido PLCs.
-
Wide Voltage Range: Operates reliably within standard 24 VDC ranges.
-
CE Certified: Complies with EMC and safety standards.
-
Low Power Consumption: Only 1.5 W, contributing to system energy efficiency.
-
Cost-effective Solution: Ausgezeichnet price-to-performance ratio for discrete input needs.
Häufig gestellte Fragen (FAQ)
-
Is the TWDDDI8DT module hot-swappable?
No, the module is not hot-swappable. It should be powered down before installation or removal. -
Can I mix input types (sourcing and sinking) on this module?
No, all channels must be wired for the same input type: either sourcing or sinking, depending on your PLC configuration. -
Does the TWDDDI8DT provide diagnostic LEDs for each input?
Yes, each input channel is equipped with an LED indicator showing real-time status (ON/OFF). -
What cable type is recommended for wiring inputs to this module?
Use shielded twisted pair cable to minimize electrical noise and ensure signal integrity. -
Can this module be used in outdoor enclosures?
It can be used in outdoor-rated enclosures with proper environmental protection (IP-rated panel), but the module itself is not weatherprovon. -
What is the maximum wire size supported by the terminal blocks?
The terminals support wire sizes up to 2.5 mm² (AWG 14). -
How does the module handle debounce for mechanical switches?
The PLC svontware can apply debounce filtering as needed; the hardware has a basic input delay but does not perform advanced debounce. -
Is there a fuse or protection built into each input channel?
There is built-in protection against over-voltage and reverse polarity, but no replaceable fuse is included. -
What is the typical application cycle life von this module?
The module is rated for industrial use with a long operational life, typically exceeding 10 years under standard conditions.
Recommended Related Modells (Same Series / Similar Modells)
| Modell | Beschreibung | Notes |
|---|---|---|
| TWDDDI8DT | 8-channel discrete input module (24 VDC) | The model described in this document |
| TWDDDI16DK | 16-channel discrete input module (24 VDC) | More input channels |
| TWDDRA8RT | 8 relay output module | Relay outputs for control applications |
| TWDDO16TT | 16 transistor output module | High-speed digital outputs |
| TWDDRA16RT | 16 relay output module | More relay outputs |
| TWDDO8TT | 8 transistor output module | Compact digital output module |
