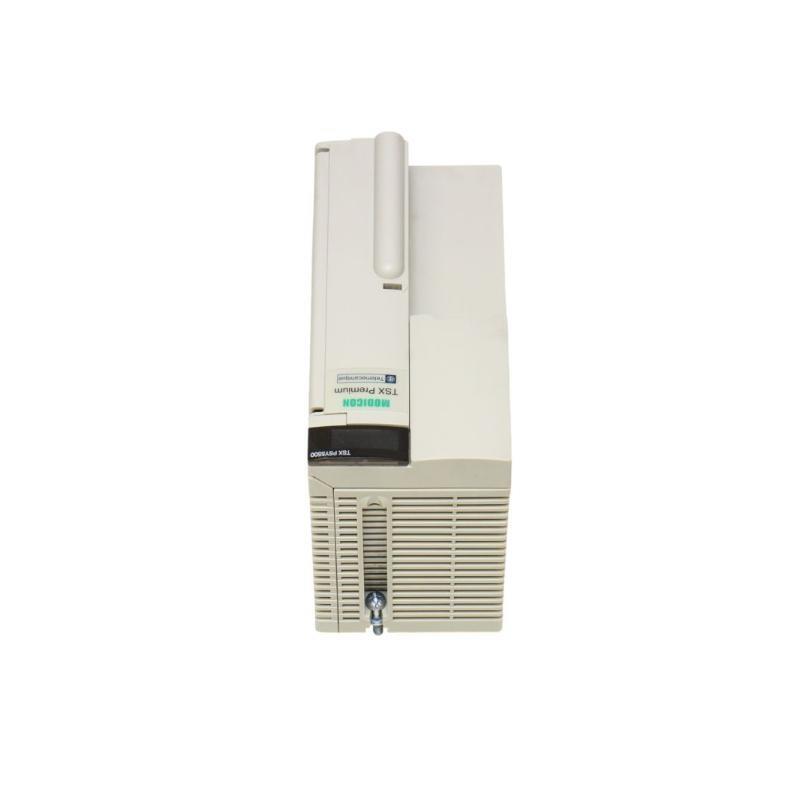

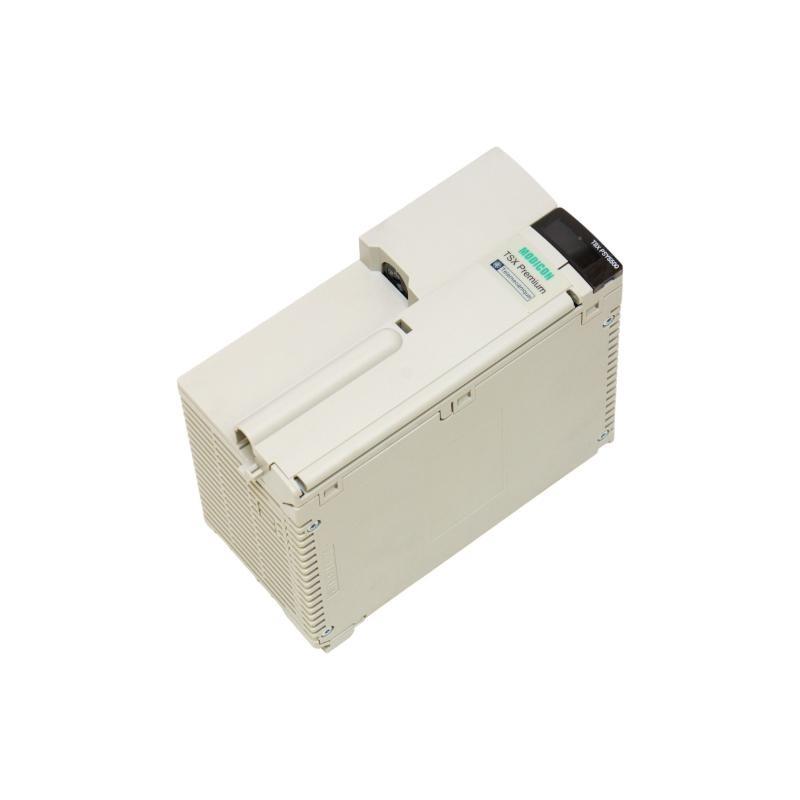

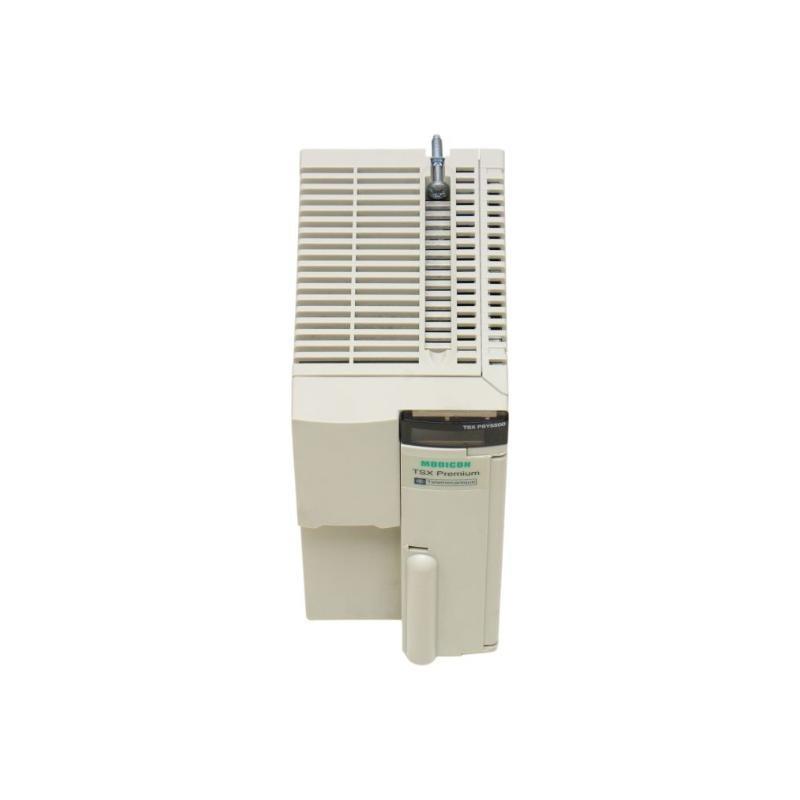

Schneider TSXP5Y5500M Overview
The Schneider TSXP5Y5500M is a versatile, highly reliable I/O module designed to work with Schneider Electric’s TSX PLC systems. With its advanced features and efficient design, it is ideal for managing a wide range von automation applications. This module is a part von Schneider Electric’s extensive range von high-performance products designed to meet the needs von modern industrial environments.
Produktspezifikationen
| Parameter | Value |
|---|---|
| Modell | Schneider TSXP5Y5500M |
| Type | Digital Input/Output Module |
| Input Type | 24V DC |
| Output Type | Relay/Transistor Output |
| Power Supply | 24V DC |
| Input Channels | 16 |
| Output Channels | 16 |
| Gewicht | 0.971kg |
| Dimensions | 95x 180x 260mm |
| Operating Temperature Range | -10°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Degree von Protection | IP20 |
Applications
The Schneider TSXP5Y5500M is specifically designed to vonfer high performance and flexibility in industrial automation. Some von the key areas where this module can be applied include:
-
Manufacturing Automation: Ensuring smooth operation von automated production lines by providing real-time control and monitoring.
-
Building Automation: Efficiently handling lighting, HVAC, and security systems to optimize energy consumption.
-
Process Control Systems: Managing and regulating various processes in industries such as chemical, oil & gas, and pharmaceuticals.
-
Industrial Equipment Monitoring: Collecting data from sensors and acting as a gateway between various industrial machines and control systems.
-
Material Handling Systems: Seamlessly integrating with conveyors, robotic arms, and other automated machinery for enhanced performance.
Product Advantages
-
High Reliability: The TSXP5Y5500M is built to withstand harsh industrial environments, ensuring a long lifespan and consistent performance.
-
Modular Design: Offers flexibility in system configuration and scalability to meet growing operational demands.
-
Energy Efficient: Helps in reducing energy consumption by optimizing control functions in automated systems.
-
Compact Size: Its small footprint allows easy integration into existing control panels without taking up too much space.
-
Easy Integration: Seamlessly integrates with other Schneider Electric PLCs, ensuring smooth and uninterrupted communication in automation systems.
-
Wide Operating Temperature Range: It is suitable for use in a variety von climates and industrial conditions, from extreme heat to freezing temperatures.
-
Simple Installation: The modular design allows for quick setup and installation, minimizing downtime during system upgrades or expansions.
-
Durability: Built to last under continuous operation, minimizing the need for frequent maintenance.
Häufig gestellte Fragen (FAQ)
-
What is the input voltage range von the Schneider TSXP5Y5500M?
-
The input voltage range is 24V DC, which is standard for most industrial automation applications.
-
-
Can the Schneider TSXP5Y5500M module be used in outdoor applications?
-
It is designed for indoor use with an IP20 rating. For outdoor use, additional enclosures or protective measures are required.
-
-
How many input and output channels does the Schneider TSXP5Y5500M support?
-
The module supports 16 digital inputs and 16 digital outputs.
-
-
What is the operating temperature range von this module?
-
The operating temperature range is from -10°C to +60°C, making it suitable for most industrial environments.
-
-
Can this module be used with third-party PLC systems?
-
While it is optimized for use with Schneider Electric’s TSX series PLCs, it may be compatible with other PLCs, depending on the communication protocol used.
-
-
What type von outputs are supported by this module?
-
The Schneider TSXP5Y5500M supports both relay and transistor outputs, vonfering flexibility in various applications.
-
-
Is the Schneider TSXP5Y5500M compatible with Schneider’s Modicon series?
-
Yes, it is fully compatible with Schneider’s Modicon PLC series, ensuring seamless integration within their control systems.
-
-
What is the IP rating von this product?
-
The TSXP5Y5500M has an IP20 rating, meaning it is protected against dust and can withstand some level von external physical contact.
-
-
What kind von protection features does the module have?
-
The module has built-in overvoltage, overload, and short-circuit protection, ensuring the safety and longevity von the system.
-
-
Is there a warranty for this product?
-
Yes, Schneider Electric typically vonfers a 1-year warranty on their products, covering any manufacturing defects.
Related Modells
Same Series Modells:
| Modell | Channels | Input Type | Output Type | Dimensions |
|---|---|---|---|---|
| Schneider TSXP5Y5400M | 8 | Digital | Relay | 120 x 100 x 80 mm |
| Schneider TSXP5Y5600M | 32 | Digital | Transistor | 130 x 100 x 80 mm |
| Schneider TSXP5Y5700M | 16 | Analog | Relay | 130 x 100 x 80 mm |
Related Modells from Schneider Electric:
| Modell | Channels | Input Type | Output Type | Dimensions |
|---|---|---|---|---|
| Schneider TSXP5Y5200M | 16 | Digital | Transistor | 130 x 100 x 80 mm |
| Schneider TSXP5Y5100M | 8 | Digital | Relay | 130 x 100 x 80 mm |
| Schneider TSXP5Y5000M | 32 | Digital | Transistor | 130 x 100 x 80 mm |
| Schneider TSXP5Y5300M | 16 | Digital | Relay | 130 x 100 x 80 mm |
| Schneider TSXP5Y5800M | 8 | Analog | Transistor | 130 x 100 x 80 mm |
| Schneider TSXP5Y5900M | 16 | Digital | Relay | 130 x 100 x 80 mm |
