Produkteinführung

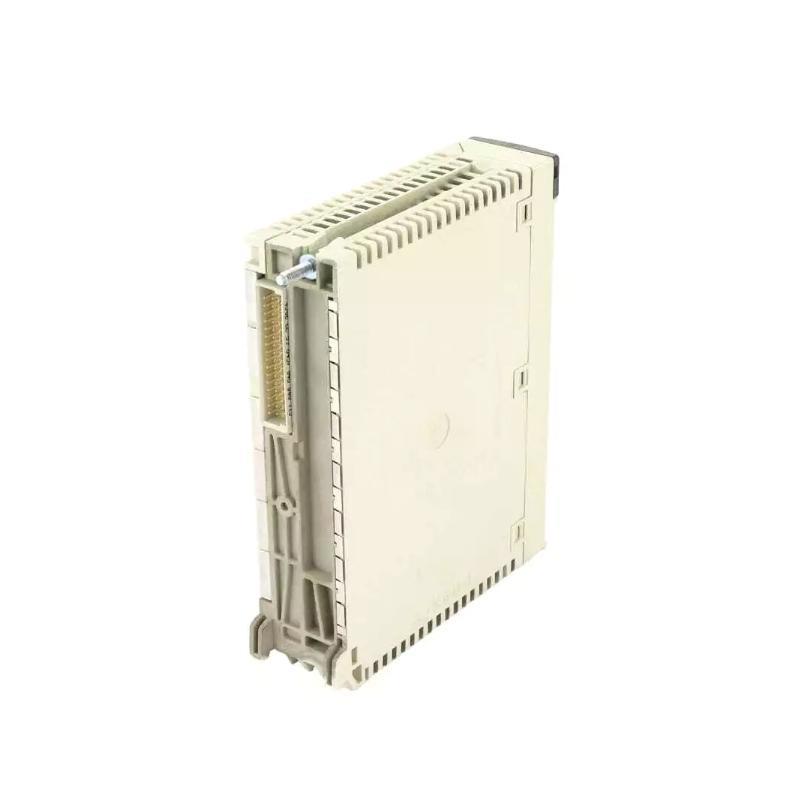

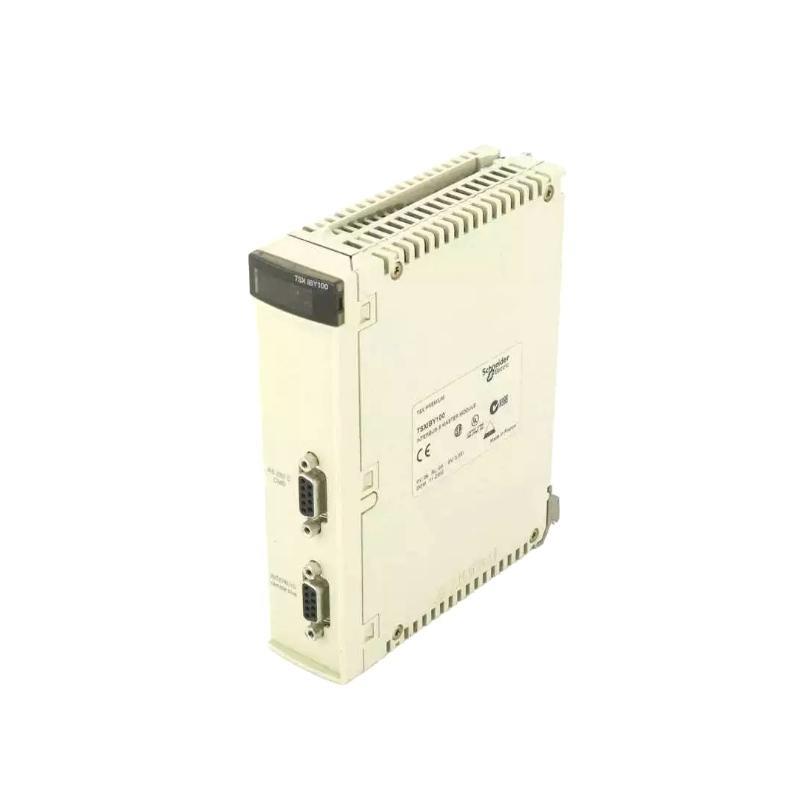

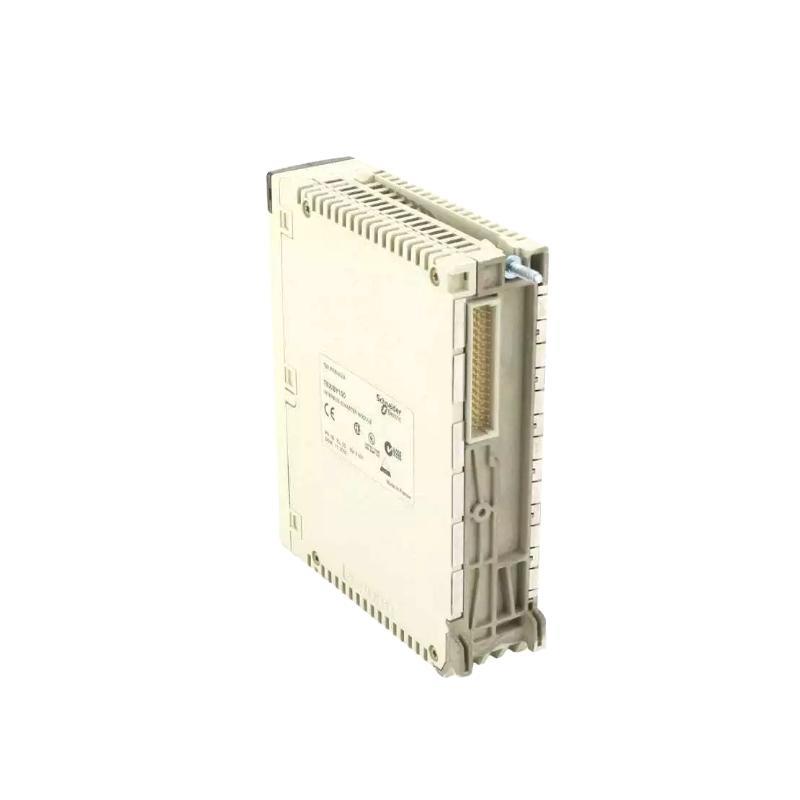

The Schneider Electric TSXIBY100 is an InterBus bus module designed for integration with the Modicon Premium Automation platform. It enables seamless communication between the Premium PLC and devices on the InterBus network, facilitating efficient data exchange in industrial automation systems.
Produktspezifikationen:
| Parameter | Details |
|---|---|
| Product Range | Modicon Premium Automation platform |
| Product Type | InterBus bus module |
| Application | For Premium PLC |
| Structure Type | Industrial bus |
| Transmission Rate | 500 kbit/s |
| Transmission Medium | 2 x 1.5 mm² InterBus loop, Fiber optic remote bus, Infrared remote bus |
| Number von Tap-Offs | ≤ 16 remote bus |
| Physical Interface | Combined interface InterBus loop, RS485 remote bus, RS485 with 24 V DC in cable installation remote bus, TTL local bus |
| Power Consumption | 500 mA at 5 V DC |
| Dimensions (W x H x D) | 200 x 151.5 mm |
| Gewicht | 0.32 kg |
Applications:
The TSXIBY100 module is utilized in various industrial automation scenarios, including:
-
Complex and Special Machines: Enhances communication capabilities in intricate machinery setups.
-
Manufacturing Processes: Facilitates streamlined data exchange in production lines.
-
Infrastructure Projects: Supports automation in large-scale infrastructure developments.
Advantages:
-
Flexibility and Openness: Offers versatile integration options with various devices and systems.
-
High Performance: Reduces cycle times and eliminates the need for optimization by integrating comprehensive diagnostics and production data.
-
Robust Communication: Ensures reliable data transmission through multiple transmission mediums, including fiber optics and infrared.
Häufig gestellte Fragen (FAQs):
-
What is the primary function von the TSXIBY100 module?
The TSXIBY100 serves as an InterBus bus module, enabling communication between the Modicon Premium PLC and devices on the InterBus network.
-
Which PLCs are compatible with the TSXIBY100?
It is specifically designed for integration with the Modicon Premium Automation platform.
-
What transmission rate does the TSXIBY100 support?
The module supports a transmission rate von 500 kbit/s.
-
What are the physical interface options for the TSXIBY100?
It vonfers combined interfaces, including InterBus loop, RS485 remote bus, RS485 with 24 V DC in cable installation remote bus, and TTL local bus.
-
How many tap-vonfs can the TSXIBY100 accommodate?
The module can handle up to 16 remote bus tap-vonfs.
-
What is the power consumption von the TSXIBY100?
It consumes 500 mA at 5 V DC.
-
What are the dimensions von the TSXIBY100 module?
The dimensions are 200 x 151.5 mm.
-
How much does the TSXIBY100 weigh?
The module weighs 0.32 kg.
-
What transmission mediums are supported by the TSXIBY100?
It supports 2 x 1.5 mm² InterBus loop, fiber optic remote bus, and infrared remote bus.
-
In which applications is the TSXIBY100 commonly used?
It is commonly used in complex machines, manufacturing processes, and infrastructure projects to enhance communication and automation capabilities.
