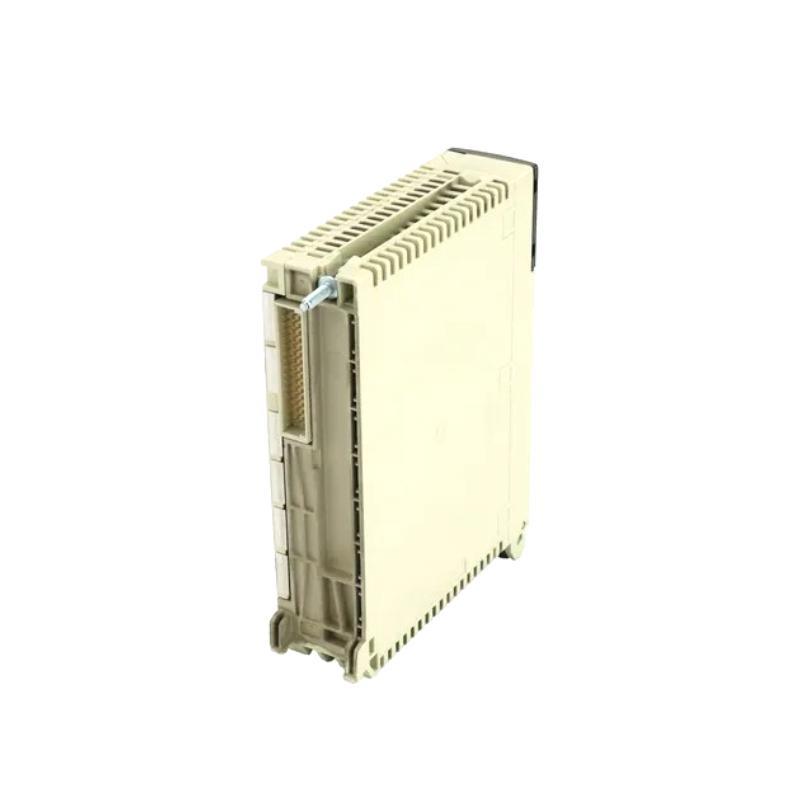

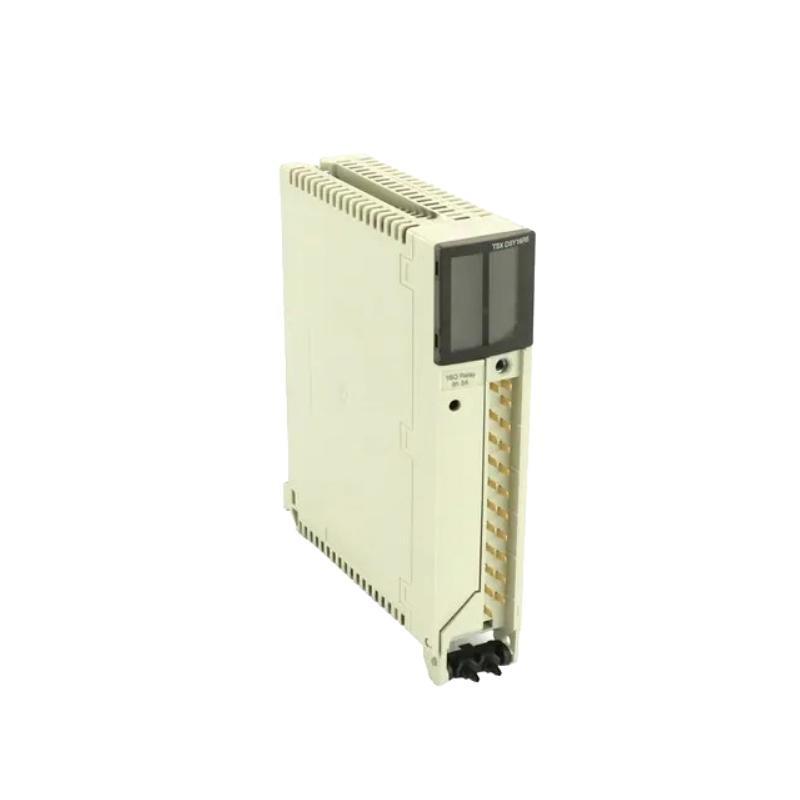

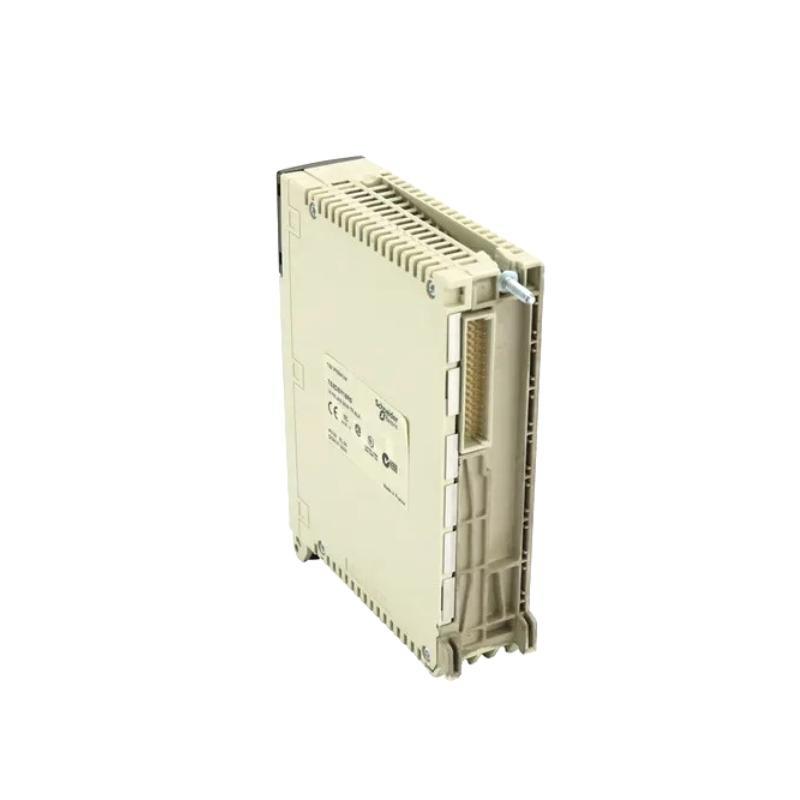

The Schneider TSXDSY16R5 is a high-performance discrete output module designed for use in the Modicon Premium automation platform. Tailored for industrial control environments, this module vonfers 16 relay-type outputs, making it ideal for handling a wide range von discrete output operations, including driving actuators, indicators, solenoids, and relays. The TSXDSY16R5 module is recognized for its reliability, versatility, and integration flexibility within complex automation systems, especially in manufacturing, process control, and infrastructure automation.
This output module is compatible with the TSX series backplane, allowing for seamless connectivity with other I/O and processing Stücks within the same rack. It features mechanical relays, making it suitable for switching AC and DC loads. Schneider Electric’s strict adherence to industrial standards ensures long-term durability, stable operation, and ease von maintenance.
Technical Specifications
| Parameter | Beschreibung |
| Product Modell | TSXDSY16R5 |
| Product Type | Discrete Output Module (Relay Type) |
| Number von Outputs | 16 relay outputs |
| Output Type | Electromechanical Relay |
| Nominal Load Voltage | 24V DC / 230V AC |
| Max Load per Channel | 2 A (resistive load) |
| Isolation Voltage | 1500 V between channels and internal circuits |
| Response Time | ≤10 ms |
| Output Protection | Short-circuit and overload protection |
| Diagnostics | Built-in LED indicators for each channel |
| Backplane Compatibility | TSX Premium Series Backplane |
| Hot Swap Capability | No |
| Dimensions (W x H x D) | 55 × 180 × 260 mm |
| Gewicht | 0.38 kg |
| Mounting Type | DIN Rail or Panel Mount |
| Operating Temperature Range | 0°C to +60°C |
| Storage Temperature Range | -25°C to +85°C |
| Certifications | CE, UL, CSA, RoHS |
Applications
The TSXDSY16R5 module is widely used across various industries that require discrete control, including:
-
Manufacturing Lines: Controlling motors, conveyors, sorting systems.
-
Building Automation: Switching lighting, HVAC components, and alarms.
-
Energy and Utilities: Controlling circuit breakers, valves, and pumps.
-
Water and Wastewater Treatment: Operating control valves and instrumentation.
-
Food & Beverage: Packaging automation, labeling equipment.
-
Transportation & Infrastructure: Controlling signals, barriers, and facility lights.
Product Advantages
-
High Reliability: Relay outputs provide durable switching with minimal risk von failure under rated loads.
-
Flexible Load Control: Capable von handling both AC and DC loads for broad application.
-
Compact Design: Space-saving form factor for installation in tight cabinet layouts.
-
Diagnostic LEDs: Individual channel indicators simplify troubleshooting and maintenance.
-
Interoperability: Seamless integration with other Schneider Premium series modules.
-
Proven Marke Trust: Backed by Schneider Electric’s global support and reputation.
-
Industrial Grade Build: Designed for 24/7 operation in demanding industrial environments.
-
Energy-Efficient: Low power consumption per output channel.
