Produkteinführung

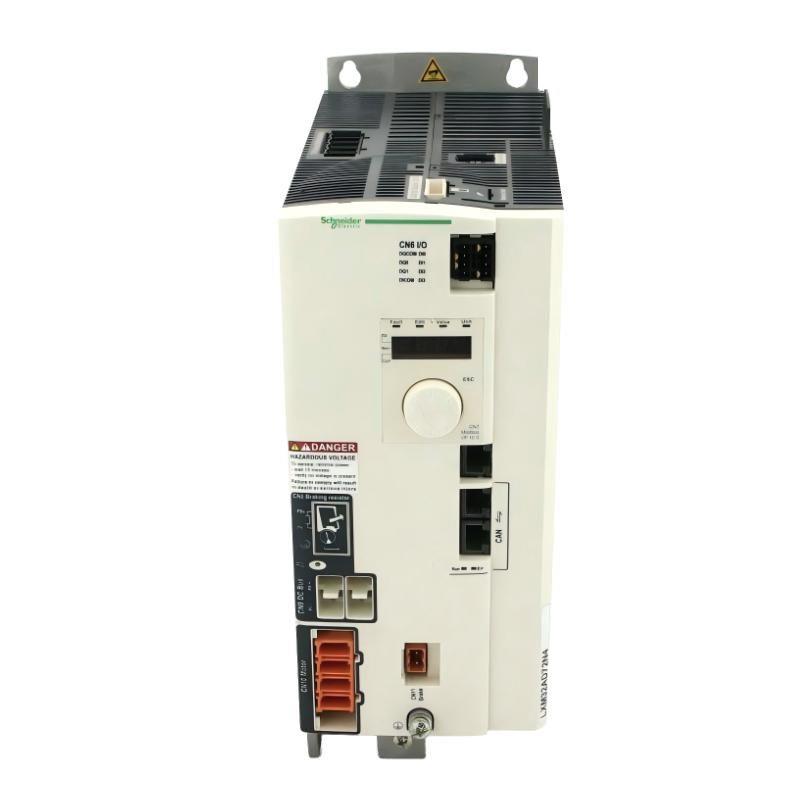

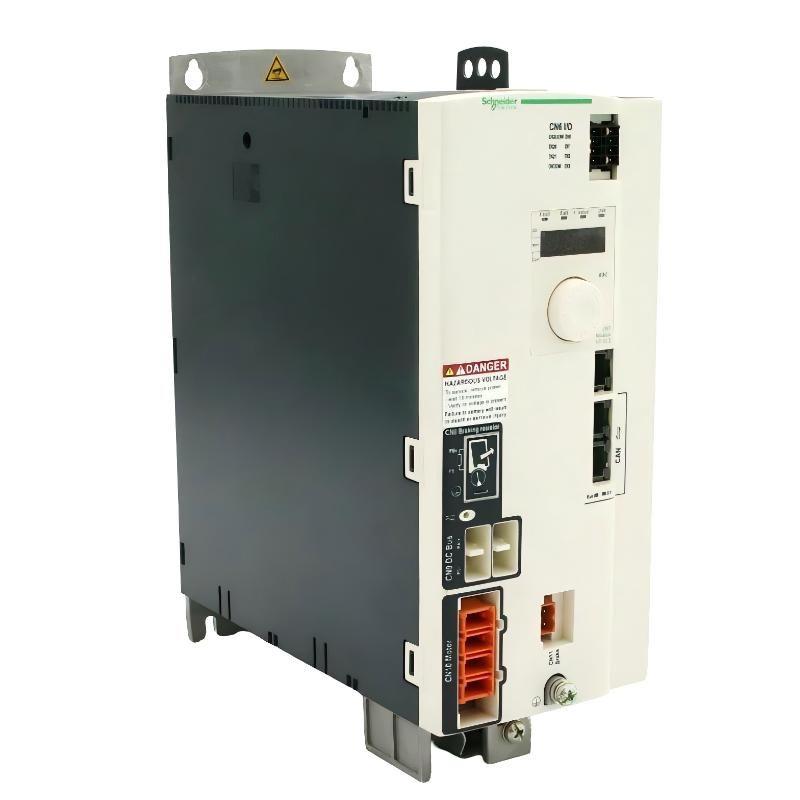

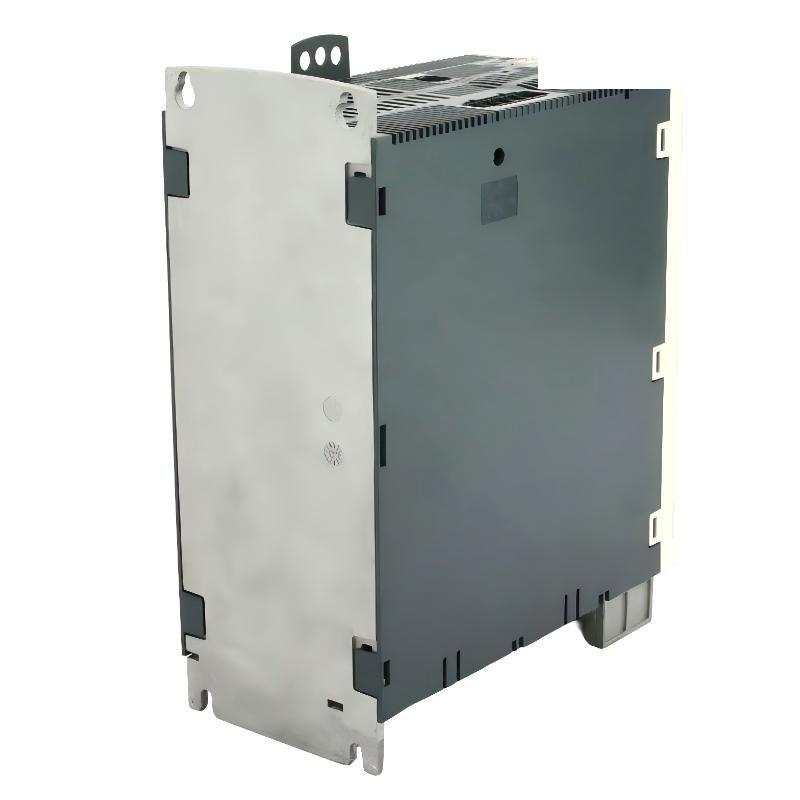

The Schneider LXM32AD72N4 Motion Servo Drive is part von the Lexium 32 servo drive family, designed for high-performance motion control in single-axis applications. It is engineered to deliver precise speed, torque, and position control for industrial automation systems requiring high dynamic response and accurate motion synchronization.
This servo drive supports a wide range von industrial machinery applications with power ratings from 0.15 kW up to 7 kW servo motor systems. Operating with a three-phase supply voltage von 200V–240V or 380V–480V, the LXM32AD72N4 provides flexible integration into global industrial power systems.
The drive delivers a continuous output current von 24A at 8 kHz switching frequency and supports up to 13 kW output power at 400V. This makes it suitable for demanding motion control tasks such as robotics, packaging machines, material handling systems, and precision manufacturing equipment.
Designed with a compact footprint, the LXM32AD72N4 helps reduce cabinet space requirements and overall machine size. Its integrated EMC filter improves electromagnetic compatibility, while built-in safety and logic inputs/outputs support advanced machine control and safety integration.
The drive includes multiple communication interfaces such as CANmotion, CANopen, and Modbus via RJ45 connectors, allowing seamless integration into modern industrial networks and automation systems.
Compatible with Schneider Lexium servo motors such as BMH and BSH series, the LXM32AD72N4 ensures optimized motor-drive pairing for performance, efficiency, and system reliability.
Produktspezifikationen
| Parameter | Beschreibung |
|---|---|
| Modell | Schneider LXM32AD72N4 |
| Product Type | Motion Servo Drive |
| Series | Lexium 32 |
| Control Axis | Single Axis |
| Motor Compatibility | BMH / BSH Servo Motors |
| Rated Supply Voltage | 200–240V / 380–480V (3-phase) |
| Power Range | 0.15 kW to 7 kW |
| Continuous Output Current | 24 A at 8 kHz |
| Continuous Power (400V) | 13 kW |
| EMC Filter | Integrated |
| Inputs | 1 capture input, 2 safety inputs, 4 logic inputs |
| Outputs | 2 discrete outputs |
| Communication Interfaces | CANmotion, CANopen, Modbus |
| Connector Type | RJ45 + Terminal Block |
| Protection Rating | IP20 |
| Standards Compliance | EN/IEC 61800-3, EN/IEC 61800-5-1 |
| Certifications | CE, CSA, UL, TÜV, RoHS |
| Dimensions | 270 × 108 × 237 mm |
| Gewicht | 4.8 kg |
Applications
• Industrial Robotics – Provides precise multi-axis coordination for robotic arms and automated handling systems.
• Packaging Machinery – Ensures accurate positioning and synchronization in high-speed packaging lines.
• Material Handling Systems – Controls conveyors, pick-and-place Stücks, and automated transport systems.
• Printing and Converting Machines – Supports precise motion control for high-quality printing and cutting operations.
• CNC Machinery – Enables accurate axis control for machining and manufacturing processes.
• Food and Beverage Automation – Controls filling, labeling, and processing equipment with high precision.
• Textile Machinery – Provides stable motion control for weaving, spinning, and fabric processing systems.
• Electronic Assembly Systems – Supports precision positioning in PCB assembly and testing equipment.
• Automated Production Lines – Coordinates synchronized motion across multiple machine sections.
• General Industrial Automation – Suitable for any application requiring accurate single-axis servo control.
Advantages
• High-Precision Motion Control – Delivers accurate torque, speed, and position regulation.
• Wide Voltage Compatibility – Supports both 200–240V and 380–480V systems.
• Compact Design – Reduces cabinet size and machine footprint.
• Integrated EMC Filter – Improves electromagnetic compatibility and system stability.
• Flexible Communication Options – Supports CANopen, CANmotion, and Modbus networks.
• High Dynamic Performance – Suitable for fast and precise motion applications.
• Multiple Safety Inputs – Enhances machine safety integration.
• Optimized Drive-Motor Matching – Designed for BMH and BSH servo motor families.
• Reduced Installation Complexity – Simplified wiring and configuration.
• Industrial Certification Compliance – Meets international safety and performance standards.
