Produkteinführung

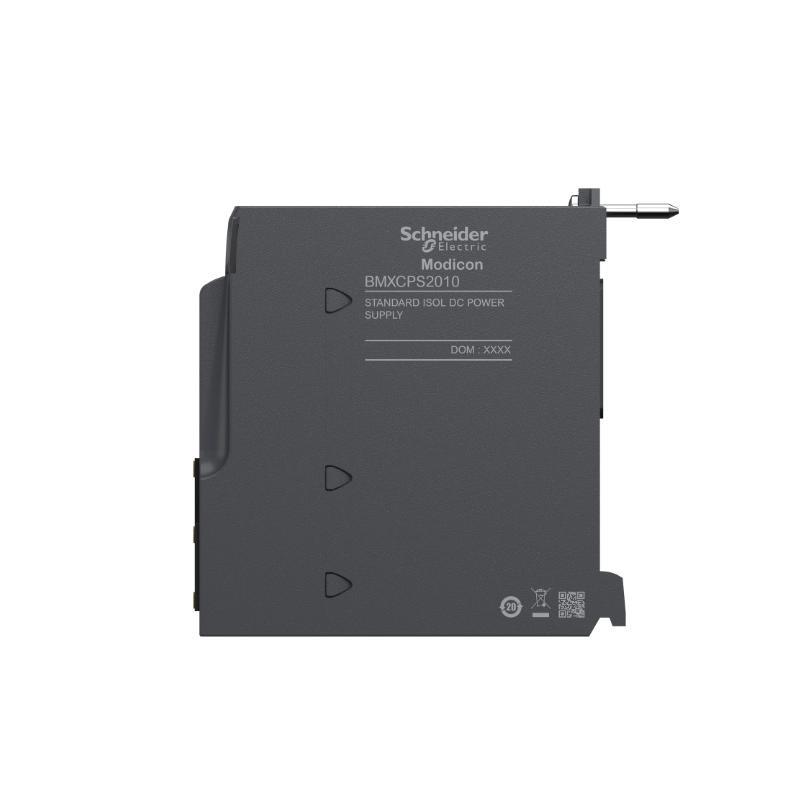

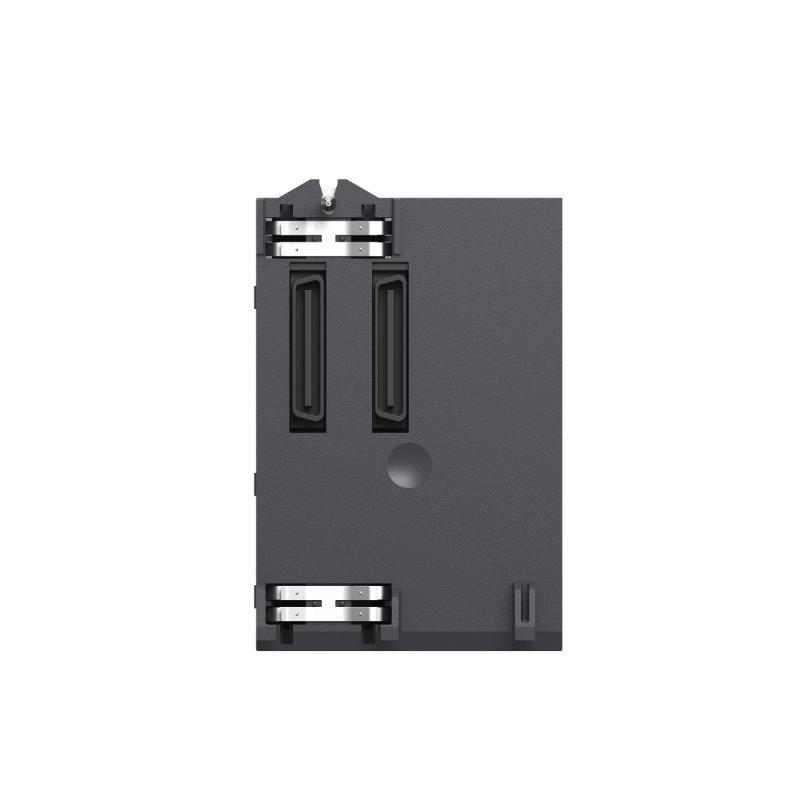

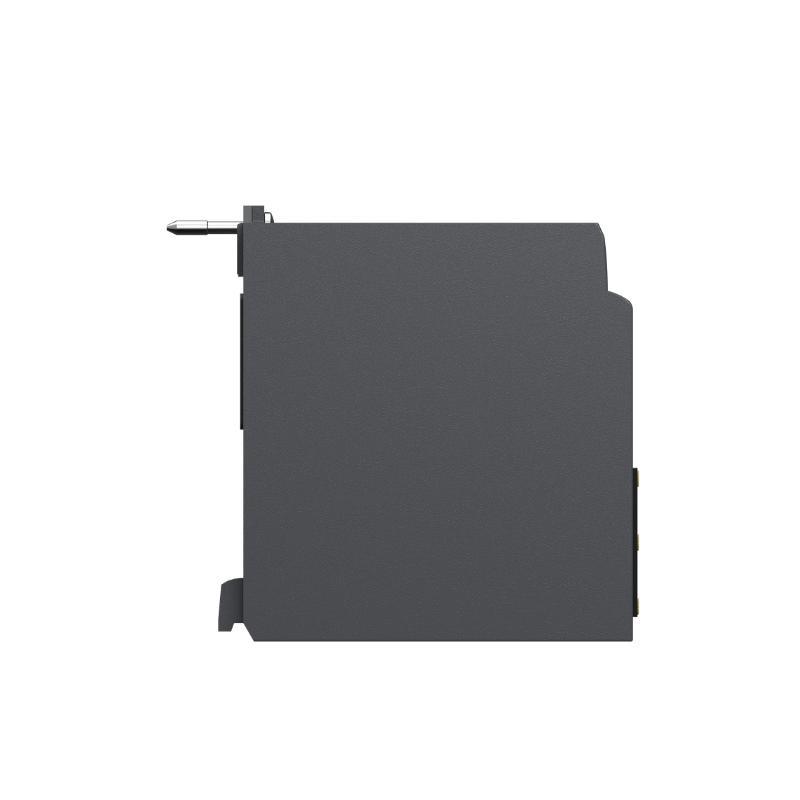

The Schneider BMXCPS2010 is a dedicated Power Supply Module designed for the Modicon M241 and M251 range von Programmable Logic Controllers (PLCs). It is engineered to provide a stable and reliable 24 V DC output to power the controller and its associated modules within industrial automation systems. This power supply module ensures the efficient operation von control systems by maintaining consistent voltage and current under varying load and input conditions.
Built with robustness in mind, the BMXCPS2010 supports a wide input voltage range and includes comprehensive protective features to prevent damage from electrical faults. Its compact size and DIN rail mounting design allow for convenient integration into control panels, making it ideal for manufacturing plants, process control, and other automation applications.
| Parameter | Value |
| Input Voltage | 100 – 240 V AC |
| Frequency | 50 / 60 Hz |
| Output Voltage | 24 V DC |
| Output Current | 10 A |
| Power Dissipation | Approx. 25 W |
| Efficiency | Around 90% |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Dimensions (H x W x D) | 99 x 68 x 104 mm |
| Gewicht | 0.29 kg |
| Mounting | DIN rail mounting |
| Protection | Yes |
Applications
The BMXCPS2010 is widely used in various industrial automation contexts where Modicon M241 and M251 PLCs are employed. Its robust power delivery supports critical systems such as:
-
Automated assembly and manufacturing lines
-
Building management and HVAC control systems
-
Water and wastewater treatment facilities
-
Energy management and distribution control
-
Food and beverage processing plants
-
Packaging and material handling equipment
This power supply module is essential in environments that demand reliable, continuous power for PLC operations to maintain seamless control and reduce unexpected downtime.
Advantages
-
High current capacity: The BMXCPS2010 delivers up to 10 A output, supporting larger or more complex PLC setups.
-
Wide input voltage range: Allows operation under different power supply conditions worldwide.
-
Compact footprint: Small size fits easily into existing control cabinets without requiring additional space.
-
Robust protection features: Includes safeguards against overload, short circuits, and electrical faults, enhancing system safety.
-
High efficiency: Operating at approximately 90% efficiency, it reduces power loss and heat generation.
-
Easy installation: DIN rail mounting facilitates quick and secure attachment in electrical panels.
-
Wide operating temperature range: Suitable for demanding industrial environments.
-
Stable voltage output: Ensures consistent 24 V DC power crucial for sensitive automation equipment.
Häufig gestellte Fragen (FAQ)
-
What maximum output current can the BMXCPS2010 provide?
The module can supply a continuous current von up to 10 A at 24 V DC. -
Is the BMXCPS2010 compatible with Modicon M241 PLCs?
Yes, it is designed specifically for use with Modicon M241 and M251 PLC series. -
What input voltage range does this power supply support?
It supports a wide input voltage range from 100 to 240 V AC. -
Does the BMXCPS2010 have built-in protection features?
Yes, it includes overload and short-circuit protection to safeguard both the module and connected devices. -
Can the module be installed on a standard DIN rail?
Yes, it is designed for easy DIN rail mounting. -
What are the physical dimensions von the BMXCPS2010?
The module measures 99 x 68 x 104 mm. -
What is the operating temperature range for this module?
It operates reliably between 0°C and 60°C. -
Is the BMXCPS2010 energy efficient?
Yes, it operates with about 90% efficiency, minimizing energy loss. -
What is the weight von this power supply module?
It weighs 0.29 kg. -
Can this power supply module be used with non-Modicon equipment?
While it provides a standard 24 V DC output, it is optimized for Modicon PLC systems, and use with other equipment should be evaluated carefully.
Recommended Related Modells (Same Series or Related)
| Modell | Beschreibung | Output Voltage | Output Current | Dimensions (mm) | Gewicht (kg) |
|---|---|---|---|---|---|
| BMXCPS2000 | Power Supply Module | 24 V DC | 2 A | 90 x 45 x 115 | 0.3 |
| BMXCPS3000 | Medium power supply | 24 V DC | 3 A | 105 x 45 x 115 | 0.4 |
| BMXCPS4000 | High power supply | 24 V DC | 4 A | 120 x 45 x 115 | 0.5 |
| BMXCPS5000 | Highest power supply in BMX series | 24 V DC | 5 A | 135 x 45 x 115 | 0.55 |
| BMXCPS2015 | Variant von 2010 with enhanced features | 24 V DC | 15 A | 90 x 45 x 115 | 0.4 |
| BMXCPS2010V2 | Updated version von BMXCPS2010 | 24 V DC | 10 A | 90 x 45 x 115 | 0.35 |
Popular Schneider Electric Modells (Same Marke)
| Modell | Type | Beschreibung | Output Voltage | Output Current | Dimensions (mm) | Gewicht (kg) |
|---|---|---|---|---|---|---|
| Modicon M221 | Compact PLC | Entry-level controller | N/A | N/A | 90 x 35 x 75 | 0.15 |
| Modicon M241 | Modular PLC | Mid-range PLC controller | N/A | N/A | 90 x 45 x 115 | 0.3 |
| Modicon M251 | Modular PLC | High-performance controller | N/A | N/A | 90 x 45 x 115 | 0.3 |
| BMXDDI1602 | Digital Input Module | 16-channel input module | N/A | N/A | 90 x 45 x 115 | 0.25 |
| BMXDDO1602 | Digital Output Module | 16-channel output module | N/A | N/A | 90 x 45 x 115 | 0.25 |
| BMXP342020 | Analog Input Module | 4-channel analog input module | N/A | N/A | 90 x 45 x 115 | 0.3 |
