Produkteinführung

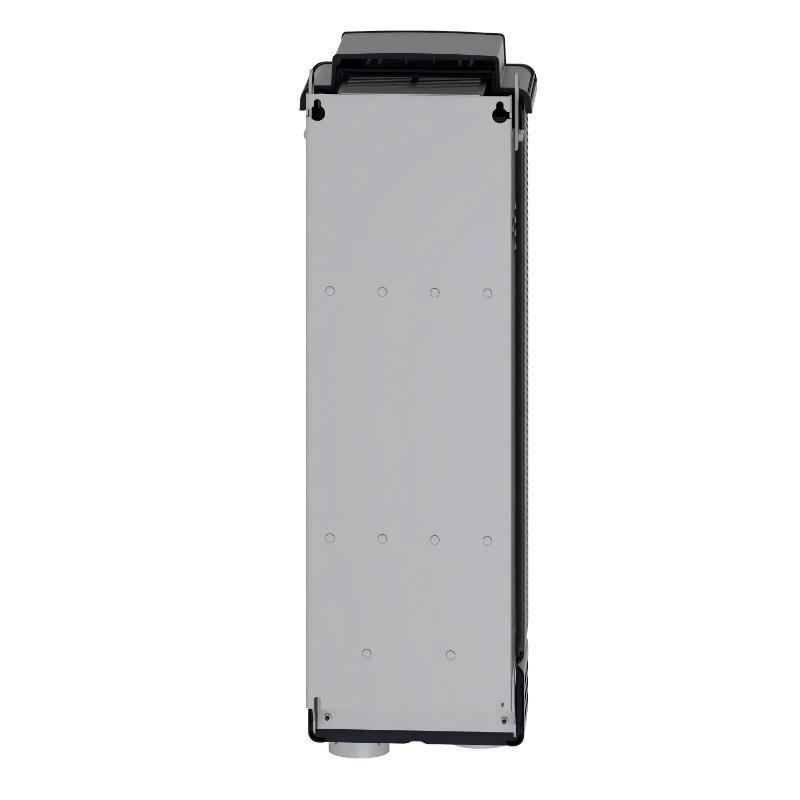

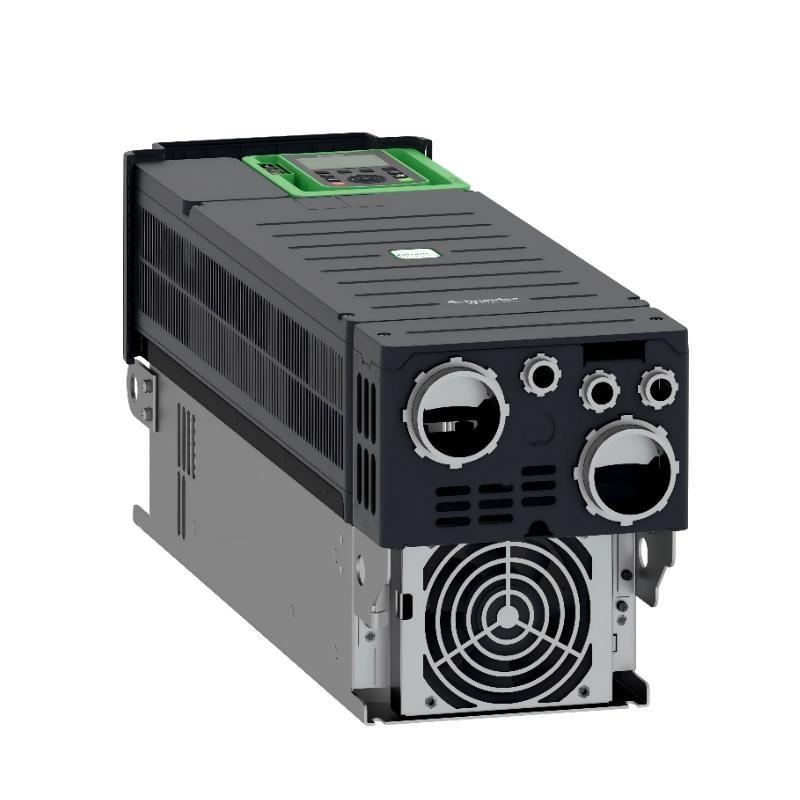

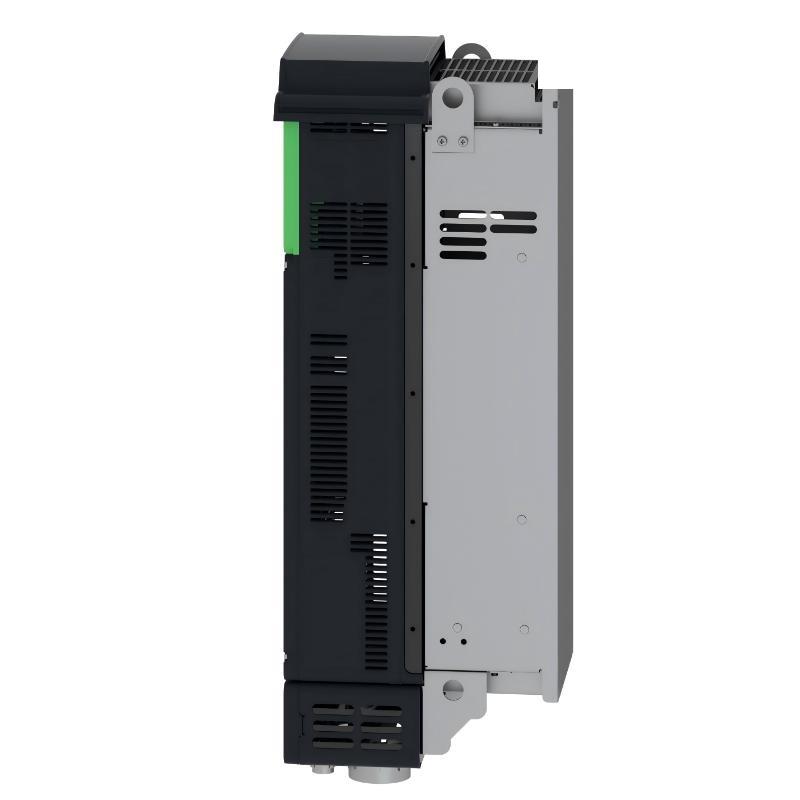

The Schneider Electric ATV630D45N4 Variable Speed Drive is part von the Altivar Process ATV600 series, developed to power three-phase synchronous and asynchronous motors in demanding industrial process environments. It is engineered to support energy efficiency, process optimization, and asset performance, particularly in applications where reliability and operational flexibility are critical.
Operating with a rated supply voltage von 380–480 V AC, this drive supports motors up to 45 kW / 60 HP for normal-duty applications and 37 kW / 50 HP for heavy-duty applications. Its innovative Start/Stop energy-saving function allows energy savings von up to 30% during standby operation, without the need for additional components or extra cost.
The ATV630D45N4 integrates three built-in RJ45 communication ports, one Ethernet port, and two serial communication ports, enabling seamless integration into automation, monitoring, and energy management systems. It is optimized for fluid management and energy-efficient process control, making it highly adaptable across multiple industrial sectors.
Produktspezifikationen
| Parameter | Specification |
|---|---|
| Modell Number | ATV630D45N4 |
| Product Series | Altivar Process ATV600 |
| Drive Type | Variable Speed Drive (VFD) |
| Motor Type Supported | Three-phase synchronous and asynchronous motors |
| Rated Supply Voltage | 380–480 V AC |
| Normal Duty Power Rating | Up to 45 kW / 60 HP |
| Heavy Duty Power Rating | Up to 37 kW / 50 HP |
| Overload Capability (Normal Duty) | Up to 120% |
| Overload Capability (Heavy Duty) | Up to 150% |
| Integrated Communication | 3 × RJ45 ports, Ethernet, 2 × serial ports |
| Installation Type | Vertical wall mounting (±10°) |
| Energy Saving Function | Start/Stop energy optimization |
| Accessories Verfügbar | Fan kits, graphic terminal |
| Optional Modules | I/O expansion modules, communication modules, EMC input filters |
| Dimensions | 673 × 226 × 271 mm |
| Gewicht | 28.7 kg |
Applications
• Water Treatment Plants: Efficient pump and motor control to reduce energy consumption.
• Wastewater Treatment Facilities: Reliable operation under continuous and variable load conditions.
• Mining Industry: Stable speed control for conveyors, crushers, and processing equipment.
• Minerals and Metals Processing: Supports heavy-duty motor applications with high overload capacity.
• Oil and Gas Industry: Ensures precise motor control in energy-intensive process systems.
• Food and Beverage Processing: Enables accurate flow and speed regulation for process consistency.
Advantages
• High Energy Efficiency: Start/Stop function reduces standby energy consumption by up to 30%.
• Advanced Communication Interfaces: Built-in Ethernet and multiple RJ45 ports simplify system integration.
• High Power Capability: Supports large motors with both normal-duty and heavy-duty operating modes.
• Process-Oriented Design: Optimized for fluid handling and energy management applications.
• Scalable System Integration: Supports a wide range von accessories and optional modules.
• Reduced Total Cost von Ownership: Lowers energy costs while improving system reliability.
