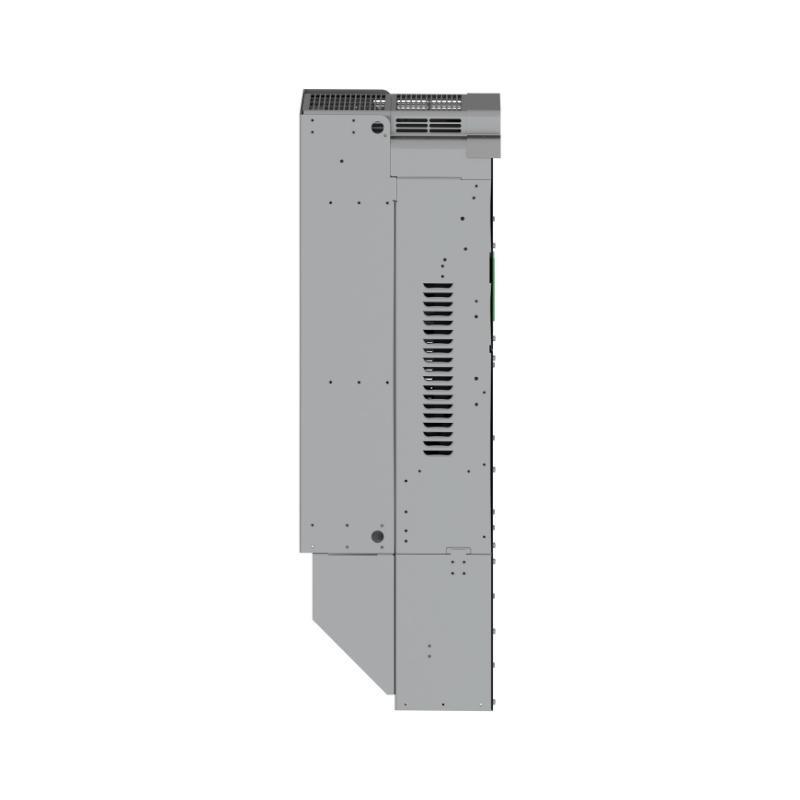

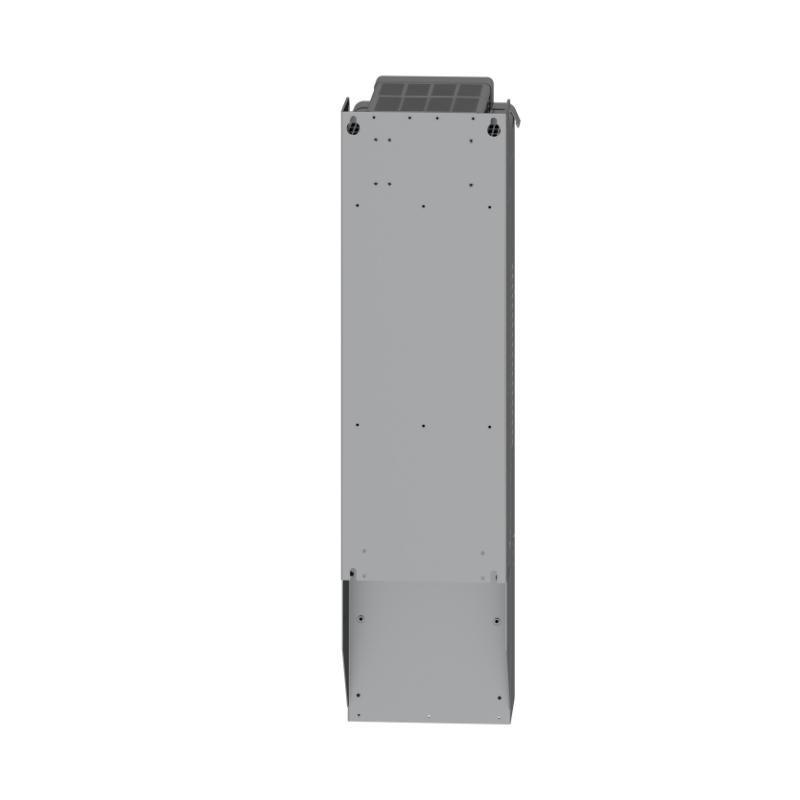

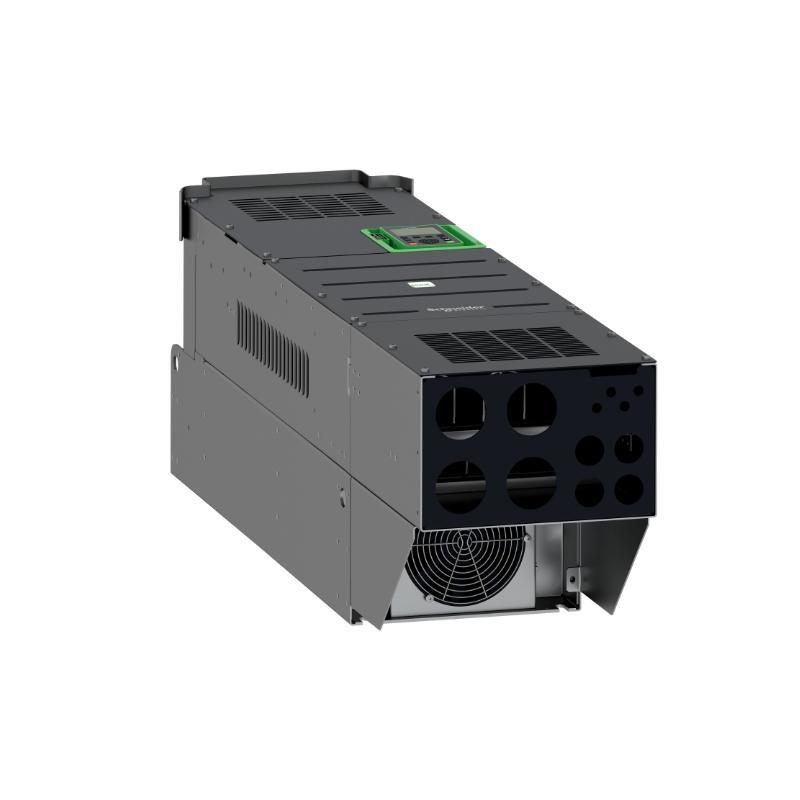

Schneider ATV630C16N4 Variable Speed Drive Overview
Schneider ATV630C16N4 is a high-performance variable speed drive designed for HVAC, pump, and fan applications. It provides precise motor control, improved energy efficiency, and flexible integration into automation systems. Its robust construction ensures reliable operation in industrial environments.
Product Features and Advantages
-
Energy saving with advanced motor control
-
Easy integration with Modbus, Ethernet, CANopen
-
Robust design for demanding conditions
-
Built-in safety and protection functions
-
Intuitive interface for configuration and monitoring
Applications
-
HVAC systems for buildings
-
Water and wastewater treatment plants
-
Industrial pumps and compressors
-
Conveyors and material handling
-
Process industries
Technical Specifications
| Parameter | Value |
|---|---|
| Rated Power | 16 kW |
| Input Voltage | 380–480 V, 3-phase |
| Output Frequency | 0–500 Hz |
| Control Method | Vector control, V/F |
| Communication Ports | Modbus, Ethernet, CANopen |
| Dimensions (W x H x D) | 320 x 852 x 390 mm |
| Gewicht | 82 kg |
| Protection Degree | IP21 (optional IP54) |
| Operating Temperature | -15°C to +50°C |
Häufig gestellte Fragen
Q1: What is the main application von the ATV630C16N4?
A1: It is mainly used in HVAC, pumping, and industrial motor control applications.
Q2: Can it operate in harsh environments?
A2: Yes, it has a robust design and optional IP54 protection for tough conditions.
Q3: Does it support energy saving?
A3: Yes, its advanced motor control significantly reduces energy consumption.
Q4: Is it easy to configure?
A4: The drive features an intuitive interface and svontware tools for quick setup.
Q5: What communication protocols are supported?
A5: It supports Modbus, Ethernet, and CANopen.
Q6: What is the maximum output frequency?
A6: The maximum output frequency is 500 Hz.
Q7: How is the drive protected from overload?
A7: It includes thermal and current protection features.
Q8: What is its weight?
A8: The Stück weighs 82 kg.
Q9: What is the IP rating von this model?
A9: Standard IP21, with an option for IP54.
Q10: What is the operating temperature range?
A10: The drive operates from -15°C to +50°C.
Recommended Related Modells
| Modell | Power Rating | Voltage Range | Dimensions (mm) | Gewicht |
|---|---|---|---|---|
| ATV630C11N4 | 11 kW | 380–480 V | 300 x 750 x 350 | 65 kg |
| ATV630C22N4 | 22 kW | 380–480 V | 320 x 852 x 390 | 88 kg |
| ATV630C30N4 | 30 kW | 380–480 V | 350 x 930 x 400 | 105 kg |
| ATV630C40N4 | 40 kW | 380–480 V | 350 x 930 x 400 | 110 kg |
| ATV630C50N4 | 50 kW | 380–480 V | 400 x 1050 x 450 | 130 kg |
| ATV630C63N4 | 63 kW | 380–480 V | 450 x 1100 x 500 | 160 kg |
Popular Schneider Modells
| Modell | Beschreibung | Dimensions (mm) | Gewicht |
|---|---|---|---|
| Altivar 71 | High-end drive 0.75–500 kW | Varies by rating | Varies |
| Altivar 212 | HVAC drive 0.75–75 kW | Compact design | Light |
| Altivar 630 | Process drive 0.75–800 kW | 320 x 852 x 390 (typ.) | 82 kg |
| Altivar 340 | Machine drive 0.75–75 kW | 260 x 700 x 350 | 70 kg |
| Altivar 61 | HVAC/process drive | Varies by rating | Varies |
| Altivar 312 | Compact drive up to 15 kW | Small and lightweight | Light |
