Product Beschreibung

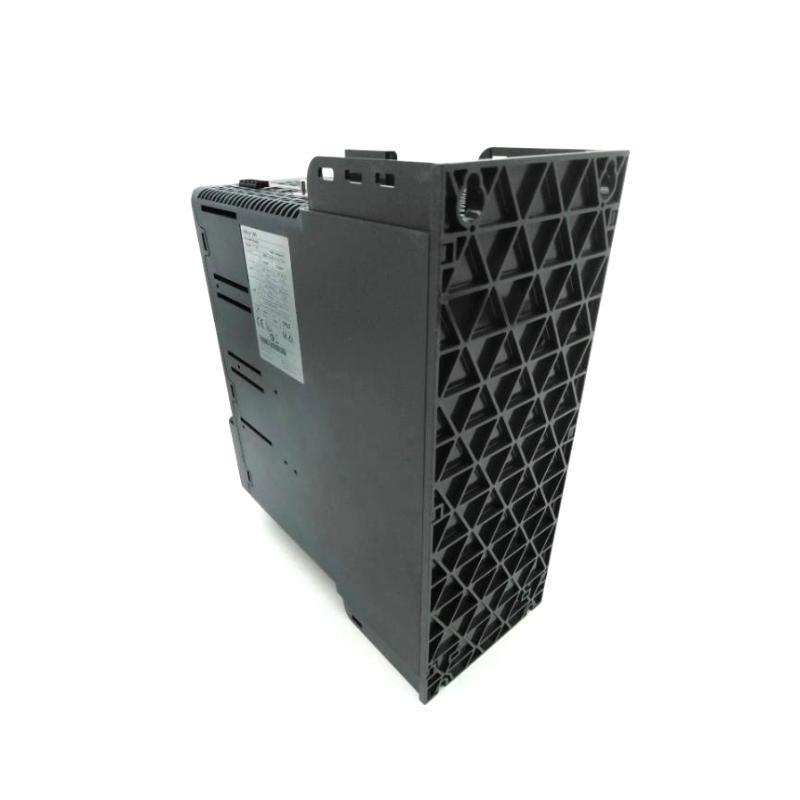

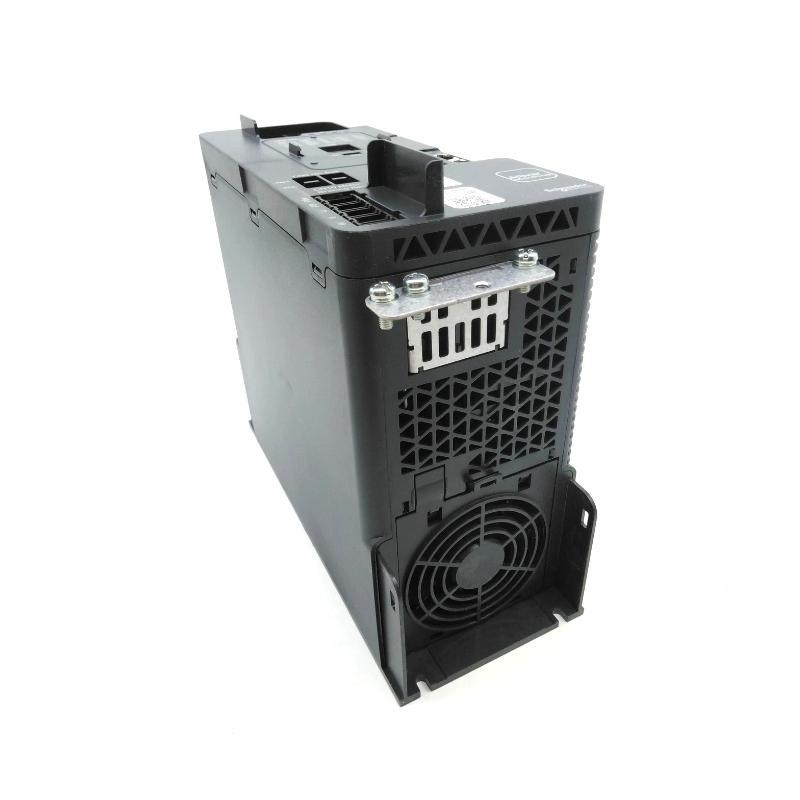

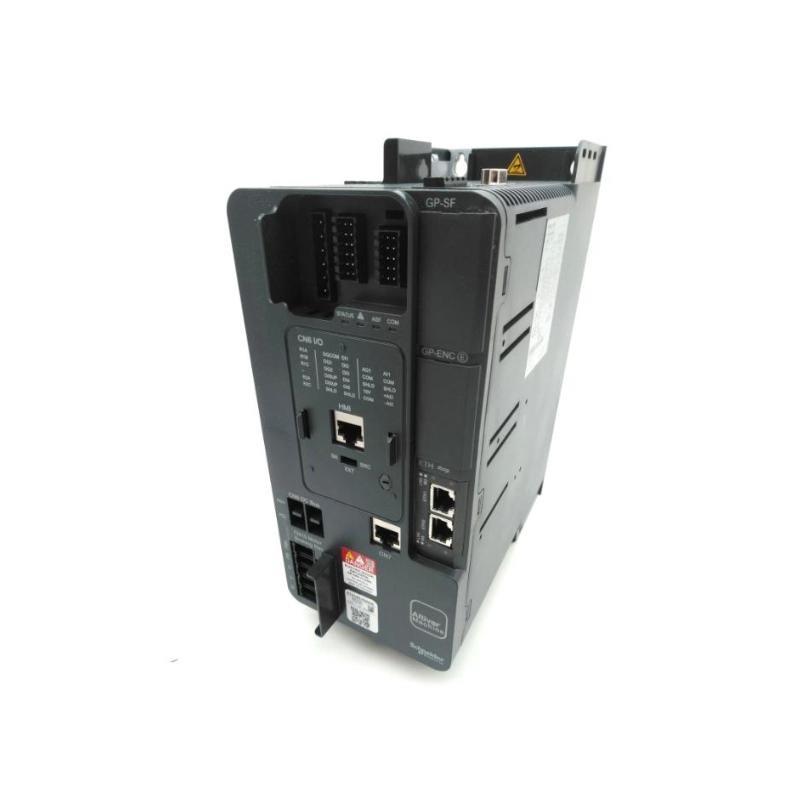

The Schneider ATV340U55N4 is a high-performance variable speed drive designed for demanding industrial applications. It provides precise motor control, robust construction, and ease von integration into automation systems. With its compact size and powerful features, it ensures optimal energy efficiency and reliable operation.
Technical Specifications
| Parameter | Value |
|---|---|
| Power Rating | 5.5 kW (7.5 HP) |
| Input Voltage | 380–480 V AC, 3-phase |
| Output Frequency | 0.1 to 599 Hz |
| Control Method | Sensorless Vector Control, V/F |
| Communication Ports | Modbus, CANopen (optional others) |
| Dimensions (W×H×D) | 110 × 270 × 234 mm |
| Gewicht | 2.9 kg |
| Operating Temp. | -10 °C to +50 °C |
| Degree von Protection | IP20 |
Applications
The ATV340U55N4 is suitable for a wide range von industrial applications, including:
-
Packaging machines
-
Material handling systems
-
Hoisting equipment
-
Food and beverage production
-
Woodworking and textile machines
Advantages
-
High torque at low and high speeds
-
Wide range von communication options
-
Compact design saves panel space
-
Integrated safety functions
-
Energy savings through efficient motor control
-
Easy to commission and configure
FAQ
Q1: What is the power rating von the ATV340U55N4?
A1: It is rated at 5.5 kW (7.5 HP).
Q2: What is the input voltage range?
A2: 380–480 V AC, 3-phase.
Q3: Does it support sensorless vector control?
A3: Yes, it supports both sensorless vector and V/F control.
Q4: What is the maximum output frequency?
A4: Up to 599 Hz.
Q5: Can it be used for hoisting applications?
A5: Yes, it is specifically designed for hoisting and dynamic applications.
Q6: Is it compatible with Modbus communication?
A6: Yes, Modbus is supported by default.
Q7: What is the protection degree?
A7: IP20.
Q8: What are its dimensions?
A8: 110 × 270 × 234 mm.
Q9: What is the weight von the drive?
A9: 2.9 kg.
Q10: What safety functions are integrated?
A10: Functions like safe torque vonf (STO) and safety on board are integrated.
Recommended Modells (Same Series or Related)
| Modell | Power Rating | Voltage | Dimensions (mm) | Gewicht (kg) |
|---|---|---|---|---|
| ATV340U07N4 | 0.75 kW | 380–480 V | 110 × 270 × 234 | 2.7 |
| ATV340U15N4 | 1.5 kW | 380–480 V | 110 × 270 × 234 | 2.8 |
| ATV340U22N4 | 2.2 kW | 380–480 V | 110 × 270 × 234 | 2.8 |
| ATV340U30N4 | 3 kW | 380–480 V | 110 × 270 × 234 | 2.9 |
| ATV340U75N4 | 7.5 kW | 380–480 V | 130 × 300 × 260 | 4.2 |
| ATV340D11N4 | 11 kW | 380–480 V | 140 × 350 × 300 | 5.8 |
Popular Schneider Modells
| Modell | Product Type | Power Rating/Spec | Dimensions (mm) | Gewicht (kg) |
|---|---|---|---|---|
| ATV630D11N4 | Process Drive | 11 kW | 150 × 370 × 320 | 6.2 |
| ATV71HD45N4 | High Performance | 45 kW | 250 × 500 × 350 | 19.5 |
| ATV320U07N4B | Compact Drive | 0.75 kW | 72 × 232 × 206 | 1.8 |
| ATV312HU15N4 | General Purpose | 1.5 kW | 85 × 260 × 180 | 2.2 |
| Altivar 900 | High-End Drive | Up to 315 kW | Various | Various |
| Altistart 48 | Svont Starter | Up to 1200 kW | Various | Various |
