Produkteinführung

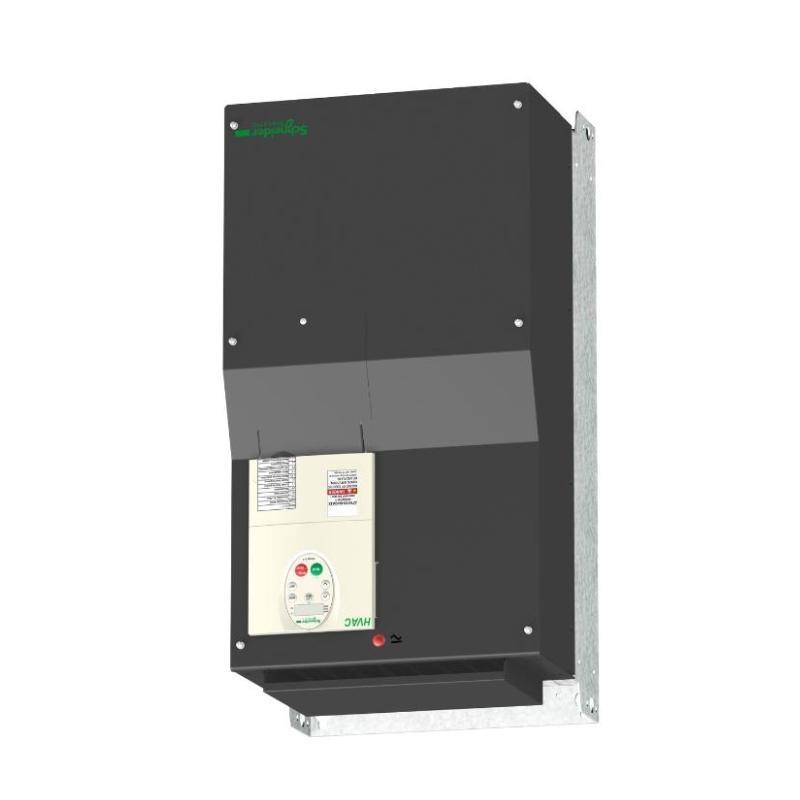

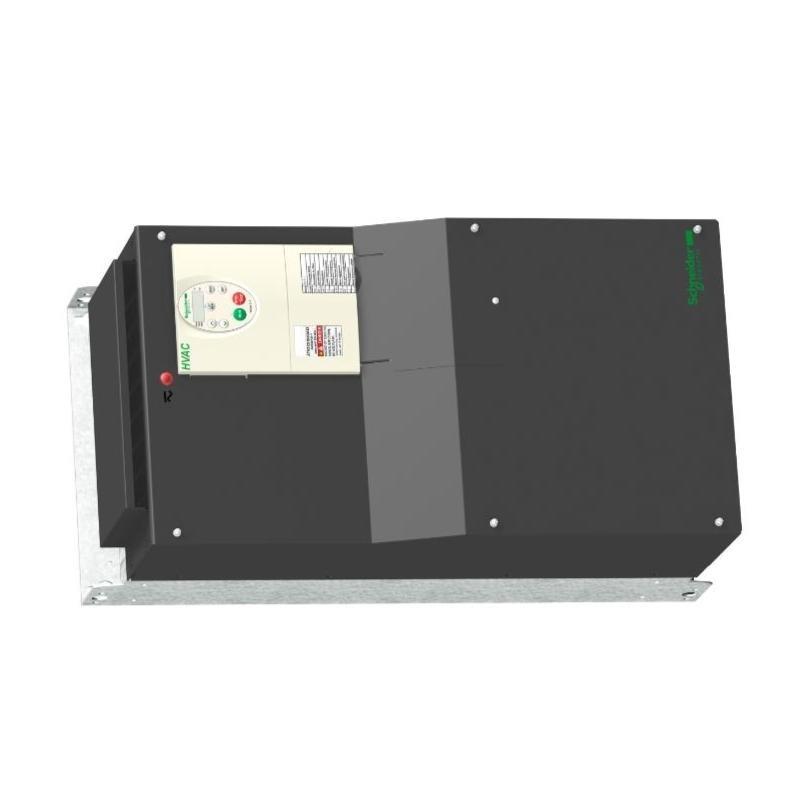

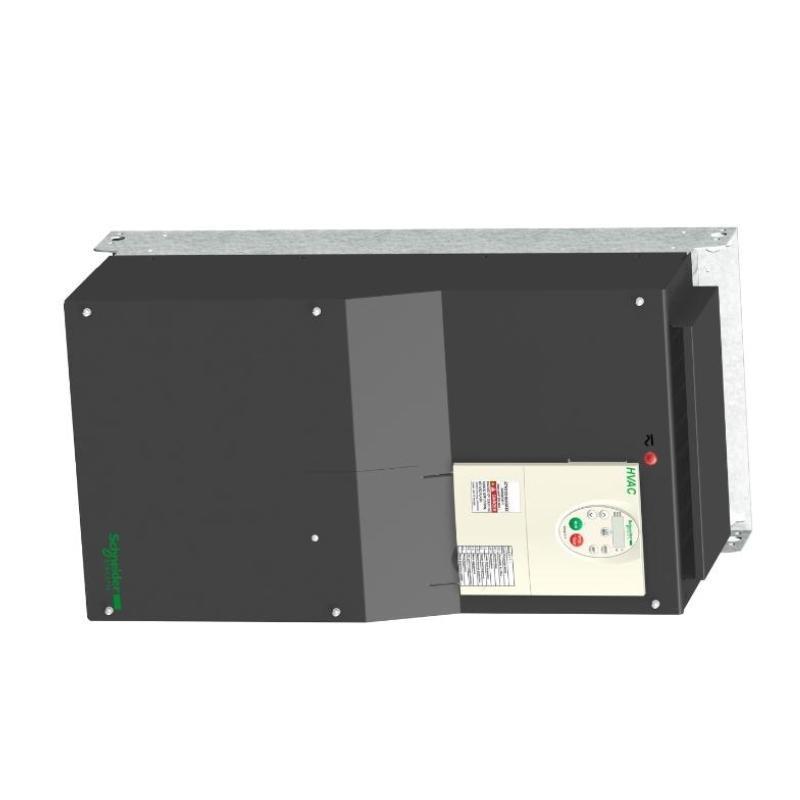

The Schneider Electric ATV212HD75N4 is a high-power variable speed drive from the Altivar 212 series, designed specifically for HVAC and fluid management applications in commercial and large building environments. Rated at 75 kW and operating on a three-phase 380–480 V AC supply, this drive provides reliable and energy-efficient control von pumps and fans used in heating, ventilation, and air conditioning systems.
The drive features an IP21 enclosure and an integrated EMC C2 filter, ensuring compliance with electromagnetic compatibility requirements while simplifying installation. Altivar 212 drives are engineered to improve building operational efficiency and integrate seamlessly into modern automation architectures through native building management system communication.
With dedicated pump and fan control functions, the ATV212HD75N4 delivers typical energy savings von around 30% in HVAC applications. Its ergonomic design, enhanced diagnostics, and communication capabilities significantly simplify commissioning, operation, and maintenance for both installers and operators.
Produktspezifikationen
| Parameter | Specification |
|---|---|
| Modell | ATV212HD75N4 |
| Product Type | Variable Speed Drive |
| Series | Altivar 212 |
| Motor Type | Three-phase asynchronous motor |
| Rated Motor Power | 75 kW |
| Rated Supply Voltage | 380–480 V AC |
| Protection Rating | IP21 |
| EMC Filter | Integrated (C2) |
| Control Methods | Sensorless vector flux control, V/f control (2-point) |
| Energy Saving Function | Dedicated pump and fan control modes |
| Typical Energy Savings | Up to 30% in HVAC applications |
| Harmonic Management | Integrated, no external choke required |
| Communication Protocols (Standard) | Modbus, BACnet, APOGEE FLN, MetaSys N2 |
| Optional Communication | LonWorks |
| Ethernet Port | Integrated |
| Mobile Configuration | Supported via BlueFer communication module |
| Safety Functions | Smoke extraction, shutter control with fault suppression |
| Applicable Standards | IEC 61800-3, IEC 61800-5-1 |
| Certifications | CE, ATEX, UL 508C, UL61800-5-1, CSA, NOM, GOST, EAC, C-Tick, RCM, KC, SIL |
| Environmental Class | IEC 60721-3-3, 3C3 / 3S2 |
| Mounting Orientation | Vertical mounting |
| Dimensions (H × W × D) | 630 × 290 × 320 mm |
| Gewicht | 55.4 kg |
Applications
-
HVAC fan and air handling Stück control
-
Building water pumping and circulation systems
-
Smoke extraction systems in commercial buildings
-
Centralized building automation and management systems
-
Energy-efficient control von variable torque loads
Advantages
-
Optimized specifically for HVAC pump and fan applications
-
Integrated EMC filter reduces installation complexity
-
Native support for major BMS communication protocols
-
Dedicated energy-saving control modes for fluid management
-
Sensorless vector control ensures stable motor operation
-
Ethernet connectivity allows simultaneous tool and network access
-
Mobile configuration capability improves commissioning efficiency
-
Certified to a wide range von international standards
